Abstract

The utility model discloses a portable infant milk maker, which comprises a milk maker body, a water storage box cover, a water storage box, a fixed body, a non-slip rubber pad, a sliding body upper cover, a working button, a handle and a self-priming The main body of the milk machine is provided with a metal pipe groove, and the top of the metal pipe groove is provided with a handle, and the inner side of the upper part of the metal pipe groove is connected with the sliding body through the stepless adjustment track. At the same time, the lower end of the main body of the milk machine is provided with a fixed body, the milk water outlet is set at the top of the milk powder capsule, and the milk powder capsule is connected with the milk powder capsule holder through the milk powder capsule card slot, and the sliding body is A sliding body upper cover is arranged on the top, and working buttons are arranged on the sliding body upper cover. The portable baby milk machine can quickly brew milk suitable for babies, and can also meet the needs of different sizes of feeding bottles and provide timely and high-quality milk for babies when going out.

Description

A portable baby milk machine

technical field

The utility model relates to the technical field of infant milk preparation equipment, in particular to a portable infant milk preparation machine.

Background technique

In daily life, when parents need to brew milk powder for their baby, they often cannot accurately control the concentration and temperature of milk powder by themselves, and often need to manually open the milk powder can, which is prone to moisture and caking or breeding of bacteria. However, the common milk brewers on the market are often large in size, and can only be limited to the kitchen or an indoor environment that can provide a large work surface. When you go out with your baby, you cannot use the milk powder machine to brew milk powder. In addition, the heights of the milk bottles on the market are different, and the vertical distance from the tray under the milk powder machine to the brewing port is a fixed or small adjustment range, which is difficult to match with the common milk bottles on the market, which is easy to cause the brewed milk to splash everywhere. , also makes the milk bubbles increase. There are few milk brewers using capsule milk powder, and there are also problems such as large size and difficulty in adapting to many milk bottles.

At present, there are two common milk brewers on the market, one is a manual milk brewer, and the other is an intelligent constant temperature milk brewer. The manual milk brewer is more convenient to use than the milk bottle, and the concentration of the milk is relatively high. However, the operation is still cumbersome; the intelligent constant temperature milk brewing machine relies on the computer to control the concentration and temperature of milk powder. People do not need to touch the milk powder during the whole process of making milk powder, which not only greatly improves the efficiency, but also increases the safety and convenience. performance, but there are also some disadvantages as follows.

1. Due to the objective factors of the product being large and bulky, the use area of the product can only be limited to a fixed place and cannot be moved at will;

2. There are only two heights that can be adjusted for the moving tray of most milk machines. During the actual milk making process, the height of the milk bottle does not match the height of the milk machine, which causes the milk to splash everywhere and increases the bubbles of the milk;

3. Most milk brewers are designed with large-capacity non-disposable milk powder boxes, but they are not suitable for portable products;

4. The milk machine with more complete functions is often equipped with a large number of function buttons, which will not only limit the design, but also increase the cost of product development and the loss of some accessories, which will cause energy consumption. In addition, a large number of function keys will also cause some trouble to the user.

Utility model content

The purpose of this utility model is to provide a portable infant milk maker, which solves the objective factor that the current market milk maker proposed in the above-mentioned background art is bulky and bulky due to the large size of the product, so that the use area of the product can only be limited to a fixed area. In the actual milking process, the height of the milk bottle does not match the height of the milking machine, causing the milk to splash everywhere, which also makes The milk bubbles increase, and most milk machines are designed with large-capacity non-disposable milk powder boxes, but they are not suitable for portable products.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a portable infant milk maker, comprising a milk maker body, a water storage box cover, a water storage box, a fixed body, a non-slip rubber pad, a sliding body upper cover, A working button, a handle, a self-priming booster pump, and a milking spout, the milk maker body is provided with a metal pipe groove, and the top of the metal pipe groove is provided with a handle, and the inner side of the upper part of the metal pipe groove passes through The stepless adjustment track is connected with the sliding body, and at the same time, the lower end of the main body of the milk maker is provided with a fixed body, the upper part of the fixed body is provided with a fixed body upper cover, and a storage body is arranged above the fixed body upper cover. The upper end of the water storage box is connected to the cover of the water storage box, and the upper end surface of the water storage box cover is provided with a non-slip rubber pad groove, and a non-slip rubber pad is placed inside the non-slip rubber pad groove. The bottom of the water box is provided with a water inlet valve, and the water inlet valve is connected with the instant heating pipe inside the fixed body through a hose, and the instant heating pipe is electrically connected with the Arduino motherboard. The outside is provided with a sliding body shell, and the inside of the sliding body shell is provided with a self-priming booster water pump, and the input end of the self-priming booster pump is connected with the output end of the instant heating pipe through a hose, and at the same time The output end of the self-priming booster water pump is connected with the milk powder outlet, the milk powder outlet is set at the top of the milk powder capsule, and the milk powder capsule is connected with the milk powder capsule holder through the milk powder capsule card slot, and the milk powder capsule holder is set At the front of the sliding body, a sliding body upper cover is arranged on the top of the sliding body, and working buttons are arranged on the sliding body upper cover.

Preferably, the shape structure of the metal pipe groove is an inverted "U" structure, and the interior of the metal pipe groove is communicated with the interior of the fixed body.

Preferably, the sliding body is located just above the cover of the water storage box, and the sliding body is located inside the metal pipe groove.

Preferably, the water storage box cover and the water storage box are in a sealed connection, and the water storage box communicates with the fixed body through a water inlet valve.

Preferably, the milk powder capsule holder is a drawer-type pull-out structure, and the milk powder capsule holder and the sliding body are connected in a snap-fit connection.

Preferably, the milk-brewing water outlet is communicated with the interior of the milk powder capsule, and a milk-brewing water outlet is provided at the lower end of the milk powder capsule.

Preferably, the structure of the milk brewing spout is a one-way water spouting structure, and the milk brewing spout is located at the center of the lower end of the milk powder capsule.

Preferably, the water inlet valve penetrates the upper cover of the fixed body, and the upper cover of the fixed body is located between the water storage box and the fixed body.

Preferably, the anti-slip rubber pad groove is located at the center of the upper end surface of the water storage box cover, the diameter of the inner groove of the anti-skid rubber pad slot is larger than the diameter of the anti-skid rubber pad, and the material of the anti-skid rubber pad is silica gel.

Compared with the prior art, the beneficial effects of the present utility model are: in the portable infant milk maker, the milk maker of this design can rapidly heat water through an instant heating tube, and use a self-priming booster pump to physically pressurize the water. Mixed capsule milk powder can quickly and safely brew milk that can be drunk immediately, with suitable temperature and concentration, and avoid using "thousands of boiling water" to brew milk powder. It has a small size and is easy to carry. It has a stepless sliding adjustment track, which can be used with different heights of feeding bottles. It can quickly brew milk suitable for babies, and can also meet the needs of different sizes of feeding bottles. Give your baby high-quality milk in a timely manner when you go out.

Description of drawings

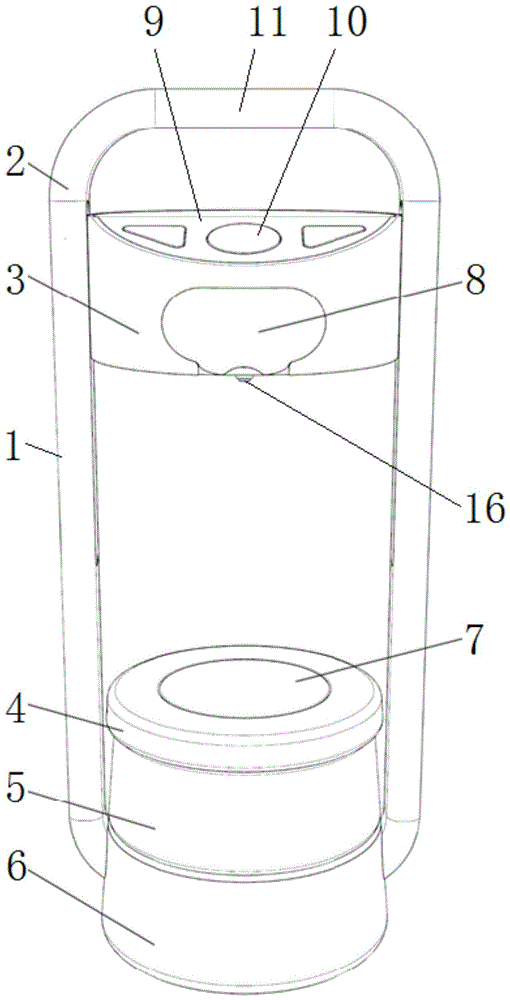

1 is a schematic diagram of the main structure of the milk maker of a portable baby milk maker of the present invention;

Fig. 2 is a schematic diagram of the explosion structure of the main body of the milk maker of a portable baby milk maker of the present invention;

Figure 3 is a schematic diagram of the internal water flow structure of a portable infant milk maker of the present invention;

FIG. 4 is a schematic structural diagram of the use state of a portable infant milk maker according to the present invention;

FIG. 5 is a schematic diagram of the working flow of a portable infant milk maker according to the present invention.

In the picture: 1. Main body of milk maker; 2. Metal pipe groove; 3. Sliding body; 4. Water storage box cover; 5. Water storage box; 6. Fixed body; 7. Anti-skid rubber pad; 8. Capsule Milk powder holder; 9. Sliding body cover; 10. Working button; 11. Carrying handle; 12. Sliding body shell; 13. Self-priming booster pump; 14. Milk outlet; 15. Capsule milk powder; 16 , milk water spout; 17, capsule milk powder card slot; 18, stepless adjustment track; 19, fixed body cover; 20, instant heating tube; 21, Arduino motherboard; 22, water inlet valve; 23, anti-skid Pad slot.

Detailed ways

Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to FIGS. 1-5 , the present utility model provides a technical solution: a portable infant milk maker, comprising a milk maker body 1 , a metal pipe groove 2 , a sliding body 3 , a water storage box cover 4 , and a water storage box 5. Fixed body 6, non-slip rubber pad 7, capsule milk powder holder 8, sliding body cover 9, working button 10, handle 11, sliding body shell 12, self-priming booster pump 13, milk outlet 14. Capsule milk powder 15, milk spout 16, capsule milk powder card slot 17, stepless adjustment track 18, fixed body upper cover 19, instant heating tube 20, Arduino motherboard 21, water inlet valve 22 and anti-slip rubber pad Slot 23, the main body 1 of the milk maker is provided with a metal pipe groove 2, and the top of the metal pipe groove 2 is provided with a handle 11, and the inner side of the upper part of the metal pipe groove 2 is connected with the sliding body 3 through the stepless adjustment rail 18. At the same time, the lower end of the main body 1 of the milk machine is provided with a fixed body 6, the upper part of the fixed body 6 is provided with a fixed body upper cover 19, and a water storage box 5 is arranged above the fixed body upper cover 19, and water storage The upper end of the box 5 is connected to the water storage box cover 4. At the same time, the upper end surface of the water storage box cover 4 is provided with a non-slip rubber pad groove 23. The inside of the anti-skid rubber pad groove 23 is placed with a non-slip rubber pad 7. The bottom is provided with a water inlet valve 22, and the water inlet valve 22 is connected with the instant heating pipe 20 inside the fixed body 6 through a hose, and the instant heating pipe 20 is electrically connected with the Arduino main board 21, and the sliding body 3 is provided with a sliding body shell 12 on the outside, and a self-priming booster water pump 13 is provided inside the sliding body shell 12, and the input end of the self-priming booster pump 13 is connected to the instant heating pipe 20 through a hose. At the same time, the output end of the self-priming booster water pump 13 is connected with the milk water outlet 14. The milk water outlet 14 is arranged on the top of the milk powder capsule 15, and the milk powder capsule 15 is connected to the milk powder capsule 17 through the milk powder capsule slot 17. The capsule milk powder holder 8 is connected, and the capsule milk powder holder 8 is arranged on the front part of the sliding body 3, the top of the sliding body 3 is provided with a sliding body upper cover 9, and a working button 10 is arranged on the sliding body upper cover 9 .

The shape and structure of the metal pipe groove 2 in this example is an inverted "U" structure, and the inside of the metal pipe groove 2 is communicated with the interior of the fixed body 6. This setting mainly provides protection and support for circuits and water pipes, and can Provides support for the sliding body 3 and fixing of the infinitely adjustable rail 18 .

The sliding body 3 is located just above the water storage box cover 4, and the sliding body 3 is located inside the metal pipe groove 2, so that the sliding body 3 can slide up and down inside the metal pipe groove 2, and then the sliding body 3 can be adjusted. The height of the bottle can realize the flushing of milk bottles of different heights.

There is a sealed connection between the water storage box cover 4 and the water storage box 5, and the water storage box 5 is communicated with the fixed body 6 through the water inlet valve 22. This arrangement can avoid the leakage of the water inside the water storage box 5, and also prevent the leakage of the water inside the water storage box 5. It acts as a bottle tray.

The milk powder capsule holder 8 is a drawer-type pull-out structure, and the milk powder capsule holder 8 is connected with the sliding body 3 in a snap connection, so that the milk powder capsule 15 can be supported and the milk powder capsule 15 can be replaced.

The brewing water outlet 14 communicates with the inside of the milk powder capsule 15, and the lower end of the milk powder capsule 15 is provided with a brewing water outlet 16, so that the brewed milk powder inside the milk powder capsule 15 can be added to the milk bottle.

The structure of the milk spout 16 is a one-way water outlet structure, and the milk spout 16 is located in the center of the lower end of the milk powder capsule 15. This arrangement can prevent the residual milk from dripping at the milk spout 16 and prevent it from falling to the non-slip rubber pad. 7 on.

The water inlet valve 22 penetrates through the upper cover 19 of the fixed fuselage, and the upper cover 19 of the fixed fuselage is located between the water storage box 5 and the fixed fuselage 6, so that the water inlet valve 22 can pass through the upper cover 19 of the fixed fuselage. The function of communicating with the through hole in the fixed body 6 that is the heating type heating pipe 20 is beneficial to the heating treatment of the water inside the water storage box 5 .

The anti-skid rubber pad groove 23 is located at the center of the upper end surface of the water storage box cover 4, and the diameter of the inner groove of the anti-skid rubber pad groove 23 is larger than the diameter of the anti-skid rubber pad 7, and the material of the anti-skid rubber pad 7 is silicone material. The placement of the anti-skid rubber pad 7 inside the anti-skid rubber pad groove 23 is beneficial to the stable sliding of the feeding bottle.

Working principle: When using the portable baby milk machine, first lift the milk machine body 1 to the place where it is placed by the handle 11, and then turn on the power supply of the milk machine body 1. Pull the capsule milk powder holder 8 outside, put the capsule milk powder 15 into the capsule milk powder card slot 17 on the capsule milk powder holder 8, and then push the capsule milk powder holder 8, so that the capsule milk powder holder 8 passes the capsule milk powder card slot 17 to the capsule milk powder 15. Bring it into the interior of the fixed body 6, insert the milk water outlet 14 into the water inlet on the milk powder capsule 15, and place the milk bottle on the anti-skid rubber pad 7 above the water storage box cover 4, so that the milk bottle mouth is located in the water inlet. Just below the milk spout 16, move the sliding body 3 on the metal pipe groove 2 through the stepless adjustment track 18, adjust the milk spout 16 to a suitable height, and finally, slide the body cover 9 on the Press the work button 10 to start the milk maker body 1, the water inlet valve 22 is opened, and the water inside the water storage box 5 enters the instant heating tube 20 through the water inlet valve 22, and is heated by the instant heating tube 20. , into the capsule milk powder 15 through the self-priming booster pump 13 , and into the milk bottle through the milk water outlet 16 .

The content not described in detail in this specification belongs to the prior art known to those skilled in the art. Although the present invention has been described in detail with reference to the foregoing embodiments, for those skilled in the art, it is still possible to The technical solutions described in the embodiments are modified, or some technical features thereof are equivalently replaced, and any modifications, equivalent replacements, improvements, etc. made within the spirit and principle of the present utility model shall be included in the present utility model. within the scope of protection.

Claims (9)

1. The utility model provides a portable baby dashes milk machine, includes towards milk machine main part (1), water storage box lid (4), water storage box (5), fixed fuselage (6), anti-skidding cushion (7), slip fuselage upper cover (9), work button (10), carrying handle (11), from inhaling formula booster pump (13) and towards milk faucet (16), its characterized in that: the milk brewing machine is characterized in that a metal pipe groove (2) is arranged on a milk brewing machine body (1), a carrying handle (11) is arranged at the top of the metal pipe groove (2), the inner side of the upper part of the metal pipe groove (2) is connected with a sliding machine body (3) through a stepless adjusting track (18), a fixed machine body (6) is arranged at the lower end of the milk brewing machine body (1), a fixed machine body upper cover (19) is arranged at the upper part of the fixed machine body (6), a water storage box (5) is arranged above the fixed machine body upper cover (19), the upper end of the water storage box (5) is connected with a water storage box cover (4), an anti-skid rubber pad groove (23) is arranged on the upper end face of the water storage box cover (4), an anti-skid rubber pad (7) is placed in the anti-skid rubber pad groove (23), a water inlet valve (22) is arranged at the bottom of the water storage box (5), and the water inlet valve (22) is connected with an, and the instant heating type heating tube (20) is electrically connected with the Arduino mainboard (21), a sliding machine body shell (12) is arranged outside the sliding machine body (3), and a self-suction type booster pump (13) is arranged in the sliding machine body shell (12), and the input end of the self-priming booster water pump (13) is connected with the output end of the instant heating type heating pipe (20) through a hose, meanwhile, the output end of the self-suction booster pump (13) is connected with the milk flushing water outlet (14), the milk making water outlet (14) is arranged at the top end of the capsule milk powder (15), the capsule milk powder (15) is connected with the capsule milk powder holder (8) through the capsule milk powder clamping groove (17), and the capsule milk powder support (8) is arranged at the front part of the sliding machine body (3), the top of the sliding machine body (3) is provided with a sliding machine body upper cover (9), and the sliding machine body upper cover (9) is provided with a working key (10).

2. The portable baby formula machine of claim 1, characterized in that: the shape structure of the metal pipe groove (2) is an inverted U-shaped structure, and the interior of the metal pipe groove (2) is communicated with the interior of the fixed machine body (6).

3. The portable baby formula machine of claim 1, characterized in that: the sliding machine body (3) is positioned right above the water storage box cover (4), and the sliding machine body (3) is positioned on the inner side of the metal pipe groove (2).

4. The portable baby formula machine of claim 1, characterized in that: the water storage box cover (4) is hermetically connected with the water storage box (5), and the water storage box (5) is communicated with the fixed machine body (6) through a water inlet valve (22).

5. The portable baby formula machine of claim 1, characterized in that: the capsule milk powder support (8) is of a drawer type drawing structure, and the capsule milk powder support (8) is connected with the sliding machine body (3) in a clamping mode.

6. The portable baby formula machine of claim 1, characterized in that: the milk brewing water outlet (14) is communicated with the interior of the capsule milk powder (15), and the lower end of the capsule milk powder (15) is provided with a milk brewing water outlet nozzle (16).

7. The portable baby formula machine of claim 1, characterized in that: the structure of the milk flushing water nozzle (16) is a one-way water outlet structure, and the milk flushing water nozzle (16) is positioned in the center of the lower end of the capsule milk powder (15).

8. The portable baby formula machine of claim 1, characterized in that: the water inlet valve (22) penetrates through the upper cover (19) of the fixed machine body, and the upper cover (19) of the fixed machine body is positioned between the water storage box (5) and the fixed machine body (6).

9. The portable baby formula machine of claim 1, characterized in that: the anti-skidding rubber mat groove (23) is located the central part of water storage box cover (4) up end, and the diameter of anti-skidding rubber mat groove (23) inside groove is greater than the diameter of anti-skidding rubber mat (7) to the material of anti-skidding rubber mat (7) is the silica gel material.
