Abstract

The utility model relates to the technical field of agricultural irrigation, in particular to a water spray device for agricultural irrigation, which solves the shortcomings of the prior art that the flexibility of agricultural irrigation is low, its function is single, and it cannot meet the needs of the existing agricultural irrigation. It includes a base plate, the upper surface of the base plate is fixed with a column, and the top of the column is provided with a bearing plate, a water tank is arranged on it, the two sides of the water tank are provided with spray pipes, and the sleeves are arranged on both sides of the top of the upper base plate, The output end of the sleeve is connected with a support rod, a bearing is arranged on the support rod, and the outer side of the bearing is fixedly connected with a hard pipe. The utility model realizes the whole agricultural irrigation operation through the angle-adjustable and height-adjustable sprinkler heads, the operation range is widely adjustable, and the manual sprinkler head is used to artificially make up part of the dead angle irrigation operation, so as to ensure the irrigation of the equipment. All-round, the overall irrigation operation is convenient, simple and reliable.

Description

A water spray device for agricultural irrigation

technical field

The utility model relates to the technical field of agricultural irrigation, in particular to a water spray device for agricultural irrigation.

Background technique

Agricultural irrigation mainly refers to the irrigation operations carried out on agricultural farming areas. Agricultural irrigation methods can generally be divided into traditional ground irrigation, ordinary sprinkler irrigation and micro-irrigation.

Agricultural irrigation is an indispensable part of agricultural planting, but the existing agricultural irrigation has low flexibility and single function, which cannot meet the needs of existing agricultural irrigation.

Utility model content

The purpose of the utility model is to solve the shortcomings of the prior art that the flexibility of agricultural irrigation is low, its function is single, and it cannot meet the needs of the existing agricultural irrigation, and proposes a water spray device for agricultural irrigation.

In order to achieve the above-mentioned purpose, the utility model adopts the following technical solutions:

A water spray device for agricultural irrigation, comprising a base plate, the upper surface of the base plate is fixedly provided with a vertical column, and the top of the vertical column is provided with a carrying plate, a water tank is arranged on it, and both sides of the water tank are provided with spray pipes, sleeves It is arranged on both sides of the top of the base plate, and the output end of the sleeve is connected with a support rod, which is provided with a bearing, and the outer side of the bearing is fixedly connected with a hard pipe, the end of the hard pipe is installed with a spray head, and the hard pipe and the spray The shower pipe is connected.

Preferably, a water pipe is communicated with the bottom of the water tank, and a manual spray head is installed at the end of the water pipe, and a valve is also provided on the water pipe.

Preferably, a fixing screw is arranged between the sleeve and the support rod, the support rod is provided with a plurality of fixing slots, and one end of the fixing screw is located inside the fixing slot.

Preferably, a limit plate is fixedly arranged on the top of the support rod.

Preferably, the top of the water tank is provided with a feeding slot.

Preferably, the sprinkler head is provided with a plurality of irrigation holes, and the sprinkler pipe is provided with a valve.

Compared with the prior art, the utility model realizes the overall agricultural irrigation operation through the angle-adjustable and height-adjustable sprinkler heads, and the operation range is widely adjustable, and further artificially fills up part of the dead angle irrigation through the manual sprinkler heads. The operation ensures the omni-directionality of equipment irrigation, and the overall irrigation operation is convenient, simple and reliable.

Description of drawings

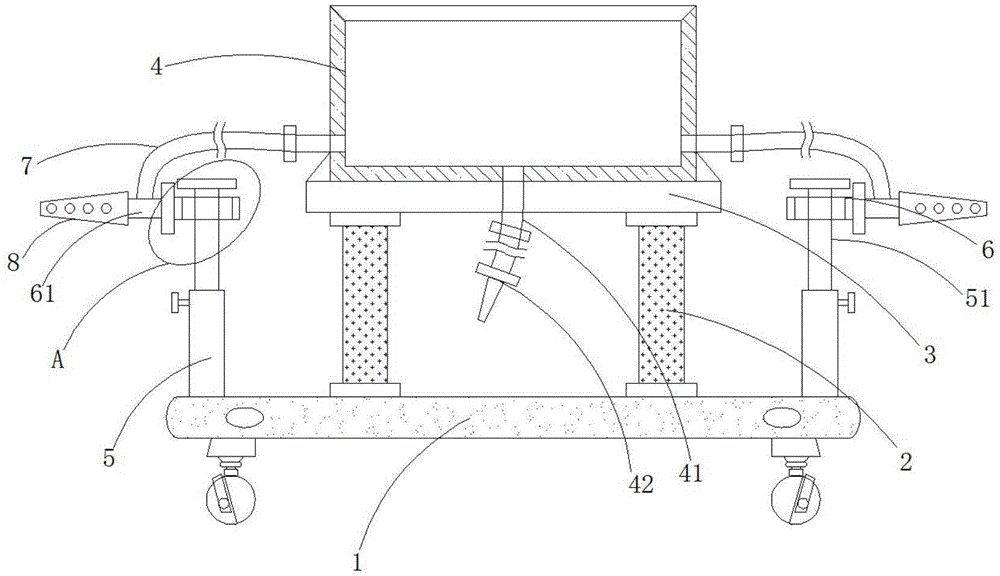

Fig. 1 is the structural representation of a kind of agricultural irrigation water spray device proposed by the utility model;

FIG. 2 is a schematic diagram of the structure of a water spray device for agricultural irrigation proposed by the utility model at position A. FIG.

In the picture: 1 base plate, 2 column, 3 carrier plate, 4 water tank, 41 water pipe, 42 manual sprinkler head, 5 casing, 51 support rod, 52 limit plate, 6 bearing, 61 hard pipe, 7 sprinkler pipe , 8 sprinklers.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. The following description of at least one exemplary embodiment is merely illustrative in nature and is in no way intended to limit the invention, its application or uses in any way. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-2 , an embodiment of the present invention provides a water spray device for agricultural irrigation, including a base plate 1, the upper surface of the base plate 1 is fixed with a column 2 by screws, and the top of the column 2 is welded with a bearing plate 3. The upper position is provided with a water tank 4, both sides of the water tank 4 are connected with a spray pipe 7, the casing 5 is arranged on both sides of the top of the base plate 1, and the output end of the casing 5 is connected with a support rod 51, which is A bearing 6 is provided on it, and a hard pipe 61 is fixedly connected to the outside of the bearing 6. The end of the hard pipe 61 is installed with a sprinkler head 8, and the installation and rotation angle adjustment of the sprinkler head 8 are realized by using the bearing 6, and the rigid pipe 61 and the The spray pipe 7 is connected to ensure water inflow.

In this embodiment, a water pipe 41 is communicated with the bottom of the water tank 4, and a manual spray head 42 is installed at the end of the water pipe 41. The water pipe 41 is also provided with a valve, and the manual spray head 42 is used for artificial spraying work. .

A fixed screw is arranged between the sleeve 5 and the support rod 51, a plurality of fixed slot holes are opened on the support rod 51, and one end of the fixed screw is located inside the fixed slot, and the fixed screw is in different fixed slots through the fixed screw. , the working height of the support rod 51 can be adjusted, and then the working height of the shower head 8 can be adjusted to adapt to different working requirements.

Specifically, the top of the support rod 51 is fixedly provided with a limiting plate 52 , the top of the water tank 4 is provided with a feeding slot to facilitate adding liquid, the sprinkler head 8 is provided with a plurality of irrigation holes, and the sprinkler pipe 7 is provided with Valves, control the progress of the work.

In this embodiment, by arranging the sprinkler heads 8 on both sides of the base plate 1, irrigation work can be realized on both sides, and the sprinkler head 8 can be rotated on the support rod 51 through the bearing 6 to realize the adjustment of the working angle. The working height of the support rod 51 is adjusted by the fixed screw, and then the working height of the sprinkler head 8 is also adjusted. The range of the sprinkling work is widely adjustable, which is convenient for irrigation.

In addition, a water pipe 41 and a manual sprinkler head 42 are also connected to the bottom of the water tank 4. When necessary, the manual sprinkler head 42 can be grasped to artificially perform agricultural irrigation work in part of the dead angle to ensure the all-round irrigation of the equipment. In addition, the equipment realizes irrigation water output through the height difference of the water tank 4, which avoids energy consumption, and the overall irrigation operation is convenient, simple, energy-saving and reliable.

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (6)

1. a water spray device for agricultural irrigation, is characterized in that, comprises: A base plate (1), the upper surface of the base plate (1) is fixedly provided with a column (2), and the top of the column (2) is provided with a carrier plate (3), on which is provided a water tank (4), Both sides are provided with spray pipes (7); The sleeve (5) is arranged on both sides of the top of the base plate (1), and the output end of the sleeve (5) is connected with a support rod (51), on which a bearing (6) is arranged, and the outer side of the bearing (6) A hard pipe (61) is fixedly connected, a spray head (8) is installed at the end of the hard pipe (61), and the hard pipe (61) is communicated with the spray pipe (7). 2. A water spray device for agricultural irrigation according to claim 1, wherein a water pipe (41) is communicated with the bottom of the water tank (4), and a manual spray is installed at the end of the water pipe (41). The shower head (42) is also provided with a valve on the water pipe (41). 3. A water spray device for agricultural irrigation according to claim 1, wherein a fixed screw is provided between the casing (5) and the support rod (51), and the support rod (51) is provided with a A plurality of fixing slots are provided, and one end of the fixing screw is located inside the fixing slot. 4. A water spray device for agricultural irrigation according to claim 3, characterized in that a limiting plate (52) is fixedly arranged on the top of the support rod (51). 5. A water spray device for agricultural irrigation according to claim 1, characterized in that, a feeding slot is opened on the top of the water tank (4). 6. A water spray device for agricultural irrigation according to claim 1, characterized in that, the spray head (8) is provided with a plurality of irrigation holes, and the spray pipe (7) is provided with a valve.
