Abstract

The utility model discloses a communication box with a heat dissipation function, which comprises a base, a box body, a top cover, a box door and a cooling fan. A box body is welded on the base. The box door is also hinged through hinges, four symmetrical telescopic installation columns are welded at the bottom end of the base, and several support springs are connected to the base between the four telescopic installation columns. A connecting spring is installed, a cooling fan is installed at the inner bottom end of the inner box, a serpentine cooling pipe is installed above the cooling fan, an isolation net is welded on the upper part of the cooling pipe, and the top of the box is also installed with a top through a connecting column. The new type of communication box circulates the cold water in the cooling water tank into the cooling pipe through the circulating pump, and through the action of the cooling fan, the cooling fan blows and dissipates heat, and sends the cold air from the cooling pipe to the communication box. The cooling effect is good and the heat dissipation is comprehensive.

Description

A communication box with heat dissipation function

technical field

The utility model belongs to the technical field of communication equipment, in particular to a communication box with a heat dissipation function.

Background technique

With the rapid development of the modern scientific level, various communication methods such as radio, fixed telephone, mobile telephone, Internet and even video telephone have appeared one after another. Communication technology has shortened the distance between people, improved economic efficiency, and profoundly changed the way of life and social outlook of human beings. The safety of using the communication box plays an important role in the safe operation and dispatch of the power station.

In view of the above problems, the existing communication boxes are designed with heat dissipation structures, and generally use a combination of heat dissipation fans and heat dissipation holes for heat dissipation. The rainwater from the outside enters the box, which damages the internal communication equipment and is not conducive to the use.

Utility model content

The purpose of the utility model is to solve the problems in the prior art and propose a communication box with a heat dissipation function.

In order to achieve the above-mentioned purpose, the utility model adopts the following technical solutions:

A communication box with heat dissipation function, comprising a base, a box body, a top cover, a box door and a cooling fan, a box body is welded on the base, and the box body includes an outer box body and an inner box body, the box body is The body is also hinged with a box door through hinges, the bottom end of the base is welded with four symmetrical telescopic mounting posts, and a number of support springs are connected to the base between the four telescopic mounting posts, each of which is A connecting spring is installed in the telescopic mounting column, a cooling fan is installed at the inner bottom end of the inner box, a serpentine arrangement of refrigeration pipes is installed above the cooling fan, and an isolation is welded on the top of the refrigeration pipe. The top of the box body is also installed with a top cover through a connecting column.

Preferably, a matching door lock is installed on the box door and the box body, and an observation window made of transparent tempered glass is also inlaid on the box door.

Preferably, the interior of the outer box is connected to the inner box through a plurality of heat-conducting fins, and a number of heat dissipation holes are provided on the top of the outer box and the top of the inner box and on both sides thereof. A louver-shaped radiating window is arranged above both sides of the body, and a number of air outlet holes are arranged below the radiating window.

Preferably, a refrigerating water tank is installed in the base, a plurality of refrigerators connected in parallel by wires are installed in the refrigerating water tank, and both ends of the refrigerating water tank are connected with the openings at both ends of the refrigerating pipe through hoses, And a circulating pump is also installed on one of the hoses, a temperature sensor is installed inside the inner box, the temperature sensor is connected to the control device installed in the base through a wire, and the control device is connected to the cooling fan and the circulating pump through a wire. and refrigerator.

Preferably, the control device includes a 51 single-chip microcomputer and a cooling fan controller, a pump body controller and a refrigeration controller connected by a wire, and the temperature sensor is connected to the 51 single-chip microcomputer, a cooling fan controller, and a pump body controller through a wire. and the refrigeration controller are respectively connected to the cooling fan, the circulating pump and the refrigerator through wires.

Preferably, the telescopic mounting column is two outer and inner columns that are sleeved together, and the inner column is connected to the outer column by a connecting spring, and the rear end of the inner column has its own mounting seat.

Preferably, the inner top end of the top cover is welded with a connecting column, and the connecting column is threadedly connected to the top end of the box body through connecting bolts.

Compared with the prior art, the utility model provides a communication box with a heat dissipation function, which has the following beneficial effects:

(1) The new communication box circulates the cold water in the refrigeration water tank into the refrigeration pipe through the circulating pump, and through the action of the cooling fan, the cooling fan sends the cold air emitted by the refrigeration pipe to the communication pipe while blowing and dissipating heat. All parts of the box are dissipated by the combination of water cooling and air cooling, with good heat dissipation effect and comprehensive heat dissipation.

(2) The new communication box can improve the waterproof ability of the box through the design of double box body and top cover, and the heat dissipation holes, heat dissipation windows and air outlet holes can discharge the hot air in the box in time, and the heat conduction sheet Directly in contact with the box, it can conduct heat to the outside in time, exhaust heat in time, and has strong waterproofness.

(3) The new type of communication box can use the elastic force of the spring to reduce the vibration of the box body through the telescopic installation column with the connecting spring and the support spring, which is beneficial to protect the communication equipment in the communication box and make it work normally .

The parts not involved in the device are the same as the prior art or can be realized by adopting the prior art. The utility model has a simple structure and is convenient to operate.

Description of drawings

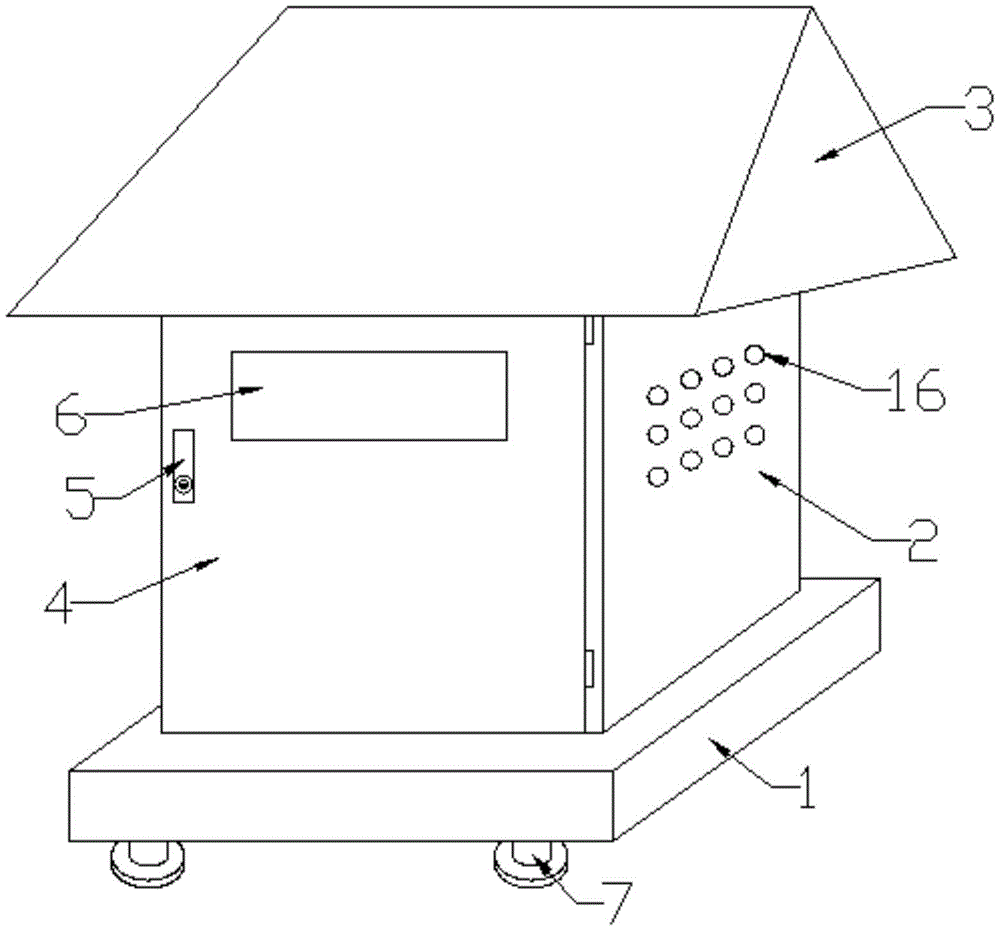

Fig. 1 is the subjective structure schematic diagram of a kind of communication box with heat dissipation function proposed by the utility model;

2 is a schematic diagram of the internal cross-sectional structure of the box body of a communication box with a heat dissipation function proposed by the utility model;

3 is a schematic structural diagram of a refrigeration pipe of a communication box with a heat dissipation function proposed by the utility model;

In the figure: 1. Base; 2. Box body; 3. Top cover; 4. Box door; 5. Door lock; 6. Observation window; 7. Telescopic installation column; 8. Connection spring; 9. Support spring; 10 , outer box; 11, inner box; 12, connecting column; 13, connecting bolt; 14, cooling hole; 15, cooling window; 16, air outlet; 17, cooling fan; 18, refrigeration pipe; 19, hose 20, circulating pump; 21, control device; 22, refrigerator; 23, isolation net; 24, refrigeration water tank; 25, heat conduction sheet; 26, temperature sensor.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example.

In the description of the present invention, it should be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inside", The orientation or positional relationship indicated by "outside" is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the indicated device or element must have a specific orientation , are constructed and operated in a specific orientation, and therefore should not be construed as a limitation of the present invention.

Example 1

As shown in Figure 1-3, a communication box with heat dissipation function includes a base 1, a box body 2, a top cover 3, a box door 4 and a cooling fan 17. The base 1 is welded with a box body 2, and the box body 2 It includes an outer box body 10 and an inner box body 11. The box body 2 is also hinged with a box door 4 through hinges. The bottom end of the base 1 is welded with four symmetrical telescopic mounting posts 7, and between the four telescopic mounting posts 7 A number of support springs 9 are connected to the base 1, and each telescopic installation column 7 is installed with a connection spring 8. Through the elastic action of the support spring 9 and the connection spring 8, the vibration of the box body 2 can be reduced, which is conducive to protecting The communication equipment inside makes it work normally. A cooling fan 17 is installed at the inner bottom end of the inner box 11 , a serpentine arrangement of refrigeration pipes 18 is installed above the cooling fan 17 , and an isolation net 23 is welded on the top of the refrigeration pipe 18 . , the refrigeration pipe 18 can be isolated, and the top cover 3 is also installed on the top of the box body 2 through the connecting column 12 .

A matching door lock 5 is installed on the box door 4 and the box body 2, so that the box door 4 is locked on the box body 2, and the box door 4 is also inlaid with a transparent tempered glass. Observe the working conditions of the communication equipment in the box 2.

The inside of the outer box 10 is connected to the inner box 11 through a plurality of heat-conducting sheets 25 . The top of the outer box 10 and the top of the inner box 11 and above both sides are provided with a number of heat dissipation holes 14 . A louver-shaped heat dissipation window 15 is arranged above the two sides, and a number of air outlet holes 16 are arranged below the heat dissipation window 15 .

The communication box can improve the waterproof ability of the box body 2 through the design of the double box body and the top cover 3, and the heat dissipation holes 14, the heat dissipation windows 15 and the air outlet holes 16 can be arranged to discharge the hot air in the box body 2 in time, and the heat conduction sheet 25 is in direct contact with the box body 2, which can conduct heat to the outside in time, exhaust heat in time, and has strong waterproofness.

Example 2

As shown in Figures 1-3, a cooling water tank 24 is installed in the base 1, and a number of refrigerators 22 connected in parallel by wires are installed in the cooling water tank 24. Both ends of the cooling water tank 24 are connected to the cooling pipe 18 through the hose 19. The two ends of the tube are open and connected, and a circulating pump 20 is also installed on one of the hoses 19. A temperature sensor 26 is installed inside the inner box 11. The temperature sensor 26 is connected to the control device 21 installed in the base 1 through a wire, and the control device 21 The cooling fan 17 , the circulation pump 20 and the refrigerator 22 are connected by wires.

The control device 21 includes a 51 single-chip microcomputer and a cooling fan controller, a pump body controller and a refrigeration controller connected by the 51 single-chip microcomputer through wires. The temperature sensor 26 is connected to the 51 single-chip microcomputer through a wire. The wires are respectively connected to the cooling fan 17 , the circulation pump 20 and the refrigerator 22 .

The telescopic mounting column 7 is an outer column and an inner column that are sleeved together, and the inner column is connected to the outer column through a connecting spring 8 , and the rear end of the inner column also has a mounting seat.

The inner top of the top cover 3 is welded with a connecting column 12. The connecting column 12 is threadedly connected to the top of the box body 2 through the connecting bolts 13. The top cover 3 can be disassembled. According to the installation situation, the top cover 3 is installed outdoors in the box body. 2, to shield from wind and rain, and indoors, remove the top cover 3, so that the box 2 can exhaust heat.

Specifically, the equipment that comes with the communication box is connected to the power supply box of the communication equipment to supply power. The temperature sensor 26 senses the temperature in the inner box 11, and sends the temperature signal to the single-chip microcomputer 51 in the control device 21. , compared with the preset temperature value in it, when the preset temperature value is reached, the control unit of the 51 single-chip microcomputer sends a signal to the cooling fan controller, the pump body controller and the cooling controller, so that they control the cooling fan 17, The circulating pump 20 and the refrigerator 22 work. The refrigerator 22 cools the water in the cooling water tank 24. Under the action of the circulating pump 20, the water circulates through the hose 19, the cooling pipe 18 and the hose 19, and returns to the cooling water tank 24. At the same time, the cooling fan 17 works, sending the cold air emitted by the cooling pipe 18 to the communication box, and dissipating heat through the combination of water cooling and air cooling. The heat conducting sheet 25 is discharged in time.

It should be noted that the communication box disclosed in the present invention dissipates heat by combining water cooling and air cooling, with comprehensive heat dissipation and good heat dissipation effect, and the provided connection spring 8 and support spring 9 can improve the shock absorption capability of the box body 2 .

The above are only the preferred specific embodiments of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (7)

1. A communication box with a heat dissipation function, comprising a base (1), a box body (2), a top cover (3), a box door (4) and a cooling fan (17), characterized in that the base ( 1) A box body (2) is welded on it, the box body (2) includes an outer box body (10) and an inner box body (11), and the box body (2) is also hinged with a box door (4) through a hinge The bottom end of the base (1) is welded with four symmetrical telescopic mounting posts (7), and a plurality of support springs are connected to the base (1) between the four telescopic mounting posts (7). (9), a connecting spring (8) is installed in each of the telescopic mounting posts (7), a cooling fan (17) is installed at the inner bottom end of the inner box (11), and the cooling fan ( 17) is installed above the serpentine arrangement of refrigeration pipes (18), the above refrigeration pipes (18) are welded with isolation nets (23), and the top of the box body (2) is also installed by connecting columns (12) With top cover (3). 2. A communication box with heat dissipation function according to claim 1, characterized in that a matching door lock (5) is installed on the box door (4) and the box body (2), and the box The door (4) is also inlaid with an observation window (6) made of transparent tempered glass. 3. A communication box with heat dissipation function according to claim 1, characterized in that, the inside of the outer box (10) is connected to the inner box (11) through a plurality of heat conducting fins (25), so The top of the outer box (10) and the top of the inner box (11) and the tops of both sides thereof are provided with a plurality of heat dissipation holes (14), and the upper sides of the outer box (10) are provided with louver-shaped A heat dissipation window (15) is provided, and several air outlet holes (16) are arranged below the heat dissipation window (15). 4. The communication box with heat dissipation function according to claim 1, wherein a cooling water tank (24) is installed in the base (1), and several cooling water tanks (24) are installed in the cooling water tank (24). In the refrigerator (22) connected in parallel by wires, both ends of the refrigeration water tank (24) are connected to the two ends of the refrigeration pipe (18) through hoses (19), and one of the hoses (19) is connected to A circulating pump (20) is also installed, a temperature sensor (26) is installed inside the inner box (11), and the temperature sensor (26) is connected to the control device (21) installed in the base (1) through a wire, The control device (21) is connected to the cooling fan (17), the circulation pump (20) and the refrigerator (22) through wires. 5. a kind of communication box with heat dissipation function according to claim 4 is characterized in that, described control device (21) comprises 51 single-chip microcomputer and 51 single-chip microcomputer through the wire-connected cooling fan controller, pump body controller and Refrigeration controller, the temperature sensor (26) is connected to the 51 single-chip microcomputer through wires, and the cooling fan controller, the pump body controller and the refrigeration controller are respectively connected to the cooling fan (17), the circulating pump (20) and the refrigerator (22) through the wires ). 6. A communication box with heat dissipation function according to claim 1, characterized in that, the telescopic mounting post (7) is two outer and inner cylinders that are sleeved together, and the inner The cylinder is connected in the outer cylinder through a connecting spring (8), and the rear end of the inner cylinder also has its own mounting seat. 7. A communication box with heat dissipation function according to claim 1, characterized in that a connecting column (12) is welded on the inner top of the top cover (3), and the connecting column (12) is connected by a connecting bolt (13) is screwed on the top of the box body (2).
