Abstract

The utility model belongs to the field of purified water treatment, in particular to a car washing device with purified water and concentrated water; the water inlet of the water purification device in a water plant is connected with an outlet with a purified water source, and the water purification device in the water factory is provided with a pure water outlet and concentrated water The water outlet, the pure water outlet is connected to the user's water supply control device through a water delivery pipe, and the concentrated water outlet is connected to the water inlet of the concentrated water collection and automatic discharge device through a water delivery pipe. The water supply pipe is connected with the user's water supply control device, and the user's water supply control device is connected with the car wash device through the water supply pipe; the large amount of concentrated water produced by the water purifier and the water plant is applied to the car wash device to save water consumption, which can not only process a large amount of concentrated water, but also It can save the cost of car washing water and save the cost.

Description

A car washing device with purified water and concentrated water

Technical field:

The invention belongs to the field of purified water treatment, and in particular relates to a car washing device with purified water and concentrated water.

Background technique:

Water purification is the process of removing rust, sediment, residual chlorine, organic matter, harmful heavy metal ions, bacteria, viruses, etc. Obviously, if the physical filtration method is used in the whole process of water purification, it will not generate or add any new substances in the water, and it will not change the properties of the water, so it is the safest method.

At present, water purification and sewage treatment technologies can be roughly classified into three categories: physical methods (precipitation, floating, flotation, centrifugal separation, filtration, evaporation, crystallization, freezing, magnetization, electrolysis, reverse osmosis, etc.), chemical methods (coagulation, neutralization, oxidation, reduction, displacement, ion exchange, electrodialysis, etc.), biological methods (aerobic biological treatment and anaerobic biological treatment).

Through on-the-spot investigation, the wastewater produced in the water treatment process of the water purification plant accounts for about 4%-7% of the total treated water volume of the water plant, mainly including the sludge discharge water from the sedimentation tank, the clarification tank and the backwash water of the filter tank. Slurry water accounts for about 42.5% of the water plant's own water consumption (water plant's own water consumption for one row of muddy water + filter backwash water + other water use); the water delivery station sends about 450 barrels of water to users every day, a barrel of 18.9L, every day To drink about 8.505 tons, according to the survey data, the water purification plant purifies according to the ratio of 1:1. Every time it is purified into a bucket of pure water, 18.9L of water is wasted, so half of the water is wasted every day. And manual car washing generally requires 50-80 liters of water per car. According to the degree of dirtiness of the car, it needs about 120 liters for serious ones! That is to say, 1 ton of water can wash about 10 cars. The car wash basically uses tap water to wash the car directly, and the cost is relatively high. Car wash shops wash about 50 cars a day on average, and the number will increase during holidays. 1 ton of water can wash about 8 cars, so the daily water consumption of the car wash shop is about 6 tons, and 200 tons of tap water is used in a month.

The wastewater produced by the water purification plant in the water treatment process is directly discharged, resulting in a waste of water resources. How to recycle the wastewater is an urgent problem to be solved.

Utility model content:

The utility model aims to recycle the waste water generated in the water treatment process and apply it to the car washing industry, save water resources and reduce costs. The generated wastewater is treated to meet application standards and recycled for use in car washes.

A car washing device for purified water and concentrated water includes a water purification device for a water plant, a water collection sedimentation filtering device, a user water supply control device, a user water supply device, a car washing device and a concentrated water collection and automatic discharge device; The water outlet is connected to the water source to be purified, and the water purification device of the water plant is provided with a pure water outlet and a concentrated water outlet. The water inlet of the water collection and automatic discharge device is connected, and the concentrated water outlet is connected to the water collection sedimentation filter device through the water delivery pipe, and the water collection sedimentation filter device is connected to the user water supply control device through the water delivery pipe. The device is connected; the concentrated water collection and automatic discharge device includes a water collecting tank and a concentrated water inverted siphon water delivery pipe. The water inlet of the siphon water conveying pipe is fixed inside the water collecting tank, and the water outlet pipe of the said concentrated water inverted siphon water conveying pipe is connected with the water conveying pipe connecting the water purification device of the water plant and the water collecting sedimentation filtering device; the said water collecting sedimentation filter The device includes a water collecting sedimentation tank, a first liquid level relay, an anode salt ion electro-adsorption plate, a cathode salt ion electro-adsorption plate, a DC power supply and a waste water filter. The plant water purification device is connected to the concentrated water collection and automatic discharge device, and the anode salt ion electro-adsorption plate and the cathode salt ion electro-adsorption plate are fixed and parallel installed in the water collection and sedimentation tank. The anode salt ion electro-adsorption plate and the cathode The salt ion electro-adsorption plate is connected to the DC power supply through a connecting line, the first liquid level relay control device is fixedly installed on the inner side of the water collection and sedimentation tank, and the right side of the water collection and sedimentation tank is connected to the waste water through a water pipe. One end of the filter is connected, and the other end of the waste water filter is connected to the user's water supply control device through a water delivery pipe; the user's water supply control device includes a second liquid level relay, a pressurizing pump and a third liquid level relay. The second liquid level One end of the relay is connected to the other end of the waste water filter through a water delivery pipe, the other end of the second liquid level relay is connected to one end of the pressurized pump through a water delivery pipe, and the other end of the pressurized pump is connected to the car washing device through a water delivery pipe. The upper end of the pump is connected with the third liquid level relay through the water delivery pipe, the upper end of the third liquid level relay is connected with the tap water inlet pipe, and the third liquid level relay is connected with the first liquid level relay and the second liquid level relay respectively through electrical signals.

Preferably, the water purification device of the water plant includes at least four water purifiers arranged vertically in parallel and a water delivery pipe connecting each water purifier, the upper end of the first water purifier on the left is set as a tap water inlet, and the The tap water inlet is connected to the water source to be purified through a water delivery pipe, the upper end of the first water purifier on the right is set as a pure water outlet, and the pure water outlet at the upper end of the first water purifier on the right is connected to the user's water supply device through a water delivery pipe. The lower end of the second water purifier on the right side is set as a concentrated water outlet, and the concentrated water outlet is connected to the concentrated water collection and automatic discharge device through a water delivery pipeline.

Preferably, three layers of sandy soil adsorption plates are arranged in parallel in the water collection and sedimentation tank in the water collection and sedimentation filter device, and the three layers of sandy soil adsorption plates arranged in parallel are fixed on the left side of the water collection and sedimentation tank. side, and fixed on the left side of the anode salt ion electrosorption plate and the cathode salt ion electrosorption plate.

Preferably, the three-layer sandy soil adsorption plate is uniformly prepared by mixing sandy soil and activated carbon, and each layer of sandy soil adsorption plate is composed of a number of cube adsorption blocks made of a mixture of cubic sandy soil and activated carbon. and the six sides of the cube adsorption block are wrapped with isolation cloth of the same thickness.

Preferably, a filter screen is installed at the water outlet of the concentrated water reverse siphon water delivery pipe in the concentrated water collection and automatic discharge device.

Preferably, the water conveyance pipeline connecting the water purification device of the water plant and the water collection, sedimentation and filtering device is also provided with other discharge interfaces for waste water.

Preferably, the first liquid level relay, the second liquid level relay and the third liquid level relay are respectively float liquid level relays.

The utility model has a simple structure, and applies a large amount of concentrated water produced by a water purifier and a water plant to a car washing device, thereby reusing the concentrated water. A sandy soil adsorption plate is installed in the water collection and sedimentation filter device, and the sandy soil and activated carbon are evenly mixed. The use of sandy soil and activated carbon has a strong adsorption effect on impurities in the water and salt in the water, and the sandy soil is easy to obtain. For example, soil salinization is because the soil has a strong adsorption effect on salt (salt ions), and the application here can effectively adsorb salt ions and other ions in concentrated water to obtain water that meets the standards for water supply users. The concentrated water collection and automatic discharge device uses the principle of inverted siphon, which can better solve the problem of collection, discharge and utilization of concentrated water in water plants. The user's water supply control device is set to act on the treated water through the joint action of the liquid level relay and the pressurized pump, so as to precisely distribute the water to the user, so as to realize the efficient use of water. The system has a simple structure, saves water consumption, can process a large amount of concentrated water, and saves the cost of water for washing cars, thereby saving costs.

Description of drawings:

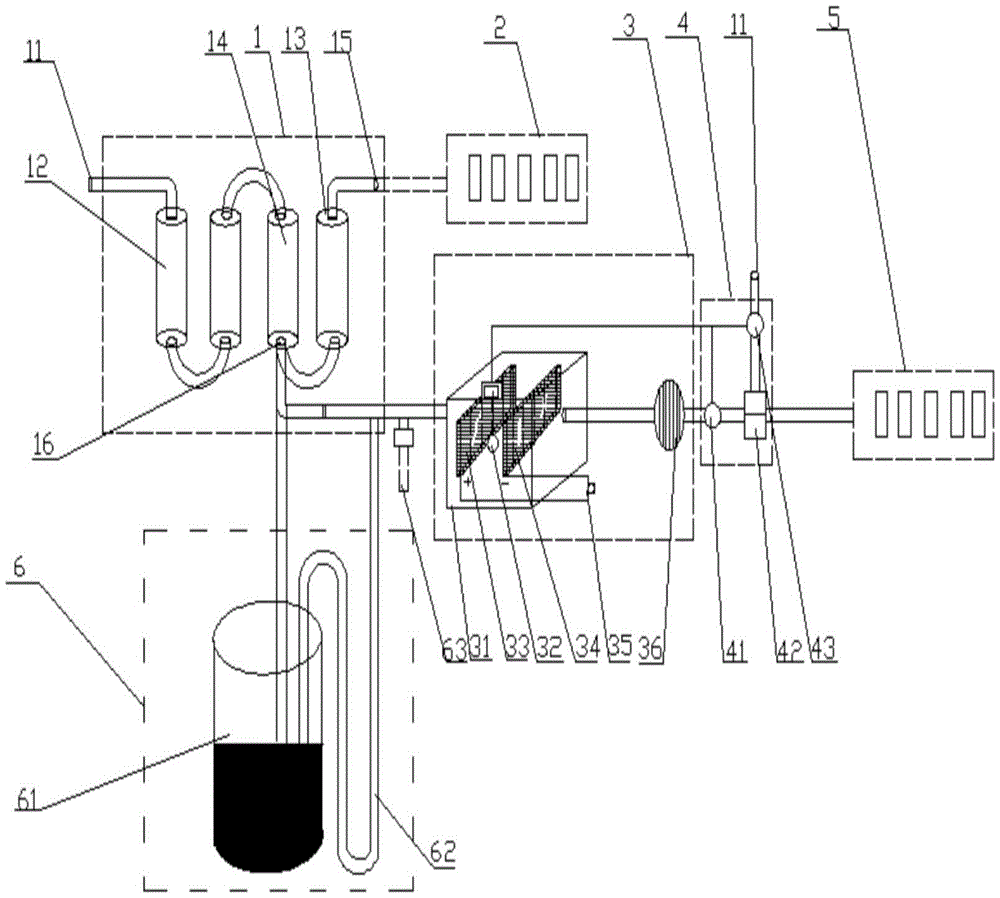

Figure 1 is a schematic structural diagram of the utility model.

In the figure, water purification device 1, user water supply device 2, water collection and sedimentation filter device 3, user water supply control device 4, car washing device 5, concentrated water collection and automatic discharge device 6, water inlet 11, the first water purifier on the left 12. The first water purifier on the right side 13, the second water purifier on the right side 14, the pure water outlet 15, the concentrated water outlet 16, the water collection sedimentation tank 31, the first liquid level relay 32, the anode salt ion electrosorption Plate 33, cathode salt ion electro-adsorption plate 34, DC power supply 35, waste water filter 36, second liquid level relay 41, booster pump 42, third liquid level relay 43, water collecting tank 61, concentrated water reverse siphon water pipe 62 , and other discharge ports 63 for waste water.

Detailed ways:

As shown in FIG. 1 , a cleaning system for recycling the purified water and concentrated water to a car washing device includes a water purification device 1 in a water plant, a water collection and sedimentation filtering device 3, a user water supply control device 4, a user water supply device 2, a car washing device 5 and a concentration Water collection and automatic discharge device 6; the water inlet of the water purification device 1 in the water plant is connected to the water source to be purified, and the water purification device 1 in the water plant is provided with a pure water outlet 15 and a concentrated water outlet 16. The water outlet 15 is connected to the user's water supply device 2 through a water delivery pipe, and the concentrated water outlet 16 is connected to the water inlet of the concentrated water collection and automatic discharge device 6 through a water delivery pipe. The user water supply control device 4 is connected to the user water supply control device 4 through a water delivery pipe, and the user water supply control device 4 is connected to the car washing device 5 through a water delivery pipe.

The water purification device 1 of the water plant includes at least four water purifiers arranged vertically in parallel and water pipes connecting each of the water purifiers. The water outlet 11 is connected to the water source to be purified through a water delivery pipe, the upper end of the first water purifier 13 on the right side is set as a pure water outlet 15, and the pure water outlet 15 at the upper end of the first water purifier 13 on the right side is connected to the user through a water delivery pipe. The water supply device 2 is connected, and the pure water produced by the water purification device 1 of the water plant is transported to the user water supply device 2 through the water pipe to provide user water; The water inlet 16 is connected to the concentrated water collection and automatic discharge device 6 through the water delivery pipeline, and the concentrated water is collected and transported to the water collection sedimentation filter device 3 and the user water supply control device 4 to be processed and pressurized and transported to the car washing device 5 .

The concentrated water collection and automatic discharge device 6 includes a water collection tank 61 and a concentrated water inverted siphon water delivery pipe 62. The water inlet of the water collection tank 61 is connected to the concentrated water outlet 16 of the water purification device 1 of the water plant through the water delivery pipe. The water inlet of the concentrated water inverted siphon water delivery pipe 62 is fixed inside the water collecting tank 61, and the water outlet pipe of the concentrated water inverted siphon water delivery pipe 62 is connected with the water delivery pipe connecting the water purification device 1 of the water plant and the water collecting sedimentation filter device 3; Using the principle of inverted siphon, the concentrated water is transported from the water collecting tank 61 to the water collecting sedimentation tank 31 by using the liquid level difference between the water inlet of the concentrated water inverted siphon 62 and the water outlet of the concentrated water inverted siphon 62, wherein the water collecting tank 61 is concentrated water. The water inlet of the water-inverting siphon 62, the water-collecting sedimentation tank 31 is the water outlet of the concentrated water-inverting siphon 62, the water-collecting tank 61 is arranged below the water-collecting sedimentation tank 31, and the concentrated water-inverting siphon 62 is set to be U-shaped, and the three are formed with liquid The circuit of the potential difference achieves the transportation of concentrated water through water pressure, and the water collecting tank 61 is arranged below the water collecting sedimentation tank 31, so that the collection and drainage can be efficiently completed without consuming energy. Among them, a filter screen is installed at the outlet of the concentrated water reverse siphon water delivery pipe 62 in the concentrated water collection and automatic discharge device 6 .

The water collecting sedimentation filtering device 3 includes a water collecting sedimentation tank 31, a first liquid level relay 32, an anode salt ion electro-adsorption plate 33, a cathode salt ion electro-adsorption plate 34, a DC power supply 35 and a waste water filter 36. The left side of the sedimentation tank 31 is connected with the concentrated water outlet 16 of the water purification device 1 of the water plant and the outlet pipe of the concentrated water inverted siphon 62 of the concentrated water collection and automatic discharge device 6 through a tee pipe. An anode salt ion electro-adsorption plate 33 and a cathode salt ion electro-adsorption plate 34 are fixed and installed in the water sedimentation tank 31 in parallel. connection, the first liquid level relay 32 is fixedly installed on the inner side of the water collection sedimentation tank 31, and the right side of the water collection sedimentation tank 31 is connected to one end of the waste water filter 36 through a water delivery pipe, and the waste water filter The other end of 36 is connected to the user's water supply control device 4 through a water delivery pipe; three layers of sandy soil adsorption plates are arranged side by side on the left side of the water collection sedimentation tank 31 in the water collection and sedimentation filter device 3, and three layers of sandy soil are arranged side by side. The adsorption plate is fixed on the left side of the water collection and sedimentation tank 31 , and is fixed on the left side of the anode salt ion electro-adsorption plate 33 and the cathode salt ion electro-adsorption plate 34 . The concentrated water conveyed from the water purification device 1 of the water plant and the concentrated water collection automatic discharge device 6 is passed into the water collection sedimentation tank 31 in the water collection sedimentation filter device 3, and firstly passes through the three layers of sandy soil adsorption plates arranged in parallel. The concentrated water is subjected to preliminary salt ion treatment on the first layer of sandy soil adsorption plate, the second layer of sandy soil adsorption plate is used to purify and re-adsorb and filter the water filtered by the second sandy soil adsorption plate, and the third layer The sandy soil adsorption plate directly filters the water filtered by the second layer of sandy soil adsorption plate again, and then uses the anode salt ion electric adsorption plate 33 and the cathode salt ion electric adsorption plate 34 to adsorb the three layers of sandy soil adsorption plate. The concentrated water is treated again to obtain water that meets the standard for water supply users. When the concentrated water flows between the anode salt ion electro-adsorption plate 33 and the cathode salt ion electro-adsorption plate 34, under the action of the electric field, the ions in the water are respectively directed to the oppositely charged The electrode migrates, is adsorbed by the electrode and is stored in the electric double layer. With the increase of ions adsorbed by the electrode, the ions are enriched and concentrated on the surface of the electrode, and finally the separation of salt and water is realized to obtain desalinated water. The treated water is transported to the user water supply control device 4 . Among them, the three-layer sandy soil adsorption plate is made by mixing sandy soil and activated carbon uniformly, and each layer of sandy soil adsorption plate is made of a number of cube adsorption blocks made of a mixture of cubic sandy soil and activated carbon. The six sides with fast adsorption are wrapped with the same thickness of isolation cloth.

The user water supply control device 4 includes a second liquid level relay 41, a pressurizing pump 42 and a third liquid level relay 43. One end of the second liquid level relay 41 is connected to the right side of the water collection and sedimentation tank 31 through a water delivery pipe. The other end of the second liquid level relay 41 is connected to one end of the pressure pump 42 through a water delivery pipe, the other end of the pressure pump 42 is connected to the car washing device 5 through a water delivery pipe, and the upper end of the pressure pump 42 is connected to the third liquid through a water delivery pipe. The level relay 43 is connected, and the third liquid level relay 43 is respectively connected with the first liquid level relay 32 and the second liquid level relay 41 through electrical signals. When the water level of the water collecting sedimentation tank 31 in the water collecting sedimentation filtering device 3 reaches the warning water level, the first liquid level relay 32 measures the water level and transmits the water level signal to the second liquid level relay 41, and the second liquid level relay 41 turns on the user's water supply Control the water pipe between the device 4 and the car washing device 5 and start the pressurizing pump 42 to supply water to the car washing device 5. When the water collecting sedimentation tank 31 does not reach the warning water level or is lower than the warning water level, the first liquid level relay 32 will signal It is transmitted to the second liquid level relay 41 and the third liquid level relay 43. The second liquid level relay 41 closes the water supply pipe between the user water supply control device 4 and the car washing device 5, and stops the water supply to the car washing device 5. The third liquid level relay 43 Open the tap water inlet pipe 11 to supply water to the car washing device 5 . When the water level of the catchment sedimentation tank 31 reaches the warning water level and the waste water generated by the water plant through the water purification device 1 of the water plant is greater than the flow rate of the water outlet pipe, it is connected to the greening water supply device through other waste water discharge interfaces and a filter to provide greening water, wherein the waste water is connected to the greening water supply device. The other discharge ports are arranged on the water delivery pipeline connecting the water purification device 1 of the waterworks with the water collecting sedimentation filtering device 3 . The first liquid level relay 32 , the second liquid level relay 41 and the third liquid level relay 43 are respectively float liquid level relays.

Claims (7)

1. A water purification and concentrated water car washing device, characterized in that: the car washing device comprises a water plant water purification device, a water collection sedimentation filter device, a user water supply control device, a user water supply device, a car washing device and the concentrated water collection and automatic discharge The water inlet of the water purification device in the water plant is connected to the water source to be purified, and the water purification device in the water plant is provided with a pure water outlet and a concentrated water outlet, and the pure water outlet supplies water to the user through a water pipe. The device is connected, the concentrated water outlet is connected with the water inlet of the concentrated water collection and automatic discharge device through the water delivery pipe, and the concentrated water outlet is connected with the water collection sedimentation filter device through the water delivery pipe, and the water collection sedimentation filter device is controlled with the user's water supply through the water delivery pipe. The device is connected, and the user's water supply control device is connected to the car washing device through a water delivery pipe; the concentrated water collection and automatic discharge device includes a water collection tank and a concentrated water inverted siphon water delivery pipe, and the water inlet of the water collection tank is connected to the water purification device of the water plant through the water delivery pipe. The concentrated water outlet is connected, the water inlet of the concentrated water inverted siphon water pipe is fixed inside the water collection tank, and the water outlet pipe of the concentrated water inverted siphon water pipe is connected to the water purification device of the water plant and the water collection sedimentation filter device. The water conveying pipeline is connected; the water collecting sedimentation filtering device includes a water collecting sedimentation tank, a first liquid level relay, an anode salt ion electro-adsorption plate, a cathode salt ion electro-adsorption plate, a DC power supply and a waste water filter. The left side of the water sedimentation tank is connected to the water purification device of the water plant and the concentrated water collection automatic discharge device through the water delivery pipe, and the anode salt ion electro-adsorption plate and the cathode salt ion electro-adsorption plate are fixed and parallel installed inside the water collection and sedimentation tank. , the anode salt ion electro-adsorption plate and the cathode salt ion electro-adsorption plate are connected to the DC power supply through connecting wires, the first liquid level relay control device is fixedly installed on the inner side of the water collection sedimentation tank, the collection The right side of the water sedimentation tank is connected to one end of the waste water filter through a water delivery pipe, and the other end of the waste water filter is connected to the user's water supply control device through a water delivery pipe; the user's water supply control device includes a second liquid level relay, a pressure pump and a first Three liquid level relays, one end of the second liquid level relay is connected to the other end of the waste water filter through a water delivery pipe, and the other end of the second liquid level relay is connected to one end of the pressure pump through a water delivery pipe. The other end is connected to the car washing device through a water delivery pipe, the upper end of the pressurizing pump is connected to the third liquid level relay through a water delivery pipe, the upper end of the third liquid level relay is connected to the tap water inlet pipe, and the third liquid level relay is respectively connected with the third liquid level relay through electrical signals. A liquid level relay is connected with the second liquid level relay. 2. A car washing device with purified water and concentrated water according to claim 1, characterized in that: said water purification device in a water plant comprises at least four water purifiers vertically arranged in parallel and a water purifier connected to each water purifier. Water pipe, the upper end of the first water purifier on the left is set as a tap water inlet, the tap water inlet is connected to the water source to be purified through a water delivery pipe, the upper end of the first water purifier on the right is set as a pure water outlet, and the right The pure water outlet on the upper end of the first water purifier on the side is connected to the user's water supply device through a water delivery pipe, and the lower end of the second water purifier on the right side is set as a concentrated water outlet, which is automatically collected from the concentrated water through a water delivery pipe. Drain connection. 3. A car washing device with purified water and concentrated water according to claim 1, characterized in that: three layers of sandy soil adsorption plates are arranged side by side in the water collection and sedimentation tank in the described water collection and sedimentation filter device. Three layers of sandy soil adsorption plates arranged in parallel are fixed on the left side of the water collecting sedimentation tank, and are fixed on the left side of the anode salt ion electro-adsorption plate and the cathode salt ion electro-adsorption plate. 4. A water purification and concentrated water car washing device according to claim 3, characterized in that: the three-layer sandy soil adsorption plate is uniformly prepared by mixing sandy soil and activated carbon, and each layer of sandy soil adsorbs The board is composed of several cube adsorption blocks made of a mixture of cube sandy soil and activated carbon, and the six sides of the cube adsorption block are wrapped with the same thickness of isolation cloth. 5 . The car washing device for purified and concentrated water according to claim 1 , wherein a filter screen is installed at the outlet of the concentrated water reverse siphon water delivery pipe in the concentrated water collection and automatic discharge device. 6 . 6 . The water purification and concentrated water car washing device according to claim 1 , characterized in that: the water conveyance pipeline connecting the water purification device of the water plant and the water collecting sedimentation filtering device is also provided with other waste water discharge interfaces. 7 . 7 . The water purification and concentrated water car washing device according to claim 1 , wherein the first liquid level relay, the second liquid level relay and the third liquid level relay are respectively float level relays. 8 .
