Abstract

The utility model discloses an automatic assembling device for fountain pens, which belongs to the technical field of fountain pens production. , two lower sliders are slidably installed on the base, two upper sliders are slidably installed at the bottom of the support column, the upper slider is located directly above the support column, and a There is a guide rod, a lifting column is slidably installed on the guide rod, a cylinder is installed on the upper slider, the piston rod of the cylinder is connected with the lifting column, the opposite side of the two lifting columns is provided with a rotating shaft, and one end of the rotating shaft is installed with a rotating shaft. The assembling board; the utility model realizes the rotation of the pen head and the pen holder of the water pen, realizes the assembly of the water pen, and the assembly line is assembled, which greatly improves the assembly efficiency, saves labor, and is easy to popularize.

Description

A fountain pen automatic assembly device

technical field

The utility model belongs to the technical field of fountain pen production, in particular to an automatic assembling device for fountain pens.

Background technique

Neutral pen, short for neutral ink ballpoint pen, originated in Japan and is a novel writing tool that is currently popular in the world. According to the type of pen tip, ink color, structure, etc., it can be divided into different types of gel pens. When the existing water pen is assembled, the pen head and the pen barrel are connected by threads, which requires manual assembly, which is inefficient. Automatic assembly device to solve the above problems.

Utility model content

The purpose of the present utility model is to provide an automatic assembling device for a fountain pen, so as to solve the problems raised in the above-mentioned background art.

In order to achieve the above purpose, the present invention provides the following technical solutions: an automatic assembling device for a fountain pen, comprising a base, a support column is installed on the top of the base, a top plate is arranged above the base, and the top of the support column is connected to the top plate. Fixed connection, two lower sliders are slidably installed on the base, two upper sliders are slidably installed at the bottom of the support column, the upper slider is located directly above the support column, and the upper slider is located between the support column and the upper slider. A guide rod is arranged between the guide rods, a lifting column is slidably installed on the guide rod, a cylinder is installed on the upper slider, the piston rod of the cylinder is connected with the lifting column, and the opposite side of the two lifting columns is provided with a rotating shaft, one end of the rotating shaft An assembly plate is installed, two ends of the assembly plate are hinged with a movable rod, one end of the movable rod is hinged with a clamping plate, and two push rod motors are hinged on the rotating shaft, and the push rod of the push rod motor and the movable rod are hinged One end away from the clamping plate is hinged, two first transmission belts and one second transmission belt are installed on the top of the base, and the second transmission belt is located between the two first transmission belts.

With the above solution, the push rod motor drives the movable rod to move so that the two clamping plates close and clamp the pen holder and the pen cap on the first transmission belt, and then the bidirectional motor drives the cylindrical rod to drive the driving rod to rotate, so that the two lower sliders and the two The upper sliders move toward each other, and then the pen head and the pen holder are connected, and then the motor shaft is driven to rotate, so that the pen head and the pen holder are connected in rotation, and the assembly of the pen holder and the pen head is realized. Electric operation saves labor. The two first transmission belts convey the raw materials, and the assembly is completed. Afterwards, the two clamping plates are separated to place the assembled ratio on the second transmission belt, so as to realize the assembly line operation and the assembly efficiency is high.

In the above scheme, it should be noted that: the push rod motor is an EC2-CA push rod motor, and the cylinder is a CDZ1B10-45-A type cylinder.

As a preferred embodiment, a chute is provided on the opposite side of the base and the top plate, the lower slider and the upper slider are respectively slidably connected to the inner wall of the chute, and a drive rod is rotatably installed in the chute to drive the The rod is threadedly connected with the lower slider and the upper slider, a slider is installed in the chute, and both the lower slider and the upper slider are slidably sleeved on the slider.

With the above solution, the rotation of the driving rod drives the movement of the two lower sliding blocks and the upper sliding block, thereby realizing the combination of the pen barrel and the pen cap.

As a preferred embodiment, the driving rod is composed of a left threaded rod and a right threaded rod, and the thread directions of the left threaded rod and the right threaded rod are opposite.

By adopting the above solution, the thread direction of the left threaded rod and the right threaded rod are opposite, so that the rotation of the driving rod drives the two lower sliding blocks and the two upper sliding blocks to move toward each other or in opposite directions.

As a preferred embodiment, a cylindrical rod is rotatably installed at one end of the base and the top plate, the two cylindrical rods are connected by transmission, one end of the cylindrical rod is fixedly connected with the driving rod, and a bidirectional motor is installed on the top of the top plate. The output shaft of the motor is connected with the cylindrical rod.

With the above solution, the cylindrical rod drives the driving rod to move, the motor drives the cylindrical rod to rotate, and the transmission connection is made through the pulley, thus realizing the transmission connection between the two-way motor and the driving rod.

As a preferred embodiment, a drive motor is installed on the lift column, and the output shaft of the drive motor is in a transmission connection with the rotating shaft.

With the above solution, the drive motor drives the rotating shaft to rotate for the rotational connection of the pen head and the pen holder, and the drive motor is used for the drive device of the rotating shaft.

Compared with the prior art, the beneficial effects of the present utility model are:

The push rod motor drives the movable rod to move, so that the two clamping plates are closed to clamp the pen holder and the pen cap on the first transmission belt, and then the bidirectional motor drives the cylindrical rod to drive the driving rod to rotate, so that the two lower sliders and the two upper sliders are rotated. Move toward each other, and then the pen head and the pen holder are connected, and then the motor shaft is driven to rotate, so that the pen head and the pen holder are connected in rotation, and the assembly of the pen holder and the pen head is realized. Electric operation saves labor.

The raw materials are conveyed through the two first transmission belts. After the assembly is completed, the two clamping plates are separated to place the assembled ratio on the second transmission belt to realize the assembly line operation and the assembly efficiency is high.

The utility model realizes the rotation of the pen head and the pen holder of the water pen, realizes the assembly of the water pen, and the assembly line is assembled, which greatly improves the assembly efficiency, saves labor, and is easy to popularize.

Description of drawings

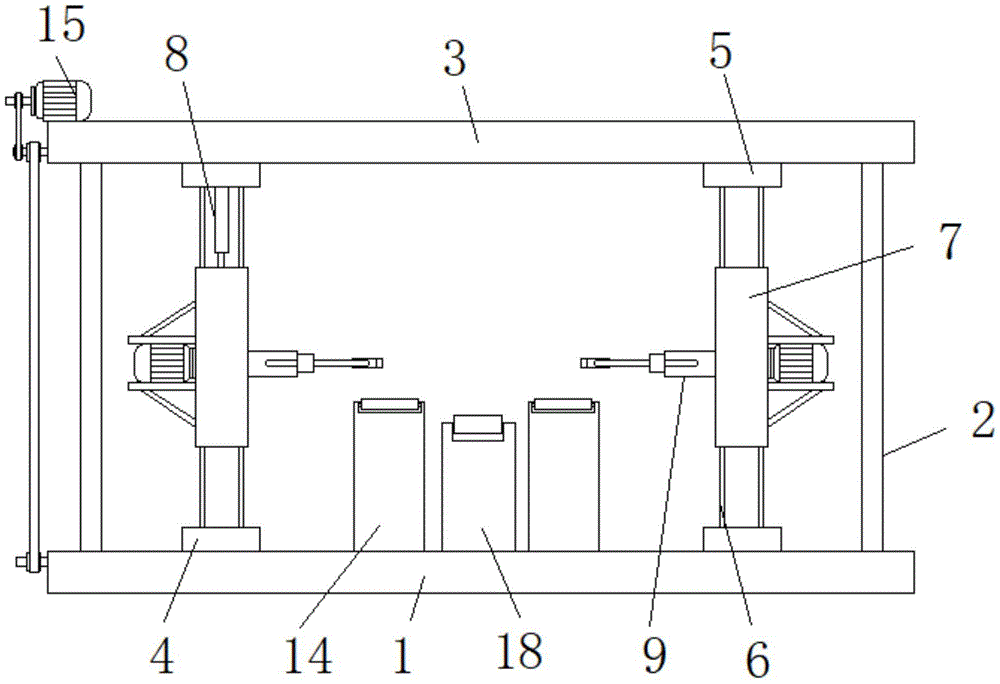

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the sectional structure schematic diagram of base and top plate;

Fig. 3 is the structural representation at place A in Fig. 2 of the utility model;

FIG. 4 is a schematic top view of the structure of the clamping plate.

In the figure: 1. Base; 2. Support column; 3. Top plate; 4. Lower slider; 5. Upper slider; 6. Guide rod; 7. Lifting column; 8. Cylinder; 9. Rotating shaft; 10. Assembly plate 11, movable rod; 12, clamping plate; 13, push rod motor; 14, first transmission belt; 15, bidirectional motor; 16, driving rod; 17, cylindrical rod; 18, second transmission belt.

Detailed ways

The present utility model will be further described below in conjunction with the embodiments.

The following examples are used to illustrate the present utility model, but cannot be used to limit the protection scope of the present utility model. Conditions in the examples can be further adjusted according to specific conditions, and simple improvements to the method of the present invention under the concept of the present invention all belong to the scope of protection of the present invention.

Please refer to FIGS. 1-4 , the present invention provides an automatic assembling device for a fountain pen, comprising a base 1 , a support column 2 is installed on the top of the base 1 , a top plate 3 is arranged above the base 1 , and the top of the support column 2 and the top plate 3 Fixed connection, two lower sliding blocks 4 are slidably installed on the base 1, two upper sliding blocks 5 are slidably installed at the bottom of the support column 2, and the opposite sides of the base 1 and the top plate 3 are provided with sliding grooves to slide down. The block 4 and the upper sliding block 5 are respectively slidably connected with the inner wall of the chute, a driving rod 16 is rotatably installed in the chute, the driving rod 16 is threadedly connected with the lower sliding block 4 and the upper sliding block 5, and a sliding rod is installed in the chute, The lower sliding block 4 and the upper sliding block 5 are both slidably sleeved on the sliding rod (see Figures 2 and 3); the rotation of the driving rod 16 drives the two lower sliding blocks 4 and the upper sliding block 5 to move, thereby realizing the combination of the pen barrel and the pen cap . The driving rod 16 is composed of a left threaded rod and a right threaded rod, and the thread directions of the left threaded rod and the right threaded rod are opposite. The rotation of the driving rod 16 drives the two lower sliding blocks 4 and the two upper sliding blocks 5 to move in the opposite direction or in the opposite direction by the opposite direction of the threads of the left threaded rod and the right threaded rod.

The upper slider 5 is located directly above the support column 2, a guide rod 6 is arranged between the support column 2 and the upper slider 5, a lifting column 7 is slidably installed on the guide rod 6, and a cylinder 8 is installed on the upper slider 5. The piston rod of 8 is connected with the lifting column 7, the opposite side of the two lifting columns 7 is provided with a rotating shaft 9, one end of the rotating shaft 9 is installed with an assembly plate 10, and both ends of the assembly plate 10 are hinged with a movable rod 11, and the movable rod 11 A clamping plate 12 is hinged on one end of the shaft 9, and two push rod motors 13 are hinged on the rotating shaft 9 (see FIG. 4); Two first transmission belts 14 and one second transmission belt 18 are installed, and the second transmission belt 18 is located between the two first transmission belts 14 (see FIG. 1 ); The holding plate 12 is separated and the assembled ratio is placed on the second transmission belt 18 to realize the assembly line operation and the assembly efficiency is high.

One end of the base 1 and the top plate 3 is rotatably installed with a cylindrical rod 17, the two cylindrical rods 17 are connected by transmission, one end of the cylindrical rod 17 is fixedly connected with the driving rod 16, and the top of the top plate 3 is installed with a bidirectional motor 15, and the bidirectional motor 15 The output shaft is connected to the cylindrical rod 17 for transmission. The driving rod 16 is driven to move by the cylindrical rod 17, the cylindrical rod is driven to rotate by the motor 15, and the transmission connection between the two-way motor 15 and the driving rod is realized through the transmission connection of the pulley. A drive motor is installed on the lifting column 7, and the output shaft of the drive motor is connected with the rotating shaft 9 (see Figure 1); the drive motor 9 drives the rotating shaft 9 to rotate, which is used for the rotational connection of the pen head and the pen holder, and the drive motor is used for the drive device of the rotating shaft 9. .

When in use, the pen holder and the pen head are conveyed through the two first transmission belts 14 respectively, and then the cylinder 8 drives the lifting column 7 to descend to the top horizontal position of the first transmission belt 14, and then the push rod motor 13 drives the movable rod 11 to move so that the two clamping The plate 12 is closed to hold the pen holder and pen cap on the first transmission belt 14, and then the bidirectional motor 15 drives the cylindrical rod 17 to drive the driving rod 16 to rotate, so that the two lower sliders 4 and the two upper sliders 5 move toward each other, a driving device The bidirectional motor 15 realizes the rotation of the two driving rods 16, realizes linkage, and saves energy consumption. Then the pen head and the pen holder are docked, and then the motor shaft 9 is driven to rotate, so that the pen head and the pen holder are connected in rotation, and the assembly of the pen holder and the pen head is realized. Electric operation saves labor, and conveys the raw materials through the two first transmission belts 14. The clamping plates 12 are separated to place the assembled ratio on the second transmission belt 18, so as to realize the assembly line operation, and the assembly efficiency is high.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (5)

1. A fountain pen automatic assembly device, comprising a base (1), characterized in that: a support column (2) is installed on the top of the base (1), and a top plate (3) is provided above the base (1), The top of the support column (2) is fixedly connected with the top plate (3), two lower sliders (4) are slidably installed on the base (1), and two lower sliders (4) are slidably installed on the bottom of the support column (2). The upper sliding block (5), the upper sliding block (5) is located directly above the support column (2), a guide rod (6) is arranged between the support column (2) and the upper sliding block (5), and the guide rod ( 6) A lift column (7) is slidably installed on the upper block, a cylinder (8) is installed on the upper slider (5), the piston rod of the cylinder (8) is connected with the lift column (7), and the two lift columns (7) are opposite to each other A rotating shaft (9) is provided on one side of the rotating shaft (9), an assembly plate (10) is installed on one end of the rotating shaft (9), and a movable rod (11) is hinged at both ends of the assembly plate (10), and the movable rod (11) ) is hinged with a clamping plate (12) at one end, two push rod motors (13) are hinged on the rotating shaft (9), and the push rod and movable rod (11) of the push rod motor (13) are away from the clamping plate ( 12) is hinged at one end, two first transmission belts (14) and a second transmission belt (18) are installed on the top of the base (1), and the second transmission belt (18) is located between the two first transmission belts (14). 2. A fountain pen automatic assembling device according to claim 1, characterized in that: the opposite sides of the base (1) and the top plate (3) are provided with chute, and the lower slider (4) and the upper sliding block (5) are respectively slidably connected with the inner wall of the chute, a driving rod (16) is rotatably installed in the chute, and the driving rod (16) is threadedly connected with the lower sliding block (4) and the upper sliding block (5), A sliding rod is installed in the chute, and both the lower sliding block (4) and the upper sliding block (5) are slidably sleeved on the sliding rod. 3. The automatic assembling device for a fountain pen according to claim 2, wherein the drive rod (16) is composed of a left threaded rod and a right threaded rod, and the thread directions of the left threaded rod and the right threaded rod are opposite . 4. A kind of automatic assembling device for fountain pen according to claim 2, it is characterized in that: described base (1) and one end of top plate (3) are all rotatably installed with cylindrical rod (17), two cylindrical rods ( 17), one end of the cylindrical rod (17) is fixedly connected with the driving rod (16), a bidirectional motor (15) is installed on the top of the top plate (3), and the output shaft of the bidirectional motor (15) is connected to the driving rod (16). Cylindrical rod (17) drive connection. 5 . The automatic assembling device for fountain pen according to claim 1 , wherein a driving motor is installed on the lifting column ( 7 ), and the output shaft of the driving motor is drivingly connected with the rotating shaft ( 9 ). 6 .
