Abstract

A chemical pump filtering device, comprising a box body, a water inlet on the right side of the box body, a water outlet on the upper part of the box body, a sewage outlet on the lower part of the box body, the water inlet of the box body is fixedly connected with the water inlet pipe, the diameter of the vertical section of the box body is Larger than the diameter of the water inlet pipe, the box body is fixedly installed with a filter screen at the water outlet, the water outlet of the box body is fixedly connected to one end of the water outlet pipe, the other end of the water outlet pipe is fixedly connected to the chemical pump, and there is an auger inside the water inlet pipe. , start the chemical pump, the liquid flows into the tank from the water inlet, and the auger rotates when it flows, and the support rod and the scraper also rotate. The plate scrapes off the filter residue that does not pass through the filter screen, and the filter residue runs to the sewage outlet with the scraper. Due to the low flow rate of the liquid at the sewage outlet, the filter residue is affected by gravity and falls into the garbage box, which effectively cleans and collects the filter residue. Avoid blockage of the filter and prolong the service life of the filter.

Description

A chemical pump filter device

technical field

The utility model belongs to the field of liquid filtering devices, in particular to a chemical pump filtering device.

Background technique

In the chemical industry, chemical pumps are often used to transport liquid materials. During the transportation process, the liquid moves through the impeller of the chemical pump. When the liquid contains solid particles, these solid particles will continuously collide with the impeller and the inner surface of the chemical pump, damaging the impeller and the chemical pump. The inside of the chemical pump shortens the service life of the chemical pump. In severe cases, it will block the impeller flow channel and destroy the sealing performance of the pump. Therefore, a filter device is often installed in front of the chemical pump. The existing filter device is often unable to clean the filter screen. After a long time of use, the filter screen will also be blocked by solid particles. It is necessary to disassemble the filter screen for cleaning or replace the filter screen, which wastes manpower, increases operating costs, and reduces work efficiency.

Utility model content

The utility model provides a chemical pump filtering device for solving the defects in the prior art.

The utility model is realized through the following technical solutions:

A chemical pump filtering device comprises a box body, a water inlet is arranged on the right side of the box body, a water outlet is arranged on the upper part of the box body, a sewage outlet is arranged at the lower part of the box body, the water inlet of the box body is fixedly connected with a water inlet pipe, and the main body of the box body is fixedly connected with a water inlet pipe. It is a horizontal hollow cylinder, the diameter of the vertical section of the box is larger than the diameter of the water inlet pipe, the box body is fixedly installed with a filter screen at the water outlet, the water outlet of the box body is fixedly connected to one end of the water outlet pipe, and the other end of the water outlet pipe is fixedly connected to the chemical pump , There is an auger inside the water inlet pipe, the middle and right ends of the auger are installed inside the water inlet pipe through the shaft seat, the left end of the auger is fixedly connected with the middle part of the support rod, the upper and lower ends of the support rod are hinged with the scraper, the scraper and the support rod The torsion spring is fixedly installed at the hinge, one end of the scraper is hinged with the support rod, the other end of the scraper is in contact with the filter screen, the sewage outlet of the box is fixedly connected with the upper end of the sewage pipe, and the lower end of the sewage pipe is fixedly installed with a garbage bin.

In the above-mentioned chemical pump filter device, a vertical baffle is fixedly installed at the sewage outlet inside the box.

In the above-mentioned chemical pump filtering device, a gate valve is fixedly installed in the middle of the sewage pipe.

In the above-mentioned chemical pump filtering device, the connection between the sewage pipe and the garbage bin is threaded.

In the above-mentioned chemical pump filter device, the left and right parts of the end face where the baffle plate and the scraper touch each other are provided with hollow grooves, and the middle part of the scraper is provided with inclined grooves.

The advantages of the utility model are: the device can automatically clean and collect the solid particles on the filter screen, prevent the filter screen from clogging, reduce the frequency of cleaning and replacement of the filter screen, save manpower and material resources, and improve work efficiency. When the device is working, start the chemical pump, the liquid flows into the box from the water inlet, and the auger rotates when it flows, the support rod and the scraper also rotate, and the torsion spring provides a support force to the scraper, supporting the outer side of the scraper and the filter The screen contacts, the scraper scrapes off the filter residue that has not passed through the filter screen, and the filter residue runs to the sewage outlet with the scraper. Due to the low flow rate of the liquid at the sewage outlet, the filter residue falls into the garbage bin under the influence of gravity, effectively removing the filter residue. Clean and collect, avoid filter clogging, prolong the service life of the filter; the filtered liquid flows into the chemical pump through the water outlet, and then is discharged by the chemical pump.

Description of drawings

In order to illustrate the embodiments of the present invention or the technical solutions in the prior art more clearly, the following briefly introduces the accompanying drawings used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description The drawings are some embodiments of the present invention. For those of ordinary skill in the art, other drawings can also be obtained from these drawings without creative labor.

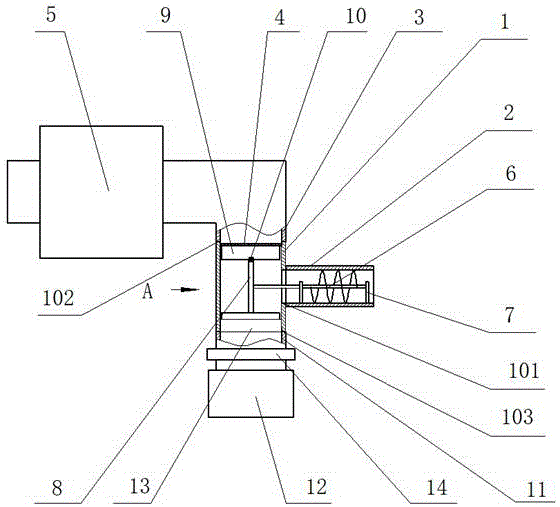

FIG. 1 is a schematic structural diagram of the present utility model; FIG. 2 is an enlarged view of the A-direction view of FIG. 1 ; FIG. 3 is an enlarged view of the B-direction view of FIG. 2 ; FIG. 4 is a C-C cross-sectional view of FIG. 2 .

Detailed ways

In order to make the purposes, technical solutions and advantages of the embodiments of the present utility model clearer, the technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. The embodiments described above are part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

A chemical pump filter device, as shown in the figure, includes a box body 1, a water inlet 101 is arranged on the right side of the box body 1, a water outlet 102 is arranged on the upper part of the box body 1, and a sewage outlet 103 is arranged at the lower part of the box body 1. 1. The water inlet 101 is fixedly connected with the water inlet pipe 2. The main body of the box body 1 is a horizontal hollow cylinder. The diameter of the vertical section of the box body 1 is larger than that of the water inlet pipe 2. The box body 1 is fixedly installed at the water outlet 102. The filter screen 4 , the water outlet 102 of the box body 1 is fixedly connected to one end of the water outlet pipe 3, the other end of the water outlet pipe 3 is fixedly connected to the chemical pump 5, the water inlet pipe 2 is provided with an auger 6, and the middle and right ends of the auger 6 are installed on the shaft seat 7 on the Inside the water inlet pipe 2, the left end of the auger 6 is fixedly connected to the middle of the support rod 8, the upper and lower ends of the support rod 8 are hinged with the scraper 9, the torsion spring 10 is fixedly installed at the hinged joint of the scraper 9 and the support rod, and one end of the scraper 9 is connected to the support The rod 8 is hinged, the other end of the scraper 9 is in contact with the filter screen 4, the sewage outlet 103 of the box 1 is fixedly connected to the upper end of the sewage pipe 11, and the lower end of the sewage pipe 11 is fixedly installed with a garbage bin 12. The device can automatically clean and collect the solid particles on the filter screen, prevent the filter screen from clogging, reduce the frequency of cleaning and replacement of the filter screen, save manpower and material resources, and improve work efficiency. When the device is working, the chemical pump 5 is started, and the liquid flows into the tank 1 from the water inlet 101, and the auger 6 is driven to rotate during the flow, the support rod 8 and the scraper 9 also rotate, and the torsion spring 10 provides a support force to the scraper 9. , the outer side of the support scraper 9 is in contact with the filter screen 4, and the scraper 9 scrapes off the filter residue that does not pass through the filter screen 4, and the filter residue runs to the sewage outlet 103 with the scraper 9, because the flow rate of the liquid at the sewage outlet 103 is low, The filter residue falls into the garbage bin 12 under the influence of gravity, which effectively cleans and collects the filter residue, avoids clogging of the filter screen 4, and prolongs the service life of the filter screen 4; the filtered liquid flows into the chemical pump 5 through the water outlet 102 , and then discharged by the chemical pump.

Specifically, as shown in the figure, a vertical baffle 13 is fixedly installed at the sewage outlet 103 inside the box 1 in this embodiment. After the scraper 9 scrapes off the filter residue on the filter screen 4, it touches the baffle 13 during the movement. After the plate 13 is removed, the scraper 13 returns to the working position under the torsion force of the torsion spring 10 to prevent the filter residue from remaining on the scraper 9 and being brought back to the filter screen 4, preventing the filter residue from causing secondary damage to the filter screen 4.

Specifically, as shown in the figure, a gate valve 14 is fixedly installed in the middle of the sewage pipe 11 in this embodiment. During the operation of the device, the gate valve 14 is closed, and the waste bin 12 is removed for cleaning. After cleaning, the waste bin 12 is installed, and the gate valve 14 can be opened to continue to collect the filter residue, and the filter residue can be cleaned without stopping, which improves the work efficiency.

Further, as shown in the figure, the connection method of the sewage pipe 11 and the garbage bin 12 in this embodiment adopts a threaded connection. The device needs to dismantle the garbage box 12 frequently to clean the filter residue, and the threaded connection is used to facilitate disassembly and reduce the labor intensity of the staff.

Further, as shown in the figure, the left and right parts of the end face of the baffle 13 in contact with the scraper 9 in this embodiment are provided with air-relief grooves 15 , and the middle of the scraper 9 is provided with an oblique groove 16 . The filter residue scraped by the scraper 9 from the filter screen 4 is concentrated in the chute 16, the scraper 9 blocks the impact of the water flow on the filter residue, the impact force of the filter residue by the water flow is reduced, the filter residue is more easily scraped off, and the scraper is improved. When the scraper 9 is in contact with the baffle 13, the baffle 13 intercepts the filter residue in the chute 16.

Finally, it should be noted that the above embodiments are only used to illustrate the technical solutions of the present utility model, but not to limit them; although the present utility model has been described in detail with reference to the foregoing embodiments, those of ordinary skill in the art should understand that: It is still possible to modify the technical solutions recorded in the foregoing embodiments, or to perform equivalent replacements to some of the technical features; and these modifications or replacements do not make the essence of the corresponding technical solutions deviate from the spirit of the technical solutions of the embodiments of the present invention. and range.

Claims (5)

1. The utility model provides a chemical pump filter equipment which characterized in that: comprises a box body (1), a water inlet (101) is arranged on the right side of the box body (1), a water outlet (102) is arranged on the upper part of the box body (1), a sewage outlet (103) is arranged on the lower part of the box body (1), the water inlet (101) of the box body (1) is fixedly connected with a water inlet pipe (2), the main body of the box body (1) is a transverse hollow cylinder, the diameter of the vertical section of the box body (1) is larger than that of the water inlet pipe (2), a filter screen (4) is fixedly arranged at the water outlet (102) of the box body (1), the water outlet (102) of the box body (1) is fixedly connected with one end of a water outlet pipe (3), a chemical pump (5) at the other end of the water outlet pipe (3) is fixedly connected, an auger (6) is arranged inside the water inlet pipe (2), the middle part and the right end, both ends all are articulated with scraper blade (9) about bracing piece (8), and scraper blade (9) and bracing piece articulated department fixed mounting torsional spring (10), and scraper blade (9) one end is articulated with bracing piece (8), and the scraper blade (9) other end contacts with filter screen (4), and box (1) drain (103) department and blow off pipe (11) upper end fixed connection, blow off pipe (11) lower extreme fixed mounting dustbin (12).

2. The chemical pump filter device according to claim 1, wherein: a vertical baffle (13) is fixedly arranged at a sewage draining exit (103) in the box body (1).

3. The chemical pump filter device according to claim 1, wherein: and a gate valve (14) is fixedly arranged in the middle of the sewage discharge pipe (11).

4. The chemical pump filter device according to claim 1, wherein: the sewage draining pipe (11) is connected with the garbage can (12) in a threaded manner.

5. The chemical pump filter device according to claim 2, wherein: the left and right parts of the end surface of the baffle (13) contacted with the scraper (9) are provided with clearance grooves (15), and the middle part of the scraper (9) is provided with an inclined groove (16).
