Abstract

The utility model discloses a novel operating table. The operating table comprises a bracket and a bed body. The bed body comprises a pillow, a back board, a middle board, a leg board and an elongated foot rest, which are movably connected in sequence and adopt the cotton-skin integrated process. Fixed on the bracket, the pillow, back board, foot board, middle board, and extended foot rest are equipped with electric posture fixing device. The electric posture fixing device adopts electro-hydraulic control. The pillow can be stretched and rotated under the control of the electric posture fixing device. The foot board, the middle board and the extended foot support can be lifted up and down and folded under the control of the electric posture fixing device, and a pedal controller is installed on the ground end of the bracket. The utility model can be adjusted from multiple angles, including the back and leg supports, and the sitting posture (sitting, lying, and head height) can be adjusted arbitrarily, which can provide patients with more comfortable medical services, and make hair planting no longer painful but enjoyable. At the same time, it is convenient for doctors to operate, and can be adjusted in multiple positions to improve work efficiency. It is equipped with a special headrest and entrustment, and protects special parts of the body, so that the patient can spend the surgical procedure comfortably.

Description

Novel operating table

Technical Field

The utility model relates to the technical field of medical equipment, in particular to the field of operating tables special for hair transplantation.

Background

There are three hairs in every hair follicle tissue of human body, to baldness and the sparse crowd of hair, can do benefit to the current hair follicle of self, through artificially taking out and separating for 3 hair follicles can be isolated to a hair follicle, and the position that the patient lacked the hair can be implanted to unnecessary two hair follicles, can not produce the rejection and the survival rate is up to 92%.

Since this hair transplantation is an emerging technology, patients need multiple position extraction and planting on the head during surgery. At present, operating tables used by most medical institutions do not have professional matched facilities, and a beauty chair or a dental operating chair is adopted, so that the body of a patient is free from discomfort in the operating process, and the operating difficulty is increased due to the function problem of the operating tables in the whole operating process of doctors.

These facilities are not suitable for hair transplantation operation, and our special operating table, through on-the-spot clinical practice research and development, can satisfy the use in this field (comfortable patient throughout, convenient doctor).

Disclosure of Invention

The utility model relates to a new operation panel.

The following technical scheme is specifically adopted: the utility model provides a novel operating table, this operating table includes the support and the bed body, the bed body is including swing joint in proper order and adopt the pillow of integrative technology of cotton-leather, the backplate, the intermediate lamella, leg board and extension foot rest, the intermediate lamella is fixed on the support, the pillow, the backplate, the sole, the intermediate lamella, the extension foot rest is equipped with electronic posture determining device, electronic posture determining device adopts electronic hydraulic control, the pillow can stretch out and draw back and rotate under electronic posture determining device control, the backplate, the sole, the intermediate lamella, the extension foot rest can oscilaltion and the inflection under electronic posture determining device control, the ground end that leans on the support is equipped with step key controller, still be provided with the handrail in the backplate both sides, the handrail also has electronic posture determining device, the handrail can rotate under electronic posture determining device control, there is sunken chest hole on the backplate, also there is sunken lower part of the body hole.

Preferably, the electro-hydraulic control of the electric posture-fixing device adopts a plurality of motors to lift independently, the lifting height of the middle plate on the support is 600mm-750mm, the back plate, the foot plate and the middle plate in the bed body are tightly connected, the length of the back plate, the foot plate and the middle plate is more than or equal to 1900mm, the width of the back plate is more than or equal to 600mm, the lengthened foot rest is more than or equal to 200mm, the back plate keeps the forward-tilting angle more than or equal to 90 degrees when standing and flatly placing relative to the middle plate, the foot plate keeps the downward-folding angle more than or equal to 80 degrees when standing and flatly placing relative to the middle plate, and the outward-folding.

Preferably, the pillow can be replaced according to the requirement, when planting is needed, the head-whirlpool planting pillow is replaced, and when lying is needed, the lying pillow is used.

Preferably, a neck pillow is further arranged between the pillow and the back plate, the neck pillow is also provided with an electric posture-fixing device, and can also stretch, rotate, vertically and horizontally place, and a bulge is further arranged on the neck pillow.

The beneficial effects of the utility model reside in that: doctors have different requirements on the height when extracting and planting hair follicles at different parts. The multi-angle adjustment of the patent product comprises a back and a leg support, can adjust the sitting posture (sitting, lying and head height) at will, can provide more comfortable medical service for patients, and enables the planted hair to be painful and enjoyed. Meanwhile, the operation of a doctor is facilitated, a plurality of body positions can be adjusted, and the working efficiency is improved. And is provided with a special headrest and a cross support, and ensures that special parts of the body are protected, so that a patient can comfortably spend the surgical process.

Drawings

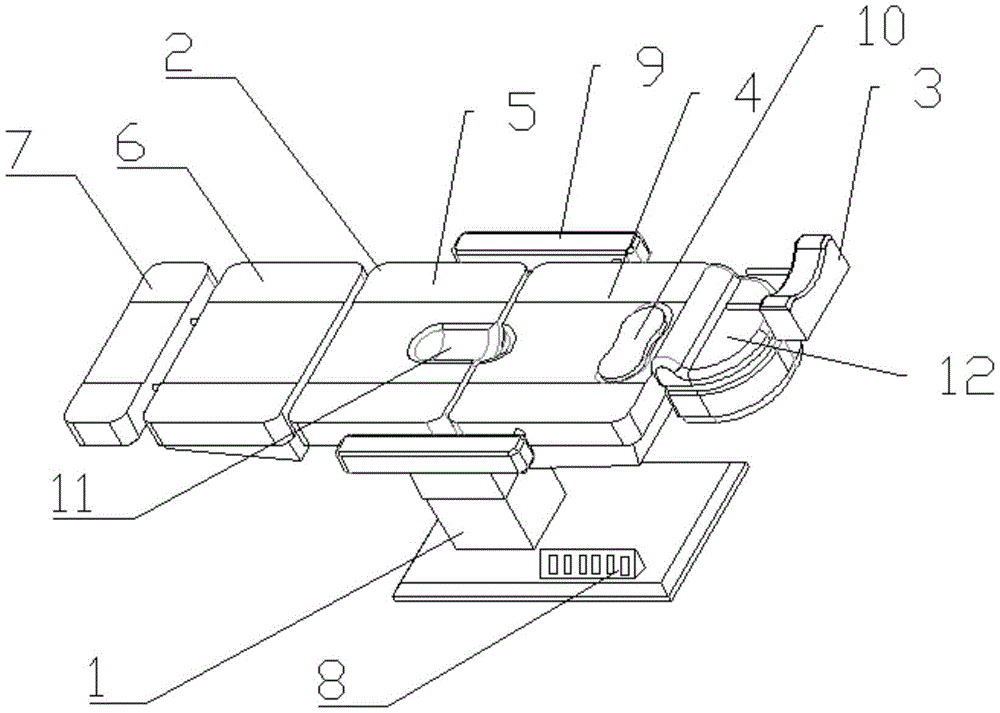

Fig. 1 is a schematic structural diagram of a novel operating table of embodiment 1 of the present invention in a lying state;

fig. 2 is a schematic structural diagram of a novel operating table for a sitting posture of a patient according to embodiment 2 of the present invention.

Detailed Description

The technical solution of the present invention is further explained by the following embodiments with reference to the accompanying drawings.

Embodiment 1, as can be seen from fig. 1, the operating table special for hair transplantation comprises a support 1 and a bed body 2, the bed body 2 comprises a pillow 3, a back plate 4, a middle plate 5, leg plates 6 and a lengthened foot rest 7 which are movably connected in sequence and adopt a cotton-leather integrated process, the middle plate 5 is fixed on the support 1, the pillow 3, the back plate 4, the foot plates 6, the middle plate 5 and the lengthened foot rest 7 are provided with electric posture-fixing devices, the electric posture-fixing devices are controlled by electric hydraulic pressure, the pillow 3 can stretch and rotate under the control of the electric posture-fixing devices, the back plate 4, the foot plates 6, the middle plate 5 and the lengthened foot rest 7 can lift and turn up and down under the control of the electric posture-fixing devices, a foot key controller 8 is arranged at the ground end of the support 1, handrails 9 are further arranged at two sides of the back plate 4, the handrails 9 also have electric posture-fixing devices, the handrails 9, there is a concave chest hole 10 in the back plate 4 and a concave lower body hole 11 in the middle plate 5.

The electric hydraulic control of the electric posture-fixing device adopts a plurality of motors to lift independently, the lifting height of the middle plate 5 on the support 1 is 600mm-750mm, the length of the middle back plate 4, the foot plate 6 and the middle plate 5 which are tightly connected in the bed body 2 is more than or equal to 1900mm, the width of the middle back plate is more than or equal to 600mm, the lengthened foot support 7 is more than or equal to 200mm, the forward inclination angle of the back plate 4 is more than or equal to 90 degrees when the back plate is erected and horizontally placed relative to the middle plate 5, the downward folding angle of the foot plate 6 is more than or equal to 80 degrees when the foot plate is erected and horizontally placed inwards relative to the middle plate 5, and the outward folding angle of the.

The pillow 3 can be replaced according to the requirement, when planting is needed, the head-whirlpool planting pillow is replaced, and when lying is needed, the lying pillow is used.

A neck pillow 12 is arranged between the pillow 3 and the back plate 4, the neck pillow 12 is also provided with an electric posture-fixing device, and can also be extended, rotated, vertically placed and horizontally placed, and a bulge is arranged on the neck pillow 12.

In the use, the patient can lie on the bed body 2, and the foot can be put on extension foot holds in the palm 7, and extension foot holds in the palm 7 and can stretch out and draw back according to patient's height, and patient's neck can be rested on neck pillow 12, and the neck is held in the protruding thing on the neck pillow 12, and the headrest is on pillow 3, and pillow 3 can stretch out and draw back and erect or keep flat the demand that comes the more operation doctor and adjust. The lower body cavity 11 and the chest cavity 10 are designed, so that the comfort of the patient is ensured.

When according to the demand, when needing the patient to sit up, doctor's accessible foot is gone to trample and is stepped on key controller 8 and control bed body 2, and backplate 4, sole 6, extension foot hold in the palm 7 and all can erect, and handrail 9 also can be violently straight to guarantee patient's comfortable position of sitting. The electric posture-fixing device can be controlled to adjust the bed body from multiple angles and adjust the sitting posture at will, including sitting, sliding and height of the head.

Embodiment 2, as seen in fig. 2, the present invention is a schematic view of the adjustment of the sitting posture of the patient, and the pillow is not provided in this embodiment.

The above description is only a preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any changes or substitutions that can be easily conceived by those skilled in the art within the technical scope of the present invention should be covered by the scope of the present invention. Therefore, the protection scope of the present invention shall be subject to the protection scope of the claims.

Claims

1. a novel operating table is characterized in that: this operating table comprises a bracket and a bed body, and the bed body comprises a pillow, a backboard, a middle board, a leg board and an elongated foot rest that are movably connected in turn and adopt the cotton-skin integrated process, and the middle The board is fixed on the bracket, and the pillow, back board, foot board, middle board, and extended leg rest are equipped with an electric posture fixing device. The electric posture fixing device adopts electro-hydraulic control. The pillow can be stretched and rotated under the control of the electric posture fixing device. , The foot board, the middle board and the extended foot rest can be lifted up and down and folded under the control of the electric posture-fixing device. Attitude-fixing device, the armrest can be rotated under the control of the electric posture-fixing device, there is a sunken chest hole on the back panel, and a sunken lower body hole on the middle panel.

2. A novel operating table according to claim 1, wherein the electro-hydraulic control of the electric posture-fixing device adopts a plurality of motors to lift and lower independently, and the lifting height of the middle plate on the bracket is between 600mm-750mm , the backboard, footboard, and middle board of the bed are closely connected, the length is greater than or equal to 1900mm, the width is greater than or equal to 600mm, and the lengthened foot rest is greater than or equal to 200mm, the backboard maintains a forward tilt angle when it is erected and laid flat relative to the middle board Greater than or equal to 90 degrees, when the foot plate is erected and laid flat relative to the middle plate, keep the downward folding angle greater than or equal to 80 degrees, and the outward folding angle is greater than or equal to 90 degrees.

3. A novel operating table as claimed in claim 2, characterized in that, the pillow can be replaced according to needs, when it needs to be planted, it is replaced with a head whirling planting pillow, and when it is required to lie flat, the pillow is used. Lie on a pillow.

4. A new type of operating table as claimed in claim 3, characterized in that a neck pillow is also arranged between the pillow and the back plate, and the neck pillow is also equipped with an electric posture fixing device, which can also be extended, rotated and It is placed upright and flat, and a protrusion is also arranged on the neck pillow.
