Abstract

The utility model discloses an art design display rack, which mainly relates to the field of display racks. It includes a bottom shell, the inner bottom surface of the bottom shell is provided with a rotating mechanism, the top of the rotating mechanism is fixed with a lifting mechanism, the upper part of the bottom shell opening is provided with a support plate, the middle of the support plate is provided with a turntable, and the turntable passes through the support The plate is fixedly connected with the lifting mechanism, the edge of the support plate is provided with a bellows, one end of the bellows is provided with a blowing fan, the blowing fan communicates with the bellows, and the upper surface of the bellows is provided with a plurality of air outlet holes. The beneficial effect of the utility model is that the height and the angle can be adjusted to prevent the accumulation of dust on the surface of the exhibits.

Description

An art design display stand

technical field

The utility model relates to the field of display racks, in particular to an art design display rack.

Background technique

The so-called artistic design is to apply the aesthetic sense of art to the design closely related to daily life, so that it has not only aesthetic functions, but also practical functions. In other words, art design first serves people (from the big to the space environment, from the small to the clothing, food, housing and transportation), it is a complete combination of material functions and spiritual functions in the process of human social development, and it is an inevitable product of the development process of modern society.

After the design is completed, the items involved must be produced before it is called a complete design process. After the production is completed, some good and creative works are often displayed publicly for the public to appreciate or comment on the works. Display is carried out on a display stand, but the existing display stands are generally fixed, the height cannot be adjusted according to needs, and the display angle is also fixed, so that visitors cannot watch the complete works from one angle, and in order to prevent the temperature from affecting the exhibits. Influence, the exhibits placed on the display stand generally do not have a protective cover, which will lead to the accumulation of dust on the surface of the exhibits, which will affect the display of the exhibits over time, and there are so many exhibits in the exhibition hall. Hiring staff to wipe each one is not only time-consuming and laborious, but also wasteful. resource.

Utility model content

The purpose of the utility model is to provide an art design display stand, which can adjust the height and angle and prevent the accumulation of dust on the surface of the exhibits.

In order to realize the above-mentioned purpose, the present utility model realizes through the following technical solutions:

An art design display rack, comprising a bottom shell, a rotating mechanism is arranged on the inner bottom surface of the bottom shell, a lifting mechanism is fixed on the top of the rotating mechanism, a support plate is arranged on the upper part of the opening of the bottom shell, and a turntable is arranged in the middle of the support plate , the turntable is fixedly connected with the lifting mechanism through the support plate, the edge of the support plate is provided with a bellows, one end of the bellows is provided with a blowing fan, the blowing fan is communicated with the bellows, and the upper surface of the bellows is provided with a plurality of air outlets hole.

Further, the rotating mechanism includes a rotating base and a motor, the rotating base is fixed on the inner bottom surface of the bottom case, the lifting mechanism is fixed on the rotating base, the motor is fixed on the inner side wall of the bottom case, and the rotating base is The outer casing is provided with a driven bevel gear, the output shaft of the motor is provided with a driving bevel gear, and the driving bevel gear meshes with the driven bevel gear.

Further, the lifting mechanism is an electric push rod.

Further, a telescopic protective cover is connected between the top of the bottom case and the support plate.

Further, a baffle plate is provided on the edge of the surface of the turntable.

Compared with the prior art, the beneficial effects of the present utility model are:

The bottom case is equipped with a rotating mechanism, a lifting mechanism is fixed on the rotating mechanism, the top of the lifting mechanism is fixedly connected with the bottom of the turntable, the turntable is connected to the support plate through the support plate, and the exhibits are placed on the turntable. Height adjustment, the rotating mechanism drives the lifting mechanism to rotate, so that the turntable rotates, so that the exhibits placed on the turntable rotate, and the angle adjustment of the exhibits is realized, so that visitors can see the whole picture of the exhibits from a fixed position, and the edge of the support plate is provided with The bellows, one end of the bellows is connected to the blowing fan, and there are multiple air outlet holes on the surface of the bellows. The blower blows air into the bellows and blows upward from the air outlet holes, forming a wind wall around the exhibits to prevent dust from falling on the exhibits, which is convenient Maintenance of exhibits.

Description of drawings

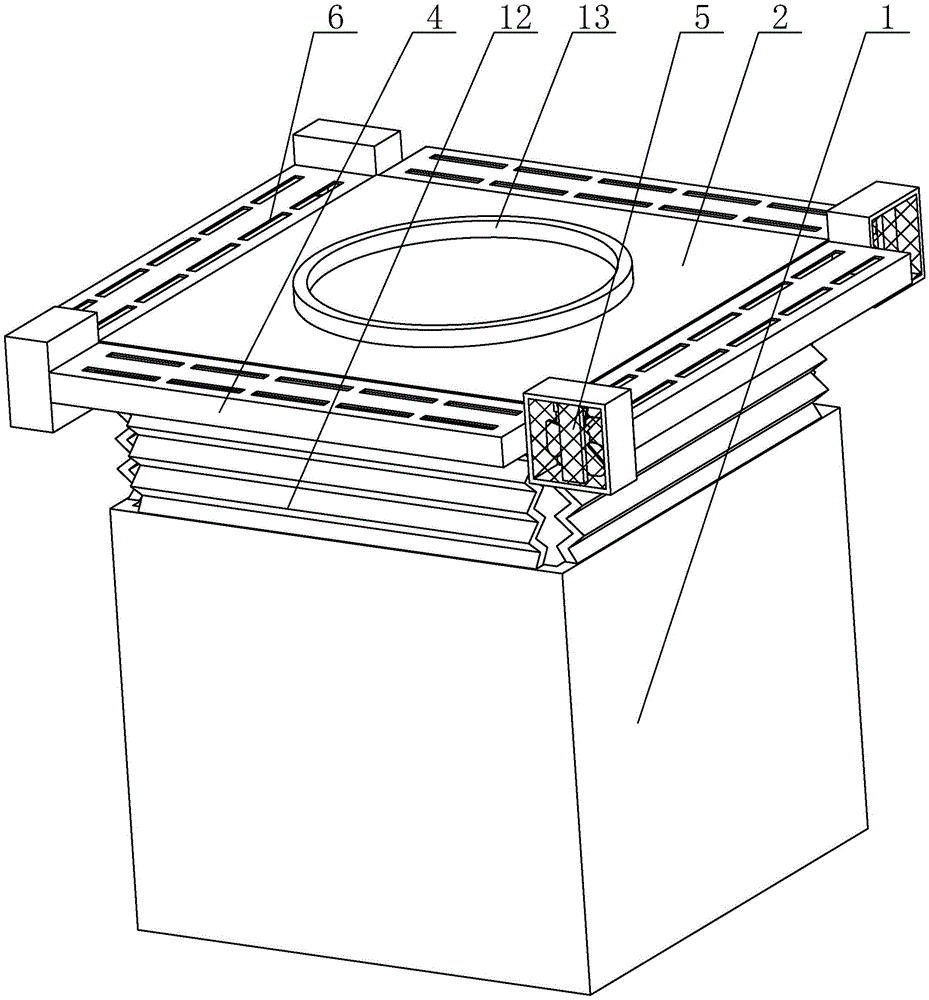

Accompanying drawing 1 is the structure schematic diagram of the present utility model.

Figure 2 is a cross-sectional view of the main structure of the present invention.

Symbols shown in the attached drawings:

1. Bottom shell; 2. Support plate; 3. Turntable; 4. Air box; 5. Blower; 6. Air outlet; 7. Rotary seat; 8. Motor; 9. Driven bevel gear; 10. Drive bevel gear ; 11, electric push rod; 12, telescopic protective cover; 13, baffle.

Detailed ways

The present utility model will be further described below in conjunction with specific embodiments. It should be understood that these embodiments are only used to illustrate the present invention and not to limit the scope of the present invention. In addition, it should be understood that after reading the teaching content of the present invention, those skilled in the art can make various changes or modifications to the present invention, and these equivalent forms also fall within the limited scope of the present application.

The utility model is an art design display stand. The main structure includes a bottom shell 1, the bottom shell 1 is used for placing the rotating mechanism and the lifting mechanism, and protects the two inside, and the bottom shell 1 is provided with a rotating mechanism on the inner bottom surface. To realize the angle adjustment of the exhibits, a lifting mechanism is fixed on the top of the rotating mechanism to realize the height adjustment of the exhibits, a support plate 2 is arranged on the upper part of the opening of the bottom shell 1, and a turntable 3 is arranged in the middle of the support plate 2, and the turntable 3 The through support plate 2 is fixedly connected with the lifting mechanism, the exhibits are placed on the turntable 3, and the rotating mechanism drives the lifting mechanism to rotate, so as to make the turntable 3 rotate, realize the angle adjustment of the exhibits, and facilitate the visitors to see the whole picture of the exhibits from different angles. The edge of the support plate 2 is provided with a bellows 4, the bellows 4 is a hollow structure, and one end of the bellows 4 is provided with a blowing fan 5, and the side of the blowing fan 5 in contact with the bellows 4 is closed and communicated with the bellows 4 to ensure that the blowing fan 5 blows out The wind energy of the bellows all enters the bellows 4, and the upper surface of the bellows 4 is provided with a plurality of air outlet holes 6, and the wind blown into the bellows 4 by the blowing fan 5 is blown out from the air outlet holes 6, forming a vertical air curtain to prevent dust from entering and adhere to the surface of the exhibit.

Preferably, the rotating mechanism includes a rotating base 7 and a motor 8 , the rotating base 7 is fixed on the inner bottom surface of the bottom casing 1 , the lifting mechanism is fixed on the rotating base 7 , and the motor 8 is fixed on the inner side of the bottom casing 1 On the wall, the rotating seat 7 is sheathed with a driven bevel gear 9, the output shaft of the motor 8 is provided with a driving bevel gear 10, the driving bevel gear 10 meshes with the driven bevel gear 9, and the output shaft of the motor 8 is provided with a driving bevel gear 10. The rotation drives the driving bevel gear 10 to rotate, and the driving bevel gear 10 drives the driven bevel gear 9 to rotate, so that the rotating base 7 rotates, thereby driving the lifting mechanism and the turntable 3 to rotate to realize the angle adjustment of the exhibits.

Preferably, the lifting mechanism is an electric push rod 11 , and the height of the turntable 3 and the support plate 2 is adjusted by the extension and shortening of the electric push rod 11 , so as to realize the height adjustment of the exhibits.

Preferably, a telescopic protective cover 12 is connected between the top of the bottom shell 1 and the support plate 2, and the support plate 2 and the bottom shell 1 are connected and surrounded by the telescopic protective cover 12 to prevent dust from entering the bottom shell 1 and avoid dust Adhere to the motor 8 and the electric push rod 11 to ensure the normal use of the electrical appliances inside the bottom case 1 .

Preferably, a baffle 13 is provided on the edge of the surface of the turntable 3 to prevent the exhibits from slipping out from the edge of the turntable 3 and toppling over and preventing the exhibits from being damaged.

Embodiment: an art design display rack, comprising a bottom shell 1, the bottom of the bottom shell 1 is closed with a top opening, the bottom surface of the bottom shell 1 is provided with a rotating seat 7, and the rotating seat 7 is a structure in which the upper shell is buckled on a fixed seat, The upper shell and the fixed seat are connected by bearings, the upper shell of the rotating seat 7 is sheathed with a driven bevel gear 9, the inner side wall of the bottom shell 1 is fixed with a motor 8, and the output shaft of the motor 8 is provided with A driving bevel gear 10, the driving bevel gear 10 meshes with the driven bevel gear 9, an electric push rod 11 is fixed on the top of the rotating seat 7, a support plate 2 is provided on the upper part of the opening of the bottom case 1, the bottom case 1 and the support The cross section of the plate 2 is all rectangular, a telescopic protective cover 12 is connected between the top of the bottom shell 1 and the support plate 2, and the telescopic protective cover 12 is an organ telescopic protective cover. The middle of the support plate 2 is provided with a turntable 3. 3. The cross section is I-shaped and the upper and lower sides of the turntable 3 are stuck on both sides of the support plate 2. The middle part of the turntable 3 and the support plate 2 are connected by bearings. The edge of the surface of the turntable 3 is provided with a baffle plate 13. The 4 edges of the bellows 4 are provided with a bellows 4, one end of the bellows 4 is provided with a blowing fan 5, and the outer side of the blowing fan 5 is provided with a fixed shell, one side of the fixed shell is open and one side is closed, and the closed side of the fixed shell is connected with the bellows 4 and opened. There is a through hole that communicates with the bellows 4, the opening of the fixed shell is provided with a dust filter plate, the blowing fan 5 is communicated with the bellows 4, and the upper surface of the bellows 4 is provided with a plurality of strip-shaped air outlet holes 6, the motor 8, the electric The push rod 11 and the blowing fan 5 are respectively connected to a power source through a power cord, and the power source can be drawn out of the bottom case 1 .

Adjust the support plate 2 to a suitable height in advance through the electric push rod 11 as required, place the exhibits in the baffle 13 on the turntable 3, and then start the motor 8 to drive the turntable 3 to rotate slowly through a series of transmission components, while the support plate 2. The 4 blowing fans 5 on the edge are activated to blow the wind into the bellows 4 and blow out from the air outlet 6, forming a wind wall around the exhibits to prevent dust from accumulating on the exhibits, and at the same time allow visitors to see the exhibits in a fixed position appearance from all angles.

Claims (5)

1. An art design exhibition stand, characterized in that: it comprises a bottom case (1), the inner bottom surface of the bottom case (1) is provided with a rotating mechanism, the top of the rotating mechanism is fixed with a lifting mechanism, and the bottom case (1) The upper part of the opening is provided with a support plate (2), the middle part of the support plate (2) is provided with a turntable (3), the turntable (3) penetrates the support plate (2) and is fixedly connected with the lifting mechanism, and the support plate (2) The edge is provided with a bellows (4), one end of the bellows (4) is provided with a blowing fan (5), the blowing fan (5) is communicated with the bellows (4), and the upper surface of the bellows (4) is provided with a plurality of outlets. Air hole (6). 2. An art design display stand according to claim 1, characterized in that: the rotating mechanism comprises a rotating base (7) and a motor (8), and the rotating base (7) is fixed on the inner bottom surface of the bottom shell (1). The lifting mechanism is fixed on the rotating seat (7), the motor (8) is fixed on the inner side wall of the bottom case (1), and the rotating seat (7) is sheathed with a driven bevel gear (9), so The output shaft of the motor (8) is provided with a driving bevel gear (10), and the driving bevel gear (10) meshes with the driven bevel gear (9). 3. An art design display stand according to claim 1, characterized in that: the lifting mechanism is an electric push rod (11). 4 . The art design display stand according to claim 1 , wherein a telescopic protective cover ( 12 ) is connected between the top of the bottom shell ( 1 ) and the support plate ( 2 ). 5 . 5. An art design display stand according to claim 1, characterized in that: a baffle plate (13) is provided on the surface edge of the turntable (3).
