The utility model discloses a beach umbrella for seaside tourism industry, including sunshade rod, transparent rain-proof cloth and sunshade cloth, the sunshade rod bottom is fixed with the symmetric distribution free bearing, free bearing one end movable sleeve has first bracing piece, first bracing piece has the second bracing piece through pivot swivelling joint, sunshade rod bottom movable sleeve has first fixed cover, the welding of sunshade rod bottom has the base, the sunshade rod top is fixed with the hasp of equidistance distribution, hasp and catch cooperation lock joint, the catch is fixed in the middle part of a sunshade cloth side; the utility model discloses when night, can open the hasp, under the effect of reset spring and bull stick, the puggaree of catch one side directly is drawn into in the bull box, because sandy beach night wind is great, the sun shade conveniently blocks most sea wind, and the transparent waterproof cloth in umbrella body top makes things convenient for people to sit and sees the star under the umbrella, through transparent waterproof cloth and puggaree alternate use, has strengthened the practicality of sun shade.

Description

Beach umbrella for seaside tourism

Technical Field

The utility model relates to a technical field of tourism instrument specifically is a beach umbrella for seaside tourism industry.

Background

The sunshade umbrella is also called a sun umbrella, is mainly used for shielding the umbrella directly irradiated by sunlight, and can effectively isolate the damage of ultraviolet rays to the skin when being used in summer. At present, two sunshade umbrellas for women and two sunshade umbrellas for men are sold, wherein the sunshade umbrellas for women are mainly pink, purple, ice green, light blue, flower color and other light hues, while the sunshade umbrellas for men are heavier in business style and have black, navy blue, dark green, dark red and the like. Important indexes of the sunshade are UPF (ultraviolet protection factor), size specification, weight, umbrella handle material, umbrella cloth material, framework number, folding length and the like, generally the higher the UPF value is, the stronger the ultraviolet isolation capability is, and the larger the size specification is, the larger the area below the sunshade is, and the existing sunshade for seaside tourism industry is complete, but has some defects in the using process.

1. The existing beach umbrella for the beach tourism industry generally uses cement piers which can not move, and the folding beach umbrella generally has poor stability on the beach sand and can not meet the actual requirements.

2. The existing beach umbrella for the beach tourism industry has single function, cannot meet various requirements of people, and lacks innovation.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a beach umbrella for seaside tourism industry to solve the problem of proposing among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: a beach umbrella for seaside tourism comprises a sunshade rod, transparent rain-proof cloth and sunshade cloth, wherein hinged supports are symmetrically distributed and fixed at the bottom of the sunshade rod, a first supporting rod is movably sleeved at one end of each hinged support, a second supporting rod is connected to the first supporting rod in a rotating mode through a rotating shaft, a first fixing sleeve is movably sleeved at the bottom end of the sunshade rod, a base is welded at the bottom of the sunshade rod, latches which are distributed equidistantly and matched with and buckled with locking rings are fixed at the top end of the sunshade rod, the locking rings are fixed in the middle of one side face of the sunshade cloth, one end of the sunshade cloth is movably rolled on the outer wall of the rotating rod, two second fixing sleeves which are symmetrically distributed are fixedly sleeved on the rotating rod, a reset spring is fixedly connected at one end of each second fixing sleeve, the reset spring is movably sleeved on the outer wall of the rotating rod, one end of the reset spring is fixed on the inner wall, the transparent rain-proof cloth is fixed on the top of the sunshade rod through umbrella ribs.

Preferably, the transparent rain-proof cloth is laid right above the sun-shading cloth.

Preferably, a first fixing hole is formed in one end, far away from the sunshade rod, of the first supporting rod, a second fixing hole is formed in the first fixing hole in an inserting mode through a double-end bolt, and the second fixing hole is formed in one end, close to the rotating shaft, of the second supporting rod.

Preferably, the base is fixed under the first fixing sleeve.

Preferably, the rotating rod is fixed at the center of one side of the rotating box.

Compared with the prior art, the beneficial effects of the utility model are that:

1. the utility model discloses a sun shade buries into soil with the base part when fixing, and the sharp-pointed department in second bracing piece bottom inserts in the sandy soil deeply, strengthens the stability of sun shade, and the bracing piece is conveniently fixed to the double-end bolt, and after the use, the whole cover of the first fixed cover of accessible is at first fixed cover with the bracing piece, convenient folding use.

2. The utility model discloses when night, can open the hasp, under the effect of reset spring and bull stick, the puggaree of catch one side directly is drawn into in the bull box, because sandy beach night wind is great, the sun shade conveniently blocks most sea wind, and the transparent waterproof cloth in umbrella body top makes things convenient for people to sit and sees the star under the umbrella, through transparent waterproof cloth and puggaree alternate use, has strengthened the practicality of sun shade.

Drawings

FIG. 1 is a side sectional view of the overall structure of the present invention;

FIG. 2 is a side view of the overall structure of the present invention;

FIG. 3 is a top view of the sunshade cloth of the present invention;

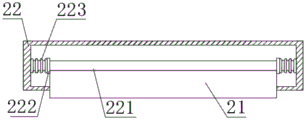

FIG. 4 is a side view of the rotary box of the present invention;

FIG. 5 is an enlarged view of the structure A of the present invention;

FIG. 6 is an enlarged view of the structure B of the present invention;

fig. 7 is a sectional view of the transparent rain-proof cloth of the present invention.

In the figure: 1-a sunshade rod; 11-locking; 12-free bearing; 13-a first fixation sleeve; 14-a base; 15-a first support bar; 151-first fixing hole; 16-a rotating shaft; 17-a second support bar; 171-a second fixation hole; 18-a double-ended latch; 2-transparent rain-proof cloth; 21-sun-shading cloth; 211-a locking ring; 22-rotating the box; 221-rotating rod; 222-a second securing sleeve; 223-return spring.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-7, the present invention provides a technical solution: a beach umbrella for seaside tourism comprises a sunshade rod 1, transparent rain-proof cloth 2 and sunshade cloth 21, wherein hinged supports 12 are symmetrically distributed and fixed at the bottom of the sunshade rod 1, a first supporting rod 15 is movably sleeved at one end of each hinged support 12, a second supporting rod 17 is rotatably connected to the first supporting rod 15 through a rotating shaft 16, a first fixing sleeve 13 is movably sleeved at the bottom end of the sunshade rod 1, a base 14 is welded at the bottom of the sunshade rod 1, lock catches 11 are fixed at the top end of the sunshade rod 1 and are distributed equidistantly, the lock catches 11 are matched and fastened with lock catches 211, the lock catches 211 are fixed at the middle of one side face of the sunshade cloth 21, one end of the sunshade cloth 21 is movably rolled on the outer wall of a rotating rod 221, two second fixing sleeves 222 are symmetrically distributed and fixedly sleeved on the rotating rod 221, one end of each second fixing sleeve 222 is fixedly connected with a return spring 223, the return springs 223 are movably sleeved on the, one end of the return spring 223 is fixed on the inner wall of the rotating box 22, the rotating box 22 is fixed on the edge of the transparent rain-proof cloth 2, and the transparent rain-proof cloth 2 is fixed on the top of the sunshade rod 1 through the umbrella ribs.

Transparent weather cloth 2 is laid directly over puggaree 21, makes things convenient for transparent tarpaulin 2 and puggaree 21 alternate use, first bracing piece 15 is kept away from the one end of puggaree 1 and has been seted up first fixed orifices 151, first fixed orifices 151 has second fixed orifices 171 through 18 pegs graft of double-end bolt, second fixed orifices 171 are seted up in the one end that second bracing piece 17 is close to pivot 16, conveniently fixes two bracing pieces, base 14 is fixed under first fixed cover 13, makes the slip on the puggaree 1 that first fixed cover 13 can be nimble, bull stick 221 is fixed in the center department in commentaries on classics box 22 one side, makes things convenient for the book of puggaree 21 to close.

The working principle is as follows: the beach umbrella for seaside tourism of the utility model is characterized in that when the beach umbrella is fixed, the base 14 is partially buried in the soil, the sharp part at the bottom end of the second support rod 17 which is connected by the first support rod 15 through the rotating shaft 16 is deeply inserted into the sandy soil, the stability of the beach umbrella is enhanced, the first fixing hole 151 arranged at one end of the first support rod 15 is inserted into the second fixing hole 171 arranged on the second support rod 17 through the double-end bolt 18, so as to conveniently fix the two support rods, after the beach umbrella is used, the two support rods are integrally sleeved in the first fixing sleeve 13 through the first fixing sleeve 13 which is movably sleeved on the sunshade rod 1, so as to be conveniently folded for use, when the beach umbrella is used, the lock catch 11 can be opened, one end of the reset spring 223 is fixed on the inner wall of the rotating box 22, the reset spring 223 recovers to deform and drives the second fixing sleeve 222 which is fixedly sleeved at the other end to rotate, the rotating rod, thereby drive catch 211 and puggaree 21 and upwards roll up, make the puggaree directly be drawn into in the box 22 that changes, because sandy beach night wind is great, the sun shade conveniently blocks most sea wind, the transparent tarpaulin 2 in umbrella body top makes things convenient for people to sit under the umbrella and see stars, when sunshine is strong daytime, again with catch 211 and the puggaree 21 and the 11 cooperation lock joints of hasp of one side, sunshine is through under transparent puggaree 2 and the 21 dual function of puggaree, weaken gradually, the sunshade ability of reinforcing sun shade, through transparent tarpaulin 2 and puggaree 21 alternate use, the practicality of sun shade has been strengthened.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a beach umbrella for seaside tourism industry, includes sunshade rod (1), transparent rain cloth (2) and puggaree (21), its characterized in that: the bottom of the sunshade rod (1) is fixed with symmetrically distributed hinged supports (12), one end of each hinged support (12) is movably sleeved with a first supporting rod (15), each first supporting rod (15) is rotatably connected with a second supporting rod (17) through a rotating shaft (16), the bottom of the sunshade rod (1) is movably sleeved with a first fixing sleeve (13), the bottom of the sunshade rod (1) is welded with a base (14), the top end of the sunshade rod (1) is fixed with lock catches (11) distributed at equal intervals, the lock catches (11) are matched and buckled with lock rings (211), the lock rings (211) are fixed in the middle of one side face of the sunshade cloth (21), one end of the sunshade cloth (21) is movably rolled on the outer wall of the rotating rod (221), the rotating rod (221) is fixedly sleeved with two symmetrically distributed second fixing sleeves (222), one end of each second fixing sleeve (222) is fixedly connected with a reset spring (223), reset spring (223) activity is cup jointed at the outer wall of commentaries on classics pole (221), reset spring (223) one end is fixed and is changeed box (22) inner wall, change the edge at transparent rain-proof cloth (2) in box (22), transparent rain-proof cloth (2) are fixed at sunshade rod (1) top through the rib.

2. The sunshade umbrella for seashore tourism use according to claim 1, wherein: the transparent rain-proof cloth (2) is paved right above the sun-shading cloth (21).

3. The sunshade umbrella for seashore tourism use according to claim 1, wherein: first fixed orifices (151) have been seted up to the one end that sunshade rod (1) was kept away from in first bracing piece (15), first fixed orifices (151) have second fixed orifices (171) through double-end bolt (18) grafting, second fixed orifices (171) are seted up in the one end that second bracing piece (17) are close to pivot (16).

4. The sunshade umbrella for seashore tourism use according to claim 1, wherein: the base (14) is fixed under the first fixing sleeve (13).

5. The sunshade umbrella for seashore tourism use according to claim 1, wherein: the rotating rod (221) is fixed at the center of one side of the rotating box (22).
