Abstract

A strapless mask, including a mask main body with a multi-layer filter cloth body, and there are no straps on both sides of the mask main body, and a re-fitable tape is provided around one side. In addition to increasing the wear time, In addition to comfort, the sealing is further enhanced by the adhesive tape.

Description

no-strap mask

technical field

The utility model relates to a mask, in particular to a mask without a strap, and the mask is fixed on the skin by means of adhesive tape.

Background technique

Commercially available masks have straps on both sides. For users who need to wear them for a long time (such as nursing staff), in addition to the scars on both sides of the ears, the straps are easy to fall off, and the myopia increases the trouble and inconvenience of wearing. Comfort is its disadvantage; in addition, the airtightness of hanging the mask on the face only through the strap is poor, and the dirt in the air may still seep into the mouth and nose from the periphery of the mask, so there is still room for improvement in the conventional technology.

Utility model content

The purpose of this utility model is to provide a kind of mask without strap, which is simple in structure, convenient in operation, and effectively overcomes the defects of the prior art.

In order to achieve the above purpose, the utility model discloses a mask without a strap, which is characterized in that it includes:

A mask body, the mask body has a multi-layer filter cloth body, and there are no straps on both sides of the mask body, and a plurality of adhesive tapes that can be repeatedly attached are arranged on the periphery of one side.

Among them, the mask body is provided with a plurality of creases.

Wherein, the main body of the mask is provided with a fixing strip that can be folded concavely.

It can be seen from the above structure that, in the mask without straps of the present invention, the user can directly attach the main body of the mask to the face, and it is not easy to have the problem of falling off. The main body of the mask is torn off and attached several times to be removed or worn according to the needs of the occasion.

The crease of the utility model can provide the elasticity of the mask body to adapt to the face shapes of different users.

The fixing strip of the utility model can be concavely folded and attached according to the shape of the nose wing of the user, so as to improve the wearing comfort.

Regarding the techniques, means and effects of the present utility model, preferred embodiments are hereby described in detail with the accompanying drawings. It is believed that the above-mentioned purposes, structures and features of the present utility model should be thoroughly and concretely obtained. learn.

Description of drawings

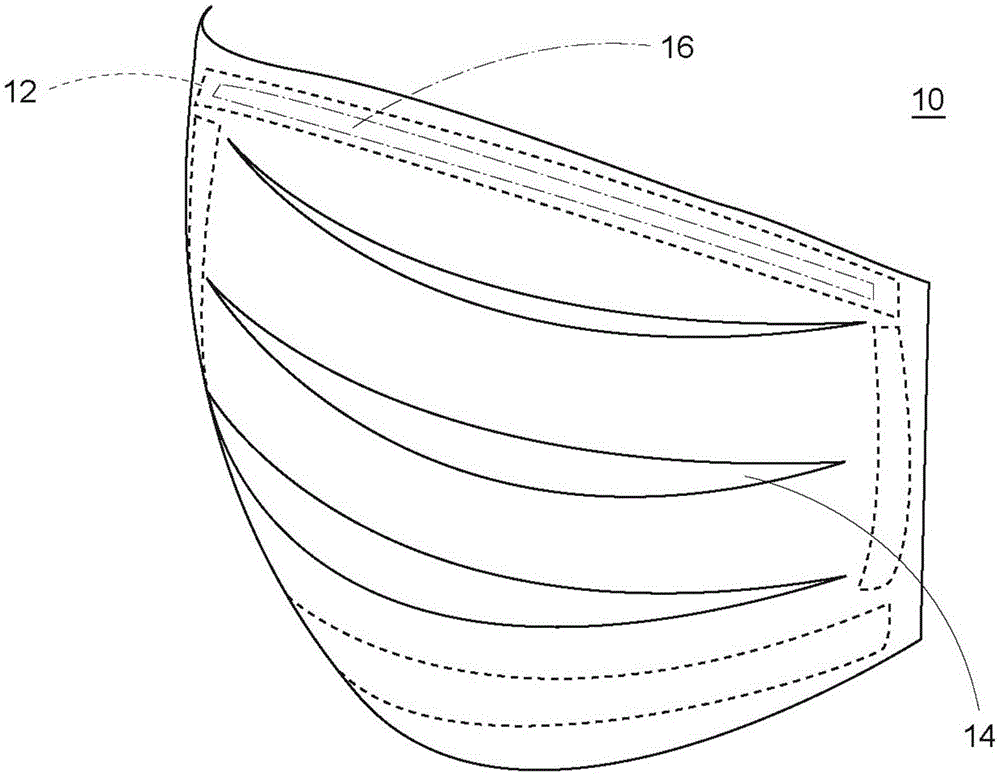

Fig. 1 is a three-dimensional schematic diagram of the main body of the mask of the present invention.

Fig. 2 is the front schematic diagram of the main body of the mask of the present invention.

3 is a schematic diagram of the reverse side of the main body of the mask of the present invention.

FIG. 4 is a schematic diagram of a specific embodiment of the present invention.

Detailed ways

Referring to FIG. 1, a kind of mask without straps is disclosed, including a mask body 10, the mask body 10 has a multi-layer filter cloth body, and there are no straps on both sides of the mask body 10, and a periphery of one side is provided with a plurality of Repeatedly attached tape 12, the mask body 10 is provided with a plurality of folds 14, after the mask body 10 is stretched, each of the folds 14 will be pulled apart, so that the overall area of the mask body 10 is increased.

2, viewed from the front of the mask body 10, the mask body 10 has only the folds 14 on the front side, and the folds 14 can provide the flexibility of the mask body 10 to adapt to the size of the face of different users .

Next, referring to FIG. 3 and in conjunction with FIG. 1 , when viewed from the back of the mask body 10, in addition to the folds 14 on the back of the mask body 10, these tapes are provided along the edge of the inner peripheral surface of the mask body 10. 12. Each of the adhesive tapes 12 has the characteristic of being able to fit repeatedly. A fixing strip 16 is provided on the top surface of the mask body 10 and between the adhesive tapes 12 at the top. The fixing strip 16 can be folded according to the user's nose. , to increase the comfort of the mask body 10 when wearing it.

4 is a schematic diagram of a specific embodiment of the present utility model. After the user first removes the packaging (not shown) in which the mask body 10 is installed, the mask body 10 is attached to the skin of the face, and the tapes 12 avoid The mouth and nose breathing holes are opened, and then the fixing strip 16 is bent and matched according to the shape of the nose wing to increase the comfort.

Claims (2)

1. a no-strap mask, is characterized in that comprising: A mask body, the mask body has a multi-layer filter cloth body, and there are no straps on both sides of the mask body, and a plurality of adhesive tapes that can be repeatedly attached are provided on the periphery of one side; the mask body is provided with a fixed foldable strip. 2 . The strapless mask of claim 1 , wherein the mask body is provided with a plurality of creases. 3 .
