Abstract

The utility model relates to a portable solar energy utilization device, comprising a first mounting plate and a second mounting plate, the first mounting plate and the second mounting plate are hingedly connected, and the front side of the first mounting plate and the second mounting plate Both are provided with an installation slot and a fixing slot, the fixing slot is communicated with the installation slot, and the fixing slot is symmetrically arranged on both sides of the installation slot, the solar panel is arranged in the installation slot, and the two sides of the solar panel are arranged symmetrically There are transverse blocks, and the transverse blocks are arranged in the fixing groove, the utility model has a simple structure and a reasonable design. And the support block is supported and fixed, so that the use of the solar energy utilization device is more convenient, and when not in use, the first installation plate and the second installation plate are combined and fixed by a dowel, so as to facilitate the solar energy utilization device. carry.

Description

A portable solar energy utilization device

technical field

The utility model relates to a portable solar energy utilization device, which belongs to the technical field of solar energy utilization.

Background technique

Solar energy utilization devices, which can utilize solar energy through solar panels and convert solar energy into electrical energy, but for solar energy utilization devices, in order to better utilize solar energy and use it in other places, it is often necessary to Therefore, it needs to be able to be carried, and at the same time of satisfying the carrying function, it must be able to be installed and used at any time, so as to improve the use effect. Therefore, further improvement is required.

Utility model content

The purpose of this utility model is to provide a portable solar energy utilization device. When in use, it is only necessary to fold the first installation plate and the second installation plate, and use the fixing plate and the support block to support and fix the solar energy. The use of the utilization device is more convenient, and when not in use, the first mounting plate and the second mounting plate are combined and fixed by a joint pin, so as to facilitate the carrying of the solar energy utilization device, so as to solve the above-mentioned problems in the background art. question.

To achieve the above object, the utility model provides the following technical solutions:

A portable solar energy utilization device, comprising a first mounting plate and a second mounting plate, the first mounting plate and the second mounting plate are hingedly connected, and the front sides of the first mounting plate and the second mounting plate are provided with installation a slot and a fixing slot, the fixing slot is communicated with the installation slot, and the fixing slot is symmetrically arranged on both sides of the installation slot, the solar panel is arranged in the installation slot, and the two sides of the solar panel are symmetrically arranged with horizontal blocks, and the transverse block is arranged in the fixing slot, the front side of the second mounting plate is provided with a first placement slot and a second placement slot, and the first placement slot and the second placement slot are respectively symmetrically arranged on the second mounting plate On the upper and lower sides, the first mounting plate and the second mounting plate are symmetrically provided with fixed plates on both sides, and the rear sides of the first mounting plate and the second mounting plate are provided with rotating blocks. A connecting block is symmetrically arranged, the rotating block is connected with the connecting block through a rotating shaft, and the connecting block is fixedly connected with the first mounting plate and the second mounting plate respectively, and the bottom of the rotating block is fixedly connected with a screw, the screw The outer side of the bottom is threadedly connected with a threaded sleeve, the bottom of the threaded sleeve is provided with a support block, and the bottoms of the first mounting plate and the second mounting plate are both provided with a base.

Further, the base is configured as a semi-cylindrical structure.

Further, a first bolt is provided in the fixing plate, and the tail of the first bolt penetrates through the fixing plate and is threadedly connected to the first mounting plate and the second mounting plate.

Further, a second bolt is provided on the front side of the transverse block, and the tail of the second bolt penetrates through the transverse block and is threadedly connected to the first mounting plate and the second mounting plate.

Further, a third bolt is provided on the rear side of the support block, and the tail of the third bolt penetrates through the support block and is threadedly connected to the first mounting plate and the second mounting plate.

Further, the left side of the first mounting plate and the right side of the second mounting plate are provided with corresponding dowel pins.

The beneficial effects of the present utility model are:

1. When in use, it is only necessary to fold the first mounting plate and the second mounting plate, and use the fixing plate and the support block for support and fixation, so that the use of the solar energy utilization device is more convenient, and when not in use At the time of installation, the first mounting plate and the second mounting plate are combined and fixed by a dowel, so that the solar energy utilization device can be easily carried.

2. By being provided with a transverse block and a second bolt, the solar panel can be easily fixed in the installation groove. By being provided with a base, and the base is set as a semi-cylindrical structure, the first mounting plate and the second mounting plate can be supported, By providing the first placement groove, the first bolt can be placed, by providing the second placement groove, the fixing plate can be placed, and by providing the third bolt, the support block can be placed between the first mounting block and the second mounting block. The threaded casing and the screw rod are fixed, and the dowel pin is arranged to facilitate the fixing between the first installation plate and the second installation plate, and has strong practicability and is suitable for widespread implementation.

Description of drawings

The accompanying drawings are used to provide a further understanding of the present invention, and constitute a part of the specification. Together with the specific embodiments of the present invention, the accompanying drawings are used to explain the present invention, and do not constitute a limitation to the present invention.

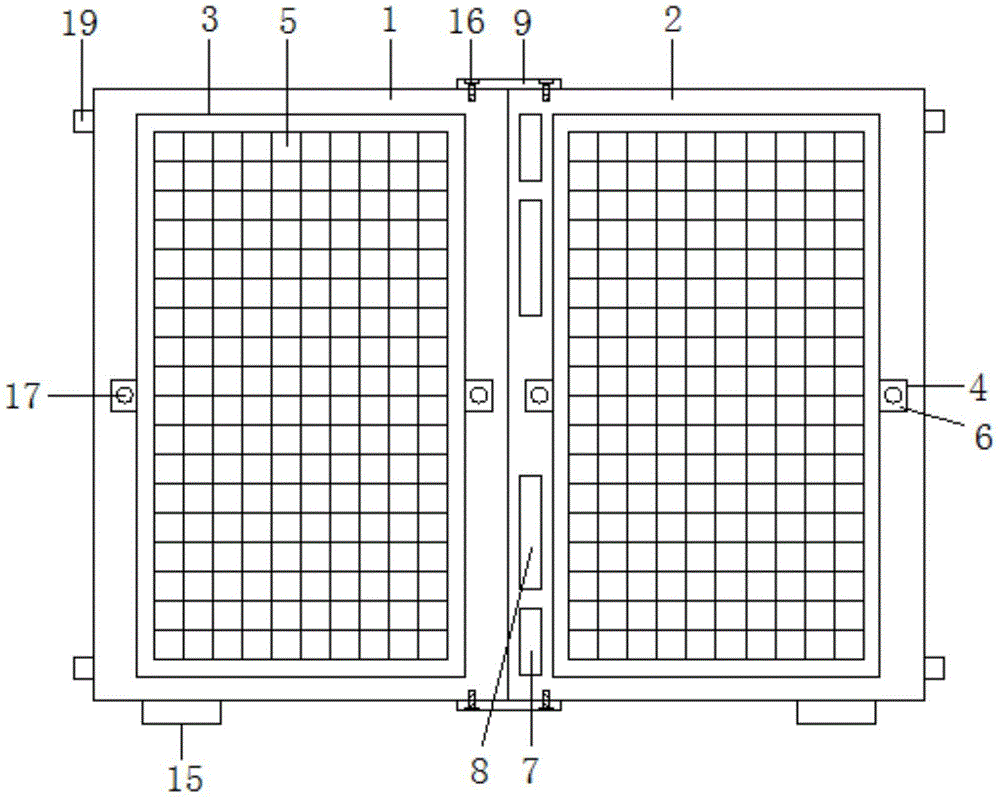

1 is a schematic structural diagram of a portable solar energy utilization device of the present invention;

2 is a rear view of a portable solar energy utilization device of the present invention;

3 is a schematic diagram of screw connection of a portable solar energy utilization device of the present invention;

Labels in the figure: 1, the first installation plate; 2, the second installation plate; 3, the installation slot; 4, the fixing slot; 5, the solar panel; 6, the horizontal block; 7, the first placement slot; 8, the second placement slot; 9. fixing plate; 10. rotating block; 11. connecting block; 12. screw rod; 13. threaded sleeve; 14. supporting block; 15. base; 16. first bolt; 17. second bolt; 18. The third bolt; 19, the joint pin.

Detailed ways

The preferred embodiments of the present utility model will be described below with reference to the accompanying drawings. It should be understood that the preferred embodiments described herein are only used to illustrate and explain the present utility model, but not to limit the present utility model.

Example 1:

As shown in Figures 1-3, a portable solar energy utilization device includes a first mounting plate 1 and a second mounting plate 2, the first mounting plate 1 and the second mounting plate 2 are hingedly connected, and the first mounting plate 1 and the second mounting plate 2 are hingedly connected. The front sides of the mounting plate 1 and the second mounting plate 2 are provided with a mounting slot 3 and a fixing slot 4, the fixing slot 4 is communicated with the mounting slot 3, and the fixing slot 4 is symmetrically arranged on both sides of the mounting slot 3, so A solar panel 5 is arranged in the installation slot 3, and transverse blocks 6 are symmetrically arranged on both sides of the solar panel 5 to fix the solar panel 5 in the installation slot 3, and the transverse block 6 is arranged in the fixing slot 4, so The front side of the second mounting plate 2 is provided with a first placement slot 7 and a second placement slot 8, and the first placement slot 7 and the second placement slot 8 are respectively symmetrically arranged on the upper and lower sides of the second mounting plate 2, so The first mounting plate 1 and the second mounting plate 2 are provided with fixed plates 9 symmetrically on the upper and lower sides to fix the first mounting plate 1 and the second mounting plate 2. The first mounting plate 1 and the second mounting plate 2 The rear side of the mounting plate 2 is provided with a rotating block 10. The rotating block 10 is provided with a connecting block 11 symmetrically on both sides. The connecting block 11 is fixedly connected with the first mounting plate 1 and the second mounting plate 2 respectively, the bottom of the rotating block 10 is fixedly connected with a screw 12, and the outer side of the bottom of the screw 12 is threadedly connected with a threaded sleeve 13, so as to better adjust the first mounting plate. An inclination angle of the mounting plate 1 and the second mounting plate 2, the bottom of the threaded sleeve 13 is provided with a support block 14, the bottom of the first mounting plate 1 and the second mounting plate 2 are provided with a base 15, and the bottom of the first mounting plate 1 and the second mounting plate 2 are provided with a base 15. The mounting plate 1 and the second mounting plate 2 are supported.

In this embodiment, the fixing plate 9 is provided with a first bolt 16 , and the tail of the first bolt 16 penetrates the fixing plate 9 and is threadedly connected to the first mounting plate 1 and the second mounting plate 2 , so that the first mounting plate 1 and the second mounting plate 2 are screwed together. The plate 1 and the second mounting plate 2 are fixed. The front side of the transverse block 6 is provided with a second bolt 17, and the tail of the second bolt 17 penetrates the thread of the transverse block 6 and the first mounting plate 1 and the second mounting plate 2. connection, the solar panel 5 is better fixed in the installation slot 3, the rear side of the support block 14 is provided with a third bolt 18, and the tail of the third bolt 18 penetrates the support block 14 and the first installation plate 1 and the first The two mounting plates 2 are screwed together to fix the support block 14 with the first mounting plate 1 and the second mounting plate 2 , thereby preventing the rotating block 10 from rotating.

Embodiment 2:

As shown in FIG. 1 and FIG. 2 , the base 15 is configured as a semi-cylindrical structure, which is convenient for supporting the first mounting plate 1 and the second mounting plate 2 , the left side of the first mounting plate 1 and the second mounting plate 2 Corresponding dowels 19 are provided on the right side to facilitate fixing between the first mounting plate 1 and the second mounting plate 2 .

The working principle of the utility model: when using the device, open the closing pin 19, fold the first mounting plate 1 row, take out the first bolt 16 and the fixing plate 9, and set the fixing plate 9 on the first mounting plate 1 and the second mounting plate On the upper and lower sides of the plate 2, use the first bolt 16 to fix the fixing plate 9 with the first mounting plate 1 and the second mounting plate 2, and rotate the third bolt 18 to make the support block 14 and the first mounting plate 1 and the second mounting plate 1 Separate the panels 2, tilt the device so that the solar panel 5 faces the sunlight, rotate the threaded sleeve 13, and make the screw 12 rise to a suitable height, through the base 15 and the support block 14 to install the first panel 1 and the second The mounting plate 2 is supported, the first placement slot 7 is provided, the first bolt 16 can be placed, and the second placement slot 8 is provided to place the fixing plate 9, the structure is simple, the operation is convenient, and the practicability is strong.

The above are the preferred embodiments of the present invention. Those skilled in the art can also make changes and modifications to the above-mentioned embodiments. Therefore, the present invention is not limited to the above-mentioned specific embodiments. Any obvious improvement, replacement or modification made on the basis of the present invention belongs to the protection scope of the present invention.

Claims (6)

1. A portable solar energy utilization device, comprising a first mounting plate (1) and a second mounting plate (2), characterized in that: a hinge between the first mounting plate (1) and the second mounting plate (2) connection, the front sides of the first mounting plate (1) and the second mounting plate (2) are provided with a mounting slot (3) and a fixing slot (4), and the fixing slot (4) is connected with the mounting slot (3) and the fixing grooves (4) are symmetrically arranged on both sides of the installation groove (3), the solar panels (5) are arranged in the installation grooves (3), and the solar panels (5) are symmetrically arranged on both sides with horizontal Block (6), and the transverse block (6) is arranged in the fixing groove (4), and the front side of the second mounting plate (2) is provided with a first placing groove (7) and a second placing groove (8) , and the first placement slot (7) and the second placement slot (8) are respectively symmetrically arranged on the upper and lower sides of the second mounting plate (2), the first mounting plate (1) and the second mounting plate (2). ) A fixed plate (9) is symmetrically arranged on both sides of the upper and lower sides, and a rotating block (10) is arranged on the rear side of the first mounting plate (1) and the second mounting plate (2). A connecting block (11) is arranged symmetrically on the side, the rotating block (10) is connected with the connecting block (11) through a rotating shaft, and the connecting block (11) is respectively connected with the first mounting plate (1) and the second mounting plate (2) Fixed connection, a screw (12) is fixedly connected to the bottom of the rotating block (10), and a threaded sleeve (13) is threadedly connected to the outer side of the bottom of the screw (12), and the bottom of the threaded sleeve (13) is provided with A support block (14) is provided, and a base (15) is provided at the bottom of the first mounting plate (1) and the second mounting plate (2). 2 . The portable solar energy utilization device according to claim 1 , wherein the base ( 15 ) is configured as a semi-cylindrical structure. 3 . 3 . The portable solar energy utilization device according to claim 1 , wherein a first bolt ( 16 ) is provided in the fixing plate ( 9 ), and the first bolt ( 16 ) is fixed through the bolt tail. 4 . The plate (9) is screwed with the first mounting plate (1) and the second mounting plate (2). 4 . The portable solar energy utilization device according to claim 1 , wherein a second bolt ( 17 ) is arranged on the front side of the transverse block ( 6 ), and the tail of the second bolt ( 17 ) penetrates through the transverse block ( 6 ). The block (6) is screwed with the first mounting plate (1) and the second mounting plate (2). 5 . The portable solar energy utilization device according to claim 1 , wherein a third bolt ( 18 ) is provided on the rear side of the support block ( 14 ), and the third bolt ( 18 ) runs through the support. 6 . The block (14) is screwed with the first mounting plate (1) and the second mounting plate (2). 6. A portable solar energy utilization device according to claim 1, characterized in that: the left side of the first mounting plate (1) and the right side of the second mounting plate (2) are provided with corresponding dowels (19) ).
