A new type of easily dismantling adjustable air conditioner mounting frame

technical field

The utility model belongs to the technical field of air-conditioning mounting racks, in particular to a novel easily dismantling adjustable air-conditioning mounting rack.

Background technique

An air conditioner is an air conditioner. It refers to the equipment that adjusts and controls the temperature, humidity, flow velocity and other parameters of the ambient air in buildings or structures by artificial means. Generally, it includes cold source/heat source equipment, cold and hot medium transmission and distribution system, terminal devices and other auxiliary equipment. Mainly include, refrigeration host, water pump, fan and piping system. The terminal device is responsible for using the cold and heat from the transmission and distribution, specifically processing the air state, and making the air parameters of the target environment meet the requirements.

The split type air conditioner is divided into two parts: indoor unit and outdoor unit. Among them, an air conditioner mounting frame is required when the outdoor unit is installed, but the existing air conditioner mounting frame is inconvenient to adjust, has poor applicability, and cannot meet the needs of people.

Utility model content

The purpose of the present utility model is to provide a novel easily disassembled adjustable air conditioner mounting frame to solve the problems raised in the above-mentioned background technology.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a novel easy-to-disassemble adjustable air-conditioning mounting frame, comprising a connecting rod, a mounting plate, a fixing piece and a reinforcing plate, and a mounting plate is fixedly connected to one side of the fixing piece, The mounting plate is provided with two groups in parallel with each other, a connecting rod is fixedly installed between the two groups of the mounting plates, a support plate is fixedly connected to the bottom end of the fixing member, and one side of the support plate is fixedly connected to the mounting plate, so The supporting plate and the mounting plate are arranged in a right-angle structure, the side of the mounting plate close to the fixing member is fixedly connected with a reinforcing plate, the two reinforcing plates are arranged in parallel with each other, and the top ends of the two reinforcing plates are connected to the supporting plate. The lower end face of the plate is fixedly connected, the side of the fixing piece away from the mounting plate is provided with a chute for installing the support rod, the support rod is connected with the support plate through the slider, and the support rod is connected with the support frame through the fastening bolts , the support frame is provided with two groups in parallel, and the fixing part is provided with an installation cavity, and the installation cavity is respectively provided with a movable block and a threaded rod, the installation cavity is communicated with the chute, and the movable block sleeve is placed on the threaded rod, and one end of the movable block is fixedly connected with the support rod.

Preferably, two sets of the movable block and the threaded rod are arranged in parallel with each other, the movable block is threadedly matched with the threaded rod, the threaded rod is connected to the inner walls at both ends of the fixing piece, and the inner walls at both ends of the fixing piece are located on the threaded rod. The bearing is inlaid and installed at the location.

Preferably, the bearings are provided with multiple groups in parallel, the bearings are fixedly sleeved on the threaded rod, one end of the threaded rod is fixedly connected to the handle through the bearing, and the handle is fixedly connected to the fixing piece by tapping the screw .

Preferably, a stopper is fixedly connected to the center of the installation cavity, and a bearing is also mounted on the stopper. Block rotation connection.

Preferably, two groups of the support rods are arranged in parallel with each other, the support rods and the fixing member are arranged in a right-angle structure, one end of the support rod is fixedly inserted on the movable block through the chute, and the support frame is fixedly welded. on the support rod.

Preferably, a slider is fixedly connected to the lower end surface of the support rod, and a slideway is provided on the upper end surface of the support plate at the position where the slider is located, the slideway is adapted to the slider, and the support rod slides with the support plate connect.

The technical effects and advantages of the present utility model: the new easy-to-disassemble adjustable air-conditioning mounting frame is used in conjunction with a fixed piece, a chute, a support rod, a slider, a bearing, a support plate, a handle, a movable block and a threaded rod, thereby The device can adjust the distance between the two sets of support frames according to the size of the air conditioner outdoor unit, thereby facilitating the installation of air conditioner outdoor units of different sizes, thereby improving the applicability of the device. The threaded rod rotates, and the design of the stopper and bearing facilitates the two groups of threaded rods to move independently. The support frame is fixed and welded on the support rod, and the design of the tightening bolts makes the connection between the support frame and the support rod more closely. , The use of the slideway and the slider is convenient for the support rod to follow the movable block to move, and the support plate can provide support for the support rod. The advantages of adjustment.

Description of drawings

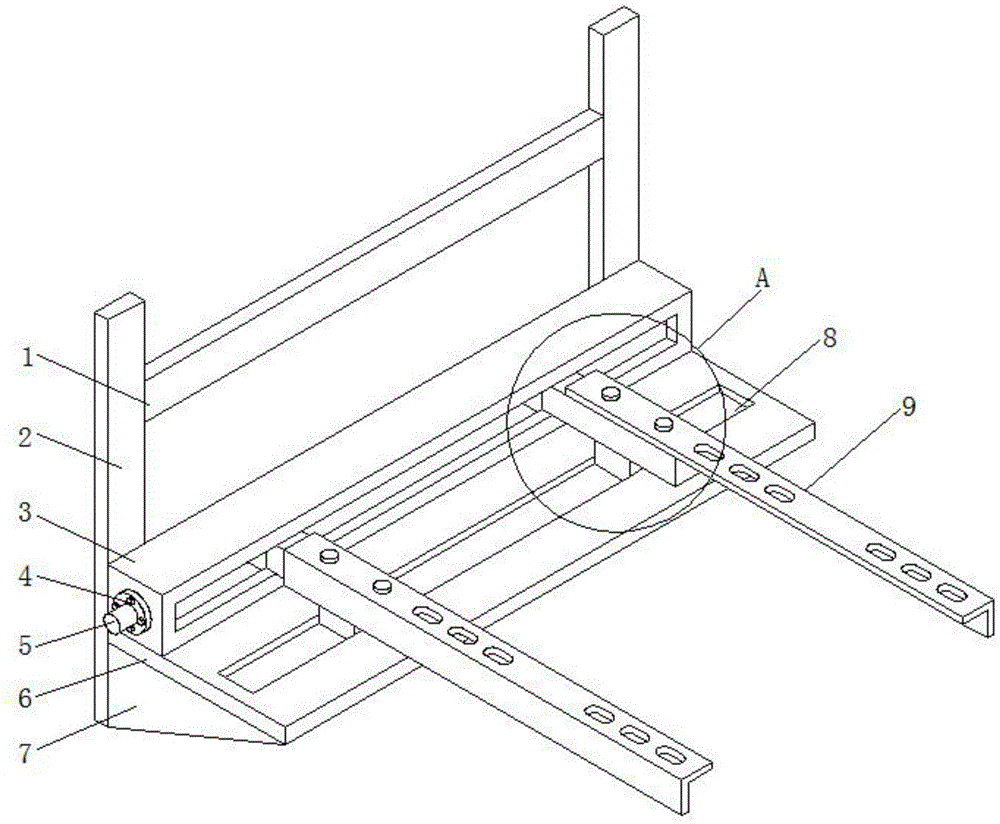

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the enlarged view of A place in Fig. 1 of the utility model;

FIG. 3 is a schematic diagram of the internal structure of the fixing piece of the present invention.

In the picture: 1 connecting rod, 2 mounting plate, 3 fixing piece, 4 tapping screw, 5 handle, 6 supporting plate, 7 reinforcing plate, 8 sliding track, 9 supporting frame, 10 threaded rod, 11 movable block, 12 sliding groove , 13 installation cavity, 14 bearings, 15 support rods, 16 sliders, 17 fastening bolts.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

The utility model provides a new type of easily disassembled and adjustable air conditioner mounting frame as shown in Figures 1-3, comprising a connecting rod 1, a mounting plate 2, a fixing piece 3 and a reinforcing plate 7, the fixing piece 3 is fixed on one side A mounting plate 2 is connected, and two sets of the mounting plates 2 are arranged in parallel with each other. A connecting rod 1 is fixedly installed between the two sets of the mounting plates 2. The bottom end of the fixing member 3 is fixedly connected with a supporting plate 6. One side of the support plate 6 is fixedly connected with the mounting plate 2, the support plate 6 and the mounting plate 2 are arranged in a right-angle structure, and the side of the mounting plate 2 close to the fixing member 3 is fixedly connected with a reinforcing plate 7. The plate 7 is provided with two groups in parallel, the top ends of the two groups of the reinforcing plates 7 are fixedly connected with the lower end surface of the support plate 6, and the side of the fixing member 3 away from the mounting plate 2 is provided with a chute 12 for installing the support rod 15. , the support rod 15 is connected with the support plate 6 through the slider 16, the support rod 15 is connected with the support frame 9 through the fastening bolt 17, and the support frame 9 is provided with two groups in parallel. An installation cavity 13 is opened. The installation cavity 13 is respectively provided with a movable block 11 and a threaded rod 10. The installation cavity 13 is communicated with the chute 12. The movable block 11 is sleeved on the threaded rod 10. One end of the block 11 is fixedly connected with the support rod 15, and the support frame 9 is provided with an installation hole, so as to facilitate the installation of the air conditioner outdoor unit.

Specifically, two sets of the movable block 11 and the threaded rod 10 are arranged in parallel with each other. The movable block 11 is threadedly matched with the threaded rod 10, and the threaded rod 10 is connected to the inner walls of both ends of the fixing member 3. The fixing member 3. Bearings 14 are inlaid and installed on the inner walls of both ends at the position of the threaded rod 10.

Specifically, the bearings 14 are provided with multiple groups in parallel, the bearings 14 are fixedly sleeved on the threaded rod 10, and one end of the threaded rod 10 is fixedly connected to the handle 5 through the bearing 14, and the handle 5 is tapped by tapping The screw 4 is fixedly connected with the fixing member 3, and the handle 5 is provided with two groups in parallel with each other, and the handle 5 is convenient to drive the threaded rod 10 to rotate.

Specifically, a stopper is fixedly connected to the inner center of the installation cavity 13, and a bearing 14 is also mounted on the stopper. The threaded rod 10 is rotatably connected to the block, and the design of the block and the bearing 14 facilitates the two groups of threaded rods 10 to move independently.

Specifically, two groups of the support rods 15 are arranged in parallel with each other. The support rods 15 and the fixing member 3 are arranged in a right-angle structure. The support frame 9 is fixedly welded on the support rod 15 , and the connection between the support frame 9 and the support rod 15 is made more tightly through the design of the fastening bolts 17 .

Specifically, a slider 16 is fixedly connected to the lower end surface of the support rod 15 , and a slideway 8 is defined on the upper end surface of the support plate 6 at the position of the slider 16 . The slideway 8 is adapted to the slider 16 , so The support rod 15 is slidably connected to the support plate 6 , and the slideway 8 cooperates with the slider 16 to facilitate the support rod 15 to follow the movable block 11 to move, and the support plate 6 can provide support force for the support rod 15 .

Specifically, when using the new easy-to-remove adjustable air conditioner mounting frame, firstly adjust the distance between the two sets of support frames 9 according to the size of the air conditioner's external unit, firstly, turn the handle 5, through the movable block 11 and the The thread fit of the threaded rod 10 drives the movable block 11 to move in the fixing member 3, and then drives the support rod 15 to move on the support plate 6, so as to achieve the purpose of adjusting the position of the support frame 9, and then tap the screw 4. Through the handle 5, it is fixedly connected to both ends of the fixing piece 3, so as to achieve the purpose of fixing the position of the threaded rod 10. Then, the mounting plate 2 is fixed on the wall by tapping the screws 4, and finally the air conditioner is installed on the mounting frame. The new easy-to-disassemble adjustable air-conditioning mounting frame has the advantages of reasonable design, convenient use and easy adjustment.

Finally, it should be noted that the above are only the preferred embodiments of the present invention, and are not intended to limit the present invention. , it can still modify the technical solutions recorded in the foregoing embodiments, or perform equivalent replacements to some of its technical features, any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of the present utility model, All should be included within the protection scope of the present invention.

Claims (6)

1. A novel and easily disassembled adjustable air conditioner mounting frame, comprising a connecting rod (1), a mounting plate (2), a fixing piece (3) and a reinforcing plate (7), characterized in that: the fixing piece (3) A mounting plate (2) is fixedly connected on one side, and two sets of the mounting plates (2) are arranged in parallel with each other, and a connecting rod (1) is fixedly installed between the two sets of the mounting plates (2). 3) The bottom end is fixedly connected with a support plate (6), one side of the support plate (6) is fixedly connected with the mounting plate (2), and the support plate (6) and the mounting plate (2) are arranged in a right-angle structure A reinforcing plate (7) is fixedly connected to the side of the mounting plate (2) close to the fixing member (3). Both are fixedly connected to the lower end face of the support plate (6), and the side of the fixing member (3) away from the mounting plate (2) is provided with a chute (12) for installing the support rod (15), the support rod (15) ) is connected with the support plate (6) through the slider (16), the support rod (15) is connected with the support frame (9) through the fastening bolt (17), and the support frame (9) is provided with two sets of relatively parallel , an installation cavity (13) is opened inside the fixing member (3), and a movable block (11) and a threaded rod (10) are respectively arranged in the installation cavity (13), and the installation cavity (13) is connected with the chute (12) is connected, the movable block (11) is sleeved on the threaded rod (10), and one end of the movable block (11) is fixedly connected with the support rod (15). 2. A new type of easily disassembled and adjustable air conditioner mounting frame according to claim 1, characterized in that: the movable block (11) and the threaded rod (10) are provided with two groups in parallel with each other, and the movable block (11) is threadedly matched with the threaded rod (10), the threaded rod (10) is connected to the inner walls of the two ends of the fixing piece (3), and the inner walls of the two ends of the fixing piece (3) are inlaid and installed at the position of the threaded rod (10). There are bearings (14). 3. A new type of easily disassembled and adjustable air conditioner mounting frame according to claim 2, characterized in that: the bearings (14) are provided with multiple groups in parallel and relatively, and the bearings (14) are fixedly sleeved on the threaded rod On (10), one end of the threaded rod (10) is fixedly connected to the handle (5) through the bearing (14), and the handle (5) is fixedly connected to the fixing member (3) by tapping the screw (4). 4. A new type of easily disassembled and adjustable air conditioner mounting frame according to claim 1, characterized in that: a block is fixedly connected to the inner center of the mounting cavity (13), and a bearing ( 14), the end of the threaded rod (10) away from the handle (5) is fixedly inserted on the block through the fixing piece (3), and the threaded rod (10) is rotatably connected with the block. 5. A new type of easily disassembled and adjustable air conditioner mounting frame according to claim 1, characterized in that: the support rods (15) are provided with two sets of relatively parallel pairs, the support rods (15) and the fixing parts ( 3) They are arranged in a right-angle structure, one end of the support rod (15) is fixedly inserted on the movable block (11) through the chute (12), and the support frame (9) is fixedly welded on the support rod (15) . 6. A new type of easily disassembled and adjustable air conditioner mounting frame according to claim 1, characterized in that: the lower end surface of the support rod (15) is fixedly connected with a slider (16), and the support plate (6) A slideway (8) is provided on the upper end surface at the position of the slide block (16), the slideway (8) is adapted to the slide block (16), and the support rod (15) is slidably connected with the support plate (6). .
