Abstract

The utility model discloses an air conditioner, which comprises an indoor unit and a photocatalyst air purification device, wherein the photocatalyst air purification device is arranged at an air outlet and/or an air return port of the indoor unit, used for sterilizing and disinfecting air, the photocatalyst air purification device comprises a photocatalyst filter screen and an LED lamp, by adjusting the included angle between the LED lamp and the photocatalyst filter screen, the ultraviolet light emitted by the LED lamp can completely cover the photocatalyst filter screen, thereby improving the sterilization and disinfection effects on air, because the LED lamp is arranged at the periphery of the photocatalyst filter screen and forms a certain included angle with the photocatalyst filter screen, under the condition of ensuring that the photocatalyst filter screen is irradiated by ultraviolet light, the influence on the air output or air return of the air conditioner can be reduced as much as possible, the device simple structure, easily adjust, can improve the purification effect of photocatalyst air purification device to the air under the condition that need not increase the device size.

Description

an air conditioner

technical field

The utility model relates to the technical field of air purification, in particular to an air conditioner with a photocatalyst air purification device.

Background technique

After the air conditioner is used for a period of time, a large amount of dust and dirt will accumulate on the filter screen, evaporator and air supply system, resulting in a large number of molds, bacteria, viruses and insects. When the air conditioner works again, these bacteria and insects will disappear. It will quickly disperse into the indoor air, increasing the air bacteria content. Living in this environment for a long time, people are prone to dizziness, fatigue, colds and other "air conditioning disease" symptoms and the chance of contracting various diseases, which seriously affects the health of consumers, and the dirt will also reduce the air conditioner's performance. Heating and cooling efficiency, increasing energy consumption and shortening the service life of air conditioners.

With the continuous advancement of LED technology, LEDs capable of emitting UVA (ultraviolet rays with a wavelength of 320 to 420 nm) and UVC (ultraviolet rays with a wavelength of 200 to 275 nm) have gradually become popular in air purification devices. The air purification device is installed at the air outlet or return air outlet of the air conditioner. The ultraviolet light emitted by the LED lamp is irradiated on the photocatalyst filter, and the air flows through the photocatalyst filter to achieve sterilization and disinfection of the air, and purify the odor and decompose harmful gases such as formaldehyde. .

Since the air purification device is installed at the air outlet or return air outlet of the indoor unit of the air conditioner, the existing LED lights are arranged in parallel above the photocatalyst filter screen. On the one hand, it will affect the air outlet or return air volume of the air conditioner, reducing The cooling and heating efficiency of the air conditioner; on the other hand, it cannot be completely and effectively irradiated on the photocatalyst filter, which will reduce the purification effect of the photocatalyst filter on the air.

The above information disclosed in this Background is only for enhancement of understanding of the background of the application and therefore it may contain that it does not form the prior art that is already known to a person of ordinary skill in the art.

SUMMARY OF THE INVENTION

In view of this, the present invention provides an air conditioner, in which a photocatalyst air purifying device is provided at the air outlet and/or the air return port of the indoor unit, and the LED lamp emits light by adjusting the angle between the LED lamp and the photocatalyst filter screen. The ultraviolet light can fully cover the photocatalyst filter and improve the sterilization and disinfection effect of the air conditioner.

For realizing above-mentioned utility model purpose, the utility model adopts following technical scheme to realize:

An air conditioner, comprising: an indoor unit having an air outlet and a return air outlet; further comprising: a photocatalyst air purification device for sterilizing and disinfecting air, which is arranged at the air outlet and/or the air return outlet; Wherein, the photocatalyst air purification device includes: a photocatalyst filter screen for sterilizing and disinfecting the air flowing through it; an LED lamp for emitting ultraviolet light, and the angle between the LED lamp and the photocatalyst filter screen can be adjusted Adjustment, the ultraviolet light can completely cover the photocatalyst filter.

Further, the photocatalyst air purification device further comprises: a frame, which is arranged on the outer periphery of the photocatalyst filter screen, and the frame is connected with the air outlet and/or the air outlet; a bracket, which is arranged on the frame above, the LED light is arranged on the bracket.

Further, the bracket includes a first bracket and a second bracket, the first bracket is rotatably connected with the second bracket, the first bracket is connected with the frame, and the second bracket is connected with the LED light connect.

Further, the first bracket includes a first bracket part and a first bracket part, and the first bracket part is slidably connected to the frame; the second bracket includes a second bracket part and a second bracket Two parts, one part of the second bracket is connected with the LED lamp, and the second part of the second bracket is rotatably connected with the two parts of the first bracket.

Further, the two parts of the first bracket and the two parts of the second bracket are rotationally connected by a first bolt.

Further, the frame is provided with a sliding groove, and a part of the first bracket is provided with a sliding rail, and the sliding rail is slidably connected with the sliding groove.

Further, a part of the first bracket is fixedly connected to the frame through a second bolt.

Further, the LED lamps include UVA lamps and UVC lamps.

Compared with the prior art, the advantages and positive effects of the present utility model are:

By adjusting the angle between the LED lamp and the photocatalyst filter, the ultraviolet light emitted by the LED lamp can completely cover the photocatalyst filter, improving the sterilization and disinfection effect of the air;

The LED lights are arranged on the outer periphery of the photocatalyst filter screen and have a certain angle with the photocatalyst filter screen. Under the condition that the photocatalyst filter screen is guaranteed to be illuminated by ultraviolet light, the influence on the air output or return air volume of the air conditioner will be minimized as much as possible. ;

The device has a simple structure and is easy to adjust, and can improve the air purification effect of the photocatalyst air purification device without increasing the size of the device.

Other features and advantages of the present invention will become more apparent after reading the specific embodiments of the present invention in conjunction with the accompanying drawings.

Description of drawings

In order to illustrate the embodiments of the present invention or the technical solutions in the prior art more clearly, the following briefly introduces the accompanying drawings used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description The drawings are some embodiments of the present invention. For those of ordinary skill in the art, other drawings can also be obtained from these drawings without creative labor.

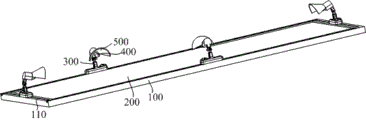

Fig. 1 is the top-view structure schematic diagram of the photocatalyst air purifying device in Embodiment 1 of the air conditioner of the present invention;

2 is a schematic front view of the structure of the photocatalyst air purification device in Embodiment 1 of the air conditioner of the present invention;

3 is a schematic structural diagram of the LED lamp and the bracket in the photocatalyst air purification device in the first embodiment of the air conditioner of the present invention after assembly;

4 is a schematic structural diagram of the included angle between the LED lamp and the photocatalyst filter screen in the photocatalyst air purification device in the first embodiment of the air conditioner of the present invention;

5 is a schematic diagram of the shaft side structure of the photocatalyst air purification device in Embodiment 2 of the air conditioner of the present invention;

6 is a schematic front view of the structure of the photocatalyst air purification device in Embodiment 2 of the air conditioner of the present invention;

7 is a schematic structural diagram of the LED lamp and the bracket in the photocatalyst air purification device in Embodiment 2 of the air conditioner of the present invention;

8 is a schematic structural diagram of the LED lamp and the bracket in the photocatalyst air purification device in Embodiment 3 of the air conditioner of the present invention;

FIG. 9 is a schematic diagram of the shaft side structure of the photocatalyst air purification device in Embodiment 4 of the air conditioner of the present invention.

Among them, 100-frame; 110-chute; 200-photocatalyst filter; 300-support; 310-first support; 311-first support; 312-first support two; 320-second support; 321 -Second bracket part; 322-Second bracket part two; 330-Slide rail; 340-First bolt; 350-Second bolt; 400-LED lamp; 500-Lamp cover; layer; 600 top cover; 700 - connecting ribs;

The angle between the α-LED lamp and the photocatalyst filter screen; p1- the ultraviolet light directly irradiated on the photocatalyst filter screen after being emitted from the LED lamp; p2- the ultraviolet light reflected on the photocatalyst filter screen by the reflective coating.

Detailed ways

In order to make the purposes, technical solutions and advantages of the embodiments of the present utility model clearer, the technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. The embodiments described above are a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

It should be noted that, in the description of the present invention, the terms "up", "down", "left", "right", "vertical", "horizontal", "inner", "outer", etc. indicate directions or The terminology of the positional relationship is based on the direction or positional relationship shown in the drawings, which is only for the convenience of description, and does not indicate or imply that the device or element must have a specific orientation, be constructed and operated in a specific orientation, and therefore cannot be understood To limit the utility model. Furthermore, the terms "first" and "second" are used for descriptive purposes only and should not be construed to indicate or imply relative importance.

The utility model discloses an air conditioner, which comprises an indoor unit. The indoor unit is provided with an air outlet and an air return outlet. The indoor air flows into the interior of the indoor unit through the air return outlet. The air outlet flows into the room to achieve temperature regulation of the indoor air.

The air conditioner also includes a photocatalyst air purification device, which is arranged at the air outlet and/or the air return port. The photocatalyst air purification device sterilizes and disinfects the air flowing through the air outlet and/or the air return port to improve indoor air quality.

The utility model provides four embodiments of air conditioners, each of which is configured with different photocatalyst air purification devices, and each photocatalyst air purification device will be described in detail below.

1 to 4 are schematic diagrams of the structure of the photocatalyst air purification device configured in the first embodiment of the air conditioner, and FIGS. 5 to 7 are the schematic structural diagrams of the photocatalyst air purification device configured in the second embodiment of the air conditioner. Shown is a schematic structural diagram of the photocatalyst air purification device configured in Embodiment 3 of the air conditioner, and FIG. 9 is a schematic structural diagram of the photocatalytic air purification device configured in Embodiment 4 of the air conditioner.

Example 1

Referring to FIG. 1 to FIG. 3, the dotted line in FIG. 2 represents the ultraviolet light p1.

The photocatalyst air purification device includes a photocatalyst filter screen 200 and an LED lamp 400 .

The photocatalyst filter screen 200 is used for sterilizing and disinfecting the air flowing through it.

The LED lamp 400 is used for emitting ultraviolet light. The angle between the LED lamp 400 and the photocatalyst filter screen 200 can be adjusted, and the ultraviolet light can completely cover the photocatalyst filter screen.

By adjusting the angle between the LED lamp 400 and the photocatalyst filter screen 200, the effective irradiation area of the ultraviolet light on the photocatalyst filter screen 200 is increased, and the sterilization and disinfection effect on the air is improved.

Specifically, a frame 100 is fixed on the outer periphery (ie, its side) of the photocatalyst filter 200 , and the frame 100 serves as a mounting carrier for the photocatalyst filter 200 , so that the photocatalyst filter 200 can be fixed flatly and reliably.

In the first embodiment, the shape of the photocatalyst filter screen 200 is a rectangle, and correspondingly, the shape of the frame 100 is also a rectangle.

The frame 100 is provided with a bracket 300 , and the bracket 300 is provided with an LED light 400 .

One of the purposes of the first embodiment is to adjust the angle between the LED lamp 400 and the photocatalyst filter 200, so that the ultraviolet light emitted by the LED lamp 400 can completely cover the photocatalyst filter 200, and by increasing the amount of ultraviolet light in the photocatalyst filter 200 The effective irradiation area on the surface can improve the sterilization and disinfection effect on the air.

Since the LED lamp 400 is arranged on the outer periphery of the photocatalyst filter 200 and has a certain angle with the photocatalyst filter 200 , the air outlet of the air conditioner will be reduced as much as possible under the condition that the ultraviolet light irradiates the photocatalyst filter 200 as much as possible. The influence of the air volume at the outlet or the return air volume at the return air outlet.

The device has a simple structure and is easy to adjust, and can improve the air purification effect of the photocatalyst air purification device without increasing the size of the device.

The LED lamp 400 includes a UVA lamp and a UVC lamp. Both the UVA lamp and the UVC lamp are fixed on the bracket 300 . The UVA lamp can emit UVA ultraviolet rays, and the UVC lamp can emit UVC ultraviolet rays.

The photocatalyst filter screen 200 can achieve sterilization and disinfection effect on the air under the excitation action of UVA ultraviolet rays, and the UVC ultraviolet rays can directly act on viruses and bacteria in the air to achieve the effect of sterilization and disinfection.

By adjusting the angle between the LED lamp 400 and the photocatalyst filter 200, that is, adjusting the angle between the UVA ultraviolet rays, UVC ultraviolet rays and the photocatalyst filter screen 200, both UVA ultraviolet rays and UVC ultraviolet rays can completely cover the photocatalyst filter screen 200. In this way, the effective area of the photocatalyst filter screen 200 can be excited by UVA ultraviolet radiation, thereby improving the sterilization and disinfection effect; at the same time, the air flowing through the photocatalyst filter screen 200 can be irradiated by UVC ultraviolet rays to achieve all-round sterilization and disinfection. Under the dual action of UVA ultraviolet rays and UVC ultraviolet rays, the air flowing through the photocatalyst filter 200 is more thoroughly sterilized and disinfected.

The number of UVA lamps and UVC lamps can be flexibly set according to factors such as the area size of the photocatalyst filter screen 200, sterilization requirements and other factors, which are not specifically limited in this embodiment.

3 , the bracket 300 includes a first bracket 310 and a second bracket 320 , the first bracket 310 is rotatably connected with the second bracket 320 , the first bracket 310 is connected with the frame 100 , and the second bracket 320 is connected with the LED lamp 400 . Through the rotation between the first bracket 310 and the second bracket 320 , the adjustment of the irradiation angle of the ultraviolet light is realized.

Further, the first bracket 310 includes a first bracket part 311 and a first bracket second part 312 , the first bracket part 311 and the first bracket second part 312 are preferably integrally processed and formed, and the first bracket part 311 and the frame 100 There is preferably a sliding connection therebetween.

The position of the LED lamp 400 can be adjusted by sliding the first bracket part 311 along the frame 100 .

According to the area of the photocatalyst filter screen 200 , the position of each LED lamp 400 on the frame 100 can be flexibly adjusted, so as to realize that the ultraviolet light completely covers the photocatalyst filter screen 200 .

The second bracket 320 includes a second bracket part 321 and a second bracket part 322 , the second bracket part 321 and the second bracket part 322 are preferably integrally processed and formed, and the second bracket part 321 is fixedly connected to the LED lamp 400 In connection, the second bracket part 322 is rotatably connected with the first bracket part 312 .

The rotation connection between the second bracket part 322 and the first bracket part 312 is preferably a bolt rotation connection. Specifically, the second bracket part 322 and the first bracket part 312 are both provided with bolt holes (not shown). mark), a first bolt 340 is pierced through the bolt hole, and one end of the first bolt 340 is locked with a first nut (not shown).

When adjusting, first loosen the first nut, so that the second bracket part 322 and the first bracket part 312 can rotate relative to the bolt column of the first bolt 340. After the LED lamp 400 is adjusted in place, Then, the first nut is tightened, and the LED lamp 400 can be fixed at a specific position, which is not easy to shake.

The sliding connection between the first bracket part 311 and the frame 100 preferably adopts the sliding connection method of the sliding rail. In the groove 110 , a slide rail 330 is provided on the bottom surface of the first bracket part 311 , and the slide rail 330 is slidably connected with the slide groove 110 .

In other embodiments, a fixed connection between the first bracket part 311 and the frame 100 can be realized by means of snaps, screws, etc., and each side edge of the frame 100 can be provided with a plurality of snap-fastening positions or screw-fastening positions at intervals. For retention, the first bracket part 311 can be fixedly installed on the designated snap-fastening position or screw-fastening position as required. This method can also realize the adjustment of the position of the LED lamp 400 .

Further, after the bracket 300 is moved to a proper position on the frame 100 , the first bracket part 311 is fixedly connected to the frame 100 through the second bolt 350 , so that the bracket 300 is fixed on the frame 100 more reliably and is not easily moved.

In the first embodiment, the first bracket part 311 and the first bracket part 312 are preferably arranged perpendicular to each other, the second bracket part 321 and the second bracket part 322 are also preferably arranged perpendicular to each other, and the LED lamp 400 is fixedly arranged on the The end of the second bracket part 321, in this way, the angle between the LED lamp 400 and the photocatalyst filter screen 200 can theoretically be adjusted between 0-180°.

In actual use, in order to make the ultraviolet light irradiate on the photocatalyst filter screen 200, the angle between the LED lamp 400 and the photocatalyst filter screen 200 should be between 0-90°.

4 is a schematic diagram of the structure of the angle between the LED lamp 400 and the photocatalyst filter screen 200. The angle between the LED lamp 400 and the photocatalyst filter screen 200 is marked as α, then the second bracket part 322 and the first bracket two The acute included angle between the parts 312 is also α.

During adjustment, the size of the α angle is adjusted according to the area of the photocatalyst filter screen 200 .

If the area of the photocatalyst filter screen 200 is small, the second bracket 320 is rotated toward the direction close to the photocatalyst filter screen 200, the LED lamp 400 is closer to the photocatalyst filter screen 200, and the α angle increases, so that the ultraviolet light completely covers the photocatalyst filter screen 200 at the same time. , it can also enhance the light intensity, which helps to further improve the sterilization and disinfection effect.

If the area of the photocatalyst filter screen 200 is large, the second bracket 320 is rotated in the direction away from the photocatalyst filter screen 200, and the LED lamps 400 are far away from the photocatalyst filter screen 200, and the α angle is reduced, so that the ultraviolet light emitted by the plurality of LED lamps 400 can be completely covered. The photocatalyst filter screen 200 can improve the sterilization and disinfection effect.

Embodiment 2

Referring to FIGS. 5 to 7 , the dotted lines in FIGS. 6 and 7 represent the ultraviolet light p1 .

On the basis of the first embodiment, in the second embodiment, a lampshade 500 is fixed on a part 321 of the second bracket, and the lampshade 500 is adjacent to the LED lamp 400 . to avoid damage to other parts or human body caused by ultraviolet light.

At the same time, the lampshade 500 also has a certain concentrating effect on the ultraviolet light, so that the ultraviolet light can be irradiated on the photocatalyst filter screen 200 as much as possible, which helps to improve the sterilization and disinfection effect.

Further, the cross-sectional shape of the lampshade 500 is preferably an arc, and the lampshade 500 is located on the side of the LED lamp 400 away from the photocatalyst filter 200 , that is, the lampshade 500 is disposed above the LED lamp 400 .

Under the blocking effect of the upper lampshade 500, most of the ultraviolet light emitted by the LED lamp 400 can be irradiated downward on the photocatalyst filter screen 200, and part of the ultraviolet light irradiated on the lampshade 500 is reflected by the lampshade 500. On the photocatalyst filter screen 200, the light intensity is increased, which helps to further improve the sterilization and disinfection effect.

Further, the shape of the lampshade 500 is preferably a semi-trumpet shape or a semi-cylindrical shape. In the second embodiment, a semi-trumpet shape is used, and a smaller area of the lampshade is used to achieve the shielding and concentrating effects of ultraviolet rays, and at the same time, it helps to reduce the size of the lampshade 500. effect on wind resistance.

Embodiment 3

8, the thinner dotted line represents the ultraviolet light p1 directly irradiated on the photocatalyst filter screen 200, and the thicker dotted line represents the ultraviolet light p2 reflected on the photocatalyst filter screen 200 through the reflective coating 510 on the lampshade.

On the basis of the second embodiment, in the third embodiment, the side of the lampshade 500 facing the LED lamp 400 is provided with a reflective coating 510, and the reflective coating 510 helps to enhance the reflection of the ultraviolet light irradiated on the lampshade 500 and enhance the ultraviolet The irradiation intensity of light on the photocatalyst filter screen 200 further enhances the sterilization and disinfection effect.

Embodiment 4

Referring to FIG. 9 , the thinner dotted line represents the ultraviolet light p1 directly irradiated on the photocatalyst filter screen 200 , and the thicker dotted line represents the ultraviolet light p2 reflected on the photocatalyst filter screen 200 through the reflective coating on the top cover.

On the basis of Embodiment 1, Embodiment 2 or Embodiment 3, in Embodiment 4, a top cover 600 is provided above the photocatalyst filter screen 200, and the top cover 600 can reflect the ultraviolet light multiple times. Under the reflection effect of the cover 600, the photocatalyst filter screen 200 can be irradiated for many times to enhance the irradiation effect of the ultraviolet light on the photocatalyst filter screen 200, thereby improving the sterilization and disinfection effect.

At the same time, the top cover 600 also has a certain light-concentrating effect on the ultraviolet light, which helps to enhance the irradiation effect of the ultraviolet light on the photocatalyst filter screen 200 .

In addition, the top cover 600 can also prevent the ultraviolet light from being irradiated to other positions other than the photocatalyst filter, and prevent the ultraviolet light from causing damage to other components or the human body.

Further, the side of the top cover 600 facing the photocatalyst filter screen 200 is provided with a reflective coating (not marked), which enhances the reflection of ultraviolet light and enhances the sterilization and disinfection effect.

Further, the cross-sectional shape of the top cover 600 is arc-shaped, and the side of the top cover 600 extends toward the direction close to the photocatalyst filter screen 200. In this way, the top cover 600 is equivalent to a concave mirror disposed above the photocatalyst filter screen 200, increasing the The large light-concentrating reflection effect further enhances the sterilization and disinfection effect.

Further, the top cover 600 is fixedly connected with the frame 100 through the connecting rib 700 , one end of the connecting rib 700 is fixedly connected with the frame 100 , and the other end is fixedly connected with the top cover 600 , and the top cover 600 is located above the LED lamp 400 to avoid the top cover 600 . The ultraviolet light emitted from the LED lamp 400 is influenced to irradiate the photocatalyst filter 200 .

In the fourth embodiment, the number of connecting ribs 700 is preferably four, which are respectively fixed on the four corners of the frame 100. There is a certain distance between the top cover 600 and the photocatalyst filter screen 200. At the same time, the impact on wind resistance can be reduced as much as possible.

Finally, it should be noted that the above embodiments are only used to illustrate the technical solutions of the present utility model, but not to limit them; although the present utility model has been described in detail with reference to the foregoing embodiments, those of ordinary skill in the art should understand that: It is still possible to modify the technical solutions recorded in the foregoing embodiments, or perform equivalent replacements to some of the technical features; and these modifications or replacements do not make the essence of the corresponding technical solutions depart from the spirit of the technical solutions of the embodiments of the present invention and range.

Claims (8)

1. An air conditioner comprising:

an indoor unit having an air outlet and an air return opening;

it is characterized by also comprising:

the photocatalyst air purification device is used for sterilizing and disinfecting air and is arranged at the air outlet and/or the air return inlet;

wherein, photocatalyst air purification device includes:

the photocatalyst filter screen is used for sterilizing and disinfecting the air flowing through the photocatalyst filter screen;

the LED lamp for send the ultraviolet ray, the LED lamp with contained angle between the photocatalyst filter screen is adjustable, the ultraviolet ray can cover completely the photocatalyst filter screen.

2. The air conditioner according to claim 1,

the photocatalyst air purification device further comprises:

the frame is arranged on the periphery of the photocatalyst filter screen and is connected with the air outlet and/or the air outlet;

the support, it is located on the frame, the LED lamp is located on the support.

3. The air conditioner according to claim 2,

the support includes first support and second support, first support with the second support rotates to be connected, first support with the frame is connected, the second support with the LED lamp is connected.

4. The air conditioner according to claim 3,

the first support comprises a first support part and a second support part, and the first support part is connected with the frame in a sliding manner;

the second support comprises a first support body and a second support body, the first support body is connected with the LED lamp, and the second support body is rotatably connected with the second support body.

5. The air conditioner according to claim 4,

the first support second part and the second support second part are rotatably connected through a first bolt.

6. The air conditioner according to claim 4,

the frame is provided with a sliding groove, one part of the first support is provided with a sliding rail, and the sliding rail is connected with the sliding groove in a sliding mode.

7. The air conditioner according to claim 6,

one part of the first support is fixedly connected with the frame through a second bolt.

8. The air conditioner according to any one of claims 1 to 7,

the LED lamp comprises a UVA lamp and a UVC lamp.
