Abstract

The utility model discloses a reinforcement support structure for construction engineering, comprising a bottom plate, a hollow mounting seat is fixedly installed in the middle of the upper bottom surface of the bottom plate; a jacking mechanism is installed in the mounting seat; the top of the mounting seat is installed An inner hollow lower support column is fixedly installed, and an upper support column is sleeved inside the lower support column; the jacking mechanism can drive the upper support column to rise and fall. The utility model has a simple structure and can be adjusted and connected in height, and can be suitable for the needs of reinforcing and supporting structures with different heights in the construction process of a construction project.

Description

A reinforced support structure for construction engineering

technical field

The utility model relates to the technical field of construction engineering, in particular to a reinforcement support structure used for construction engineering.

Background technique

With the development of economy and society, construction engineering technology is also advancing by leaps and bounds, more and more modern construction equipment and devices are used, and at the same time, the requirements for safety are also getting higher and higher. also further improved.

The height of the reinforced support structure used in the existing construction projects is often fixed, and it is inconvenient to adjust the height of the reinforced support structure during use.

SUMMARY OF THE INVENTION

In order to make up for the deficiencies of the prior art, the utility model provides a reinforced support structure for construction projects.

The utility model is achieved through the following technical solutions:

A reinforced support structure for construction engineering, comprising a bottom plate, a hollow mounting seat is fixedly installed in the middle of the upper bottom surface of the bottom plate; a jack-up mechanism is installed in the mounting seat; the top of the mounting seat is fixedly installed with an internal hollow The lower support column is sleeved with an upper support column; the jacking mechanism can drive the upper support column to rise and fall.

A support plate is fixedly installed on the top of the upper support column.

The jacking mechanism includes a lead screw; the lower part of the lead screw is rotatably connected with a connection seat fixedly installed on the bottom plate, and the upper part is threadedly matched with the upper support column; the lower part of the lead screw is also fixedly installed with a horizontal installation A gear that meshes with the worm in the mounting seat; one end of the worm is fixedly connected with the drive assembly.

The drive assembly includes a bracket fixedly installed on the bottom plate; a rotating shaft is vertically installed on the bracket; a hand wheel is fixedly installed on the top of the rotating shaft, and a first bevel gear is fixedly installed at the bottom; the first bevel gear is fixed with the fixed A second bevel gear mounted on the worm is engaged.

A rib plate slider is fixedly installed on the side of the upper support column, and a chute matching the rib plate slider is arranged inside the lower support column.

A threaded telescopic rod is hinged between the support plate and the upper support column.

Several expansion holes are arranged on the support plate.

The upper part of the lower support column is provided with an upper column hole whose cross section matches the upper support column; the lower part of the lower support column is provided with a lower column hole whose cross section is smaller than the interface of the upper column hole; the upper column hole is connected with the lower column hole. The column holes are communicated; the upper support column is sleeved in the upper column hole.

The utility model has the following beneficial technical effects: the structure is simple, the height can be adjusted and connected, and the utility model can be applied to the needs of reinforcing and supporting structures with different heights in the construction process of the construction project; it is suitable for mechanical structure transmission and has high reliability; Corresponding chute and rib slider are arranged on the central axis of the whole structure and on the upper and lower support columns, so that the structure is more stable during use; Together, it is easy to disassemble and transport.

Description of drawings

The utility model will be further described below in conjunction with the accompanying drawings.

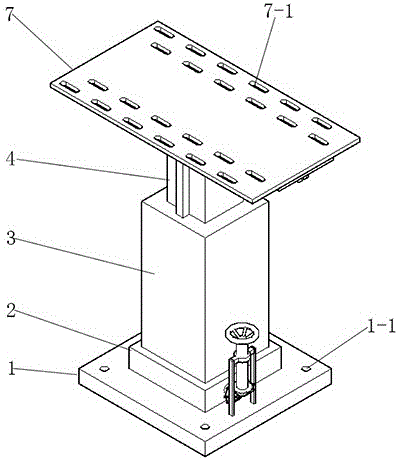

Accompanying drawing 1 is the structure schematic diagram of the utility model.

Figure 2 is a schematic front view of the present utility model.

Figure 3 is a schematic top view of the utility model.

Figure 4 is a schematic diagram of the internal structure of the utility model.

5 is a schematic top view of the lower support column of the present invention.

Figure 6 is a schematic longitudinal cross-sectional view of the lower support column of the present invention.

In the figure, 1-base plate, 1-1-first through hole, 1-2-connection seat, 2-installation seat, 3-lower support column, 3-1-upper column hole, 3-2-lower column hole, 3-3-chutes, 4-upper support column, 4-1-rib slide block, 5-threaded telescopic rod, 6-connecting plate, 7-supporting plate, 7-1-expansion hole, 8-first hinge ear, 9-second hinged ear, 10-handwheel, 11-rotating shaft, 12-support, 13-first bevel gear, 14-second bevel gear, 15-worm, 16-gear, 17-lead screw.

Detailed ways

The following is only a specific embodiment of the present utility model, but the protection scope of the present utility model is not limited to this. Replacement should be covered within the protection scope of the present invention.

The fixed connection or rigid connection method described in this embodiment includes but is not limited to the connection methods known in the prior art such as screw connection and welding; , "outside" and other words describing orientation are only for the convenience of description, and do not represent the limitation of each component in the embodiment; the "first", "second", etc. are only for distinction, and do not indicate the importance of each component. nor does it imply differences between parts.

Figures 1 to 6 are a specific embodiment of the present invention. This embodiment provides a reinforced support structure for construction engineering, including a rectangular base plate 1, and a plurality of first through holes 1-1 are opened at the edge of the base plate 1 for installing bolts or driving steel bars, etc. , and fix the base plate 1 on the ground.

A hollow cuboid mounting seat 2 is installed in the middle of the upper bottom surface of the base plate 1 by bolts, and a jacking mechanism is installed inside. A lower support column 3 with a rectangular cross section and a hollow interior is fixedly installed on the top of the mounting seat 2, and an upper support column 4 with a rectangular cross section is also sleeved in the lower support column 3, and can be moved along the lower support column 3 under the action of the jacking mechanism. Put down the support column 3 for free lifting. The lower support column 3 only plays a guiding role and does not play a load-bearing role.

Specifically, the inner upper half of the lower support column 3 is an upper column hole 3-1 with a rectangular cross-section, and a pair of opposite sides of the upper column hole 3-1 is provided with a rectangular sliding groove 3- 3. The length of the chute 3-3 is equal to the depth of the upper column hole 3-1; the lower half section inside the lower support column 3 is the lower column hole 3-2 whose cross section is circular and smaller than the cross section of the upper column hole 3-1 , the lower column hole 3-2 communicates with the upper column hole 3-1, so that the lower support column 3 becomes a hollow structure. The jacking mechanism is connected to the upper support column 4 through the lower column hole 3-2, and pushes the upper support column 4 to lift. The upper support column 4 is fixedly installed with a rib slide block 4-1 matched with the chute 3-3, which can effectively prevent the upper support column 4 from uncontrollably shifting during the up and down sliding process. Of course, the upper column hole 3-1 may also pass through the entire lower support column 3, that is, there is only one upper column hole 3-1 in the lower support column 3. As shown in FIG.

The jacking mechanism includes a lead screw 17, the lower part of which is rotatably connected with the connecting seat 1-2 fixed on the bottom plate, and the upper part passes through the lower column hole 3-2 and is threaded with the upper supporting column 4, that is, the upper supporting column 4 There is a threaded hole at the bottom of the threaded rod, and the lead screw 17 is threadedly matched with the threaded hole; the lower column hole 3-2 can prevent the lead screw 17 from shaking during the rotation. A gear 16 is fixedly mounted on the lower part of the lead screw 17 . The gear 16 is located above the connecting seat 1-2 and meshes with the worm 15 installed in the mounting seat 2 horizontally. The first end of the worm 15 is rotatably connected to the inner wall of the mounting seat 2 , and the second end penetrates the mounting seat 2 and is connected to the drive assembly. The lead screw 17 is a self-lockable lead screw such as a trapezoidal lead screw.

The drive assembly includes a gate-shaped bracket 12 fixedly mounted on the base plate 1 by bolts, and a rotating shaft 11 vertically mounted on the bracket 12 . The rotating shaft 11 is rotatable, with a hand wheel 10 fixedly mounted on the top and a first bevel gear 13 fixedly mounted on the bottom, which meshes with the second bevel gear 14 fixedly mounted on the second end of the worm 15 . Of course, the drive assembly can also be replaced by other components that can drive the worm 15 to rotate, such as a motor.

The top of the upper support column 4 is fixed and installed with the support plate 7 , and the bottom surface area of the support plate 7 is larger than the bottom surface area of the upper support column 4 . A threaded telescopic rod 5 is hinged between the support plate 7 and the upper support column 4 . Specifically, a pair of second hinge ears 9 are installed on the two sides of the upper support column 4 without the rib plate sliders 4-1 installed, and a connecting plate 6 is fixedly installed on the bottoms of both ends of the support plate 7 to connect The bottom of the plate 6 is installed with a first hinge ear 8 corresponding to the second hinge ear 9, and the two ends of the threaded telescopic rod 5 are hinged to the first hinge ear 8 and the second hinge ear 9 respectively, forming a stable triangular support structure, At the same time, the threaded telescopic rod 5 can be adapted to support plates 7 of different sizes. The threaded telescopic rod 5 can also be transferred between the side surface of the upper support column 4 provided with the rib plate slider 4-1 and the support plate 7.

The support plate 7 is provided with a plurality of oval expansion holes 7-1, which can be used to install other supporting components.

The jacking mechanism in this embodiment may also be a hydraulic cylinder or an air cylinder, and the corresponding driving component is a hydraulic pump station or an air pump.

When in use, the structure is transported to a predetermined position and assembled, and then the handwheel 10 is turned to drive the worm 15 to drive the lead screw 17 to rotate to lift the upper support column 4 to the predetermined position and tighten it, and the upper support column 4 pushes the pressure through the screw. The lever 17 is transmitted to the base plate 1 .

Claims (8)

1. A reinforcement support structure for construction engineering, comprising a base plate (1), characterized in that: a hollow mounting seat (2) is fixedly installed in the middle of the upper bottom surface of the base plate (1); the mounting seat (2) ) inside a jacking mechanism; a hollow lower support column (3) is fixedly installed on the top of the mounting seat (2), and an upper support column (4) is sleeved inside the lower support column (3); the jacking The mechanism can drive the upper support column (4) to rise and fall. 2 . The reinforcing support structure for construction engineering according to claim 1 , wherein a support plate ( 7 ) is fixedly installed on the top of the upper support column ( 4 ). 3 . 3. The reinforcing support structure for construction projects according to claim 1 or 2, characterized in that: the jacking mechanism comprises a lead screw (17); the lower part of the lead screw (17) is fixedly installed on the bottom plate The connecting seat (1-2) on (1) is rotatably connected, and the upper part is threaded with the upper support column (4); the lower part of the lead screw (17) is also fixedly installed with a horizontally mounted 2) A gear (16) that meshes with the worm (15) inside; one end of the worm (15) is fixedly connected to the drive assembly. 4. The reinforced support structure for construction engineering according to claim 3, characterized in that: the drive assembly comprises a bracket (12) fixedly mounted on the bottom plate (1); A rotating shaft (11) is installed vertically; a handwheel (10) is fixedly installed at the top of the rotating shaft (11), and a first bevel gear (13) is fixedly installed at the bottom; the first bevel gear (13) is fixedly installed on the The second bevel gear (14) on the worm (15) meshes with each other. 5. The reinforcing support structure for construction projects according to claim 4, characterized in that: a rib slider (4-1) is fixedly installed on the side of the upper support column (4), and the lower support column is (3) A chute (3-3) matching the rib plate slider (4-1) is provided inside. 6. The reinforced support structure for construction engineering according to claim 5, characterized in that: a threaded telescopic rod (5) is connected between the support plate (7) and the upper support column (4). 7. The reinforcing support structure for construction projects according to claim 6, characterized in that: the support plate (7) is provided with a plurality of expansion holes (7-1). 8. The reinforcing support structure for construction engineering according to claim 7, characterized in that: the upper part of the lower support column (3) is provided with an upper column hole ( 3-1); the lower part of the lower support column (3) is provided with a lower column hole (3-2) whose cross section is smaller than the interface of the upper column hole (3-1); the upper column hole (3-1) and The lower column hole (3-2) is communicated; the upper support column (4) is sleeved in the upper column hole (3-1).
