Abstract

The utility model discloses a mobile device for outdoor installation of electric power equipment, which relates to the field of electric power technology. The lower surface of the support plate is fixedly connected, and the four shock absorbers are respectively located at the four corners of the lower surface of the inner wall of the cavity. The mobile device for outdoor installation of power equipment, when moving the power equipment, drives the four threaded rods to rotate through the output shafts of the two biaxial motors. The two pressing plates can stably clamp the electric equipment, and at the same time, when the first spring and the second spring on the shock absorber are squeezed during the movement of the bottom plate, the elastic force generated by them can affect the electric power on the support plate. The equipment is shock-absorbing, so that when moving the power equipment, it can be stabilized and shock-absorbing, so as to avoid damage caused by falling of the power equipment.

Description

A mobile device for outdoor installation of power equipment

technical field

The utility model relates to the technical field of electric power, in particular to a mobile device for outdoor installation of electric power equipment.

Background technique

With the continuous development of power construction, more and more power equipment has been widely used, and for many of these outdoor power equipment, it often needs to be moved to the construction site during construction. As the volume and weight of outdoor power equipment are often large, if it is only handled by manpower, not only the handling efficiency is low, but also the labor intensity is extremely large, which will greatly delay the construction time.

The existing electric equipment moving device has a relatively simple structure and a single function, which is still cumbersome and labor-intensive in use. At the same time, during the transportation process, it cannot effectively clamp and fix the electric equipment, as well as shock absorption and buffering. It is easy to cause damage to the electrical equipment due to shock or slipping from the mobile device, which brings trouble to workers in terms of use.

Utility model content

(1) Technical problems solved

Aiming at the shortcomings of the prior art, the utility model provides a mobile device for outdoor installation of electric equipment, which solves the problem of the existing mobile device for electric equipment. In the process of transportation, it cannot effectively clamp and fix the power equipment and shock and buffer the power equipment, so that the power equipment is easily damaged due to shock or slipping from the mobile device, which brings great difficulties to the use of workers. troublesome question.

(2) Technical solutions

In order to achieve the above purpose, the technical solution adopted by the present utility model is: a mobile device for outdoor installation of electric equipment, comprising a bottom plate, an upper surface of the bottom plate is provided with an empty groove, and the lower surface of the inner wall of the hollow groove passes through four reductions. The shock device is fixedly connected with the lower surface of the support plate, and the four shock absorbers are respectively located at the four corners of the lower surface of the inner wall of the cavity. The two output shafts of the biaxial motor are fixedly connected with threaded rods, and the other end of the threaded rods is clamped to the side surface of the inner wall of the hollow slot through a rotating device.

The shock absorbing device includes a casing, the lower surface of the casing is fixedly connected to the lower surface of the inner wall of the hollow groove, the upper surface of the casing is provided with a through hole, and a movable rod is arranged in the through hole, and the The top end of the movable rod is fixedly connected to the lower surface of the support plate, the bottom end of the movable rod is fixedly connected to the lower surface of the inner wall of the housing through a first spring, the surface of the movable rod is sleeved with a second spring, and the first spring is sleeved on the surface of the movable rod. The top and bottom ends of the two springs are respectively fixedly connected to the upper surface of the housing and the lower surface of the support plate.

The surface of the threaded rod is threadedly connected with a threaded cylinder, the surface of the threaded cylinder is clamped with a movable plate, a connection plate is fixedly connected to the upper side of the right side of the movable plate, and a connection plate is fixedly connected to the right side of the connection plate. Several third springs, and the other ends of the several third springs are fixedly connected to the left side of the pressing plate, and the front and rear sides of the lower surface of the movable plate are connected to the left and right sides of the inner wall of the groove through the sliding device. The side surfaces are fixedly connected, and the two grooves are respectively opened on the left side of the lower surface of the inner wall of the hollow groove.

Preferably, the rotating device includes a rotating shaft, the right end of the rotating shaft is fixedly connected to the left end of the threaded rod, the left end of the rotating shaft is sleeved with a bearing, and the left side of the bearing is clamped on the left side of the inner wall of the cavity .

Preferably, the sliding device includes a sliding sleeve, the upper surface of the sliding sleeve is fixedly connected to the lower surface of the movable plate, the sliding sleeve is slidably connected with a sliding rod, and the left and right ends of the sliding rod are respectively fixedly connected to The left and right sides of the inner wall of the groove.

Preferably, a buffer pad is provided on the right side of the pressing plate, and the buffer pad is made of rubber.

Preferably, the four corners of the lower surface of the bottom plate are fixedly connected with rollers, and the left and right sides of the bottom plate are fixedly connected with hanging rings.

Preferably, a power supply is provided above the left side of the bottom plate, a switch is provided on the left side of the power supply, the output end of the power supply is electrically connected to the input end of the switch through a wire, and the output end of the switch is connected by a wire It is electrically connected to the input end of the biaxial motor.

(3) Beneficial effects

The beneficial effects of the present utility model are:

1. This mobile device for outdoor installation of electric equipment, when moving electric equipment, drives four threaded rods to rotate through the output shafts of two dual-axis motors, and under the action of the threaded cylinder, the two movable plates move in the direction of approaching each other , so that the two pressing plates can stably clamp the power equipment, and at the same time in the process of moving the bottom plate, when the first spring and the second spring on the shock absorber are squeezed, the elastic force generated by them can be applied to the support plate. The power equipment is damped, so that when the power equipment is moved, it can be stabilized and damped to avoid damage caused by falling of the power equipment.

2. The mobile device for outdoor installation of the power equipment is provided with a rotating device. During the rotation of the threaded rod, the rotating device can stably fix the threaded rod on the inner wall of the hollow groove, and at the same time, it will not affect the rotation of the threaded rod. The sliding device can increase the stability of the movable plate when it moves left and right, so that the movable plate drives the pressing plate to hold the electric equipment stably. It moves as it vibrates up and down without affecting the shock absorption effect in other directions, and can also shock the power equipment from left to right.

3. The mobile device for outdoor installation of electric equipment, by setting the buffer pad, reduces the wear between the extrusion plate and the motor equipment, thereby protecting the surface of the electric equipment. By setting the rollers, people can flexibly move the bottom plate through the rollers The power equipment is driven to move, thereby reducing the labor of the workers. By setting the hanging ring, on some uneven ground, the worker can fasten the strap on the hanging ring, and use the strap to pull the bottom plate to move, which can facilitate the worker to move the bottom plate.

Description of drawings

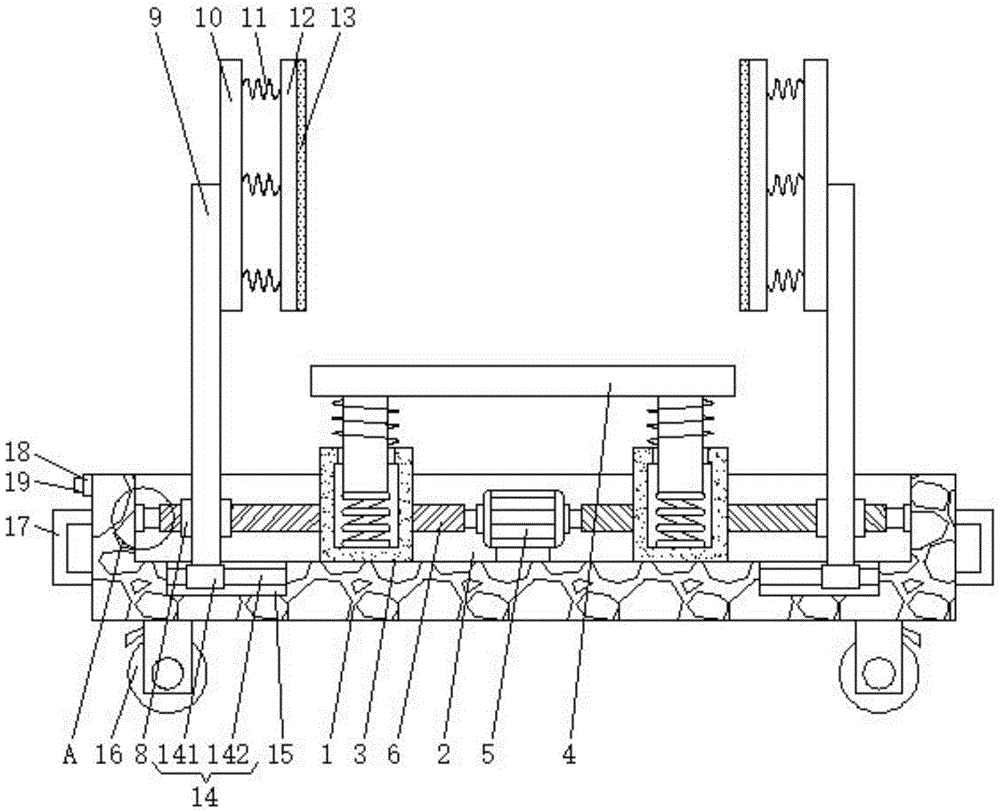

Fig. 1 is the sectional structure schematic diagram of the front view of the utility model;

Fig. 2 is the enlarged structural schematic diagram of the damping device of the present invention;

FIG. 3 is an enlarged structural schematic diagram of part A of the present invention.

In the picture: 1 bottom plate, 2 empty grooves, 3 shock absorbers, 301 shell, 302 through holes, 303 movable rods, 304 first springs, 305 second springs, 4 support plates, 5 biaxial motors, 6 threaded rods, 7 Rotating device, 701 shaft, 702 bearing, 8 threaded barrel, 9 movable plate, 10 connecting plate, 11 third spring, 12 pressing plate, 13 buffer pad, 14 sliding device, 141 sliding sleeve, 142 sliding rod, 15 concave Slots, 16 rollers, 17 hanging rings, 18 power supplies, 19 switches.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

As shown in Figures 1-3, the present utility model provides a technical solution: a mobile device for outdoor installation of power equipment, comprising a base plate 1, and four corners of the lower surface of the base plate 1 are fixedly connected with rollers 16, and by arranging the rollers 16, People can flexibly move the bottom plate 1 to drive the electric equipment to move through the rollers 16, thereby reducing the labor of workers, and the left and right sides of the bottom plate 1 are fixedly connected with hanging rings 17. On the ground, the worker buckles the strap on the hanging ring 17, and uses the strap to pull the bottom plate 1 to move, which can facilitate the worker to move the bottom plate 1. A power source 18 is provided above the left side of the bottom plate 1. By setting the power source 18, a biaxial motor can be used 5 provides electrical energy, a switch 19 is provided on the left side of the power supply 18, the output end of the power supply 18 is electrically connected to the input end of the switch 19 through a wire, and the output end of the switch 19 is electrically connected to the input end of the biaxial motor 5 through a wire. The switch 19 is provided so that the worker can more conveniently control the normal operation of the biaxial motor 5. The upper surface of the bottom plate 1 is provided with an empty slot 2, and the lower surface of the inner wall of the empty slot 2 passes through the four shock absorbers 3 and the lower part of the support plate 4. The surfaces are fixedly connected, and the four shock absorbing devices 3 are respectively located at the four corners of the lower surface of the inner wall of the cavity 2. The front side and the rear side of the lower surface of the inner wall of the cavity 2 are provided with biaxial motors 5. The output shafts are all fixedly connected with a threaded rod 6, and the other end of the threaded rod 6 is clamped with the side surface of the inner wall of the cavity 2 through a rotating device 7. The rotating device 7 includes a rotating shaft 701, and the right end of the rotating shaft 701 is fixedly connected to the left end of the threaded rod 6, The left end of the rotating shaft 701 is sleeved with a bearing 702, and the left side of the bearing 702 is clamped on the left side of the inner wall of the cavity 2. By setting the rotating device 7, during the rotation of the threaded rod 6, the rotating device 7 can make the threaded rod 6 rotate. 6 is stably fixed on the inner wall of the hollow slot 2, and at the same time, the rotation of the threaded rod 6 should not be affected.

The shock absorber 3 includes a casing 301, the lower surface of the casing 301 is fixedly connected to the lower surface of the inner wall of the cavity 2, the upper surface of the casing 301 is provided with a through hole 302, and the through hole 302 is provided with a movable rod 303, the movable rod The top end of 303 is fixedly connected to the lower surface of the support plate 4, the bottom end of the movable rod 303 is fixedly connected to the lower surface of the inner wall of the housing 301 through the first spring 304, the surface of the movable rod 303 is sleeved with a second spring 305, the second The top and bottom ends of the springs 305 are respectively fixedly connected to the upper surface of the housing 301 and the lower surface of the support plate 4. By setting the damping device 3, in the process of moving the bottom plate 1, the first spring 304 on the damping device 3 and the When the second spring 305 is squeezed, the elastic force generated by the second spring 305 can dampen the electric equipment on the support plate 4 , so that when the electric equipment is moved, it can be stabilized and damped.

The surface of the threaded rod 6 is threadedly connected with a threaded barrel 8, the surface of the threaded barrel 8 is clamped with a movable plate 9, a connecting plate 10 is fixedly connected to the upper side of the right side of the movable plate 9, and a number of There are three third springs 11, and the other ends of the several third springs 11 are fixedly connected to the left side of the pressing plate 12. By setting the third springs 11, the pressing plate 12 squeezes the power equipment when clamping The plate 12 can move with its up and down vibration, without affecting the shock absorption effect in other directions, and can also shock the power equipment left and right. The right side of the extrusion plate 12 is provided with a buffer pad 13, which is made of rubber By setting the buffer pad 13, the wear between the pressing plate 12 and the motor equipment is reduced, thereby protecting the surface of the electric equipment. The front and rear sides of the lower surface of the movable plate 9 are connected to the recessed The left and right sides of the inner wall of the groove 15 are fixedly connected. The sliding device 14 includes a sliding sleeve 141. The upper surface of the sliding sleeve 141 is fixedly connected to the lower surface of the movable plate 9. The sliding sleeve 141 is slidably connected with a sliding rod 142. The two ends are fixedly connected to the left and right sides of the inner wall of the groove 15 respectively. By setting the sliding device 14, the stability of the movable plate 9 can be increased when the movable plate 9 moves left and right, so that the movable plate 9 drives the extrusion plate 12 to stably clamp the electric equipment. And the two grooves 15 are respectively opened on the left side of the lower surface of the inner wall of the hollow groove 2 .

The operation steps of the present utility model are:

S1. When in use, people place the power equipment on the support plate 4, control the two biaxial motors 5 to start through the switch 19, and the output shafts of the two biaxial motors 5 rotate forwardly to drive the four threaded rods 6 to rotate, and the four threaded rods 6 rotate. The rod 6 drives the two movable plates 9 to move toward each other through the four threaded cylinders 8, and the two movable plates 9 clamp the electric equipment through the two pressing plates 12;

S2. Before moving the bottom plate 1, the worker fastens the strap on the hanging ring 17, and then pulls the bottom plate 1 through the strap to move. At this time, the first spring 304 and the second spring 305 on the shock absorber 3 are squeezed , the elastic force generated by it can shock the power equipment on the support plate 4, and the third spring 11 will shock the power equipment left and right;

S3. Finally, the worker controls the biaxial motor 5 to start through the switch 19, the output shafts of the two biaxial motors 5 are reversed to drive the four threaded rods 6 to rotate, and the four threaded rods 6 drive the two movable plates through the four threaded cylinders 8 9 moves away from each other, and the two movable plates 9 drive the two pressing plates 12 to release the electric equipment.

The specific embodiments described above further describe the purpose, technical solutions and beneficial effects of the present invention in detail. It should be understood that the above are only specific embodiments of the present invention and are not intended to limit the present invention In the utility model, any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present utility model shall be included within the protection scope of the present utility model.

Claims (6)

1. A mobile device for outdoor installation of electric power equipment, comprising a base plate (1), characterized in that: the upper surface of the base plate (1) is provided with an empty groove (2), and the lower surface of the inner wall of the empty groove (2) The four shock absorbing devices (3) are fixedly connected to the lower surface of the support plate (4), and the four shock absorbing devices (3) are respectively located at the four corners of the lower surface of the inner wall of the cavity (2). ) The front side and the rear side of the lower surface of the inner wall are provided with a biaxial motor (5), the two output shafts of the biaxial motor (5) are fixedly connected with a threaded rod (6), and the threaded rod (6) The other end is clamped with the side surface of the inner wall of the hollow slot (2) through the rotating device (7); The shock absorbing device (3) comprises a casing (301), the lower surface of the casing (301) is fixedly connected to the lower surface of the inner wall of the cavity (2), and the upper surface of the casing (301) is provided with A through hole (302), a movable rod (303) is arranged in the through hole (302), the top end of the movable rod (303) is fixedly connected to the lower surface of the support plate (4), the movable rod (303) The bottom end of the rod (304) is fixedly connected to the lower surface of the inner wall of the housing (301) through the first spring (304), the surface of the movable rod (303) is sleeved with a second spring (305), and the second spring (305) The top and bottom ends of the upper surface of the housing (301) and the lower surface of the support plate (4) are respectively fixedly connected; A threaded barrel (8) is threadedly connected to the surface of the threaded rod (6), a movable plate (9) is clamped on the surface of the threaded barrel (8), and the upper part of the right side of the movable plate (9) is fixedly connected There is a connecting plate (10), a plurality of third springs (11) are fixedly connected to the right side of the connecting plate (10), and the other ends of the plurality of third springs (11) are fixedly connected to the extrusion plate (11). 12) on the left side, the front and rear sides of the lower surface of the movable plate (9) are fixedly connected to the left and right sides of the inner wall of the groove (15) through the sliding device (14), and the two grooves (15) ) are respectively opened on the left side of the lower surface of the inner wall of the hollow groove (2). 2. A mobile device for outdoor installation of electric power equipment according to claim 1, characterized in that: the rotating device (7) comprises a rotating shaft (701), and the right end of the rotating shaft (701) is fixedly connected to a threaded rod ( 6) The left end of the rotating shaft (701) is sleeved with a bearing (702), and the left side of the bearing (702) is clamped to the left side of the inner wall of the cavity (2). 3. A mobile device for outdoor installation of electric power equipment according to claim 1, characterized in that: the sliding device (14) comprises a sliding sleeve (141), and the upper surface of the sliding sleeve (141) is fixedly connected to the On the lower surface of the movable plate (9), a sliding rod (142) is slidably connected in the sliding sleeve (141), and the left and right ends of the sliding rod (142) are respectively fixedly connected to the left and right sides of the inner wall of the groove (15). side. 4. A mobile device for outdoor installation of electric power equipment according to claim 1, wherein a buffer pad (13) is provided on the right side of the pressing plate (12), and the buffer pad (13) Made of rubber. 5. A mobile device for outdoor installation of electric power equipment according to claim 1, wherein the four corners of the lower surface of the bottom plate (1) are fixedly connected with rollers (16), and the left and right sides of the bottom plate (1) are fixedly connected with rollers (16). Both sides are fixedly connected with hanging rings (17). 6. A mobile device for outdoor installation of electric power equipment according to claim 1, characterized in that: a power supply (18) is provided above the left side of the bottom plate (1), and the left side of the power supply (18) is provided with a power supply (18). The surface is provided with a switch (19), the output end of the power supply (18) is electrically connected to the input end of the switch (19) through a wire, and the output end of the switch (19) is connected to the input of the biaxial motor (5) through a wire terminal electrical connection.
