Abstract

The utility model discloses a deburring device for sheet metal materials, which comprises a frame, a support frame is arranged inside the frame, a conveyor belt is arranged in the middle of the frame, and a motor is arranged at the right end of the conveyor belt. A partition is arranged above the conveyor belt, the partition is located inside the frame, a rotation motor is arranged at the top of the partition, a revolution motor is arranged on the right side of the rotation motor, and a middle position of the partition is arranged with a The transmission shaft is provided with a sprocket at the middle position of the transmission shaft, and a gear box is provided at the bottom end of the transmission shaft. The equipment has strong suction, the grinding parts do not move when they pass through the grinding area, and the grinding effect is good. The corresponding height can be adjusted according to the grinding parts of different thicknesses. For workpieces that are not on the same plane and have a certain height difference, they can also be ground instead of manual grinding. The grinding effect Well, the output is stable.

Description

A deburring device for sheet metal materials

technical field

The utility model relates to the technical field of mechanical processing, in particular to a deburring device for sheet metal materials.

Background technique

Deburring is the removal of thorns or burrs formed at the intersection of part face and face. The harmfulness of burrs is particularly obvious, and it has gradually attracted people's attention, and began to study the generation mechanism and removal methods of burrs. Sheet metal materials mainly include ordinary cold-rolled sheet SPCC, galvanized steel sheet SECC, stainless steel SUS304, etc.

There are many burrs on the edges of sheet metal materials processed by laser cutting, stamping, shearing, punching and other equipment. Many sheet metal factories are manually polished and polished. Due to the dust in the grinding process, the working environment is poor and the labor intensity is high. It is difficult to recruit the right employees and labor costs are high. The deburring equipment currently on the market can only grind the burrs on the same plane, and the grinding height cannot be adjusted, so the tolerance of the product is poor, and the grinding is single.

Utility model content

The purpose of the present invention is to provide a sheet metal material deburring device to solve the problems raised in the above-mentioned background art.

In order to achieve the above purpose, the utility model provides the following technical solutions: a sheet metal material deburring device, comprising a frame, a support frame is arranged inside the frame, a conveyor belt is arranged in the middle of the frame, and the conveyor belt The right end of the conveyor is provided with a motor, the upper part of the conveyor belt is provided with a partition, the partition is located inside the frame, the top of the partition is provided with an autorotation motor, and the right side of the autorotation motor is provided with a revolution motor, so The middle position of the partition plate is provided with a transmission shaft, the middle position of the transmission shaft is provided with a sprocket, the bottom end of the transmission shaft is provided with a gear box, and the outside of the gear box is provided with four polishing wheels, the Four "T"-shaped screws are arranged around the baffle, gears are arranged on the upper part of the "T"-shaped screws, a lifting motor is arranged on the support frame, and an exhaust fan is arranged under the conveyor belt. The left and right ends of the plate are provided with dust removal pipes, the left side of the frame is provided with a dust collector, and the front end of the frame is provided with a control panel.

Preferably, an autorotation main shaft is arranged inside the transmission shaft, and the autorotation main shaft is connected with the output end of the autorotation motor through a conveyor belt. The lower end of the rotation main shaft is provided with a transmission bevel gear, the outside of the rotation main shaft is provided with a revolving main shaft, the upper part of the revolving main shaft is provided with a revolving gear, the revolving gear is connected with the output end of the revolving motor through a chain, the The lower part of the revolving main shaft is provided with a fixing flange, and the fixing flange is connected with the gear box through bolts.

Preferably, two sets of symmetrical transmission devices are arranged inside the gear box, and the transmission devices include a double-ended bevel gear, the right end of the double-ended bevel gear is connected with the transmission bevel gear, and the middle position of the double-ended bevel gear is arranged There is a transition seat, the left end of the double-headed bevel gear is connected with the transmission gear, the middle position of the transmission gear is provided with an axle, and both ends of the axle are detachably connected with a polishing wheel.

Preferably, uniformly arranged magnetic suction blocks are arranged inside the conveyor belt, a vacuum box is arranged in the middle of the inside of the conveyor belt, and a suction pipe is arranged on the right side of the vacuum box, and the suction pipe is detachably connected to the Exhaust fan.

Preferably, the gear is connected to the output end of the lifting motor through a chain.

Preferably, the lower ends of the rotation motor, the revolution motor and the lift motor are all provided with a motor support seat, and a reinforcement rib is provided on the support seat.

Preferably, a screw fixing seat is provided at the contact position between the "T"-shaped screw and the separator.

Preferably, a maintenance door is connected to the front side plate and the rear side plate of the rack through hinges, and the maintenance door is provided with a heat dissipation port.

Compared with the prior art, the beneficial effects of the present utility model are:

1. The structure of the utility model is simple. By arranging the magnetic block in the conveyor belt and the vacuum box in the middle position, when the workpiece reaches the vacuum box with the conveyor belt, the product is firmly adsorbed on the conveyor belt by the vacuum adsorption and the magnet, and the double adsorption effect is stronger. Better, it can meet the needs of a variety of products, and the speed of the conveyor belt can be adjusted from 0 to 4m/min. By setting the rotation motor and the revolution motor to cooperate with the transmission shaft and the gear box, the polishing louver can be used for self-rotation and revolution to grind the product through type without dead angle, the grinding texture is uniform, and the effect is more ideal. s interval adjustment;

2. The utility model sets the lifting motor to cooperate with the "T"-shaped screw to adjust the height of the entire grinding device, and cooperates with the control panel servo system to control the height mathematically. Selection, grinding degree and stroke height parameters can be adjusted freely, easy to operate. By setting the dust removal pipe and dust collector inside the communication device, an internal dust removal system is formed. The dust removal system can keep the grinding space in a good working environment, ensure the cleanliness of the products, and also prolong the service life of the equipment.

Description of drawings

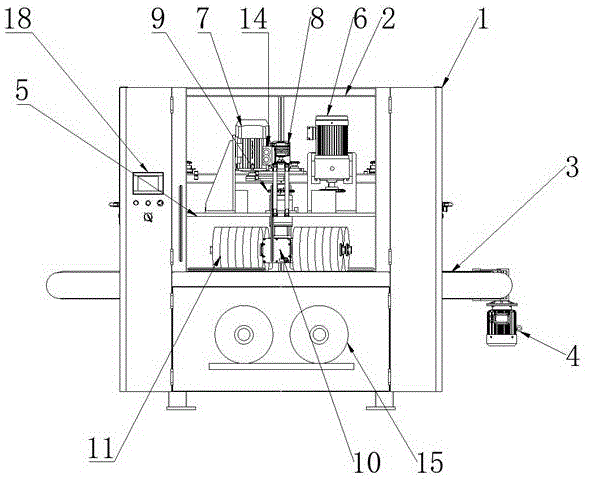

FIG. 1 is a schematic diagram of the overall structure of the present invention.

FIG. 2 is a schematic diagram of the appearance structure of the utility model.

Figure 3 is a schematic diagram of the internal structure of the utility model.

FIG. 4 is a schematic diagram of the structure of the transmission shaft of the present invention.

FIG. 5 is a schematic structural diagram of the gearbox of the present invention.

In the picture: 1. Rack, 2. Supporting frame, 3. Conveyor belt, 4. Motor, 5. Clapboard, 6. Autobiographical motor, 7. Revolutionary motor, 8. Transmission shaft, 81. Autorotation spindle, 82. Revolutionary gear , 83, fixed flange, 84, transmission bevel gear, 85, revolution main shaft, 9, sprocket, 10, gearbox, 101, double bevel gear, 102, transition seat, 103, transmission gear, 104, axle, 11 , polishing wheel, 12, "T" screw, 13, gear, 14, lift motor, 15, exhaust fan, 16, dust pipe, 17, dust collector, 18, control panel.

Detailed ways

In order to make the technical means, creation features, achievement goals and effects of the present invention easy to understand and understand, the present invention will be further described below with reference to the specific embodiments.

In the description of the present invention, it should be noted that the terms "upper", "lower", "inner", "outer", "front end", "rear end", "two ends", "one end", "the other end" The orientation or positional relationship indicated by "" etc. is based on the orientation or positional relationship shown in the accompanying drawings, and is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the indicated device or element must have a specific orientation, so as to The specific orientation configuration and operation is therefore not to be construed as a limitation of the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and should not be construed to indicate or imply relative importance.

In the description of the present utility model, it should be noted that, unless otherwise expressly specified and limited, the terms "installed", "provided with", "connected", etc., should be understood in a broad sense, for example, "connected" may be a fixed The connection can also be a detachable connection, or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection, or an indirect connection through an intermediate medium, and it can be internal communication between two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Figures 1-5, an embodiment provided by the present invention: a sheet metal material deburring device, comprising a frame 1, a support frame 2 is arranged inside the frame 1, and a conveyor belt is arranged in the middle of the frame 1 3. The inside of the conveyor belt 3 is provided with evenly arranged magnetic blocks, the inner middle position of the conveyor belt 3 is provided with a vacuum box, and the right side of the vacuum box is provided with an air suction pipe. Vacuum box, when the workpiece reaches the vacuum box with the conveyor belt 3, the product is adsorbed by vacuum and the magnet is firmly adsorbed on the conveyor belt 3. The double adsorption effect is stronger and better, and can meet the needs of various products. The speed of the conveyor belt 3 is 0 ~ 4m/ min is adjustable. The right end of the conveyor belt 3 is provided with a motor 4, the upper part of the conveyor belt 3 is provided with a partition 5, the partition 5 is located inside the frame 1, the top of the partition 5 is provided with an autorotation motor 6, and the right side of the autorotation motor 6 is provided with a revolution motor 7. A transmission shaft 8 is arranged in the middle position of the partition plate 5, and an autorotation main shaft 81 is arranged inside the transmission shaft 8. The autorotation main shaft 81 is connected to the output end of the autorotation motor 6 through a conveyor belt. The lower end of the rotation main shaft 81 is provided with a transmission bevel gear 84, the outside of the rotation main shaft 81 is provided with a revolving main shaft 85, the upper part of the revolving main shaft 85 is provided with a revolving gear 82, the revolving gear 82 is connected to the output end of the revolving motor 7 through a chain, and the revolving main shaft 82 is connected to the output end of the revolving motor 7 through a chain. The lower part of 85 is provided with a fixed flange 83, the middle position of the transmission shaft 8 is provided with a sprocket 9, the bottom end of the transmission shaft 8 is provided with a gear box 10, the fixed flange 83 is connected with the gear box 10 by bolts, and the There are two sets of symmetrical transmission devices inside. The transmission device includes a double-ended bevel gear 101. The right end of the double-ended bevel gear 101 is connected to the transmission bevel gear 84. The intermediate position of the double-ended bevel gear 101 is provided with a transition seat 102. The left end of the gear 101 is connected with the transmission gear 103 , an axle 104 is arranged in the middle of the transmission gear 103 , and four polishing wheels 11 are arranged outside the gear box 10 , and the two ends of the axle 104 are detachably connected with the polishing wheels 11 . The motor 6 and the revolution motor 7 are used in conjunction with the transmission shaft 8 and the gear box 10, so that the louver polishing wheel 11 can use the rotation and revolution method to grind the product through-type without dead angle, the grinding texture is uniform, and the effect is more ideal. 20m/s interval adjustment. Four "T"-shaped screws 12 are arranged around the partition plate 5, the contact part of the "T"-shaped screw rods 12 and the partition plate 5 is provided with a screw fixing seat, and the upper part of the "T"-shaped screw rod 12 is provided with a gear 13, which supports the skeleton. 2 is provided with a lift motor 14, the lower ends of the rotation motor 6, the revolution motor 7 and the lift motor 14 are all provided with a motor support seat, the support seat is provided with a reinforcing rib, and the gear 13 is connected to the output end of the lift motor 14 through a chain, By setting the lifting motor 14 and the "T"-shaped screw 12, the height of the entire grinding device can be adjusted, and the height of the grinding device can be adjusted mathematically with the control of the control panel 18 servo system. The digital height adjustment is more intuitive and accurate, and the grinding parts can be freely selected according to customer grinding needs. , The grinding degree and stroke height parameters can be adjusted freely, and the operation is convenient. The bottom of the conveyor belt 3 is provided with an exhaust fan 15, the exhaust pipe is detachably connected to the exhaust fan 15, the left and right ends of the partition 5 are provided with dust removal pipes 16, the left side of the rack 1 is provided with a dust collector 17, and the dust collector 17 is connected to the dust collector. The pipe 16 is connected by a hose, and an internal dust removal system is formed by setting the dust removal pipe 16 and the dust collector 17 inside the communication device. The dust removal system can keep the grinding space in a good working environment, ensure the cleanliness of the product, and also prolong the use of the equipment. The front end of the rack 1 is provided with a control panel 18, and the front side panel and the rear side panel of the rack 1 are connected with a maintenance door through hinges. Carry out repairs and maintenance, as well as cooling of the motor inside the unit.

Working principle: When the utility model is in use, it is necessary to have a simple structural understanding of the utility model. The production personnel place the workpiece to be polished into the area designated by the conveyor belt 3. When the conveyor belt 3 reaches the vacuum box, the product is adsorbed by the vacuum and the magnet is firmly adsorbed. On the conveyor belt 3, when the product passes through the grinding area, the polishing wheel 11 grinds the workpiece through, the double adsorption effect is stronger and better, and can meet the needs of various products. The speed of the conveyor belt is adjustable from 0 to 4m/min. The six-axis louver polishing wheel 11 is set to use the method of rotation and revolution to grind the product through type without dead angle. The grinding texture is uniform and the effect is more ideal. The wheel speed can be adjusted in the interval of 8.5-20m/s. The device dust collector 17 adopts the mobile single-machine pulse bag type dust collector produced by Taixing Maoji Hardware Tools Factory. By installing the dust collector 17, the grinding space can maintain a good working environment, ensure the cleanliness of the product, and prolong the service life of the equipment. , By using the control panel 18 servo system to mathematically adjust the height of the polishing wheel 11, the digital height adjustment is more intuitive and accurate.

The above descriptions are only the embodiments of the present invention, and the common knowledge such as the well-known specific structures and characteristics in the solutions are not described too much here. It will be apparent to those skilled in the art that the present invention is not limited to the details of the above-described exemplary embodiments, and that the present invention may be implemented in other specific forms without departing from the spirit or essential characteristics of the present invention. Therefore, the embodiments are to be considered in all respects as exemplary and not restrictive, and the scope of the present invention is defined by the appended claims rather than the foregoing description, and it is therefore intended that the All changes within the meaning and range of the required equivalents are embraced within the present invention. Any reference signs in the claims shall not be construed as limiting the involved claim.

Claims (8)

1. The utility model provides a sheet metal material burring device, includes frame (1), its characterized in that: a supporting framework (2) is arranged in the rack (1), a conveying belt (3) is arranged in the middle of the rack (1), a motor (4) is arranged at the right end of the conveying belt (3), a partition plate (5) is arranged above the conveying belt (3), the partition plate (5) is positioned in the rack (1), a rotation motor (6) is arranged at the top end of the partition plate (5), a revolution motor (7) is arranged on the right side of the rotation motor (6), a transmission shaft (8) is arranged in the middle of the partition plate (5), a chain wheel (9) is arranged in the middle of the transmission shaft (8), a gear box (10) is arranged at the bottom end of the transmission shaft (8), four polishing wheels (11) are arranged outside the gear box (10), four T-shaped screw rods (12) are arranged around the partition plate (5), and a gear (13) is arranged at the upper part of the T-shaped screw rods (12), be provided with elevator motor (14) on supporting framework (2), the below of conveyer belt (3) is provided with air exhauster (15), both ends are provided with dust removal pipe (16) about baffle (5), the left side of frame (1) is provided with dust remover (17), the front end of frame (1) is provided with control panel (18).

2. The sheet metal material deburring device of claim 1, wherein: the improved gearbox is characterized in that a rotation spindle (81) is arranged inside the transmission shaft (8), the rotation spindle (81) is connected with the output end of a rotation motor (6) through a conveyor belt, a transmission bevel gear (84) is arranged at the lower end of the rotation spindle (81), a revolution spindle (85) is arranged outside the rotation spindle (81), a revolution gear (82) is arranged on the upper portion of the revolution spindle (85), the revolution gear (82) is connected with the output end of a revolution motor (7) through a chain, a fixing flange (83) is arranged on the lower portion of the revolution spindle (85), and the fixing flange (83) is connected with the gearbox (10) through bolts.

3. The sheet metal material deburring device of claim 1 or 2, wherein: the polishing machine is characterized in that two symmetrical groups of transmission devices are arranged inside the gear box (10), each transmission device comprises a double-ended bevel gear (101), the right end of each double-ended bevel gear (101) is connected with the corresponding transmission bevel gear (84), a transition seat (102) is arranged in the middle of each double-ended bevel gear (101), the left end of each double-ended bevel gear (101) is connected with a transmission gear (103), a wheel shaft (104) is arranged in the middle of each transmission gear (103), and two ends of each wheel shaft (104) are detachably connected with polishing wheels (11).

4. The sheet metal material deburring device of claim 1, wherein: the inside of conveyer belt (3) is provided with the magnetism piece of inhaling of evenly arranging, the inside intermediate position of conveyer belt (3) is provided with the vacuum box, the right side of vacuum box is provided with the exhaust tube, the connection can be dismantled with air exhauster (15) to the exhaust tube.

5. The sheet metal material deburring device of claim 1, wherein: the gear (13) is connected to the output end of the lifting motor (14) through a chain.

6. The sheet metal material deburring device of claim 1, wherein: the lower ends of the rotation motor (6), the revolution motor (7) and the lifting motor (14) are all provided with motor supporting seats, and reinforcing rib plates are arranged on the supporting seats.

7. The sheet metal material deburring device of claim 1, wherein: and a screw fixing seat is arranged at the contact part of the T-shaped screw (12) and the partition plate (5).

8. The sheet metal material deburring device of claim 1, wherein: the maintenance door is connected to the front side plate and the rear side plate of the rack (1) through hinges, and a heat dissipation opening is formed in the maintenance door.
