Abstract

The utility model belongs to the technical field of pouring technology, and relates to a high-efficiency horizontal line pouring machine. There is a driving device 1 for moving the mobile table 1. The mobile table 1 is provided with a driving device 2 for pushing the mobile table 2. A holding frame for holding the pulp bales is rotatably connected to the fixed plate. The side wall of the holding frame is The driven gear is fixedly connected, the fixed plate is rotatably connected with a driving gear that is rotatably meshed with the driven gear, and the fixed plate is fixedly connected with a driving motor 1 for driving the driving gear to rotate; It is beneficial to improve the pouring efficiency of the pouring machine, and at the same time, it can improve the effect of safety protection for workers.

Description

A high-efficiency horizontal line pouring machine

technical field

The utility model relates to the technical field of pouring technology, in particular to a horizontal line pouring machine with high efficiency.

Background technique

Pouring refers to the process of injecting molten metal, concrete, etc. into a mold for casting of metal parts or molding of cement boards and concrete buildings.

The horizontal line pouring machine, as the name implies, is that when the pouring machine wants to pour the mold, the mold is arranged on the ground in a straight line, and the pouring machine moves in the horizontal direction under the driving of the driving device, and pours the molten iron in the pouring machine into the mold in turn. The existing horizontal line pouring machine includes an installation frame, a movable frame is slidably connected to the installation frame, two ends of the movable frame are fixedly connected with a support frame, two side walls of the slurry bag are fixedly connected with a rotating rod, and the support frame is provided with hook grooves , After the slurry pack is full of molten iron, the rotating rod is rotated and connected to the hook groove. The mounting frame is provided with a drive device for moving in the horizontal direction. During the pouring process, the driving device drives the slurry bales to different molds in sequence, and then the operator manually rotates the slurry bales, so that the molten iron in the slurry bales is poured into the molds.

However, in the actual pouring process, and due to the large weight of the pulp bag, the manual operation of rotating the pulp bag is laborious and troublesome, which affects the pouring efficiency of the pouring machine, and at the same time, the safety is low, which is not conducive to the safety of workers.

Utility model content

The purpose of the utility model is to provide a horizontal line pouring machine, which has the advantages of simple pouring operation of the pouring machine, which is beneficial to improve the pouring efficiency of the pouring machine, and at the same time can improve the effect of safety protection for workers.

The above-mentioned technical purpose of the present utility model is achieved through the following technical solutions:

A high-efficiency horizontal line pouring machine includes a support table, a mobile table 1 is slidably connected to the support table, a mobile table 2 is slidably connected to the mobile table 1, and the moving directions of the mobile table 1 and the mobile table 2 are They are perpendicular to each other, a driving device 1 for moving the mobile platform 1 is arranged on the support table, a driving device 2 for pushing the mobile platform 2 is arranged on the mobile platform 1, and a mounting plate is arranged on the mobile platform 2, so A fixing plate is fixedly connected to the mounting plate, a holding frame for holding pulp bales is rotatably connected to the fixing plate, a driven gear is fixedly connected to the side wall of the holding frame, and the fixing plate rotates A driving gear that is rotatably meshed with the driven gear is connected, a driving motor for driving the driving gear to rotate is fixedly connected to the fixing plate, and a connecting rod is fixedly connected to the holding frame, and the connecting rod is arranged in an arc shape , the mounting plate is provided with a moving groove for the movement of the connecting rod, and the connecting rod is in sliding contact with the bottom side wall of the moving groove.

By adopting the above technical solution, the slurry ladle is filled with molten iron and placed on the holding frame, and the position of the slurry ladle is adjusted by the first and second driving devices, so that the discharge port of the pulp ladle is aligned with the feed port of the mold , and then start the driving motor 1, the driving motor rotates a pair of driving gears, the driving gear drives the driven gear to rotate during the rotation, and the driven gear directly drives the holding frame to rotate when the driven gear rotates, so that the molten iron in the ladle is poured into the mold. middle. During the rotation of the pulp bale, the connecting rod moves in the moving groove. When the pulp bale rotates to a certain angle, the end of the connecting rod collides with the bottom side wall of the moving groove, and the pulp bale is limited, so that the pulp bale can move in the moving groove. Rotate within a certain specified range to avoid splashing of molten iron when the slurry ladle is dumped. This arrangement can avoid the manual rotation of the pulp bag, make the pouring operation of the pouring machine simple, help to improve the pouring efficiency of the pouring machine, and at the same time help to improve the safety guarantee for the workers.

The utility model is further configured as follows: the first drive device comprises a lead screw shaft rotatably connected to the support table, and a lead screw nut rotatably connected to the lead screw shaft, the lead screw nut is fixedly connected to the moving platform one, the A second driving motor for driving the screw shaft to rotate is fixedly connected to the support table.

By adopting the above technical solution, the second driving motor is activated, the second driving motor drives the screw shaft to rotate, and the screw nut is driven to move during the rotation of the screw shaft, thereby driving the first moving table to move.

The utility model is further configured as follows: the first driving device includes a first pushing cylinder fixedly connected to the support table, and the piston rod of the first pushing cylinder is fixedly connected to the first moving table.

By adopting the above technical solution, when the mobile station 1 needs to be moved, the pushing cylinder 1 is activated, and the pushing cylinder 1 directly pushes the mobile station 1.

The utility model is further configured as follows: the second driving device comprises a second pushing cylinder fixedly connected to the first mobile platform, and the piston rod of the second pushing cylinder is fixedly connected to the second mobile platform.

By adopting the above technical solution, when the mobile station 2 needs to be moved, the pushing cylinder 2 is activated, and the pushing cylinder 2 directly pushes the mobile station 2.

The utility model is further configured as follows: an L-shaped installation rod is fixedly connected to the support table, a pulley is rotatably connected to the L-shaped installation rod, and the pulley is fitted and slid with the side wall of the moving table 1.

By adopting the above technical solution, the pulley can limit the position of the first mobile station, so that the first mobile station can be kept stable during the moving process, and the position deviation of the first mobile station can be avoided during the moving process.

The utility model is further configured as follows: steel balls are embedded on the side walls of the connecting rod, and the steel balls fit and slide with the inner wall of the moving groove.

By adopting the above technical solution, the steel ball means that the connecting rod can always be in contact with the inner wall of the moving groove, so that the connecting rod can limit the position, reduce the gap between the connecting rod and the groove wall of the moving groove, and improve the resistance of the limit rod to the slurry. The limit effect of the package.

The utility model is further configured as follows: a guide block is fixedly connected to the second mobile platform, and a guide groove for the sliding of the guide block is provided on the table surface of the mobile platform 1.

By adopting the above technical solution, the cooperative sliding of the guide block and the guide groove is beneficial to keep the moving table 2 stable during the moving process.

The utility model is further provided as follows: the vertical section of the guide block is arranged in an inverted trapezoid shape, and the guide block is fitted and slid with the inner wall of the guide groove.

By adopting the above technical solution, this arrangement can limit the position of the second mobile station during the process of guiding the second mobile station, which is beneficial to make the movement of the second mobile station more stable.

To sum up, the beneficial technical effects of the present utility model are:

1. Through the setting of mobile table 1, mobile table 2, driving gear and driven gear, the manual rotation of the pulp bag can be avoided, making the pouring operation of the pouring machine simple, which is conducive to improving the pouring efficiency of the pouring machine, and at the same time, it can avoid the direct operation of workers. Contact with pulp bales is conducive to improving the safety of workers;

2. The setting of the connecting rod and the moving groove can limit the position of the pulp bag, so that the pulp bag can be rotated within a certain specified range, so as to avoid the effect of the molten iron splashing when the pulp bag is poured.

Description of drawings

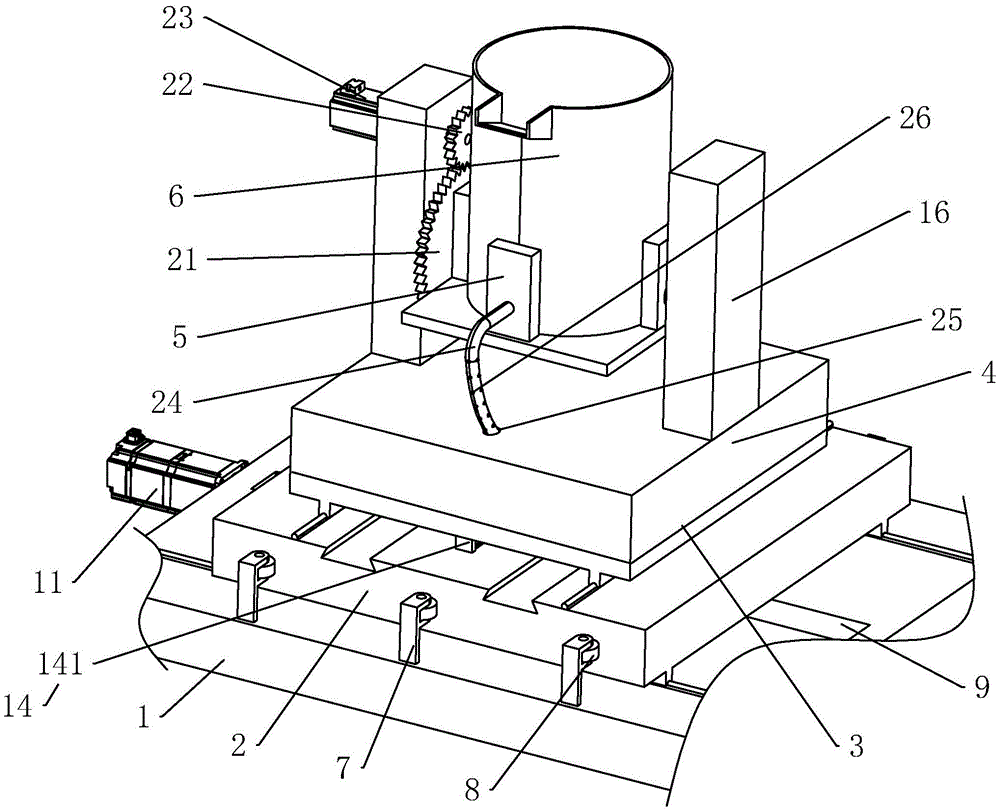

Fig. 1 is the overall structure schematic diagram of pouring machine of the present utility model;

Fig. 2 is the schematic diagram of the cross-sectional view for embodying the structure of the pouring machine in the embodiment 1;

3 is a schematic diagram of a cross-sectional view for embodying a connecting rod structure;

FIG. 4 is a schematic structural diagram for embodying the first driving device in the second embodiment.

In the figure, 1, support table; 2, mobile table one; 3, mobile table two; 4, mounting plate; 5, holding frame; 6, pulp bag; 7, L-shaped mounting rod; 8, pulley; slot; 10, driving device one; 101, screw shaft; 102, screw nut; 103, pushing cylinder one; 11, driving motor two; 12, guide block; 13, guide groove; 14, driving device two; 141, Push cylinder two; 16. Fixed plate; 171. Undertake chassis; 172. Support column; 19. Adapter rod; 20. Adapter slot; 21. Driven gear; 22. Drive gear; 23. Drive motor 1; 24, connecting rod; 25, moving groove; 26, steel ball; 27, accommodating groove.

Detailed ways

The present utility model will be described in further detail below in conjunction with the accompanying drawings.

Embodiment 1: A high-efficiency horizontal line pouring machine, referring to FIG. 1 , from bottom to top, it sequentially includes a support table 1, a mobile table 2, a mobile table 2 3, a mounting plate 4, a holding frame 5, and is arranged in the holding table. Pulp 6 in box 5.

Wherein, the support table 1 is fixedly connected to the ground. The mobile platform one 2 is slidably connected to the upper surface of the mobile platform one 2 .

Referring to FIG. 1 , the two side walls of the support table 1 are fixedly connected with L-shaped mounting rods 7 , and three of them are arranged on each side wall. One right-angled side of the L-shaped mounting rod 7 is fixedly connected to the side wall of the support table 1 and is arranged in the vertical direction, and the other right-angled side is arranged in the horizontal direction.

Referring to FIG. 1 , a pulley 8 is rotatably connected to the right-angle side of the L-shaped mounting rod 7 perpendicular to the side wall of the mobile platform 1 2 , and the pulley 8 slides in contact with the side wall of the mobile platform 1 2 .

Referring to FIG. 1 , an upper table surface of the support table 1 is provided with a placement slot 9 along its length direction, and the inner cavity of the placement slot 9 is provided in the shape of a rectangular parallelepiped.

2 , the support table 1 is provided with a driving device 10 for pushing the moving table 2 to move. The driving device 10 is a screw shaft 101 rotatably connected to the placement groove 9 Screw nut 102. The screw shaft 101 is arranged along the length direction of the placement groove 9 , and the screw nut 102 is fixedly connected to the bottom surface of the moving table 1 2 . A second driving motor 11 for driving the screw shaft 101 to rotate is fixedly connected to the support table 1 .

Referring to FIG. 2 , the second mobile station 3 is slidably connected to the upper surface of the first mobile station 2 . A guide block 12 is fixedly connected to the bottom surface of the mobile platform 2 3 , and the vertical section of the guide block 12 is arranged in an inverted trapezoid shape. A guide groove 13 is formed on the top surface of the moving table 1 along the width direction of the support table 1 , and the guide block 12 slides in contact with the inner wall of the guide groove 13 .

Referring to FIG. 2 , the mobile platform 12 is provided with a driving device 2 14 for pushing the mobile platform 2 3. The driving device 2 14 is a driving cylinder 2 141 fixedly connected to the mobile platform 1 2. The driving cylinder 2 141 is perpendicular to the wire. The direction of the lever shaft 101 is set, and the piston rod that pushes the second cylinder 141 is fixedly connected to the side wall of the second mobile platform 3 .

Referring to FIG. 2 , the mounting plate 4 is fixedly connected to the upper surface of the second mobile platform 3 , and the mounting plate 4 is arranged along the horizontal direction. Two sides of the mounting plate 4 are fixedly connected with a fixing plate 16 , and the fixing plates 16 are arranged along a direction perpendicular to the mounting plate 4 .

Referring to FIG. 2 , the holding frame 5 is rotatably connected to the fixing plate 16 , and the holding frame 5 includes a receiving chassis 171 and four supporting columns 172 fixedly connected to the receiving chassis 171 . The support column 172 is arranged in a direction perpendicular to the support chassis.

Referring to FIG. 2 , an adapter rod 19 is fixedly connected to the outer side wall of the support column 172 , and an adapter groove 20 for the rotation of the adapter rod 19 is formed on the mounting plate 4 . The slurry bag 6 is filled with molten iron and placed on the holding frame 5, and fixed by bolts.

Referring to FIG. 1 , a driven gear 21 is fixedly connected to the side wall of the holding frame 5 , and the driven gear 21 is arranged along the vertical direction. The fixed plate 16 is rotatably connected with a driving gear 22 that is rotatably engaged with the driven gear 21 , and is fixedly connected with a driving motor 23 for driving the driving gear 22 to rotate on the fixed plate 16 .

Referring to FIG. 3 , a connecting rod 24 is fixedly connected to the support column 172 , and the connecting rod 24 is arranged in an arc shape and is arranged in a direction parallel to the driven gear 21 . The mounting plate 4 is provided with a moving groove 25 for moving the connecting rod 24 , and the connecting rod 24 is in sliding contact with the bottom side wall of the moving groove 25 .

Referring to FIG. 3 , steel balls 26 are embedded on the side walls of the connecting rod 24 , and the steel balls 26 slide against the inner wall of the moving groove 25 .

The specific implementation process: the slurry bale 6 is filled with molten iron and placed on the holding frame, the screw shaft 101 and the screw nut 102 are used to adjust the position of the slurry bale 6 in the lateral direction, and the driving cylinder is used to adjust the slurry bale 6 in the vertical direction. Then, the driving motor 1 23 is started, and the driving motor 1 23 rotates the driving gear 22, and the driving gear 22 drives the driven gear during the rotation process. 21 rotates, when the driven gear 21 rotates, it directly drives the holding frame to rotate so that the molten iron in the ladle 6 is poured into the mold. During the rotation of the pulp bale 6, the connecting rod 24 moves in the moving groove 25. When the pulp bale 6 rotates to a certain angle, the end of the connecting rod 24 collides with the bottom side wall of the moving groove 25, limiting the pulp bale 6. position, so that the pulp package 6 can be rotated within a certain specified range.

Embodiment 2: A high-efficiency horizontal line casting machine, referring to FIG. 4 , the difference from Embodiment 1 is that the driving device 1 10 is a pushing cylinder 103 fixedly connected to the support table 1, and the moving The top surface is provided with an accommodating groove 27 for placing the pushing cylinder 103, the pushing cylinder 103 is fixedly connected in the accommodating groove 27 and is arranged in a direction perpendicular to the pushing cylinder 1 103, and the piston rod of the pushing cylinder 1 103 is fixedly connected to the moving cylinder 103. The side wall of table one 2. When the moving stage one 2 needs to be moved, the pushing cylinder one 103 is activated, and the pushing cylinder one 103 directly pushes the moving stage one 2 .

The examples of this specific embodiment are all preferred embodiments of the present invention, and are not intended to limit the protection scope of the present invention. Therefore: all equivalent changes made according to the structure, shape and principle of the present invention are not It should be covered within the protection scope of the present invention.

Claims (8)

1. The utility model provides an efficient water flat line casting machine, includes a supporting bench (1), its characterized in that: sliding connection has the mobile station one (2) on brace table (1), sliding connection has the mobile station two (3) on the mobile station one (2), the moving direction mutually perpendicular of mobile station one (2) and mobile station two (3), be provided with drive arrangement one (10) that are used for the mobile station one (2) on brace table (1), be provided with drive arrangement two (14) that are used for promoting the mobile station two (3) on mobile station one (2), be provided with mounting panel (4) on the mobile station two (3), fixedly connected with fixed plate (16) on mounting panel (4), fixedly connected with on fixed plate (16) has the frame that holds (5) that are used for holding thick liquid package (6), fixedly connected with driven gear (21) on the lateral wall that holds frame (5), fixedly connected with has driving gear (22) with driven gear (21) rotation meshing on fixed plate (16), fixedly connected with is used for driving gear (22) pivoted driving motor (23) on fixed plate (16), hold fixedly connected with connecting rod (24) on frame (5), connecting rod (24) are the arc setting, offer on mounting panel (4) and be used for shifting chute (25) that connecting rod (24) removed, the bottom lateral wall of connecting rod (24) and shifting chute (25) slides and contradicts.

2. An efficient horizontal line caster according to claim 1, wherein: the first driving device (10) comprises a screw shaft (101) rotatably connected to the supporting table (1) and a screw nut (102) rotatably connected to the screw shaft (101), the screw nut (102) is fixedly connected to the first moving table (2), and a second driving motor (11) used for driving the screw shaft (101) to rotate is fixedly connected to the supporting table (1).

3. An efficient horizontal line caster according to claim 1, wherein: the first driving device (10) comprises a first pushing cylinder (103) fixedly connected to the supporting table (1), and a piston rod of the first pushing cylinder (103) is fixedly connected to the first moving table (2).

4. An efficient horizontal line caster according to claim 1, wherein: the second driving device (14) comprises a second pushing cylinder (141) fixedly connected to the first moving platform (2), and a piston rod of the second pushing cylinder (141) is fixedly connected to the second moving platform (3).

5. An efficient horizontal line caster according to claim 1, wherein: fixedly connected with L type installation pole (7) on brace table (1), it is connected with pulley (8) to rotate on L type installation pole (7), pulley (8) slide with the lateral wall laminating of mobile station (2).

6. An efficient horizontal line caster according to claim 1, wherein: the side wall of the connecting rod (24) is embedded with a steel ball (26), and the steel ball (26) is attached to and slides on the inner wall of the moving groove (25).

7. An efficient horizontal line caster according to claim 1, wherein: the guide block (12) is fixedly connected to the second mobile platform (3), and a guide groove (13) for the guide block (12) to slide is formed in the table top of the first mobile platform (2).

8. An efficient horizontal line caster according to claim 7, wherein: the vertical section of the guide block (12) is in an inverted trapezoid shape, and the guide block (12) is attached to the inner wall of the guide groove (13) in a sliding mode.
