Abstract

The utility model relates to a patient is with nursing pillow technical field specifically is a nursing pillow based on special adjustable height of ICU severe patient, including the casing, two slide bars are vertically installed to the inboard of casing, and the vertical fixed mounting in surface of slide bar has vertical rack, and the lower extreme fixed mounting of slide has first motor, and first motor passes through slide slidable mounting in the inboard of slide bar, and the output of first motor is connected with first action wheel, and first action wheel closes with vertical rack and is connected. The utility model relates to a novelty, simple structure, convenient to use, when first motor drives first action wheel clockwise turning for the box jacks up the casing, when first motor drove first action wheel anticlockwise turning, the slider drove slide and vertical downstream of box in the slide bar, thereby makes the position height of pillow realize adjusting, and second motor drive location rack slides in first locating hole and second locating hole simultaneously, makes the slide realize firm location.

Description

A kind of nursing pillow with adjustable height based on intensive care patients in ICU

technical field

The utility model relates to the technical field of nursing pillows for patients, in particular to a nursing pillow with adjustable height based on the special purpose of intensive care patients in ICU.

Background technique

ICU is the intensive care unit, also known as the comprehensive treatment room of the intensive care unit. Treatment, nursing, and rehabilitation can be carried out simultaneously. It provides isolation places and equipment for critically ill or comatose patients, and provides the best nursing, comprehensive treatment, combination of medical care, and surgery. Post-early rehabilitation, joint care exercise therapy and other services. Targeted monitoring supplies, also known as intensive care units. It is a form of medical organization management that integrates modern medical treatment, nursing and rehabilitation technology with the common development of medical treatment, nursing, rehabilitation and other specialties, the birth of new medical equipment and the improvement of hospital management system. The ICU gathers critically ill patients and provides the best guarantee in terms of manpower, material resources and technology, in order to obtain a good treatment effect.

In order to provide patients with better nursing services, nursing pillows are generally provided on the nursing beds used by patients, but the existing nursing pillows only play a supporting role and are a fixed size pillow, so better nursing cannot be achieved. As a result, some patients need to use a higher pillow for the cervical spine, and some patients need to use a lower pillow, and the existing pillow cannot realize the adjustment of the position and height.

Utility model content

The purpose of the utility model is to provide a nursing pillow with adjustable height based on the special purpose of ICU critical patients, so as to solve the problems raised in the above background technology.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a nursing pillow with adjustable height based on ICU intensive patients, comprising a shell, two sliding bars are vertically installed on the inner side of the shell, and the sliding bars The lower end surface of the sliding rod is fixedly installed on the inner lower end surface of the housing, the inner side of the sliding rod is vertically slidably installed with a sliding plate, the upper side of the sliding rod is installed with a box body, and the inner side of the box body is filled with foam, so The upper end surface of the box body is in contact with the upper end of the inner side of the casing, the box body is vertically slidably installed on the inner side of the sliding rod through the sliding plate, the surface of the sliding rod is vertically fixed and installed with a vertical rack, and the sliding plate has a vertical rack. A first motor is fixedly installed at the lower end, the first motor is slidably installed on the inner side of the sliding rod through the sliding plate, the output end of the first motor is connected with a first driving wheel, and the first driving wheel is connected with the vertical rack teeth. combined connection.

As a further solution of the present invention: the inner surface of the sliding rod is vertically provided with a sliding rail, the inner side of the sliding rail is slidably installed with a slider, the sliding plate is fixedly installed on the upper end of the slider, the first The motor is fixedly mounted on the rear end surface of the sliding block, and the sliding block and the first motor are slidably mounted on the inner side of the sliding rod through the sliding block and the sliding rail.

As a further solution of the present invention, a positioning frame is vertically fixedly installed on one side of the sliding rod, the positioning frame is fixedly installed on the inner side of the housing through the sliding rod, and the surface of the positioning frame penetrates the first positioning frame. hole.

As a further solution of the present invention, a positioning block is fixedly installed on the lower end of the sliding plate, a second positioning hole is penetrated on the surface of the positioning block, and a positioning block is slidably installed on the inner side of the first positioning hole and the second positioning hole. The rack, the positioning rack and the positioning block are slidably installed on the inner side of the sliding rod through the sliding plate.

As a further solution of the present invention, a second motor is fixedly installed on the lower end of the slide plate, the output end of the second motor is connected with a second driving wheel, and the second driving wheel is connected with the positioning rack in a geared manner, The left end of the casing is provided with buttons, and the buttons are respectively connected with the first motor and the second motor.

As a further solution of the present invention, a spring is connected between the upper end of the slide plate and the lower end of the box, and an inner tube and an outer tube are arranged on the outside of the spring.

As a further solution of the present invention: the outer tube is sleeved on the outer side of the inner tube, the upper end of the inner tube is fixedly installed on the lower end surface of the box body, and the lower end of the outer tube is fixedly installed on the upper end surface of the slide plate superior.

Compared with the prior art, the beneficial effects of the present utility model are as follows: the utility model has a novel design, a simple structure, and is convenient to use. When the first motor drives the first driving wheel to rotate counterclockwise, the slider drives the slide plate and the box to move vertically downward in the sliding rod, so that the position and height of the pillow can be adjusted; when the second motor drives the second driving wheel When the clock rotates, the second motor drives the positioning rack to slide into the first positioning hole and the second positioning hole at the same time, so that the sliding plate can achieve stable positioning and improve the safety of the device; when the patient is lying on the shell When it is on the side, the foam on the inside of the box achieves shock absorption and is softer at the same time, which has a better wrapping effect, and the spring can play a supporting effect.

Description of drawings

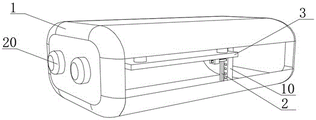

Fig. 1 is a kind of structural schematic diagram of a nursing pillow with adjustable height based on ICU intensive patients;

Fig. 2 is a kind of structural schematic diagram of the spring in a kind of nursing pillow with adjustable height based on ICU critical patients;

FIG. 3 is a schematic structural diagram of a vertical rack in a nursing pillow with adjustable height based on a special ICU intensive patient;

FIG. 4 is a schematic structural diagram of a positioning rack in a nursing pillow with adjustable height based on an ICU-specific nursing pillow for critically ill patients.

In the figure: 1. Shell; 2. Slider; 3. Slide; 4. Box; 5. Slide; 6. Slider; 7. Vertical rack; 8. First motor; 9. First drive wheel; 10, positioning frame; 11, first positioning hole; 12, positioning block; 13, second positioning hole; 14, positioning rack; 15, second motor; 16, second driving wheel; 17, spring; 18 , inner tube; 19, outer tube; 20, button.

Detailed ways

Please refer to FIGS. 1 to 4 . In the embodiment of the present invention, a nursing pillow with adjustable height based on ICU patients with severe disease is provided. In FIGS. 1 and 3 , it includes a casing 1 , and the inner side of the casing 1 is vertically installed with a Two sliding rods 2, the lower end surface of the sliding rod 2 is fixedly installed on the inner lower end surface of the housing 1, the inner side of the sliding rod 2 is vertically slidably installed with a sliding plate 3, and the upper side of the sliding rod 3 is installed with a box 4, the box body The inner side of 4 is filled with foam, the upper end surface of the box body 4 is in contact with the inner upper end of the shell 1, the box body 4 is vertically slidably installed on the inner side of the sliding rod 2 through the sliding plate 3, and the surface of the sliding rod 2 is vertically fixed and installed with A vertical rack 7, a first motor 8 (model VTB56-2A) is fixedly installed at the lower end of the sliding plate 3, the first motor 8 is slidably installed on the inner side of the sliding rod 2 through the sliding plate 3, and the output end of the first motor 8 is connected with The first driving wheel 9, the first driving wheel 9 is connected with the vertical rack 7, the inner surface of the sliding rod 2 is vertically opened with a sliding rail 5, the inner side of the sliding rail 5 is slidably installed with a sliding block 6, and the sliding plate 3 is fixed Installed on the upper end of the slider 6, the first motor 8 is fixedly installed on the rear end surface of the slider 6, the slider 3 and the first motor 8 are slidably installed on the inner side of the slider 2 through the slider 6 and the slider 5, the first After the motor 8 is started, it drives the first driving wheel 9 to rotate on one side of the vertical rack 7, so that the first motor 8 drives the slider 6 to slide vertically up and down in the slide rail 5 inside the slide bar 2, so that the slider 6. Drive the slide plate 3 and the upper box 4 to move vertically up and down inside the housing 1, press the button 20, when the first motor 8 drives the first driving wheel 9 to rotate clockwise, the slider 6 drives the slide plate 3 and the The box body 4 moves vertically upward in the sliding rod 2, so that the box body 4 pushes up the shell 1, so that the height of the pillow is raised. When the first motor 8 drives the first driving wheel 9 to rotate counterclockwise, the sliding The block 6 drives the sliding plate 3 and the box body 4 to move vertically downward in the sliding rod 2, thereby reducing the position and height of the pillow, so that the position and height of the pillow can be adjusted.

In FIGS. 1 and 4 , a positioning frame 10 is vertically fixed on one side of the sliding rod 2 , the positioning frame 10 is fixedly installed on the inner side of the housing 1 through the sliding rod 2 , and a surface of the positioning frame 10 penetrates a first positioning hole 11. A positioning block 12 is fixedly installed on the lower end of the sliding plate 3, and a second positioning hole 13 runs through the surface of the positioning block 12. A positioning rack 14 is slidably installed on the inner side of the first positioning hole 11 and the second positioning hole 13. The positioning rack 14 and the positioning block 12 are slidably installed on the inner side of the sliding rod 2 through the sliding plate 3, the lower end of the sliding plate 3 is fixedly installed with a second motor 15 (model VTB56-2A), and the output end of the second motor 15 is connected with a second driving wheel 16 , the second driving wheel 16 is connected with the positioning rack 14, the left end of the casing 1 is provided with a button 20, and the button 20 is respectively connected with the first motor 8 and the second motor 15. After adjusting to a suitable position, press Press the key 20, so that the second motor 15 drives the second driving wheel 16 to rotate, so that the second driving wheel 16 drives the positioning rack 14 to slide inside the first positioning hole 11 and the second positioning hole 13. When the second motor 15 drives When the second driving wheel 16 rotates clockwise, the second motor 15 drives the positioning rack 14 to slide into the first positioning hole 11 and the second positioning hole 13 at the same time. At this time, positioning is achieved, and the slider 6 no longer moves up and down. When the second motor 15 rotates in the reverse direction, the second motor 15 drives the second driving wheel 16 to drive the positioning rack 14 to slide out from the inner side of the second positioning hole 13 . At this time, the slider 6 can move up and down, so that the slider 3 The stable positioning is realized, and the safety of the device is improved.

In FIG. 2 , a spring 17 is connected between the upper end of the sliding plate 3 and the lower end of the box 4 , an inner tube 18 and an outer tube 19 are arranged on the outside of the spring 17 , and the outer tube 19 is sleeved on the outer side of the inner tube 18 . The upper end of the tube 18 is fixedly installed on the lower end surface of the box body 4, and the lower end of the outer tube 19 is fixedly installed on the upper end surface of the slide plate 3. When the patient is lying on the upper side of the housing body 1, the foam inside the box body 4 realizes At the same time of shock absorption, it is softer and has a better wrapping effect. At the same time, the spring 17 can play a supporting effect, so that the upper box 4 has a shock filtering effect when sliding downward. The outer tube 19 and the inner tube 18 has a better limiting effect, so that the spring 17 can only move in the vertical direction.

The working principle of the present invention is as follows: after the first motor 8 is started, it drives the first driving wheel 9 to rotate on one side of the vertical rack 7 , so that the first motor 8 drives the slider 6 on the slide rail 5 inside the slide bar 2 The inner side slides vertically up and down, so that the slider 6 drives the slide plate 3 and the upper box 4 to move vertically up and down inside the housing 1, and when the button 20 is pressed, when the first motor 8 drives the first driving wheel 9 clockwise When rotating, the sliding block 6 drives the sliding plate 3 and the box body 4 to move vertically upward in the sliding rod 2, so that the box body 4 pushes up the shell 1, so that the height of the pillow is raised. When the first motor 8 drives the first When a driving wheel 9 rotates counterclockwise, the sliding block 6 drives the sliding plate 3 and the box 4 to move vertically downward in the sliding rod 2, thereby reducing the position and height of the pillow, so that the position and height of the pillow can be adjusted. After the appropriate position, press the button 20, so that the second motor 15 drives the second driving wheel 16 to rotate, so that the second driving wheel 16 drives the positioning rack 14 to slide inside the first positioning hole 11 and the second positioning hole 13. , when the second motor 15 drives the second driving wheel 16 to rotate clockwise, the second motor 15 drives the positioning rack 14 to slide into the first positioning hole 11 and the second positioning hole 13 at the same time. The block 6 no longer moves up and down. When the second motor 15 rotates in the reverse direction, the second motor 15 drives the second driving wheel 16 to drive the positioning rack 14 to slide out from the inner side of the second positioning hole 13. At this time, the slider 6 can It moves up and down, so that the sliding plate 3 can be positioned stably and the safety of the device is improved. When the patient is lying on the upper side of the casing 1, the foam on the inside of the casing 4 achieves shock absorption and is softer. At the same time, the spring 17 can play a supporting effect, so that the upper box body 4 can play a shock filtering effect when sliding down, and the outer tube 19 and the inner tube 18 can play a better limiting effect. So that the spring 17 can only move in the vertical direction.

The above are only the preferred specific embodiments of the present invention, but the protection scope of the present invention is not limited to this. The technical solution of the utility model and its utility model concept are equivalently replaced or changed, and should be covered within the protection scope of the present utility model.

Claims (7)

1. The utility model provides a nursing pillow based on special adjustable height of ICU severe patient, includes casing (1), two slide bars (2) are vertically installed to the inboard of casing (1), the lower extreme fixed surface of slide bar (2) is installed on the inboard lower extreme surface of casing (1), its characterized in that, the inboard vertical slidable mounting of slide bar (2) has slide (3), box (4) are installed to the upside of slide (3), the inboard packing of box (4) has the bubble cotton, the upper end surface of box (4) is contradicted in the inboard upper end of casing (1), box (4) are through the inboard of the vertical slidable mounting of slide (3) in slide bar (2), the vertical fixed surface mounting of slide bar (2) has vertical rack (7), the lower extreme fixed mounting of slide (3) has first motor (8), first motor (8) pass through slide (3) slidable mounting in the inboard of slide bar (2), the output end of the first motor (8) is connected with a first driving wheel (9), and the first driving wheel (9) is in meshed connection with the vertical rack (7).

2. The ICU-based nursing pillow with adjustable height special for critical patients is characterized in that a sliding rail (5) is vertically arranged on the inner side surface of the sliding rod (2), a sliding block (6) is slidably arranged on the inner side of the sliding rail (5), the sliding plate (3) is fixedly arranged at the upper end of the sliding block (6), the first motor (8) is fixedly arranged on the rear end surface of the sliding block (6), and the sliding plate (3) and the first motor (8) are slidably arranged on the inner side of the sliding rod (2) through the sliding block (6) and the sliding rail (5).

3. The ICU-based nursing pillow with adjustable height special for critically ill patients according to claim 1, wherein a positioning frame (10) is vertically and fixedly installed on one side of the sliding rod (2), the positioning frame (10) is fixedly installed on the inner side of the shell (1) through the sliding rod (2), and a first positioning hole (11) penetrates through the surface of the positioning frame (10).

4. The ICU-based nursing pillow with adjustable height special for critically ill patients according to claim 3, wherein a positioning block (12) is fixedly installed at the lower end of the sliding plate (3), a second positioning hole (13) penetrates through the surface of the positioning block (12), a positioning rack (14) is slidably installed on the inner sides of the first positioning hole (11) and the second positioning hole (13), and the positioning rack (14) and the positioning block (12) are slidably installed on the inner side of the sliding rod (2) through the sliding plate (3).

5. The nursing pillow based on ICU critical patient special adjustable height of claim 1, characterized in that, the lower extreme fixed mounting of slide (3) has second motor (15), the output of second motor (15) is connected with second action wheel (16), second action wheel (16) and location rack (14) meshing are connected, the left end of casing (1) is equipped with button (20), button (20) link to each other with first motor (8) and second motor (15) respectively.

6. The ICU-based nursing pillow with adjustable height special for critical patients is characterized in that a spring (17) is connected between the upper end of the sliding plate (3) and the lower end of the box body (4), and an inner tube (18) and an outer tube (19) are arranged on the outer side of the spring (17).

7. The ICU-based nursing pillow with adjustable height special for critical patients according to claim 6, characterized in that the outer tube (19) is sleeved outside the inner tube (18), the upper end of the inner tube (18) is fixedly installed on the lower end surface of the box body (4), and the lower end of the outer tube (19) is fixedly installed on the upper end surface of the sliding plate (3).
