CN210749555U - Neurosurgery is with supplementary strutting arrangement - Google Patents

Abstract

The utility model discloses an auxiliary support device for neurosurgery, which comprises an iron plate, an electromagnet is arranged on the top surface of the iron plate, a support plate is fixed on the top surface of the electromagnet, and the top surface of the support plate is provided with an electromagnet. The sleeve is slidably provided with a supporting rod that matches it, the upper side of the sleeve is threaded with bolts, the top surface of the supporting rod is fixed with an arm support plate, and the left side of the arm support plate is provided with a first An arc groove. The utility model designs an electromagnet, which is connected to the power supply of the electromagnet, so that the electromagnet is tightly adsorbed on the iron plate, so that the device no longer moves and is very stable. When it needs to move again, the power supply of the electromagnet can be disconnected to move at will The device, use, is equipped with an arm support plate as a whole support platform, so that the user can move the arm at will, which is convenient and efficient; the curved elastic rod can effectively relieve the fatigue of the waist, and the rubber sheet and sponge layer provided can It is very practical to relieve the user's foot fatigue.

Description

A kind of auxiliary support device for neurosurgery

technical field

The utility model relates to the field of medical equipment, in particular to an auxiliary support device for neurosurgery.

Background technique

The existing auxiliary support device for neurosurgery is inconvenient to move the position and fix, and it is inconvenient to use, and the existing auxiliary support device for neurosurgery generally has a separate support for each arm on the support arm, and there is no complete support device. The support platform, the doctor needs to use his eyes to find the support arm again after raising the arm, which is inefficient, and when the doctor is performing the operation, standing for a long time not only puts pressure on the arm, but also easily causes fatigue in the waist and feet, and the existing nerves The auxiliary support device for surgical operation has no effective components to relieve the fatigue of the waist and feet, and is very impractical.

Utility model content

In order to solve the above problems, the present invention provides an auxiliary support device for neurosurgery.

The utility model is realized through the following technical solutions:

An auxiliary support device for neurosurgery, comprising an iron plate, an electromagnet is arranged on the top surface of the iron plate, a support plate is fixed on the top surface of the electromagnet, a sleeve on the top surface of the support plate, the The sleeve is slidably provided with a matching support rod, the upper side of the sleeve is threaded with bolts, the top surface of the support rod is fixed with an arm support plate, and the left side of the arm support plate is provided with a first Arc-shaped groove, the right side of the arm support plate is provided with a second arc-shaped groove, the edge of the second arc-shaped groove is attached with a first sponge strip, and the side of the support rod is fixed with a U-shaped support The inner side of the U-shaped support frame is respectively fixed with a cylinder body, the cylinder body is slidably provided with a sliding rod that matches it, a spring is fixed between the sliding rod and the cylinder body, and the sliding rod is between the sliding rods. An arc-shaped elastic rod is fixed, a second sponge strip is attached to the side of the arc-shaped elastic rod, a rubber sheet is fixed on the top surface of the support plate, and a sponge layer is fixed on the top surface of the rubber sheet.

Preferably, the iron plate is fixed on the ground by bolts.

Preferably, the surface of the support plate is coated with an insulating layer.

Preferably, the first sponge strip and the second sponge strip are both memory foams.

Preferably, the spring is a compression spring.

Preferably, the material of the arc-shaped elastic rod is an elastic element made of metal.

Compared with the prior art, the beneficial effects of the present utility model are: the utility model designs an electromagnet, which is connected to the power source of the electromagnet, so that the electromagnet is tightly adsorbed on the iron plate, so that the device does not move, and is very stable. When it is necessary to move again, the power of the electromagnet can be disconnected to move the device at will. In use, there is an arm support plate as a whole support platform, so that the user can move the arm at will, which is convenient and efficient; the curved elastic rod can It can effectively relieve the fatigue of the waist, and the rubber sheet and sponge layer provided can relieve the fatigue of the user's feet, which is very practical.

Description of drawings

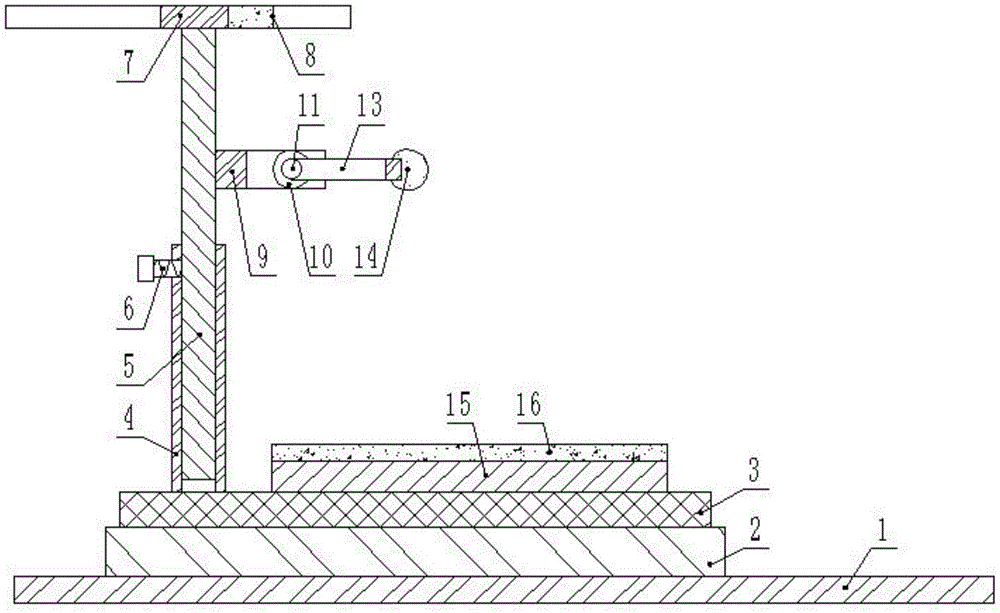

Fig. 1 is the described structure schematic diagram of the present utility model;

Fig. 2 is the top view of the arm support plate of the present invention;

FIG. 3 is a schematic diagram of the connection of the U-shaped support frame according to the present invention.

In the figure: iron plate 1, electromagnet 2, support plate 3, sleeve 4, support rod 5, bolt 6, arm support plate 7, first sponge strip 8, U-shaped support frame 9, cylinder 10, sliding rod 11 , spring 12, arc elastic rod 13, second sponge strip 14, rubber sheet 15, sponge layer 16, first arc groove 7-1, second arc groove 7-2.

Detailed ways

Below in conjunction with the accompanying drawings and specific embodiments, the present utility model is described in further detail:

As shown in FIGS. 1 , 2 and 3 , an auxiliary support device for neurosurgery includes an iron plate 1 , an electromagnet 2 is provided on the top surface of the iron plate 1 , and the top surface of the electromagnet 2 is fixed There is a support plate 3, a top surface sleeve 4 of the support plate 3, a support rod 5 that matches the sleeve 4 is slidably provided with it, and a bolt 6 is threadedly connected to the upper part of the side of the sleeve 4. The top surface of the support rod 5 is fixed with an arm support plate 7, the left side of the arm support plate 7 is provided with a first arc-shaped groove 7-1, and the right side of the arm support plate 7 is provided with a second arc-shaped groove 7-2, the edge of the second arc groove 7-2 is attached with the first sponge strip 8, the side of the support rod 5 is fixed with a U-shaped support frame 9, and the inner side of the U-shaped support frame 9 The cylinder bodies 10 are respectively fixed, and the cylinder bodies 10 are slidably provided with sliding rods 11 matching them. A spring 12 is fixed between the sliding rods 11 and the cylinder body 10, and a spring 12 is fixed between the sliding rods 11. The arc-shaped elastic rod 13, the side of the arc-shaped elastic rod 13 is attached with a second sponge strip 14, the top surface of the support plate 3 is fixed with a rubber sheet 15, and the top surface of the rubber sheet 15 is fixed with a sponge layer 16. The iron plate 1 is fixed on the ground by bolts. The surface of the support plate 3 is coated with an insulating layer. The first sponge strip 8 and the second sponge strip 14 are both memory foams. The spring 12 is a compression spring. The material of the arc-shaped elastic rod 13 is an elastic element made of metal.

Working principle: The utility model relates to a novel auxiliary support device for neurosurgery. When using the device, the iron plate 1 is fixed on the bottom surface of the use site. The device is designed with an electromagnet 2. When using the device, the device is moved and placed, and the device is connected. The power supply of the electromagnet 2 makes the electromagnet 2 tightly adhere to the iron plate 1, so that the device does not move any more, which is very stable. Convenient; by adjusting the support rod 5 to slide in the sleeve 4, the arm support plate 7 on the support rod 5 is adjusted to a suitable height, and then the bolt 6 is tightened to fix the support rod 5; the arm support plate 7 of the device is a The whole support platform allows the user to move the arm at will without distracting attention, and the arm support plate 7 is made of transparent material. The design of the first arc groove 7-1 increases the user's field of vision and efficiency. and the user's waist can be effectively supported by the arc-shaped elastic rod 13 to relieve fatigue. When the user presses the arc-shaped elastic rod 13, the arc-shaped elastic rod 13 presses the sliding rod 11 and the spring 12, which is a compression spring. , strengthen the shock absorption effect, more practical; the user can stand on the provided rubber sheet 15 and sponge layer 16, the rubber sheet 15 has a certain hardness and elasticity, and the sponge layer 16 is soft and elastic, which can relieve the user's foot fatigue , very practical.

The right side of the arm support plate 7 is provided with a second arc-shaped groove 7-2, and a first sponge strip 8 is attached to the edge of the second arc-shaped groove 7-2. The first sponge strip 8 is a memory foam, preventing the arm The edge of the support plate 7 is closed to the user; the side of the arc-shaped elastic rod 13 is attached with a second sponge strip 14, and the second sponge strip 14 is a memory foam, which makes the user lean on the arc-shaped elastic rod 13 more comfortably; The surface of the support plate 3 is coated with an insulating layer to play an insulating role.

The basic principles, main features and advantages of the present invention have been shown and described above. It should be understood by those skilled in the art that the present invention is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions only illustrate the principles of the present invention. Without departing from the spirit and scope of the present invention, the present invention There will also be various changes and improvements in the new model, which all fall within the scope of the claimed invention. The claimed scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. An auxiliary support device for neurosurgery, characterized in that it comprises an iron plate (1), the top surface of the iron plate (1) is provided with an electromagnet (2), and the top surface of the electromagnet (2) is provided with an electromagnet (2). A support plate (3) is fixed on the surface, the top surface sleeve (4) of the support plate (3) is slidably provided with a supporting rod (5) matching it, and the sleeve (4) is slidably provided with the support rod (5). The upper part of the side surface of (4) is threadedly connected with bolts (6), the top surface of the support rod (5) is fixed with an arm support plate (7), and the left side of the arm support plate (7) is provided with a first arc The groove (7-1), the right side of the arm support plate (7) is provided with a second arc-shaped groove (7-2), and the edge of the second arc-shaped groove (7-2) is attached with a A first sponge strip (8), a U-shaped support frame (9) is fixed on the side of the support rod (5), and a cylindrical body (10) is respectively fixed on the inner side of the U-shaped support frame (9). The body (10) is slidably provided with a sliding rod (11) matching it, a spring (12) is fixed between the sliding rod (11) and the cylinder body (10), and a spring (12) is fixed between the sliding rod (11) An arc-shaped elastic rod (13) is fixed, a second sponge strip (14) is attached to the side of the arc-shaped elastic rod (13), and a rubber sheet (15) is fixed on the top surface of the support plate (3), A sponge layer (16) is fixed on the top surface of the rubber sheet (15). 2 . The auxiliary support device for neurosurgery according to claim 1 , wherein the iron plate ( 1 ) is fixed on the ground by bolts. 3 . 3 . The auxiliary support device for neurosurgery according to claim 1 , wherein the surface of the support plate ( 3 ) is coated with an insulating layer. 4 . 4 . The auxiliary support device for neurosurgery according to claim 1 , wherein the first sponge strip ( 8 ) and the second sponge strip ( 14 ) are both memory foams. 5 . 5 . The auxiliary support device for neurosurgery according to claim 1 , wherein the spring ( 12 ) is a compression spring. 6 . 6 . The auxiliary support device for neurosurgery according to claim 1 , wherein the material of the arc-shaped elastic rod ( 13 ) is an elastic element made of metal. 7 .
