Abstract

The utility model provides a novel network server cabinet, which comprises a cabinet body and a bracket arranged in the cabinet body. The cabinet body comprises side panels arranged oppositely, a back panel connected with the side panels, and a back panel connected with the side panels and the back panel. The top plate and the bottom plate are formed by the side plate, the back plate, the top plate and the bottom plate together to form a receiving cavity. The side of the side plate is hingedly provided with a door plate, and a connecting strip is arranged in the receiving cavity. The connecting strip is provided with a plurality of hanging holes. It is arranged in the height direction of the cabinet, the bracket and the hanging hole are connected by screws, the side and top surface of the top plate are provided with ventilation grilles, and the surface of the top plate facing the cabinet body is provided with a cooling fan. Set up a plurality of ventilation holes, the set air guide cover can improve the air guide performance of the cooling fan, and the cooling airflow can be transported according to the guidance of the air guide cover. The diffusion direction is shifted to improve the overall cooling performance of the network cabinet.

Description

A new type of network server cabinet

technical field

The utility model relates to the technical field of network cabinet equipment, in particular to a novel network server cabinet.

Background technique

With the advent of the era of big data, various data centers have become important economic infrastructures in all walks of life. A network cabinet is a cabinet used to place servers. It provides a suitable environment and safety protection for the normal operation of electronic equipment. Existing The network server cabinet has poor heat dissipation performance, and the heat generated by the network server that cannot be installed in the cabinet can be diffused in time, which affects the normal operation of the network server.

Utility model content

In view of this, the technical problem to be solved by the present invention is to improve the heat dissipation capability of the network cabinet and ensure the working stability of the network server.

In order to achieve the above purpose, the present invention provides a novel network server cabinet, which includes a cabinet body and a bracket arranged in the cabinet body, the cabinet body includes oppositely arranged side panels and a back panel connected to the side panels. A board, a top board and a bottom board connected to the side board and the back board, and the side board, the back board, the top board and the bottom board are jointly enclosed to form a accommodating cavity. A door panel is hingedly arranged at the top of the cabinet, a connecting bar is arranged in the accommodating cavity, a plurality of hanging holes are opened on the connecting bar, the connecting bar is arranged along the height direction of the cabinet body, and the bracket and the hanging holes pass through. screw connection; wherein, ventilation grilles are arranged on the side and top surface of the top plate, and a cooling fan is arranged on the surface of the top plate facing the cabinet body, and the cooling fan is connected to an air guide hood, and the air guide hood is in the shape of a round table The diameter of the upper end is smaller than the diameter of the lower end, and a plurality of ventilation holes are arranged on the air guide cover.

Further, the connecting strip is fixedly connected to the side plate.

Further, the ventilation holes are circular, and the air guide hood is a hollow structure.

Further, a plurality of heat dissipation holes are opened on the bracket.

Compared with the related art, the utility model provides a novel network server cabinet, which includes a cabinet body and a bracket arranged in the cabinet body, the cabinet body includes oppositely arranged side panels, a back panel connected with the side panels, and a side panel. The top plate and the bottom plate connected with the back plate are formed by the side plate, the back plate, the top plate and the bottom plate together to form a receiving cavity, the side of the side plate is hingedly provided with a door plate, a connecting bar is arranged in the receiving cavity, and a plurality of hangings are arranged on the connecting bar. Holes, connecting strips are arranged along the height direction of the cabinet body, brackets and hanging holes are connected by screws, ventilation grilles are arranged on the side and top surface of the top plate, and a cooling fan is arranged on the surface of the top plate facing the accommodating cavity, and the cooling fan is connected to the air guide The air guide hood is in the shape of a truncated cone. The air guide hood is provided with a plurality of ventilation holes. The set air guide hood can improve the air guiding performance of the cooling fan, and the cooling airflow can be transported according to the guidance of the air guide hood. Part of the airflow can be diffused through the through holes, ensuring that the cooling airflow moves in the direction of diffusion, and improving the overall cooling performance of the network cabinet.

Description of drawings

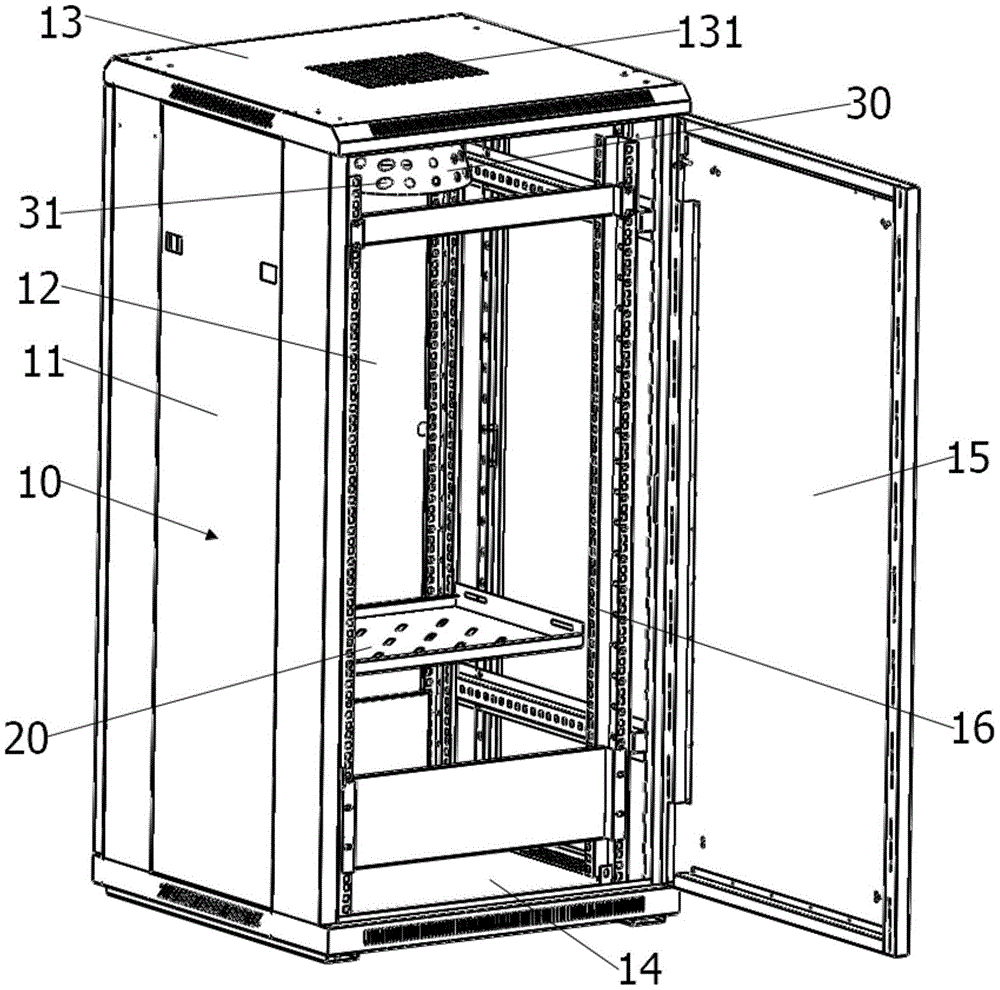

1 is a schematic structural diagram of a novel network server cabinet in an embodiment of the present invention;

FIG. 2 is another schematic structural diagram of a novel network server cabinet in an embodiment of the present invention.

Detailed ways

The present utility model will be further described in detail below with reference to the accompanying drawings and specific embodiments. 1-2, the present invention provides a novel network server cabinet, which includes a cabinet body 10 and a bracket 20 disposed in the cabinet body 10. The cabinet body 10 includes side panels 11 and side panels disposed opposite to each other. The back plate 12 connected to the A door panel 15 is hinged on the side, a connecting bar 16 is arranged in the accommodating cavity, the connecting bar 16 is fixedly connected to the side panel 11, a plurality of hanging holes are provided on the connecting bar 16, and the connecting bar 16 is arranged along the height direction of the cabinet body 10. 20 is connected with the hanging hole by screws, and the supporting and connecting functions of the bracket 20 are realized by the connecting bar 16 .

The bracket 20 is used to support the server, and a plurality of heat dissipation holes are opened on the bracket 20 for exhausting and cooling the server it supports.

Ventilation grilles 131 are arranged on the side and top surface of the top plate 13, and a cooling fan (not shown in the figure) is arranged on the surface of the top plate 13 facing the accommodating cavity. The diameter of the upper end is smaller than the diameter of the lower end, the air guide cover 30 is provided with a plurality of ventilation holes 31 , the ventilation holes 31 are circular, and the air guide cover 30 is a hollow structure. The truncated air guide hood 30 can make the cooling air flow emitted by the cooling fan move toward the bracket 20 in a diffusing direction, limiting the downward movement direction of part of the air flow, and the provided ventilation holes 31 can allow part of the air flow to pass through the ventilation. The holes 31 flow out, and the air diffusion range is ensured, and the heat dissipation performance inside the cabinet is improved.

To sum up, the present utility model provides a novel network server cabinet, which includes a cabinet body and a bracket arranged in the cabinet body. The top plate and the bottom plate connected by the back plate are formed by the side plate, the back plate, the top plate and the bottom plate together to form a receiving cavity, the side of the side plate is hingedly provided with a door plate, a connecting bar is arranged in the receiving cavity, and a plurality of hanging holes are opened on the connecting bar , the connecting strip is arranged along the height direction of the cabinet, the bracket and the hanging hole are connected by screws, the side and top surface of the top plate are provided with ventilation grilles, the top plate facing the surface of the cabinet is provided with a cooling fan, and the cooling fan is connected to the air guide hood , the air guide hood is in the shape of a circular cone, and a plurality of ventilation holes are arranged on the air guide hood. Part of the airflow is diffused through the through holes to ensure that the cooling airflow moves in the direction of diffusion and improve the overall cooling performance of the network cabinet.

Finally, it should be noted that the above embodiments are only used to illustrate the technical solutions of the present utility model, but not to limit them; although the present utility model has been described in detail with reference to the foregoing embodiments, those of ordinary skill in the art should understand that: It is still possible to modify the technical solutions recorded in the foregoing embodiments, or perform equivalent replacements to some of the technical features; and these modifications or replacements do not make the essence of the corresponding technical solutions depart from the spirit of the technical solutions of the embodiments of the present invention and range.

Claims (4)

1. A novel network server cabinet is characterized by comprising a cabinet body and a bracket arranged in the cabinet body, wherein the cabinet body comprises side plates, a back plate connected with the side plates, a top plate and a bottom plate which are oppositely arranged, the side plates, the back plate, the top plate and the bottom plate are jointly surrounded to form an accommodating cavity, the side parts of the side plates are hinged with door plates, connecting strips are arranged in the accommodating cavity, a plurality of hanging holes are formed in the connecting strips, the connecting strips are arranged along the height direction of the cabinet body, and the bracket is connected with the hanging holes through screws;

the side surface and the top surface of the top plate are provided with ventilation grids, the surface of the top plate facing the containing cavity is provided with a cooling fan, the cooling fan is connected with an air guide cover, the air guide cover is in a round table shape, the diameter size of the upper end of the air guide cover is smaller than that of the lower end of the air guide cover, and the air guide cover is provided with a plurality of ventilation holes.

2. The new network server cabinet as recited in claim 1, wherein the connecting strip is fixedly attached to the side panel.

3. The cabinet of claim 1, wherein the vent is circular and the wind scooper is hollow.

4. The cabinet of claim 1, wherein the bracket defines a plurality of heat dissipation apertures.
