Abstract

The utility model proposes a display support mechanism, which comprises a base and a support, a movable groove is arranged on the top surface of the support, a support block is assembled in the movable groove, and the bottom of both side walls of the support block is provided with assembly The slot of the assembly slot is turned inward, a movable block is arranged in the assembly slot, a spring is arranged between the movable block and the bottom of the assembly slot, and the movable block protrudes from the side wall of the support block, so The groove wall of the movable groove is distributed with a clamping groove adapted to the movable block, the rear wall of the base is equipped with a clamping device, and the clamping device includes a U-shaped block and a screw rod, and the rear wall of the base is provided with an adjustment groove, so One side plate of the U-shaped block is assembled in the adjustment groove, the other side plate of the U-shaped block is distributed with first screw holes, and each screw is screwed into the first screw hole and protrudes from the inner and outer walls of the U-shaped block. The new model can be firmly locked on the desktop, supporting the monitor more stably, and can adjust the height and tilt angle for different users, making it more comfortable to use.

Description

A display support mechanism

technical field

The utility model relates to display accessories, in particular to a display support mechanism.

Background technique

A display is a display tool that displays certain electronic files on the screen through a specific transmission device and then reflects them to the human eye. The monitor is generally used together with the computer host, and is widely used in daily work, and the monitor is generally assembled with the support mechanism, which is convenient to be placed on the desktop for use. At present, most monitor support mechanisms are only placed flat on the desktop and are not fixed with the desktop, which may easily cause the monitor to overturn and damage in the event of a collision. Secondly, the existing support mechanism cannot adjust the height and its inclination angle, which cannot meet the The usage habits of different users.

Utility model content

Aiming at the deficiencies of the prior art, the present invention provides a display support mechanism, which can be firmly locked on the desktop, supports the display more stably, and can adjust the height and inclination angle for different users, making it more comfortable to use.

In order to achieve the above purpose, the technical solution provided by the present invention is: a display support mechanism, comprising a base and a support, the support is fixed on the top surface of the base, the top surface of the support is provided with a movable groove, and the movable A support block is assembled in the groove, and the support block protrudes from the top surface of the support, and the bottom of both side walls of the support block is provided with an assembly groove, the notch of the assembly groove is turned inward, and the assembly groove is provided with There is a movable block, a spring is arranged between the movable block and the bottom of the assembly groove, the movable block protrudes from the side wall of the support block, and the groove wall of the movable groove is distributed with a card slot adapted to the movable block. The groove runs through the outer wall of the support, the rear wall of the base is equipped with a clamping device, the clamping device includes a U-shaped block and a screw rod, the rear wall of the base is provided with an adjustment groove, and the side plate of the U-shaped block is assembled on the adjustment groove. In the groove, the other side plate of the U-shaped block protrudes from the bottom surface of the base, the other side plate of the U-shaped block is distributed with first screw holes, and each screw is screwed into the first screw hole and protrudes from the inner and outer walls of the U-shaped block.

Further, the two side walls of one side plate of the U-shaped block are provided with second screw holes, the second screw holes are screwed with bolts, and the groove wall of the adjustment groove is provided with a guide groove, and the guide groove penetrates the outside of the base. The guide groove extends from the notch of the adjustment groove to the bottom of the groove, the bolt passes through the guide groove and extends out of the outer wall of the base, the outer end of the bolt is provided with a first turntable, and the inner wall of the first turntable is provided with an elastic pad, The elastic pad is in contact with the outer wall of the base, and a soft pad is bonded to the bottom surface of the inner cavity of the U-shaped block.

Further, the top of the support block is provided with a rotation groove penetrating the front and rear walls, a T-shaped block is assembled in the rotation groove, the side wall of the vertical part of the T-shaped block is provided with a rotating shaft, and the groove wall of the rotating groove is provided with a shaft. The shaft hole penetrates the outer side wall of the support block, the rotating shaft is assembled in the shaft hole, and assembly holes are distributed around the transverse part of the T-shaped block.

Further, the outer wall of the rotating shaft is equidistantly surrounded by elastic protrusions, the hole wall of the shaft hole is distributed with grooves adapted to the elastic protrusions, the outer end surface of the rotating shaft is provided with a third screw hole, the third screw A stop bolt is screwed into the hole, the stop bolt protrudes from the side wall of the support block, the outer end surface of the stop bolt is fixed with a second turntable, and the inner wall of the second turntable is provided with a rubber pad, and the rubber pad is connected to the support block. contact with the outer walls of the blocks.

Further, a third turntable is fixed on the bottom surface of the screw rod, and an elastic block is bonded on the top surface of the screw rod.

Compared with the prior art, it has the following beneficial effects:

The utility model can adjust the inclination angle and height of the display, which can meet the needs of different users and greatly improve the comfort of use; at the same time, it can be easily disassembled and assembled, which is convenient for later cleaning and maintenance; The support mechanism is firmly locked on the desktop, supporting the display more stably and safely, avoiding damage caused by tilting and overturning of the display, and greatly improving its safety performance.

Description of drawings

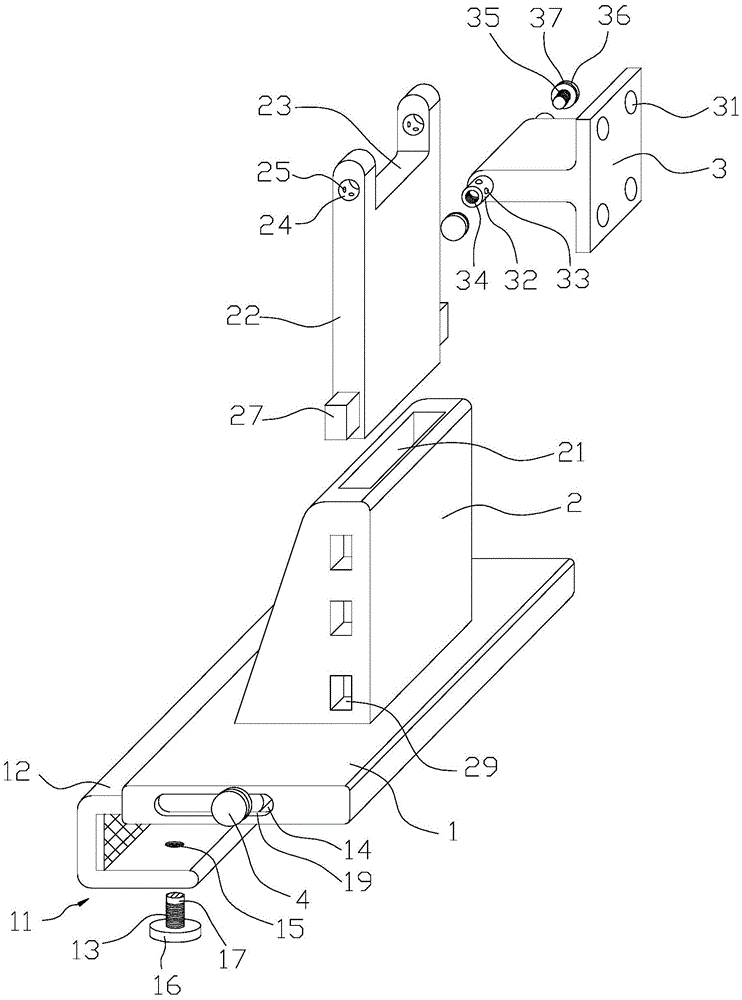

Figure 1 is a schematic structural diagram of the utility model.

FIG. 2 is a schematic structural diagram of a support block of the present invention.

FIG. 3 is a schematic structural diagram of a U-shaped block of the present invention.

FIG. 4 is a schematic diagram of the connection structure between the bolt and the first turntable of the present invention.

The present utility model will be further described in detail below in conjunction with the accompanying drawings.

Detailed ways

As shown in FIG. 1 to FIG. 4, a display support mechanism includes a base 1 and a support 2, the support 2 is fixed on the top surface of the base 1, and a movable groove 21 is provided on the top surface of the support 2. A support block 22 is assembled in the movable groove 21, and the support block 22 protrudes from the top surface of the support 2. The top of the support block 22 is provided with a rotating groove 23 penetrating the front and rear walls, and a T-shaped groove is assembled in the rotating groove 23. Block 3, assembly holes 31 are distributed around the horizontal part of the T-shaped block 3, and the support mechanism and the display can be assembled into one through the assembly holes 31 in the later stage. The vertical side wall of the T-shaped block 3 is provided with a rotating shaft 32, so The groove wall of the rotating groove 23 is provided with a shaft hole 24. The shaft hole 24 penetrates the outer side wall of the support block 22. The rotating shaft 32 is assembled in the shaft hole 24. The hole wall of the shaft hole 24 is distributed with a groove 25 that is adapted to the elastic protrusion 33, which can increase the friction force between the rotating shaft 32 and the shaft hole 24, so that the T-shaped block 3 will not rotate without human operation. The outer end surface of the rotating shaft 32 is provided with a third screw hole 34, the third screw hole 34 is screwed with a stop bolt 35, the stop bolt 35 protrudes from the side wall of the support block 22, and the outer end surface of the stop bolt 35 is fixed There is a second turntable 36, the inner wall of the second turntable 36 is provided with a rubber pad 37, the rubber pad 37 is in contact with the outer wall of the support block 22, and the tilt angle of the display can be adjusted through the T-shaped block 3, which can meet the needs of different users. For comfortable use, when adjusting the inclination angle, first unscrew the second turntable 36 to separate the rubber pad 37 from the outer wall of the support block 22, then rotate the T-shaped block 3, when the rotating force is greater than the frictional force of the elastic protrusion 33, the rotating shaft 32 Rotate and adjust the inclination angle, the elastic protrusion 33 is inserted into the groove 25 at the corresponding position, and then the stop bolt 35 is tightened, so that the rubber pad 37 is in close contact with the outer wall of the support block 22, and the T-shaped Block 3 is securely fastened.

The bottom of the two side walls of the support block 22 is provided with an assembly groove 26, the groove of the assembly groove 26 is turned inward, and the assembly groove 26 is provided with a movable block 27, and the movable block 27 and the assembly groove 26 groove A spring 28 is arranged between the bottoms, the movable block 27 protrudes from the side wall of the support block 22 , and the groove wall of the movable slot 21 is distributed with a slot 29 adapted to the movable block 27 , and the slot 29 penetrates through the support 2 For the outer wall, according to the needs of different users, the height of the support block 22 can be adjusted to better ensure the comfort of the display. When adjusting the height, first press the movable block 27 into the assembly groove 26, and then adjust the support block up and down. The position of 22, after adjusting its height, the movable block 27 is stuck into the corresponding height of the card slot 29 under the action of the elastic force of the spring 28, and the support block 22 is fixed, the operation is simple and convenient, and at the same time, it can also be easily dismantled. Easy to clean and maintain.

The rear wall of the base 1 is equipped with a clamping device 11, the clamping device 11 includes a U-shaped block 12 and a screw 13, the rear wall of the base 1 is provided with an adjustment groove 14, and one side plate of the U-shaped block 12 is assembled In the adjustment groove 14 , the other side plate of the U-shaped block 12 protrudes from the bottom surface of the base 1 , the other side plate of the U-shaped block 12 is distributed with first screw holes 15 , and each screw rod 13 is screwed into the first screw holes 15 And the inner and outer walls of the U-shaped block 12 are protruded, the bottom surface of the screw 13 is fixed with a third turntable 16, the top surface of the screw 15 is bonded with an elastic block 17, and the two side walls of the U-shaped block 12 are provided with a third turntable. Two screw holes 18, the second screw holes 18 are screwed with bolts 4, the groove wall of the adjustment groove 14 is provided with a guide groove 19, the guide groove 19 penetrates the outer side wall of the base 1, and the guide groove 19 extends from the adjustment groove 14 The notch extends to the bottom of the groove, the bolt 4 extends out of the outer wall of the base 1 through the guide groove 19, the outer end of the bolt 4 is provided with a first turntable 41, and the inner wall of the first turntable 41 is provided with an elastic pad 42, so The elastic pad 42 is in contact with the outer wall of the base 1, and the bottom surface of the inner cavity of the U-shaped block 12 is bonded with a soft pad 121, and the clamping device 11 can be used to firmly lock the support mechanism on the desktop, and support it more stably and safely. The monitor can avoid damage caused by tilting and overturning of the monitor, and greatly improve its safety performance. During installation, first loosen the bolt 4 to make the first turntable 41 separate from the outer wall of the base 1, then move the U-shaped block 12, and put the U-shaped block The inner cavity 12 is clamped between the top and bottom of the table, and then the U-shaped block 12 and the base are locked by the rotating bolt 4, and then the screw 13 is rotated to make the elastic block 17 in close contact with the bottom surface of the table, and the U-shaped block 12 and the table are locked. It is tight, the operation is very fast, and when the clamping device 11 does not need to be used, it can be easily disassembled.

Finally, it should be noted that the above embodiments are only used to illustrate the technical solutions of the present utility model and are not intended to be limitations. Although the present utility model has been described in detail with reference to the preferred embodiments, those of ordinary skill in the art should The technical solutions of the present invention can be modified or equivalently replaced without departing from the spirit and scope of the technical solutions of the present invention, and should be included in the scope of the claims of the present invention.

Claims (5)

1. A display support mechanism, comprising a base and a support, the support is fixed on the top surface of the base, the top surface of the support is provided with a movable groove, a support block is assembled in the movable groove, and the support block is Protruding from the top surface of the support, it is characterized in that: the bottom of the two side walls of the support block is provided with an assembly groove, the groove of the assembly groove is turned inward, a movable block is arranged in the assembly groove, and the movable block A spring is arranged between the bottom of the assembly groove and the movable block, and the movable block protrudes from the side wall of the support block. The rear wall of the base is equipped with a clamping device, the clamping device includes a U-shaped block and a screw rod, the rear wall of the base is provided with an adjustment groove, one side plate of the U-shaped block is assembled in the adjustment groove, and the other side of the U-shaped block The side plate protrudes from the bottom surface of the base, the other side plate of the U-shaped block is distributed with first screw holes, and each screw is screwed into the first screw holes and protrudes from the inner and outer walls of the U-shaped block. 2 . The display support mechanism according to claim 1 , wherein the two side walls of one side plate of the U-shaped block are provided with second screw holes, the second screw holes are screwed with bolts, and the The groove wall of the adjustment groove is provided with a guide groove, the guide groove penetrates through the outer side wall of the base, the guide groove extends from the notch of the adjustment groove to the bottom of the groove, the bolt passes through the guide groove and extends out of the outer wall of the base, and the outer end of the bolt is provided with a guide groove. There is a first turntable, the inner wall of the first turntable is provided with an elastic pad, the elastic pad is in contact with the outer wall of the base, and the bottom surface of the inner cavity of the U-shaped block is bonded with a soft pad. 3 . The display support mechanism according to claim 1 , wherein the top of the support block is provided with a rotating groove penetrating the front and rear walls, and a T-shaped block is assembled in the rotating groove, and the T-shaped block is vertically oriented. 4 . A rotating shaft is arranged on the side wall of the part, and a shaft hole is arranged on the wall of the rotating groove. 4 . A display support mechanism according to claim 3 , wherein elastic protrusions are equidistantly surrounded by the outer wall of the rotating shaft, and grooves adapted to the elastic protrusions are distributed on the hole wall of the shaft hole, so that the The outer end surface of the rotating shaft is provided with a third screw hole, the third screw hole is screwed with a stop bolt, the stop bolt protrudes from the side wall of the support block, and a second turntable is fixed on the outer end surface of the stop bolt. The inner wall of the second turntable is provided with a rubber pad, and the rubber pad is in contact with the outer wall of the support block. 5 . The display support mechanism according to claim 1 , wherein a third turntable is fixed on the bottom surface of the screw rod, and an elastic block is bonded on the top surface of the screw rod. 6 .
