Abstract

The utility model discloses an anti-moisture case for intelligent equipment, which comprises a case body mounted with a handle, two cooling nets are symmetrically installed on the case body, two fixing plates are fixedly installed inside the case body, two The sides of the fixing plates close to each other are provided with two sliding grooves, a sliding block is placed on each of the sliding grooves, and a mounting plate is fixedly installed on each of the sliding blocks. A sponge is installed between the two mounting plates. The advantage is that the utility model is provided with a movable sponge, which can be moved to block the heat dissipation net when not used for a long time or when the humidity is high, and the moisture that can enter the box can be removed by the adsorption capacity of the sponge. Absorb and remove, reduce the impact of moisture on the circuit board in the chassis, and facilitate the overall work better; at the same time, the sponge is easy to disassemble and assemble, and the sponge can be replaced or dried regularly, so that the sponge can better protect the chassis from moisture .

Description

An anti-moisture chassis for smart devices

technical field

The utility model relates to an anti-moisture case, in particular to an anti-moisture case for intelligent equipment.

Background technique

An intelligent device refers to any kind of equipment, apparatus or machine with computing processing capability. Its normal operation cannot be separated from the control of the computer. The main electronic components of the computer are installed on the chassis of the computer. The normal operation of the chassis allows the normal operation of the intelligent device. makes an important impact.

However, the chassis used in the existing smart devices does not have the anti-moisture function. When the working environment is relatively humid, the moisture will enter the inside of the chassis through the heat dissipation network, and the moisture will easily damage the circuit boards inside the chassis, resulting in the discovery of a short circuit. , so that the smart device cannot work properly.

Utility model content

The purpose of this utility model is to solve the problems found in the background technology, and proposes an anti-moisture case for intelligent equipment.

In order to achieve the above-mentioned purpose, the utility model adopts the following technical solutions:

An anti-moisture case for an intelligent device, comprising a case body mounted with a handle, two cooling nets are symmetrically installed on the case body, two fixing plates are fixedly installed inside the case body, and the two fixing plates are mutually There are two chutes on the close side, each of which is placed with a slider, and a mounting plate is fixedly installed on each of the sliders, and the two installations corresponding to the position A sponge is installed between the plates, a fixing rod is fixedly installed on the two sponges corresponding to the position, a fixing block is fixedly installed on the two fixing rods, and the two fixing blocks are threaded together to form a two-way connection. A threaded rod, one end of the bidirectional threaded rod is rotatably connected to the inner wall of the box body, and the other end of the bidirectional threaded rod penetrates the box body and is fixedly installed with a rotating block.

In the above-mentioned anti-moisture chassis for smart devices, each of the mounting plates is provided with a mounting slot, each of the mounting plates is threadedly connected with a plurality of locking blocks, and the two ends of the sponge are respectively located at On the corresponding installation groove, one end of the locking block is in contact with the sponge, and the other end of the locking block is in contact with the outer wall of the fixing plate.

In the above-mentioned anti-moisture case for an intelligent device, a plurality of spacers are symmetrically and fixedly installed at the lower end of the case body, and a rubber pad is fixedly installed on the lower surface of each spacer block.

In the above-mentioned anti-moisture case of the smart device, the width of the sponge is greater than the width of the heat dissipation net, and the length of the sponge is equal to the length of the heat dissipation net.

In the above-mentioned anti-moisture case for the smart device, the width of the slider is equal to the width of the chute, and the width of the mounting plate is greater than the width of the chute.

In the above-mentioned anti-moisture case of the smart device, the case body is provided with an installation hole, a sealing ring is installed on the inner wall of the installation hole, and the bidirectional threaded rod passes through the installation hole.

Compared with the existing technology, the utility model has the advantages of:

1: Set a movable sponge, move the sponge to block the heat dissipation net when it is not used for a long time or when the humidity is high, and use the adsorption capacity of the sponge to absorb the moisture that can enter the box.

2: The movement of the sponge is simple and easy. Just turn the rotating block by hand to realize the two sponges move toward each other, and complete the operation of blocking or opening the heat dissipation net at the same time.

3: The disassembly and assembly of the sponge is easy. After opening the box, turn the locking block to keep the locking block away from the sponge, and then apply an external force to the sponge by hand. The sponge can be removed regularly for replacement or drying, which is convenient for the sponge to be replaced. Good for moisture protection.

To sum up, the utility model is provided with a movable sponge, which can be moved to block the heat dissipation net when it is not used for a long time or when the humidity is high, and the moisture that can enter the box can be removed by the adsorption capacity of the sponge. The air is absorbed and removed to reduce the impact of moisture on the circuit board in the chassis, which is convenient for the overall better work; at the same time, the sponge is easy to disassemble and assemble, and the sponge can be replaced or dried regularly, so that the sponge can better protect the chassis. Moisture protection.

Description of drawings

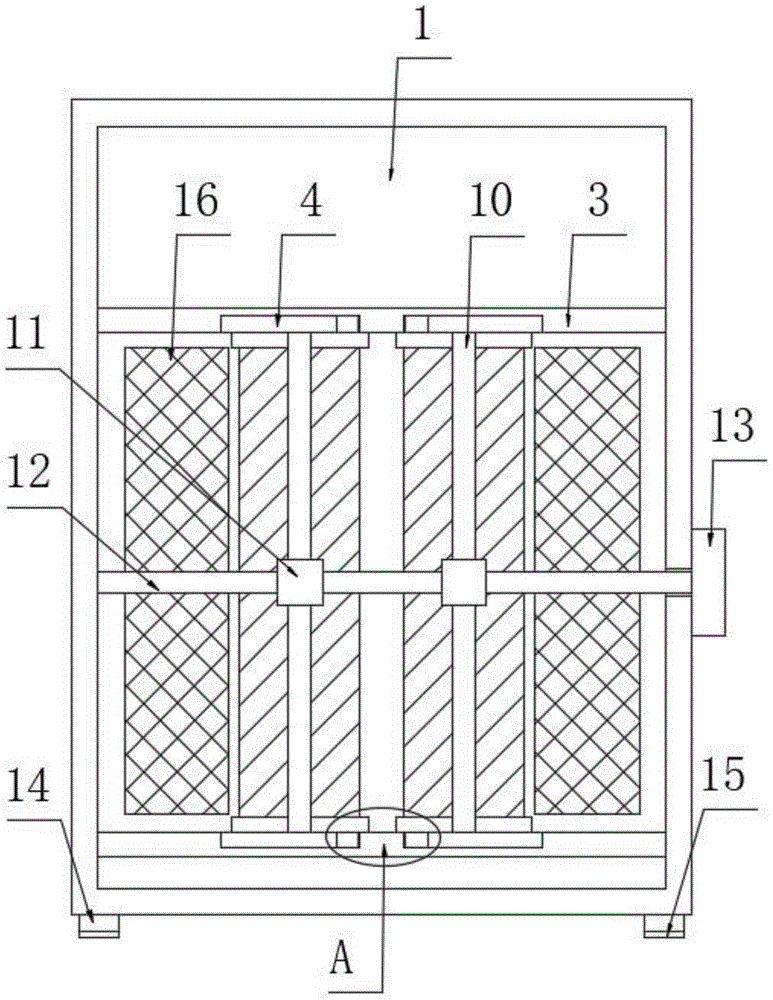

Fig. 1 is the structural representation of a kind of intelligent equipment moisture-proof chassis proposed by the utility model;

Fig. 2 is the structural cross-sectional view of the cooling net part in Fig. 1;

Fig. 3 is the structural enlargement schematic diagram of A part in Fig. 2;

FIG. 4 is a cross-sectional view of the structure of the mounting plate portion in FIG. 2 .

In the picture: 1 box, 2 handle, 3 fixing plate, 4 chute, 5 sliding block, 6 mounting plate, 7 mounting groove, 8 sponge, 9 locking block, 10 fixing rod, 11 fixing block, 12 two-way threaded rod , 13 rotating blocks, 14 pads, 15 rubber pads, 16 cooling nets.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

In the description of the present invention, it should be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inside", The orientation or positional relationship indicated by "outside" is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the indicated device or element must have a specific orientation , are constructed and operated in a specific orientation, and therefore should not be construed as a limitation of the present invention.

Referring to Figures 1-4, an anti-moisture case for smart devices includes a case body 1 on which a handle 2 is installed, two cooling nets 16 are symmetrically installed on the case body 1, and two fixing plates 3 are fixedly installed inside the case body 1 , two sliding grooves 4 are provided on the side of the two fixed plates 3 that are close to each other, and a sliding block 5 is placed on each sliding groove 4. The sliding groove 4 has a limiting effect on the sliding block 5, so that the sliding block 5 The movement is only possible in the direction parallel to the chute 4 .

A mounting plate 6 is fixedly installed on each slider 5. The width of the slider 5 is equal to the slot width of the chute 4, and the width of the mounting plate 6 is larger than the slot width of the chute 4. The purpose of setting the size of this part is to make the mounting plate The surface part of 6 will be in contact with the fixed plate 3, which improves the stability during the movement.

A sponge 8 is installed between the two mounting plates 6 corresponding to the positions, each mounting plate 6 is provided with a mounting groove 7, and each mounting plate 6 is threadedly connected with a plurality of locking blocks 9, and the sponge is The two ends of 8 are respectively located on the corresponding installation grooves 7, and one end of the locking block 9 is in contact with the sponge 8, and the other end of the locking block 9 is in contact with the outer wall of the fixing plate 3, and the locking block 9 can be controlled by rotating the locking block 9. The distance between the tightening block 9 and the sponge 8, so as to achieve the effect of pressing or loosening the sponge 8.

The width of the sponge 8 is greater than the width of the heat dissipation net 16, and the length of the sponge 8 is equal to the length of the heat dissipation net 16. The purpose of this part of the size setting is to cover the heat dissipation net 16 in all directions, so as to avoid a large amount of moisture passing through the heat dissipation net 16 when not in use. The mesh hole enters the inside of the box body 1 .

A fixing rod 10 is fixedly installed on the two sponges 8 corresponding to the positions, and a fixing block 11 is fixedly installed on the two fixing rods 10. One end of the rod 12 is rotatably connected to the inner wall of the box body 1 .

The other end of the bidirectional threaded rod 12 penetrates the box body 1 and is fixedly installed with a rotating block 13. The box body 1 is provided with a mounting hole, and a sealing ring is installed on the inner wall of the mounting hole, and the bidirectional threaded rod 12 passes through the mounting hole. .

The lower end of the box body 1 is symmetrically and fixedly installed with a plurality of cushion blocks 14, and a rubber pad 15 is fixedly installed on the lower surface of each cushion block 14. The setting of this part prevents the lower surface of the box body 1 from directly contacting the ground, preventing When water accumulates on the ground, the accumulated water enters the inside of the box body 1 and affects the electronic components installed in the box body 1 .

It is further stated that the above-mentioned fixed connection should be understood in a broad sense unless otherwise specified and limited. For example, it may be welding, gluing, or a conventional means known to those skilled in the art, such as integral molding.

In the present invention, when the humidity is heavy or the box body 1 is not used for a long time, the rotating block 13 is rotated by hand, the rotating block 13 rotates and drives the bidirectional threaded rod 12 fixedly connected with it to rotate, and the bidirectional threaded rod 12 rotates Drive the two fixing blocks 11 threadedly connected with them away from each other, use the sponge 8 to block the heat dissipation net 16, and use the adsorption capacity of the sponge 8 to absorb the moisture that can enter the box 1, and the sponge 8 can be regularly removed. Remove it for replacement or drying, which is convenient for the sponge 8 to better prevent moisture. The disassembly and assembly of the sponge 8 is easy. After opening the box 1, turn the locking block 9 to keep the locking block 9 away from the sponge 8. 8 Apply an external force.

It should be noted that, in this document, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply any relationship between these entities or operations. any such actual relationship or sequence exists. Moreover, the terms "comprising", "comprising" or any other variation thereof are intended to encompass a non-exclusive inclusion such that a process, method, article or device that includes a list of elements includes not only those elements, but also includes not explicitly listed or other elements inherent to such a process, method, article or apparatus.

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (6)

1. The intelligent equipment moisture-proof case comprises a case body (1) provided with a handle (2), and is characterized in that two radiating nets (16) are symmetrically arranged on the case body (1), two fixing plates (3) are fixedly arranged in the case body (1), two sliding grooves (4) are formed in one sides, close to each other, of the two fixing plates (3), each sliding groove (4) is provided with a sliding block (5), each sliding block (5) is fixedly provided with a mounting plate (6), a sponge (8) is arranged between the two mounting plates (6) corresponding to the position, two sponges (8) corresponding to the position are fixedly provided with a fixing rod (10) together, two fixing rods (10) are fixedly provided with a fixing block (11), and the two fixing blocks (11) are connected with a two-way threaded rod (12) through threads together, and one end of the bidirectional threaded rod (12) is rotatably connected to the inner wall of the box body (1), and the other end of the bidirectional threaded rod (12) penetrates through the box body (1) and is fixedly provided with a rotating block (13).

2. The intelligent equipment moisture-proof case according to claim 1, wherein each mounting plate (6) is provided with a mounting groove (7), each mounting plate (6) is in threaded connection with a plurality of locking blocks (9), two ends of each sponge (8) are respectively located on the corresponding mounting grooves (7), one end of each locking block (9) abuts against the corresponding sponge (8), and the other end of each locking block (9) is in contact with the outer wall of the corresponding fixing plate (3).

3. The intelligent equipment moisture-proof case according to claim 1, wherein a plurality of cushion blocks (14) are symmetrically and fixedly mounted at the lower end of the case body (1), and a rubber pad (15) is fixedly mounted on the lower surface of each cushion block (14).

4. The moisture-proof case of the smart device according to claim 1, wherein the width of the sponge (8) is larger than the width of the heat dissipation net (16), and the length of the sponge (8) is equal to the length of the heat dissipation net (16).

5. The moisture-proof case of intelligent equipment according to claim 1, wherein the width of the sliding block (5) is equal to the width of the sliding groove (4), and the width of the mounting plate (6) is greater than the width of the sliding groove (4).

6. The intelligent equipment moisture-proof case according to claim 1, wherein a mounting hole is formed in the case body (1), a sealing ring is mounted on the inner wall of the mounting hole, and the bidirectional threaded rod (12) penetrates through the mounting hole.
