Abstract

The utility model discloses a pipe scale removing device for a drainage system, which comprises a box body and a cleaning roller, wherein two supporting blocks are welded on the surface of one side of the box body, the cleaning roller is rotationally connected between the two supporting blocks through a convex ring, a shaft lever is welded at one end of the cleaning roller, one end of the shaft lever extends to the inner side of the box body, and a hollow gear is sleeved inside the box body on the surface of the shaft lever; the utility model discloses in, the bulge loop sliding connection on two supporting shoes and the roller surface of decontaminating through the opposite distribution on the surface of box, the hollow gear that the one end of roller of decontaminating cup jointed through the axostylus axostyle surface is connected with the motor output end meshing in the box, control panel through the box opens the motor, make the half gear of motor output and the hollow gear on axostylus axostyle surface rotate, and then it is rotatory to drive the roller of decontaminating, and the roller surface of decontaminating encircles the brush that is equipped with and can clear up drainage pipe's inner wall, the efficiency of pipeline clearance is improved.

Description

Pipe scale removing device for drainage system
Technical Field
The utility model relates to a drainage system appurtenance technical field especially relates to a pipe scale clearing device for drainage system.
Background
The urban drainage system is an engineering facility system for treating and removing urban sewage and rainwater, and is a component of urban public facilities. Urban drainage system planning is an integral part of urban overall planning. Municipal drainage systems are usually composed of drainage pipelines and sewage treatment plants. Under the condition of separating sewage and rainwater, the sewage is collected by a drainage pipeline, and is discharged into a water body or recycled after being sent to sewage treatment; the rainwater runoff is collected by a drainage pipeline and then is discharged into the water body nearby.
When drainage pipe among the current urban drainage system was maintained, generally adopted the dirt of artifical clearance drainage pipe inner wall, the clearance effect is poor, and is consuming time long, and the easy adhesion dirt of clearance instrument is difficult to be cleared up, causes certain puzzlement for drainage pipe's clearance.
Therefore, a pipe scale removing device for a drainage system is provided to solve the above disadvantages.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects existing in the prior art and providing a pipe scale removing device for a drainage system.
In order to achieve the above purpose, the utility model adopts the following technical scheme: the utility model provides a pipe scale clearing device for drainage system, includes box and trash cleaning roller, two supporting shoes of box one side surface weld, and rotate through the bulge loop between two supporting shoes and be connected with the trash cleaning roller, the one end welding of trash cleaning roller has the axostylus axostyle, and axostylus axostyle one end extends to the box inboard to the surface of axostylus axostyle is located the inside cavity gear that has cup jointed of box, the both sides of cavity gear are located the lateral wall face welding of box and have the backup pad, and the surface mounting of backup pad has the motor, the output of motor runs through the backup pad and is connected with the cavity gear engagement, the surface of trash cleaning roller is encircleed and is provided with the brush, and the through-hole has evenly been seted up on the.
As a further description of the above technical solution: the utility model discloses a box of decontaminating, including box, water pipe, control panel, roller and axostylus axostyle, the roller of decontaminating and axostylus axostyle are hollow structure, and the interlude has the water pipe in the roller of decontaminating and the axostylus axostyle, the surface of water pipe one end is located the inboard equidistance of the roller of decontaminating and installs the multiunit shower nozzle, the top surface that the water pipe other end runs through and extends to the box is connected with.
As a further description of the above technical solution: the opposite surfaces of the two supporting blocks are provided with grooves, and the two supporting blocks are rotatably connected with the convex rings of the dirt cleaning roller through the grooves.
As a further description of the above technical solution: the supporting plates and the motors are arranged in two groups, the two groups of supporting plates and the motors are symmetrical about the vertical center line of the shaft rod, and the output ends of the motors are connected with the hollow gear on the surface of the shaft rod in a meshing mode through half gears.
As a further description of the above technical solution: the bearing is installed corresponding to the axostylus axostyle in the lateral wall of box, the axostylus axostyle passes the inner circle of bearing and extends to inside the box.
As a further description of the above technical solution: the shower nozzle is equipped with the multiunit altogether, and multiunit shower nozzle all is symmetrical about water pipe horizontal central line.
The utility model discloses following beneficial effect has:
in the utility model, the surface of the box body is connected with the convex ring on the surface of the cleaning roller through two supporting blocks which are distributed in opposite directions, one end of the cleaning roller is connected with the motor output end in the box body through the hollow gear sleeved on the surface of the shaft lever in a meshing way, the motor is started through the control panel of the box body, the half gear of the motor output end and the hollow gear on the surface of the shaft lever are enabled to rotate, and then the cleaning roller is driven to rotate, and the outer surface of the cleaning roller can clean the inner wall of a drainage pipeline by surrounding the arranged brush, so that the pipeline cleaning efficiency is improved;
the utility model discloses in, through be provided with the water pipe in the box, the one end of water pipe passes axostylus axostyle and the roller of decontaminating in proper order, and the internally mounted that corresponds the roller of decontaminating on water pipe surface has multiunit parallel distribution's shower nozzle, flange and water pipe intercommunication through the box top surface, then open the water pump through control panel, can be with the water injection pipe of decontaminating, discharge by the shower nozzle, the through-hole that the roller surface of decontaminating was evenly seted up is cleared up in the cooperation, thereby the brush that can assist the roller surface of decontaminating erodees the drainage pipe inner wall, further improve the efficiency of drainage pipe clearance, also avoid the brush surface to bond the condition that the spot is difficult to the clearance.
Drawings

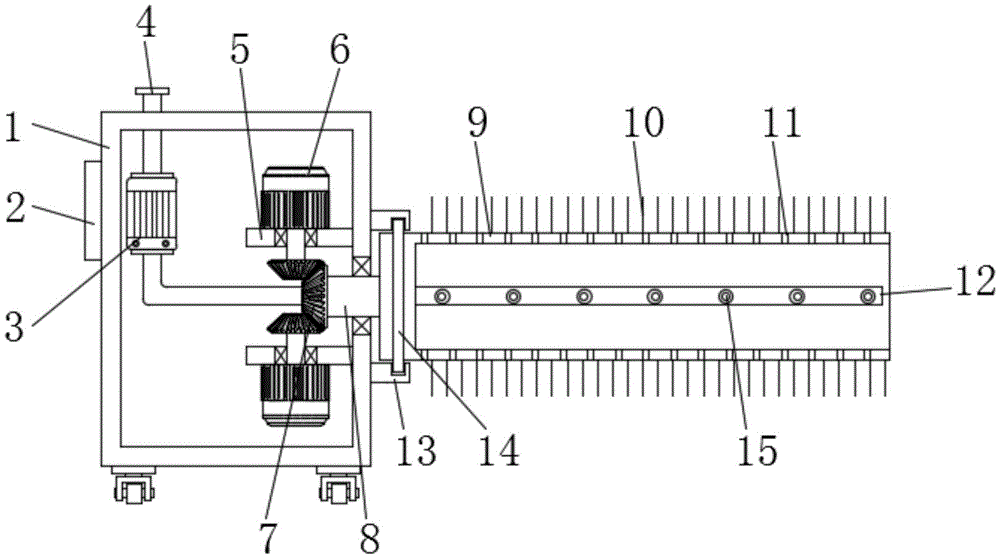

Fig. 1 is a schematic structural view of a pipe scale removing device for a drainage system according to the present invention;
FIG. 2 is a schematic structural view of a cleaning roller of the pipe scale removing device for a drainage system of the present invention;
fig. 3 is a schematic view of a water pipe structure of the pipe scale removing device for a drainage system.
Illustration of the drawings:
1. a box body; 2. a control panel; 3. a water pump; 4. a connecting flange; 5. a support plate; 6. a motor; 7. a hollow gear; 8. a shaft lever; 9. a dirt removing roller; 10. a brush; 11. a through hole; 12. a water pipe; 13. a support block; 14. a convex ring; 15. and (4) a spray head.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention; the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance, and furthermore, unless otherwise explicitly stated or limited, the terms "mounted," "connected," and "connected" are to be construed broadly and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
According to the utility model discloses an embodiment provides a pipe scale clearing device for drainage system.
Referring to the drawings and the detailed description, the pipe scale removing device for a drainage system according to the embodiment of the present invention comprises a box body 1 and a cleaning roller 9, wherein two supporting blocks 13 are welded on a surface of one side of the box body 1, the cleaning roller 9 is rotatably connected between the two supporting blocks 13 through a convex ring 14, a shaft rod 8 is welded at one end of the cleaning roller 9, one end of the shaft rod 8 extends to the inner side of the box body 1, a hollow gear 7 is sleeved inside the box body 1 on the surface of the shaft rod 8, supporting plates 5 are welded on side wall surfaces of the box body 1 on two sides of the hollow gear 7, a motor 6 is installed on the surface of the supporting plate 5, an output end of the motor 6 penetrates through the supporting plate 5 to be connected with the hollow gear 7 in a meshing manner, a brush 10 is arranged around the outer surface of the cleaning roller 9, and through holes 11 are uniformly formed on the surface of the cleaning roller, the other side surface of the box body 1 is embedded with a control panel 2, the output end of the control panel 2 is electrically connected with a motor 6, the motor 6 is started through the control panel 2 of the box body 1, a half gear at the output end of the motor 6 and a hollow gear 7 on the surface of a shaft rod 8 are enabled to rotate, a cleaning roller 9 is further driven to rotate, the inner wall of a drainage pipeline can be cleaned through a brush 10 arranged on the outer surface of the cleaning roller 9 in a surrounding mode, and the two supporting blocks 13 distributed oppositely on the surface of the box body 1 are in sliding connection with a convex ring 14 on the surface of the cleaning roller 9, so that the stability of the cleaning roller 9 in the rotating process is enhanced;
in one embodiment, the cleaning roller 9 and the shaft lever 8 are both hollow structures, and the water pipes 12 are inserted into the cleaning roller 9 and the shaft lever 8, the surface of one end of each water pipe 12 is located on the inner side of the cleaning roller 9 and is equidistantly provided with a plurality of groups of spray heads 15, the other end of each water pipe 12 penetrates through and extends to the top surface of the box body 1 and is connected with the connecting flange 4, the surface of each water pipe 12 is located inside the box body 1 and is provided with the water pump 3, the water pump 3 is electrically connected with the output end of the control panel 2, the connecting flange 4 and the external water source are communicated through the top surface of the box body 1, the water pump 3 is opened through the control panel 2, the cleaning water can be injected into the water pipes 12 and is discharged through the spray heads 15, through holes 11 are uniformly formed in the outer surface of the cleaning roller 9 in a matched mode, the.
In one embodiment, the facing surfaces of the two supporting blocks 13 are both provided with grooves, the two supporting blocks 13 are rotatably connected with the convex ring 14 of the cleaning roller 9 through the grooves, and the grooves of the two supporting blocks 13 are distributed oppositely, so that the cleaning roller 9 can be supported, and the stability of the cleaning roller 9 is improved.
In one embodiment, two sets of supporting plates 5 and two sets of motors 6 are arranged, the two sets of supporting plates 5 and the two sets of motors 6 are symmetrical about the vertical center line of the shaft 8, the output ends of the motors 6 are meshed with the hollow gears 7 on the surface of the shaft 8 through half gears, and the output ends of the two motors 6 are meshed with the hollow gears 7 of the shaft 8 through the two sets of supporting plates 5 and the motors 6, so that the cleaning power of the cleaning roller 9 is improved.
In one embodiment, the side wall of the box body 1 is provided with a bearing corresponding to the shaft rod 8, the shaft rod 8 passes through the inner ring of the bearing and extends to the inside of the box body 1, and the shaft rod 8 with a hollow structure passes through the box body 1 through the bearing pipe, so that the rotation of the shaft rod 8 is facilitated, and the connection with the output end of the motor 6 is also facilitated.
In one embodiment, a plurality of groups of nozzles 15 are provided, and the plurality of groups of nozzles 15 are all symmetrical about the horizontal center line of the water pipe 12, and the plurality of groups of nozzles 15 are horizontally installed on the surface of the water pipe 12, so that the situation that stains are vertically adhered to the ports of the nozzles 15 to cause blockage is avoided.
The working principle is as follows:
during operation, the box body 1 is moved to a drainage pipeline, the cleaning roller 9 of the box body 1 is enabled to penetrate into the inner wall of the drainage pipeline, the motor 6 is started through the control panel 2 of the box body 1, the half gear at the output end of the motor 6 and the hollow gear 7 on the surface of the shaft lever 8 are enabled to rotate, the cleaning roller 9 is driven to rotate, the inner wall of the drainage pipeline can be cleaned through the brush 10 arranged on the outer surface of the cleaning roller 9 in a surrounding mode, meanwhile, the connecting flange 4 on the top surface of the box body 1 is communicated with an external water source, then the water pump 3 is started through the control panel 2, the cleaning water can be injected into the water pipe 12 and is discharged through the spray head 15, the brush 10 on the surface of the cleaning roller 9 is matched with through holes 11 uniformly formed in the outer surface of the cleaning roller 9, the inner wall of the drainage pipeline is washed by the brush 10 on the surface of the auxiliary cleaning roller 9, the condition that stains are difficult to clean due to, the stability of the cleaning roller 9 during rotation is enhanced.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications and variations can be made in the embodiments or in part of the technical features of the embodiments without departing from the spirit and the scope of the invention.

Claims (6)

1. The utility model provides a pipe scale clearing device for drainage system, includes box (1) and trash cleaning roller (9), its characterized in that: the cleaning device is characterized in that two supporting blocks (13) are welded on the surface of one side of the box body (1), a cleaning roller (9) is rotatably connected between the two supporting blocks (13) through a convex ring (14), a shaft rod (8) is welded at one end of the cleaning roller (9), one end of the shaft rod (8) extends to the inner side of the box body (1), a hollow gear (7) is sleeved on the surface of the shaft rod (8) positioned inside the box body (1), supporting plates (5) are welded on the side wall surfaces of the box body (1) positioned at the two sides of the hollow gear (7), a motor (6) is installed on the surface of each supporting plate (5), the output end of the motor (6) penetrates through the supporting plates (5) to be meshed with the hollow gear (7) to be connected, brushes (10) are arranged on the outer surface of the cleaning roller (9) in a surrounding mode, through holes (11) are evenly formed in the surface of the cleaning, and the output end of the control panel (2) is electrically connected with the motor (6).
2. A scale removing device for a drainage system according to claim 1, wherein: the utility model discloses a box, including box (1), water pipe (12), box (1), water pump (3), the output electric connection of water pump (3) and control panel (2) are hollow structure in the roller of decontaminating (9) and axostylus axostyle (8), and the interlude has water pipe (12) in roller of decontaminating (9) and axostylus axostyle (8), the surface of water pipe (12) one end is located the roller of decontaminating (9) inboard equidistance and installs multiunit shower nozzle (15), the top surface that the water pipe (12) other end runs through and extend to box (1) is connected with flange (4), the surface of.
3. A scale removing device for a drainage system according to claim 1, wherein: the opposite surfaces of the two supporting blocks (13) are provided with grooves, and the two supporting blocks (13) are rotatably connected with the convex rings (14) of the dirt cleaning roller (9) through the grooves.
4. A scale removing device for a drainage system according to claim 1, wherein: the supporting plates (5) and the motors (6) are arranged in two groups, the two groups of supporting plates (5) and the motors (6) are symmetrical about the vertical center line of the shaft rod (8), and the output ends of the motors (6) are meshed and connected with the hollow gears (7) on the surface of the shaft rod (8) through half gears.
5. A scale removing device for a drainage system according to claim 1, wherein: the side wall of the box body (1) is provided with a bearing corresponding to the shaft lever (8), and the shaft lever (8) penetrates through an inner ring of the bearing and extends into the box body (1).
6. A scale removing device for a drainage system according to claim 2, wherein: the spray heads (15) are provided with a plurality of groups, and the plurality of groups of spray heads (15) are all symmetrical about the horizontal central line of the water pipe (12).
