Abstract

The utility model discloses an environmental protection plating bath convenient to clearance, including the storage box, the top of storage box is passed through bolt fixedly connected with and is electroplated the cell body, the top of electroplating the cell body is provided with the backup pad, through the first motor of bolt fixedly connected with on one side outer wall of backup pad, the one end of first motor is rotated through the pivot and is connected with first lead screw, close soon through the screw thread on one side outer wall of first lead screw and be connected with the movable plate. This environmental protection plating bath convenient to clearance, movable plate through lateral shifting can make the carousel carry out lateral shifting, thereby to electroplate horizontal impurity clean up on the cell body inner wall, the motor case through vertical lift can make the carousel carry out the vertical shifting, thereby to electroplate vertical impurity clean up on the cell body inner wall, and then guarantee to electroplate the omnidirectional washing that receives the high-speed rotation brush hair of cell body inner wall, improve the effect of clearance, realize automatic clearance, avoid the manual cleaning to waste time and energy, the problem of inefficiency.

Description

Environment-friendly electroplating bath convenient to clean
Technical Field
The utility model relates to a plating bath technical field specifically is an environmental protection plating bath convenient to clearance.
Background
The electroplating bath is the most basic equipment in electroplating equipment, and has the main functions of installing solution, and the electroplating bath is used in the mode of linear arrangement according to manually operated technological process production line and separated plating seed arrangement according to local conditions and field space.
Plating bath on the existing market uses the back for a long time, and the internal surface of plating bath can adsorb a large amount of impurity, and these impurity adhesive force are strong, are difficult to by light clearance, and current plating bath internal surface impurity is mostly through artifical clearance, and the manpower clearance is wasted time and energy, and is inefficient, and the plating bath of some great volumes is more inconvenient when the clearance, and the washing liquid after the clearance causes environmental pollution easily.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an environmental protection plating bath convenient to clearance to it wastes time and energy, inefficiency and the easy polluted environment's of washing liquid discharge problem to provide current plating bath inner wall impurity clearance in solving above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: an environment-friendly electroplating bath convenient to clean comprises a storage box, wherein the top of the storage box is fixedly connected with an electroplating bath body through a bolt, the top of the electroplating bath body is provided with a support plate, the outer wall of one side of the support plate is fixedly connected with a first motor through a bolt, one end of the first motor is rotatably connected with a first lead screw through a rotating shaft, the outer wall of one side of the first lead screw is rotatably connected with a movable plate through threads, the top of the movable plate is fixedly connected with a second motor through a bolt, one end of the second motor is rotatably connected with a second lead screw through a rotating shaft, the inner part of the movable plate is rotatably connected with a third lead screw and a fourth lead screw, the third lead screw is positioned between the second lead screw and the fourth lead screw, one end of the second lead screw and one end of the fourth lead screw are both welded with a first bevel gear, the second bevel gear is connected with the first bevel gear through gear teeth in a meshed mode, a motor box is connected to the outer wall of one side of each of the second lead screw, the third lead screw and the fourth lead screw in a screwed mode through threads, a third motor is fixedly connected to the inside of the motor box through bolts, one end of the third motor is connected with a rotary table in a rotating mode through a rotary shaft, and bristles are embedded into the outer wall of one side, far away from the third motor, of the rotary table.
Furthermore, a spray head is fixedly connected to one side of the outer wall of one side of the motor box, which is close to the rotary table, through bolts, and a water distribution pipe is arranged at the center of the outer wall of one side of the movable plate.
Furthermore, a universal hose is arranged on the outer wall of one side of the water distribution pipe, and a first connecting pipe is arranged between the universal hose and the spray head.
Furthermore, a water pump and a water tank are fixedly connected to the outer wall of one side of the electroplating tank body through bolts, the water pump is located above the water tank, and a second connecting pipe is arranged between the water pump and the water dividing pipe.
Furthermore, the bottom inside the electroplating tank body is fixedly connected with a drain valve through a bolt.
Furthermore, a drain pipe is arranged on the outer wall of one side of the storage tank.
Compared with the prior art, the beneficial effects of the utility model are that: this environmental protection plating bath convenient to clearance, movable plate through lateral shifting can make the carousel carry out lateral shifting, thereby to electroplate horizontal impurity clean up on the cell body inner wall, motor case through vertical lift can make the carousel carry out vertical shifting, thereby to electroplate vertical impurity clean up on the cell body inner wall, and then guarantee to electroplate that the cell body inner wall is omnidirectional and receive the washing of high-speed rotation brush hair, improve the effect of clearance, realize automatic clearance, avoid artifical washing to waste time and energy, the problem of inefficiency, cooperation shower nozzle spun water will electroplate cell body inner wall clean up, improve the clean and tidy of electroplating cell body clearance, the storage box through the storage formula can collect the storage with the washing liquid after the clearance, be convenient for follow-up centralized processing, avoid discharging to cause environmental pollution, improve the environmental protection ability of plating bath.
Drawings

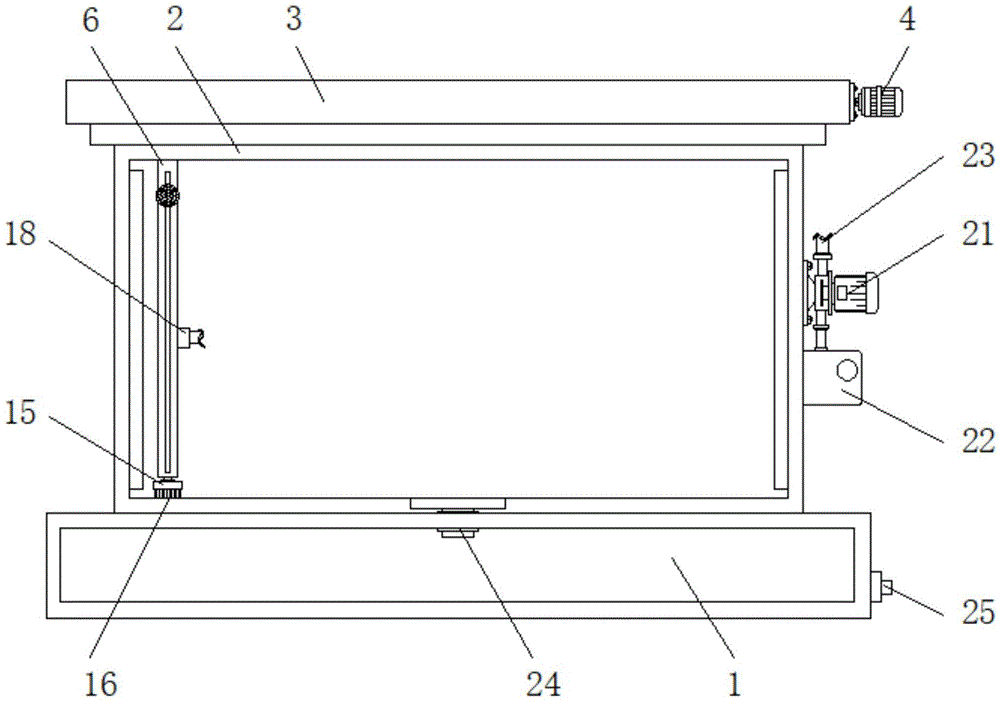

Fig. 1 is a front view of the present invention;
FIG. 2 is a side view of the movable plate of the present invention;
fig. 3 is a top view of the support plate of the present invention.
In the figure: 1. a storage box; 2. electroplating a tank body; 3. a support plate; 4. a first motor; 5. a first lead screw; 6. moving the plate; 7. a second motor; 8. a second lead screw; 9. a third lead screw; 10. a fourth lead screw; 11. a first bevel gear; 12. a second bevel gear; 13. a motor case; 14. a third motor; 15. a turntable; 16. brushing; 17. a spray head; 18. a water diversion pipe; 19. a universal hose; 20. a first connecting pipe; 21. a water pump; 22. a water tank; 23. a second connecting pipe; 24. a drain valve; 25. a drain pipe.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution: an environment-friendly electroplating bath convenient to clean comprises a storage box 1, an electroplating bath body 2, a support plate 3, a first motor 4, a first lead screw 5, a movable plate 6, a second motor 7, a second lead screw 8, a third lead screw 9, a fourth lead screw 10, a first bevel gear 11, a second bevel gear 12, a motor box 13, a third motor 14, a rotary disc 15, brush bristles 16, a spray head 17, a water distribution pipe 18, a universal hose 19, a first connecting pipe 20, a water pump 21, a water tank 22, a second connecting pipe 23, a drain valve 24 and a drain pipe 25, wherein the top of the storage box 1 is fixedly connected with the electroplating bath body 2 through bolts, the support plate 3 is arranged at the top of the electroplating bath body 2, the first motor 4 is fixedly connected onto the outer wall of one side of the support plate 3 through bolts, one end of the first motor 4 is rotatably connected with the first lead screw 5 through a rotating shaft, the movable plate 6 is rotatably connected, the top of the moving plate 6 is fixedly connected with a second motor 7 through a bolt, one end of the second motor 7 is rotatably connected with a second screw 8 through a rotating shaft, the inside of the moving plate 6 is rotatably connected with a third screw 9 and a fourth screw 10, the third screw 9 is positioned between the second screw 8 and the fourth screw 10, one end of each of the second screw 8 and the fourth screw 10 is welded with a first bevel gear 11, two ends of the third screw 9 are welded with second bevel gears 12, the second bevel gears 12 are connected with the first bevel gears 11 through gear teeth meshing, the second screws 8, all be connected with motor case 13 through the screw thread closure on the outer wall of one side of third lead screw 9 and fourth lead screw 10, bolt fixedly connected with third motor 14 is passed through to motor case 13's inside, and the one end of third motor 14 is rotated through the pivot and is connected with carousel 15, and the embedding has brush hair 16 on the outer wall of one side of keeping away from third motor 14 on carousel 15.
In this embodiment, a nozzle 17 is fixedly connected to a side of the outer wall of the motor casing 13 close to the turntable 15 by a bolt, and a water distribution pipe 18 is disposed at a central position of the outer wall of the movable plate 6 to transmit water.
In this embodiment, a universal hose 19 is disposed on an outer wall of one side of the water diversion pipe 18, and a first connection pipe 20 is disposed between the universal hose 19 and the spray head 17 to ensure the flow of water.
In this embodiment, the outer wall of one side of the electroplating tank body 2 is fixedly connected with a water pump 21 and a water tank 22 through bolts, the water pump 21 is located above the water tank 22, and a second connecting pipe 23 is arranged between the water pump 21 and the water distribution pipe 18, so that the water pump 21 can pump the water in the water tank 22 into the water distribution pipe 18.
In this embodiment, the inner bottom of the electroplating tank body 2 is fixedly connected with a drain valve 24 through a bolt, so that the cleaning solution can be conveniently collected into the storage box 1.
In the present embodiment, a drain pipe 25 is provided on an outer wall of one side of the storage tank 1 to function to discharge the washing liquid.
The working principle is as follows: when in use, the supporting plate 3 is fixed on the top of the electroplating tank body 2, an external power supply is connected, the first motor 4 drives the first screw 5 to rotate through a rotating shaft, the moving plate 6 is connected with the first screw 5 in a screwing way, the moving plate 6 moves on the first screw 5, the second motor 7 drives the second screw 8 to rotate through a rotating shaft, the second screw 8 is connected with the second bevel gear 12 in a meshing way through the first bevel gear 11, the second screw 8 drives the third screw 9 to rotate, the third screw 9 drives the fourth screw 10 to rotate, the second screw 8, the third screw 9 and the fourth screw 10 are connected with the motor box 13 in a screwing way, the motor box 13 moves on the second screw 8, the third screw 9 and the fourth screw 10, the third motor 14 drives the rotating disc 15 to rotate through a rotating shaft, the brush bristles 16 on the rotating disc 15 are in high-speed contact with the electroplating tank body 2, so as to brush impurities adsorbed on the inner wall of the electroplating tank body 2, the water pump 21 presses water in the water tank 22 into the water distribution pipe 18 through the second connecting pipe 23, and then is pressed into the spray head 17 through the universal hose 19 and the first connecting pipe 20, so that the inner wall of the electroplating tank body 2 is washed, cleaned cleaning liquid enters the storage tank 1 through the drain valve 24 to be collected and stored, and finally is discharged through the drain pipe 25, and the environmental pollution caused by leakage is avoided.
It should be finally noted that the above only serves to illustrate the technical solution of the present invention, and not to limit the scope of the present invention, and that simple modifications or equivalent replacements performed by those skilled in the art to the technical solution of the present invention do not depart from the spirit and scope of the technical solution of the present invention.

Claims (6)

1. The utility model provides an environmental protection plating bath convenient to clearance, includes storage box (1), its characterized in that: the top of the storage box (1) is fixedly connected with an electroplating groove body (2) through a bolt, the top of the electroplating groove body (2) is provided with a support plate (3), the outer wall of one side of the support plate (3) is fixedly connected with a first motor (4) through a bolt, one end of the first motor (4) is rotatably connected with a first lead screw (5) through a rotating shaft, the outer wall of one side of the first lead screw (5) is rotatably connected with a movable plate (6) through threads, the top of the movable plate (6) is fixedly connected with a second motor (7) through a bolt, one end of the second motor (7) is rotatably connected with a second lead screw (8) through a rotating shaft, the inner part of the movable plate (6) is rotatably connected with a third lead screw (9) and a fourth lead screw (10), and the third lead screw (9) is positioned between the second lead screw (8) and the, first bevel gears (11) are welded at one ends of the second lead screw (8) and the fourth lead screw (10), second bevel gears (12) are welded at two ends of the third lead screw (9), the second bevel gears (12) are connected with the first bevel gears (11) through gear teeth in a meshed mode, motor boxes (13) are connected to the outer wall of one side of the second lead screw (8), the outer wall of one side of the third lead screw (9) and the outer wall of one side of the fourth lead screw (10) in a screwed mode through threads, third motors (14) are fixedly connected to the inner portion of the motor boxes (13) through bolts, one ends of the third motors (14) are connected with rotary discs (15) through rotating shafts in a rotating mode, and bristles (16) are embedded into the outer wall of one side of the rotary discs (15) far away from the third.
2. The environmentally friendly plating bath convenient to clean as claimed in claim 1, wherein: the spray head (17) is fixedly connected to one side of the outer wall of one side of the motor box (13) close to the rotary table (15) through bolts, and the water distribution pipe (18) is arranged at the center of the outer wall of one side of the moving plate (6).
3. The environmentally friendly plating bath convenient to clean as claimed in claim 2, wherein: a universal hose (19) is arranged on the outer wall of one side of the water distribution pipe (18), and a first connecting pipe (20) is arranged between the universal hose (19) and the spray head (17).
4. The environmentally friendly plating bath convenient to clean as claimed in claim 1, wherein: the electroplating device is characterized in that a water pump (21) and a water tank (22) are fixedly connected to the outer wall of one side of the electroplating tank body (2) through bolts, the water pump (21) is located above the water tank (22), and a second connecting pipe (23) is arranged between the water pump (21) and the water distribution pipe (18).
5. The environmentally friendly plating bath convenient to clean as claimed in claim 1, wherein: and the bottom inside the electroplating tank body (2) is fixedly connected with a drain valve (24) through a bolt.
6. The environmentally friendly plating bath convenient to clean as claimed in claim 1, wherein: and a drain pipe (25) is arranged on the outer wall of one side of the storage tank (1).
