Abstract

The embodiment of the utility model relates to a liquid container structure. The liquid container structure includes: a plurality of detachably connected container assemblies; the container assemblies are independently sealed with each other, and a accommodating space for accommodating liquid is formed inside; one end of the container assembly is provided with at least one opening, the The opening is communicated with the accommodating space; the opening is provided with a sealing cover for closing the opening. The modular design allows a complete packaging bottle to be split into multiple independent and sealed functional modules, which can more flexibly meet the needs of different usage scenarios, with many variations and combinations. Moreover, after the end of use, the unfinished part can be further recycled and re-spliced to form a new bottled beverage, which greatly avoids the waste of water resources.

Description

Liquid container structure

technical field

The utility model relates to the technical field of packaging products, in particular to a liquid container structure.

Background technique

With the continuous improvement of social living standards, bottled water or bottled beverages are widely used in many different scenarios due to their convenience, safety and pollution-free advantages, such as daily meetings, private cars, sports fields or parties.

For various reasons, the beverages or mineral water in these bottled beverages are usually not consumed in one go. On the contrary, in many cases, these bottled drinks are only half or even one or two sips before they are discarded.

For example, the mineral water that the family has not finished drinking in a private car will not be drunk the next day, and will be discarded directly; or in a gathering of friends in groups of three or five, it will take up a lot of time because the bottled beverages that cannot be drunk are placed in the bag. The space is also relatively heavy, and it will be discarded directly.

The remaining water or beverages in these discarded bottled beverages are generally directly thrown away by the sanitation workers who collect the mineral water bottles, resulting in a great waste of high-quality water resources.

Utility model content

In view of the above technical problems, the embodiments of the present invention provide a liquid container structure to solve the problem of waste and inconvenience in using the existing bottled beverages.

The embodiment of the present invention provides a liquid container structure. The liquid container structure includes: a plurality of detachably connected container assemblies; the container assemblies are independently sealed with each other, and an accommodation space for accommodating liquid is formed inside;

One end of the container assembly is provided with at least one opening, and the opening communicates with the receiving space; the opening is provided with a sealing cover for closing the opening.

Optionally, the upper end of the container assembly has an upwardly extending neck; the end of the neck forms the opening;

The sealing cap has a size adapted to the neck and is fixedly connected with the neck to close the opening.

Optionally, the outer side wall of the neck is provided with a first thread, and the inner side wall of the sealing cap is provided with a second thread corresponding to the first thread.

Optionally, the outer sidewall of the neck is provided with a male fastener, and the inner sidewall of the sealing cover is provided with a female fastener corresponding to the male fastener.

Optionally, the bottom of the container assembly is further provided with a depression that fits with the neck to which the sealing cover is fixedly connected.

Optionally, the inner side wall of the recess is provided with a third thread; the outer side wall of the sealing cover is provided with a fourth thread matching the third thread, so that the two container assemblies are fixedly connected end to end.

Optionally, the neck is cylindrical with a predetermined height, the inner diameter of the sealing cap is equal to the outer diameter of the neck, and the cover is sleeved on the neck.

Optionally, the container assemblies contain the same or different beverages.

Optionally, the container assembly is a plastic container, which is produced by a hollow blow molding process.

Optionally, the number of container components is set to three.

In the technical solution provided by the embodiment of the present invention, a modular design is adopted, so that a complete packaging bottle is split into a plurality of mutually independently sealed functional modules, which can more flexibly meet the needs of different usage scenarios, with many variations and combinations.

Moreover, after the end of use, the unfinished part can be further recycled and re-spliced to form a new bottled beverage, which greatly avoids the waste of water resources.

Description of drawings

1 is a schematic diagram of an embodiment of a liquid container structure according to an embodiment of the present utility model;

2 is a schematic diagram of an embodiment of a liquid container assembly according to an embodiment of the present invention;

3 is a schematic diagram of an embodiment of the exploded structure of the liquid container structure according to the embodiment of the present invention.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those skilled in the art without creative work fall within the protection scope of the present invention.

It should be noted that when an element is referred to as being "fixed to" another element, it can be directly on the other element, or one or more intervening elements may be present therebetween. When an element is referred to as being "connected" to another element, it can be directly connected to the other element or one or more intervening elements may be present therebetween. The terms "vertical", "horizontal", "left", "right", "upper", "lower", "inner", "outer", "bottom", etc. used in this specification indicate the orientation or positional relationship Based on the orientation or positional relationship shown in the drawings, it is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation, be constructed and operated in a specific orientation, and therefore It should not be construed as a limitation of the present invention. Furthermore, the terms "first," "second," etc. are used for descriptive purposes only and should not be construed to indicate or imply relative importance.

Unless otherwise defined, all technical and scientific terms used in this specification have the same meaning as commonly understood by one of ordinary skill in the technical field belonging to the present invention. The terms used in the specification of the present invention in this specification are only for the purpose of describing specific embodiments, and are not used to limit the present invention. As used in this specification, the term "and/or" includes any and all combinations of one or more of the associated listed items. In addition, the technical features involved in the different embodiments of the present invention described below can be combined with each other as long as there is no conflict with each other.

FIG. 1 is a schematic structural diagram of a liquid container structure provided by an embodiment of the present invention. As shown in Figure 1, the liquid container structure includes several container assemblies (11, 12, 13).

Although only three container assemblies are described in FIG. 1 as an example, those skilled in the art can understand that, according to actual needs, more or less container assemblies can be used to form a complete liquid container. structure.

Any two of the container assemblies (11, 12, 13) are sealed independently of each other, and an accommodation space for accommodating liquid is formed inside.

Due to the design of independent seals. Therefore, any combination of different container components is possible and security and privacy are guaranteed.

In some embodiments, different container assemblies may contain the same liquid, such as mineral water or beverages. In this way, the formed complete container structure (such as a mineral water bottle) can be divided into a plurality of independent parts, which can be used by different people respectively, so as to realize the effect of drinking for many people.

In other embodiments, different liquids, such as beverages of different flavors, may also be packaged between different container assemblies. In this way, the user or the user can drink a variety of different flavors in one bottle of beverage at the same time, which improves the user's use experience.

The container components are detachably connected, and any several container components can be recombined to form a new container structure. Such a modular design is conducive to recycling unused container components, effectively avoiding waste of water resources.

FIG. 2 is a schematic structural diagram of a container assembly provided by an embodiment of the present invention. As shown in FIG. 2 , at least one opening 21 and a sealing cover 23 for closing the opening are provided at one end of the container assembly.

The opening 21 communicates with the internal accommodation space 24 for pouring out the liquid contained in the interior for drinking.

Specifically, as shown in FIG. 2 , the upper end of the container assembly has an upwardly extending neck 22 , and the end of the neck forms the opening 21 .

The sealing cover 23 has a size suitable for the neck 22, and is fixedly connected with the neck to close the opening.

The connection between the sealing cap 23 and the neck 22 can be completed by any type of fixed connection, as long as the requirements for enclosing the internal accommodation space are met, such as snap connection or screw connection commonly used in plastic bottled beverages.

In some embodiments, the outer sidewall of the neck 22 is provided with a first thread, and the inner sidewall of the sealing cover 23 is provided with a second thread corresponding to the first thread. The sealing cover is fixed on the neck 22 by screwing to close the opening 21 .

In other embodiments, the outer side wall of the neck 22 may also be provided with a male buckle, and the inner side wall of the sealing cover 23 may be provided with a female buckle corresponding to the male buckle. The sealing cover 23 is fixed on the neck through the male and female fasteners.

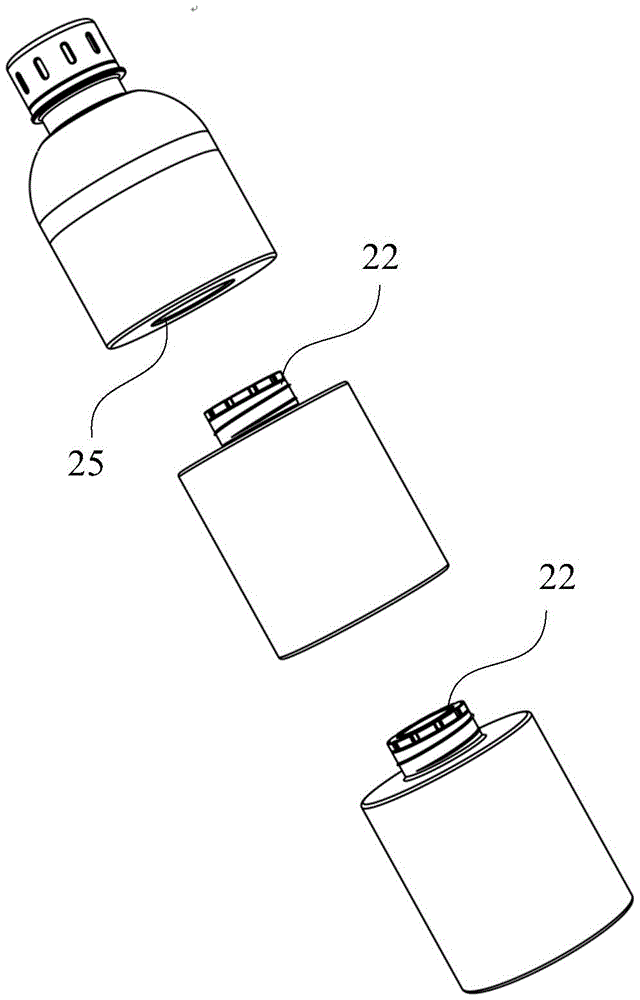

3 is a schematic diagram of an exploded structure of a liquid container structure provided by an embodiment of the present invention. In this embodiment, as shown in FIG. 3 , the shape of the container assembly is similar to that of a common plastic bottle, and the shape of the neck 22 is a cylindrical shape with a predetermined height.

The inner diameter of the sealing cap 23 is equal to the outer diameter of the neck 22 , and the cover is sleeved on the neck 22 to close the opening 21 of the container assembly.

Preferably, as shown in FIG. 2 , the bottom of the container assembly is further provided with a recess 25 which is adapted to the neck portion to which the sealing cover is fixedly connected.

As shown in FIG. 3 , by arranging the recess 25, the necks 22 of the end-to-end container assemblies can be accommodated in the recess, so that the combined container assemblies have the same volume or structure as a traditional plastic bottle, and will not cause harm to people. Existing usage habits and preparation processes are affected.

In some embodiments, any two container assemblies can be detachably connected by means of screw connection. Wherein, the inner side wall of the recess is provided with a third thread; the outer side wall of the sealing cover is provided with a fourth thread matching the third thread, so that the two container assemblies are fixedly connected end to end.

In other embodiments, any two container assemblies can also be detachably connected by means of snap connection. Of course, those skilled in the art can also set and use any other suitable type of detachable connection according to actual needs.

In a preferred embodiment, the container assembly may be a plastic container, which is produced by a hollow blow molding process using PET material as a raw material. The container assembly or the container structure formed by the combination of the container assemblies is the same as the traditional plastic bottle preparation method, does not need to invest too much technology development and improvement cost, has low realization cost and is less difficult to popularize.

To sum up, compared with the structural design of the existing mineral water bottle or similar bottled beverages, the technical solution provided by the present utility model adopts a modular design, and the complete mineral water bottle is designed as a plurality of parts that are independently sealed, thereby It can achieve many beneficial effects and meet the needs of various scenarios.

For example, when one person is not too thirsty, a bottle of mineral water can be shared with two other people at the same time, so that three people can drink a bottle of mineral water together. Or it is designed to be multi-flavored, and it can also have many different flavors in one bottle, suitable for children and adults parties and family use.

For another example, multiple parts can be freely combined, as long as the remaining parts that have not been drunk can be arbitrarily combined into a new bottle of mineral water, which can be recycled in business scenarios such as daily meetings to avoid waste.

It can be understood that, for those of ordinary skill in the art, equivalent replacements or changes can be made according to the technical solutions of the present invention and the concept of the present invention, and all these changes or replacements should belong to the appended claims of the present invention. protected range.

Claims (6)

1. A liquid containment structure, comprising: a plurality of removably connected container assemblies; the container assemblies are mutually independent and sealed, and an accommodating space for accommodating liquid is formed inside the container assemblies;

one end of the container assembly is provided with at least one opening, and the opening is communicated with the accommodating space; the opening is provided with a sealing cover for sealing the opening;

the bottom of the container component is also provided with a recess matched with the neck fixedly connected with the sealing cover;

the upper end of the container assembly has an upwardly extending neck; the end of the neck forms the opening;

the sealing cover is matched with the neck in size and is fixedly connected with the neck to close the opening;

the inner side wall of the recess is provided with a third thread; the outer side wall of the sealing cover is provided with a fourth thread matched with the third thread so as to fixedly connect the two container assemblies end to end;

the container assembly is a plastic container produced by a hollow blow molding process.

2. The liquid containment structure of claim 1 wherein an outer sidewall of the neck is provided with a first thread and an inner sidewall of the sealing cap is provided with a second thread corresponding to the first thread.

3. The liquid container structure as claimed in claim 1, wherein an outer side wall of the neck portion is provided with a male fastener, and an inner side wall of the sealing cover is provided with a female fastener corresponding to the male fastener.

4. A liquid container structure according to any one of claims 1 to 3, wherein said neck portion is cylindrical with a predetermined height, and said sealing cap has an inner diameter equal to an outer diameter of said neck portion and is fitted over said neck portion.

5. The liquid container structure of claim 1, wherein the container assemblies contain the same or different beverages therein.

6. The liquid containment structure of claim 1, wherein the container assembly is provided in 3.
