Abstract

The utility model discloses a mixing machine for the production of plastic masterbatch, which is used for mixing plastic particles. A discharge port is arranged at the bottom of a mixing container, and a first hinge and a hinge that can be opened and closed are arranged on the mixing container. The second hinge is connected with a cylinder block and a telescopic rod respectively on the first hinge and the second hinge. When the telescopic rod is retracted, it can drive the first hinge and the second hinge to approach each other and abut together. Close the discharge port; when the telescopic rod extends, it can drive the first hinge and the second hinge away from each other, thereby opening the discharge port, the mixed material is discharged from the discharge port, and a container can be placed under the discharge port for storage Mixed materials. The above scheme uses a driving member to drive the first hinge and the second hinge to be relatively far away or close to each other, so as to open or close the discharge port. Compared with the manual opening and closing of the discharge port in the prior art, the mixer has The advantages of low labor intensity and high safety factor.

Description

A mixer for the production of plastic masterbatch

technical field

The utility model relates to the technical field of mixers, in particular to a mixer for the production of plastic master batches.

Background technique

In the production process, in order to ensure that the raw materials poured into the mixer are fully mixed, in mass production, it is often necessary to pour various plastic particles or mixtures of plastic particles and binders or active particles into the mixer for preliminary mixing. . In the prior art, most of the plastic particles to be mixed are poured into the mixer and mixed together, and then the mixed particles are scooped out from the opening of the mixer, and a discharge port is also set at the bottom of the mixer. However, the opening and closing of the discharge port requires manual control, which is time-consuming and labor-intensive, and there is a safety risk in the operation next to the machine.

In view of this, it is necessary to provide a new type of mixer to solve or at least alleviate the above-mentioned technical defects.

Utility model content

The main purpose of the utility model is to provide a mixer, which aims to solve the technical problems of high labor intensity and safety risks in the prior art that the mixer takes out and mixed materials.

In order to achieve the above-mentioned purpose, the utility model provides a kind of mixer, including:

a support, a mixing container is installed on the support, a discharge port is arranged at the bottom of the mixing container, and a first hinge and a second hinge that can be opened and closed connected with the mixing container;

A driving member, the driving member includes a cylinder body and a telescopic rod, the cylinder body is connected with the first hinge, and the second hinge is connected with an end of the telescopic rod away from the cylinder body, so as to pass through the The expansion and contraction of the telescopic rod drives the first hinge and the second hinge to be relatively far away or close to each other.

Preferably, the first hinge includes a first bottom plate connected with a first side plate and a first end of the first side plate, and the second hinge includes a joint between the second side plate and the second side plate. The third end is connected to the second bottom plate, and when the first bottom plate and the second bottom plate abut, the first hinge and the second hinge close the outlet.

Preferably, the second end of the first side plate and the fourth end of the second side plate are respectively connected with the outer wall surface of the mixing container.

Preferably, a first gear is mounted on the second end of the first side plate, a second gear is mounted on the fourth end of the second side plate, and the first gear is drivingly connected with the second gear.

Preferably, the number of the driving members is two, and the driving members are cylinders.

Preferably, the mixing machine further comprises a driving motor and a stirring wheel drivingly connected with the driving motor, the driving motor is mounted on the support, and the stirring wheel is arranged in the mixing container.

Preferably, the mixer further includes an escalator, and the escalator is mounted on the bracket.

In the above technical solution of the present utility model, a discharge port is arranged at the bottom of the mixing container, and a first hinge and a second hinge that can be opened and closed are arranged on the mixing container, respectively. The second hinge is connected with a cylinder body and a telescopic rod. When the telescopic rod is retracted, it can drive the first hinge and the second hinge to approach and abut each other, closing the discharge port; when the telescopic rod is extended, it can Drive the first hinge and the second hinge away from each other, thereby opening the discharge port, the mixed material flows out from the discharge port, and a container can be placed under the discharge port to hold the mixed material. The above scheme uses a driving member to drive the first hinge and the second hinge to be relatively far away or close to each other, thereby opening or closing the discharge port. Compared with the manual opening and closing of the discharge port in the prior art, it has the advantages of low labor intensity, The advantage of high safety factor.

Description of drawings

In order to illustrate the embodiments of the present invention or the technical solutions in the prior art more clearly, the following briefly introduces the accompanying drawings that need to be used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description These are just some embodiments of the present invention, and for those of ordinary skill in the art, other drawings can also be obtained according to the structures shown in these drawings without any creative effort.

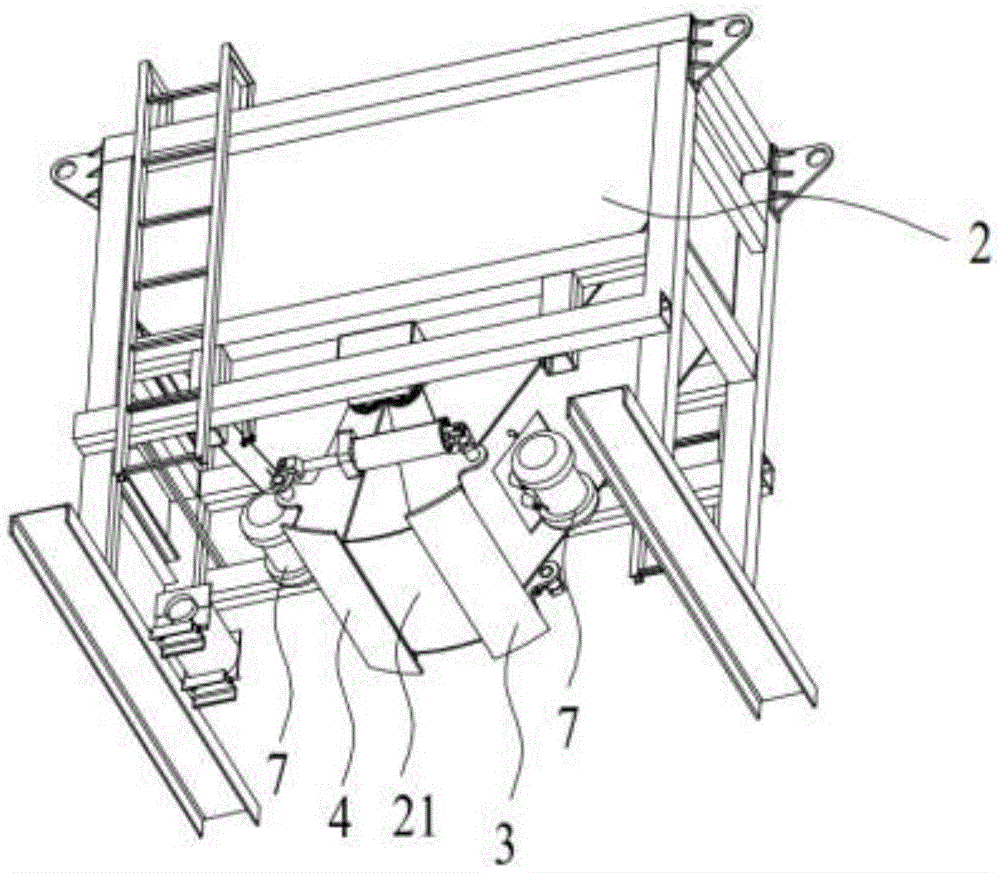

Fig. 1 is the structural representation of the mixer of the utility model embodiment;

Fig. 2 is the partial structure schematic diagram of the mixer of the utility model embodiment;

Fig. 3 is the front view of the mixer of the utility model embodiment;

FIG. 4 is a bottom view of FIG. 3 .

The reference signs are: 1—support; 2—mixing container; 21—discharge port; 3—first hinge; 31—first side plate; 32—first bottom plate; 4—second hinge; 41—Second side plate; 5—First gear; 6—Second gear; 7—Drive motor; 8—Escalator; 9—Driver; 91—Cylinder block; 92—Telescopic rod.

Detailed ways

In order to make the purpose, features and advantages of the present utility model more obvious and understandable, the technical solutions in the embodiments of the present utility model are clearly and completely described below. Obviously, the embodiments described below are only a part of the present utility model. examples, but not all examples. Based on the embodiments of the present invention, all other embodiments obtained by those skilled in the art fall within the protection scope of the present invention.

In addition, the technical solutions between the various embodiments of the present invention can be combined with each other, but must be based on those of ordinary skill in the art. The combination does not exist and is not within the protection scope required by the present invention.

It should be noted that the directions in the present invention are based on the directions shown in FIG. 3 , that is, “up and down” in the present invention correspond to the “up and down” directions in FIG. 3 respectively.

1-4, the utility model provides a mixer, including:

Support 1, a mixing container 2 is installed on the support 1, a discharge port 21 is provided at the bottom of the mixing container 2, and a first hinge 3 and a second hinge 4 that can be opened and closed connected with the mixing container 2;

The driving member 9, the driving member 9 includes a cylinder 91 and a telescopic rod 92, the cylinder 91 is connected with the first hinge 3, and the second hinge 4 is connected with the end of the telescopic rod 92 away from the cylinder 91, so as to pass through the telescopic rod 92. The telescopic drives the first hinge 3 and the second hinge 4 to be relatively distant or close.

In the above embodiment, the driving member 9 can be a cylinder, a discharge port 21 is provided at the bottom of the mixing container 2, and a first hinge 3 and a second hinge 4 that can be opened and closed are provided on the mixing container 2, A cylinder 91 and a telescopic rod 92 are respectively connected to the first hinge 3 and the second hinge 4. When the telescopic rod 92 is retracted, the length of the entire cylinder is shortened, which can drive the first hinge 3 and the second hinge. The hinges 4 are in close contact with each other, and the discharge port 21 is closed; when the telescopic rod 92 is extended, the length of the entire cylinder becomes longer, so the first hinge 3 and the second hinge 4 can be driven away from each other, Thereby, the discharge port 21 is opened, the mixed material flows out from the discharge port 21, and a container can be placed under the discharge port 21 to contain the mixed material. The above scheme uses the driving member 9 to drive the first hinge 3 and the second hinge 4 to be relatively far away or close to each other, thereby opening or closing the discharge port 21. Compared with the manual opening and closing of the discharge port 21 in the prior art, It has the advantages of low labor intensity and high safety factor. The mixer is especially suitable for the mixing of plastic granules.

According to the preferred embodiment of the present invention, referring to FIGS. 1 and 2 , the first hinge 3 includes a first bottom plate 32 connected with the first side plate 31 and the first end of the first side plate 31 , and the second hinge 4 includes The second side plate 41 is connected to the second bottom plate 42 at the third end of the second side plate 41 . When the first bottom plate 32 is in contact with the second bottom plate 42 , the first hinge 3 and the second hinge 4 close the discharge opening. 21. The second end of the first side plate 31 and the fourth end of the second side plate 41 are respectively connected to the outer wall surface of the mixing container 2 . Preferably, the number of the first side plate 31 and the second side plate 41 is two, which are respectively installed on two opposite sides of the outer side wall of the mixing container 2, and the first bottom plate 32 is connected to the two first side plates 31, The second bottom plate 42 is connected to the two second side plates 41 . When the first bottom plate 32 and the second bottom plate 42 are in contact, the first and second bottom plates 42 are located just below the discharge port 21 and close the discharge port 21 so that the mixture cannot be discharged.

According to another preferred embodiment of the present invention, the number of the driving members 9 is two, and the driving members 9 may be driving cylinders. The driving cylinders are distributed on the two first side plates 31 and the second side plates 41 respectively. A driving cylinder can open and close the first hinge 3 and the second hinge 4 more conveniently.

In addition, referring to FIG. 2 , a first gear 5 is mounted on the second end of the first side plate 31 , a second gear 6 is mounted on the fourth end of the second side plate 41 , and the first gear 5 and the second gear 6 are drive-connected. Those skilled in the art can understand that the number of the above-mentioned first gears 5 and second gears 6 is also two, and the two first gears 5 and the two second gears 6 are both connected by a transmission shaft. In this way, the torque generated by one cylinder can be transmitted to the gears on the other side through the transmission action of the gears, and this transmission action is mutual, so as to balance the forces on both sides of the first base plate 32 and the second base plate 42, and the first joint When the page 3 and the second hinge 4 are opened, the phenomenon that one side is wide and the other is narrow will not appear.

Further, referring to FIGS. 3 and 4 , the mixer also includes a drive motor 7 and a stirring wheel drivingly connected with the driving motor 7 . Since this embodiment is mainly aimed at mixing a large batch of materials, two driving motors 7 and two stirring wheels can be provided to increase the stirring force and ensure uniform mixing.

Further, the mixer also includes an escalator 8 , and the escalator 8 is installed on the bracket 1 . People can load materials from the 8 escalators, and can also check the operation status of the mixer from the 8 escalators.

Although the specific embodiments of the present invention have been described above in conjunction with the accompanying drawings, it is not intended to limit the protection scope of the present invention. Those skilled in the art should understand that on the basis of the technical solutions of the present invention, those skilled in the art do not need to Various modifications or deformations that can be made with creative work are still within the protection scope of the present invention.

Claims (7)

1. The utility model provides a blendor of plastics masterbatch production usefulness which characterized in that includes:

the automatic mixing device comprises a support, a mixing container, a discharge hole, a first hinge and a second hinge, wherein the first hinge and the second hinge are connected with the mixing container and can be opened and closed;

the driving piece, the driving piece includes cylinder body and telescopic link, the cylinder body with first hinge connection, the second hinge with the telescopic link is kept away from the one end of cylinder body is connected, with the flexible drive that passes through the telescopic link first hinge and second hinge keep away from relatively or are close to.

2. The mixer for producing plastic master batch according to claim 1, wherein the first hinge comprises a first side plate and a first bottom plate connected with a first end of the first side plate, the second hinge comprises a second bottom plate connected with a second side plate and a third end of the second side plate, and when the first bottom plate abuts against the second bottom plate, the first hinge and the second hinge close the discharge hole.

3. The mixer for producing plastic masterbatch according to claim 2, wherein the second end of the first side plate and the fourth end of the second side plate are connected to an outer wall surface of the mixing container, respectively.

4. The mixer for producing plastic master batch according to claim 2, wherein a first gear is mounted at the second end of the first side plate, a second gear is mounted at the fourth end of the second side plate, and the first gear is in transmission connection with the second gear.

5. A mixer for the production of plastic masterbatch according to claim 1 wherein the number of said driving members is two, and said driving members are air cylinders.

6. The mixer for producing plastic masterbatch according to claim 1, further comprising a driving motor and a stirring wheel in transmission connection with the driving motor, wherein the driving motor is mounted on the bracket, and the stirring wheel is disposed in the mixing container.

7. The compounder of claim 1, wherein the compounder further comprises a staircase, the staircase being mounted to the frame.
