Abstract

The utility model relates to a high-altitude electrified remote-controlled electric tightening tool for a wire clamp bolt. The main structure is as follows: a controller (8) is provided with a switch (1), an indicator light (2), a charging socket (5), and a controller (8) A bracket (3) is also fixedly arranged on the bracket (3), a reducer (7) is fixedly arranged in the bracket (3) through screws (10), and the input shaft of the reducer (7) is connected with the input shaft (4) of the motor (6), The motor (6) is fixedly arranged on the housing of the controller (8), the housing of the reducer (7) is also provided with an insulating rod coupling head (9), and the output shaft of the reducer (7) is provided with a sleeve Wrench (11). The beneficial effects of the utility model are: improving work efficiency, reducing the risk of high-altitude operation, reducing labor intensity, and reducing the risk of safe operation; the use of high-altitude live remote control electric tightening bolt tools for wire clips solves the problem of time-consuming and labor-intensive traditional insulating disk operating rods , electric shock and other safety risk issues.

Description

A tool for high-altitude live remote control electric tightening of wire clamp bolts for transmission lines

technical field

The invention relates to the technical field of maintenance and construction of power grid transmission lines, in particular to a tool for high-altitude live remote-controlled electric tightening of wire clamp bolts for power transmission lines.

Background technique

In the live work of transmission lines, it is difficult to fasten the suspension clamp bolts and bolt-type tension clamp bolts of the transmission line. The bolt of the suspension clamp is located directly under the suspension insulator, separated from the cross arm by an insulator and hardware, and the bolt-type tension clamp is located about 2 meters away from the edge of the cross arm under the wire side, which is in the dead corner of the maintenance operation. Once the clamp bolt is found If it is loose, the defect must be dealt with immediately, otherwise, failure to deal with the defect in time will cause major accidents such as tripping, disconnection, and tower collapse. Accidents such as disconnection and tower collapse will cause the death of surrounding people and animals by electrocution, large-scale permanent power outages and other major accidents and disasters. It is difficult to realize the bolt tightening of suspension clamp bolts and bolt-type tension clamps in ordinary tower climbing operations. Usually, it is necessary to hook up the soft ladder through equipotential operation. When the clamp bolts are loose, hook up the soft ladder to eliminate The defect is very dangerous. Loose bolts will make the wires dance more, so that the probability of disconnection and tower collapse will increase exponentially, and the difficulty, strength and danger of electricians to deal with defects will also increase. Fastening of suspension clamp bolts and electrical bolts of bolt-type tension clamps is very difficult, labor-intensive, and has a very large safety risk. In the double or multi-circuit erected lines on the same tower, due to insufficient safety distance, the bolt tightening of the suspension clamp bolts and the bolt-type tension clamp can only be completed by applying for a power failure of the line. In order to solve the above problems, it is decided to carry out design rectification on the basis of the existing insulating operating rod, and complete the live tightening work of the suspension clamp bolts and the bolt-type tension clamp electrical bolts. Ensure the safe and stable operation of transmission lines.

The looseness of the bolts of the suspension clamp bolts and the bolt-type tension clamps is a critical defect, which can usually be eliminated by equipotential operation or applying for line power outage. Improve transmission line maintenance efficiency and power supply reliability.

Therefore, a tool for high-altitude live remote-controlled electric tightening of clamp bolts for transmission lines was developed to solve the problems of disconnection and tower collapse caused by loose bolts of suspension clamp bolts and bolt-type tension clamps, improving the efficiency of power transmission operations and reducing labor. strength and reduce the risk of safe operation.

SUMMARY OF THE INVENTION

According to the above-mentioned deficiencies of the prior art, the present invention provides a high-altitude live remote-controlled electric tightening tool for a wire clamp bolt, which is characterized in that: the controller (8) is provided with a switch (1), an indicator light (2) and A bracket (3) is also fixedly arranged on the charging socket (5) and the controller (8), a reducer (7) is fixedly arranged in the bracket (3) through screws (10), and the input shaft of the reducer (7) and the motor The input shaft (4) of (6) is connected, the motor (6) is fixedly arranged on the casing of the controller (8), and the casing of the reducer (7) is also provided with an insulating rod coupling head (9). The output shaft of (7) is provided with a socket wrench (11), the controller (8) is provided with a power supply, and the power supply is respectively connected with the motor drive module, the current limiting module, and the wireless transmission module, and the current limiting module and the wireless transmission module are respectively connected. It is also connected with the motor drive module, and the motor drive module is connected with the motor.

The insulating rod coupling head (9) is connected with the insulating rod.

The main technical key points are:

Perfect tools for tightening suspension clamp bolts and bolt-type tension clamps. Each set of tools is equipped with insulating operating rods, electric bolt tighteners, insulating operating rod lifting aids, special sleeves, DC motors, drive modules, power supplies, etc. The cooperation of accessories can realize the fastening of suspension clamp bolts and bolt-type tension clamp bolts to ensure sufficient torque;

The lifting aid of the insulating operating rod adopts an insulating rope, and is equipped with a suitable hook to meet the requirements of insulator length models such as 1380mm, 1460mm, and 1600mm, and to meet the safety distance between 35kV lines and 110kV lines;

The special sleeve is made of alloy steel as the main frame, the motor has the function of shielding the high-voltage electric field, the insulating operating rod and the insulating operating rod lifting aid have sufficient mechanical strength (the bearing capacity can reach more than 15kg), and it has passed the electrical test and is qualified.

Through the remote control, the steering of the motor of the electric bolt tightener and the lifting aid of the insulating operating rod can be controlled to ensure that the forward and reverse rotation of the motor can be flexibly controlled.

The combination of current and torque achieves long-distance determination of bolt tightening degree.

The design of the lifting aid ensures that the remote operation device is accurately installed in place.

Realize the safe elimination of bolt tightening defects and improve the efficiency of equipment defect elimination.

The beneficial effects of the invention are: improving the original insulating disk operating rod, adding electric bolt fasteners and insulating operating rod lifting aids, to ensure that the high-altitude electrician can realize the suspension clamp bolt and the bolt-type tension wire in the way of ground potential The bolts of the clamps are live-tightened.

The main methods of operation are as follows:

1. An electrician should carry the transmission rope pedal rod or climb the iron tower to the place parallel to the electric bolt (clamp) to be fastened, and fasten the safety belt and backup protection rope.

2. Use the transfer rope to transfer the operating rod, electric fastener and operating rod lifting aid to the hand.

3. Start the lifting assistant, use the insulating lever to hang the lifting assistant to the cross arm angle iron, use the remote control to start the lifting electric button, and adjust the lifting and lowering of the insulating lever to the position where the bolts need to be tightened.

4. Start the electric bolt tightener, and use the remote control to start the tightening or loosening button of the electric bolt tightener to complete the work task.

5. When the bolt-type tension clamp is fastened, personnel need to climb to the cross-arm head of the tower and install the suspended insulating operating rod to the right-angle hanging plate or "U" ring of the line to provide a suspension point for the auxiliary device. Carry out bolt tightening work. By installing the insulating operating rod holder on the right-angle hanging plate to make it form a certain angle with the horizontal direction of the tensile insulator, the head of the insulating operating rod is equipped with a hook, and the hook is connected with the hook of the lifting aid of the insulating operating rod, so that the Just above the corresponding bolt-type suspension clamp, the insulating rope in the insulating operating rod is connected with the insulating operating rod of the high-altitude live remote control electric tightening clamp bolt tool, and an electrician holds the high-altitude live remote control electric tightening clamp bolt The tool's insulating lever is operated to loosen and tighten the bolt-type tension clamp.

6. The above work is done by an electrician.

Improve work efficiency, reduce the risk of high-altitude operation, reduce labor intensity, and reduce the risk of safe operation; the use of high-altitude live remote control electric fastening bolt tools for power transmission lines solves the time-consuming and labor-intensive, electric shock and other safety risks of traditional insulating disk operating rods.

Description of drawings

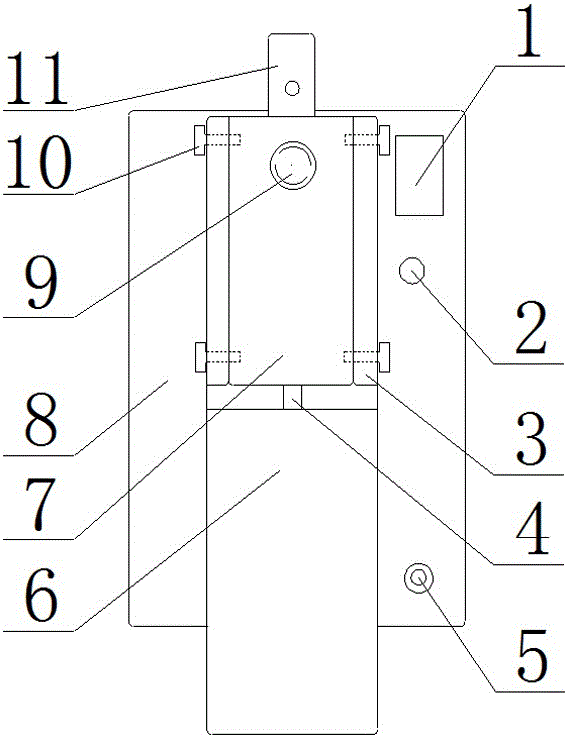

Fig. 1 is the structural representation of the present invention;

Fig. 2 is the circuit block diagram of the controller of the present invention;

3 is a front view of Embodiment 1 of the present invention;

Fig. 4 is the left side view of embodiment 1;

Fig. 5 is the top view of embodiment 1;

6 is a circuit block diagram of Embodiment 1;

FIG. 7 is a use state diagram of the present invention.

Among them: 1, switch, 2, indicator light, 3, bracket, 4, input shaft, 5, charging socket, 6, motor, 7, reducer, 8, controller, 9, insulating rod joint, 10, screw, 11. Socket wrench; 1-1, switch, 2-1, indicator light, 3-1, hanging ring, 4-1, auxiliary device, 5-1, charging socket, 6-1, screw, 7-1, Angle steel hook, 8-1, opening, 9-1, insulating rope.

Detailed ways

Embodiment 1, the present invention provides a tool for high-altitude live remote-controlled electric tightening of wire clip bolts for power transmission lines, characterized in that: the controller (8) is provided with a switch (1), an indicator light (2) and a charging socket (5). ), a bracket (3) is also fixedly arranged on the controller (8), a reducer (7) is fixedly arranged in the bracket (3) through screws (10), and the input shaft of the reducer (7) is connected to the motor (6). The input shaft (4) is connected, the motor (6) is fixedly arranged on the housing of the controller (8), the housing of the reducer (7) is also provided with an insulating rod coupling head (9), and the A socket wrench (11) is arranged on the output shaft, and a power supply is arranged in the controller (8), the power supply is respectively connected with the motor drive module, the current limiting module and the wireless transmission module, and the current limiting module and the wireless transmission module are respectively connected with the motor drive module The module is connected, and the motor drive module is connected with the motor.

The insulating rod coupling head (9) is connected with the insulating rod.

An insulating operating rod lifting aid tool, the structure of which is as follows: a switch (1-1), an indicator light (2-1) and a charging socket (5-1) are arranged on the aid (4-1); The front of 4-1) is fixed with a hanging ring (3-1), the rear of the auxiliary device (4-1) is fixed with an angle steel hook (7-1) through screws (6-1), and the auxiliary device (4-1) An opening (8-1) is arranged at the bottom, an insulating rope (9-1) is arranged in the opening (8-1), and a power supply is arranged in the auxiliary device (4-1), and the power supply is respectively connected with the motor drive module and the wireless transmission module. The wireless transmission module is also connected with the motor drive module, the motor drive module is connected with the motor, the motor drives the winch, and the insulating rope (9-1) is wound on the winch.

The insulating rope (9-1) is made of insulating material.

An insulating operating rod lifting aid tool is used to assist a tool used for high-altitude live remote-controlled electric tightening of wire clip bolts on power transmission lines, specifically an insulating rope (9-1) connecting the high-altitude live live remote control electric tightening wire clip bolts of power transmission lines The insulating rod of the tool is fixed, which saves time and effort.

Claims (2)

1. A tool for high-altitude electrified remote-controlled electric tightening of wire clip bolts on power transmission lines, characterized in that: the controller (8) is provided with a switch (1), an indicator light (2) and a charging socket (5), and the controller (8). 8) A bracket (3) is also fixedly arranged on the bracket (3), a reducer (7) is fixedly arranged in the bracket (3) through screws (10), the input shaft of the reducer (7) and the input shaft (4) of the motor (6) connection, the motor (6) is fixedly arranged on the casing of the controller (8), the casing of the reducer (7) is also provided with an insulating rod coupling head (9), and the output shaft of the reducer (7) is provided with a The socket wrench (11), the controller (8) is provided with a power supply, the power supply is respectively connected with the motor drive module, the current limiting module and the wireless transmission module, the current limiting module and the wireless transmission module are respectively connected with the motor drive module, the motor drive module The module is connected to the motor. 2 . The tool for high-altitude live remote-controlled electric tightening of wire clip bolts for power transmission lines according to claim 1 , wherein the insulating rod coupling head ( 9 ) is connected to the insulating rod. 3 .
