CN210701680U - Heavy metal soil administers device

Info

Publication number: CN210701680U
Application number: CN201921696161.3U
Authority: CN
Inventors: 曹春乐; 曹任远; 马雁; 张惠平; 曹思益; 周旭; 高诗佳
Original assignee: Hunan Shenglu Construction Co Ltd
Current assignee: Hunan Shenglu Construction Co Ltd
Priority date: 2019-10-11
Filing date: 2019-10-11
Publication date: 2020-06-09
Anticipated expiration: 2029-10-11

Abstract

The utility model discloses a heavy metal soil administers device, it includes the quick-witted box, quick-witted box top sets up the feeder hopper, inside driving shaft and the driven shaft of setting up of quick-witted box, be provided with first puddler and second puddler on driving shaft and the driven shaft respectively, and first puddler and the crisscross setting of second puddler of each other, the driving shaft below is provided with the filter, the filter below is provided with the collection box body, quick-witted box left side outer wall sets up the boss, be provided with the liquid storage pot on the boss, the liquid storage pot passes through the liquid pump pipe connection at liquid suction pipe and casing top, the water pump leads to liquid pipe looks pipe connection that the liquid outlet pipe and quick-witted box left side upper end level set up, it is. The utility model discloses simple structure, convenient to use can administer soil remediation agent and soil misce bene, and quick to soil is administered and is restoreed, and treatment effect is good, and the efficiency of administering is high, can collect the filtrating that produces in the repair process, prevents the secondary pollution to the environment.

Description

Heavy metal soil administers device

Technical Field

The utility model relates to a technical field is administered to soil, specifically is a heavy metal soil administers device.

Background

Soil pollutants can be broadly classified into two broad categories, inorganic pollutants and organic pollutants. The inorganic pollutants mainly comprise acid, alkali, heavy metal, salts, compounds of radioactive elements cesium and strontium, compounds containing arsenic, selenium and fluorine, and the like. The organic pollutants mainly comprise organic pesticides, phenols, cyanides, petroleum, synthetic detergents, 3, 4-benzopyrene, harmful microorganisms brought by municipal sewage, sludge and animal manure, and the like. When the soil contains excessive harmful substances and exceeds the self-cleaning capacity of the soil, the composition, the structure and the function of the soil are changed, the activity of microorganisms is inhibited, and the harmful substances or decomposition products thereof are gradually accumulated in the soil and are indirectly absorbed by the human body through the soil → plants → the human body or through the soil → water → the human body, so that the degree of harming the health of the human body is reached, namely the soil pollution.

The existing soil treatment device has the following problems: 1. the soil remediation agent and the soil to be treated cannot be uniformly mixed, so that the soil remediation agent cannot exert the maximum effect, and the waste is serious; 2. the filtrate generated by mixing the soil remediation agent and the soil is not collected in a centralized manner, and pollutants contained in the liquid easily cause secondary pollution to the land, so that the solution is urgently needed.

SUMMERY OF THE UTILITY MODEL

The utility model aims at above problem, provide a heavy metal soil administers device, its simple structure, convenient to use can be with soil remediation agent and soil misce bene, and quick administers the restoration to soil, and treatment effect is good, and the efficiency of administering is high, can collect the filtrating that produces in the repair process, prevents the secondary pollution to the environment.

In order to realize the above purpose, the utility model adopts the technical scheme that: a heavy metal soil treatment device comprises a machine box body, wherein a feed hopper is arranged at the top of the right side of the machine box body, a driving shaft and a driven shaft are horizontally and rotatably arranged in the machine box body, the left end of the driving shaft penetrates through the machine box body and is connected with the output shaft end of a stirring motor in the shell, the right end of the driving shaft extends out of the machine box body and is in transmission connection with the right end of the driven shaft through a transmission belt, a first stirring rod and a second stirring rod are respectively arranged on the driving shaft and the driven shaft, and first stirring rod and second stir the crisscross setting of pole each other, and the driving shaft below is provided with the filter, and the filter below is provided with collects the box body, and quick-witted box left side outer wall is provided with the boss, is provided with the liquid storage pot on the boss, and the liquid storage pot passes through the liquid pump pipe coupling at liquid suction pipe and casing top, and the water pump passes through the drain pipe and leads to liquid pipe looks pipe coupling that the level set up in quick-witted box left side upper end, leads to liquid pipe bottom interval and is provided with a plurality of shower.

Furthermore, the top outer wall that leads to liquid pipe top and be located the quick-witted box articulates and is provided with first dodge gate.

Furthermore, the right sides of the driving shaft and the driven shaft are provided with protective covers, and the protective covers are fixed on the outer wall of the right side of the case body through bolts.

Further, bearings are arranged between the driving shaft and the driven shaft and the case body.

Further, the filter sets up at the inside slope of quick-witted box, and is provided with a plurality of filtration pores on the filter, and the right side of filter just is located the articulated third dodge gate that is provided with on quick-witted box right side outer wall.

Further, the collection box body is located under the filter, and the right side of the collection box body is located on the outer wall of the right side of the machine box body and is hinged with a second movable door.

Furthermore, the liquid storage tank is in a cavity structure tank body shape, the soil repairing agent is contained in the liquid storage tank, the liquid pumping pipe is connected and arranged at the lower end of the left side of the liquid storage tank, the top of the liquid storage tank is movably hinged with a liquid tank door, and a liquid level graduator is arranged on the outer wall of the liquid storage tank.

Furthermore, four rollers are arranged at the bottom of the case body.

The utility model has the advantages that: the utility model provides a heavy metal soil administers device, its simple structure, convenient to use can be with soil remediation agent and soil misce bene, and quick administers the restoration to soil, and treatment effect is good, and the efficiency of administering is high, can collect the filtrating that produces in the restoration process, prevents the secondary pollution to the environment.

1. The utility model discloses be provided with collection box body and filter, the filter can be with the filtrating and the soil separation that contain the heavy metal in the soil, and collection box body is used for collecting filtrating, avoids the heavy metal that contains in the filtrating to cause secondary pollution to the environment.

2. The utility model discloses be provided with driving shaft and driven shaft, be provided with first puddler and second puddler on driving shaft and the driven shaft respectively, and first puddler and the crisscross setting of second puddler of each other can stir soil and scatter, increase the area of contact of soil and soil remediation agent.

3. The utility model discloses be provided with liquid storage pot, shower nozzle and water pump, the water pump can take out the soil repairing agent in the liquid storage pot and carry to the shower nozzle, sprays out the soil repairing agent through the shower nozzle, makes the soil repairing agent can carry out the misce bene with soil, avoids extravagant soil repairing agent, can enough practice thrift the treatment cost, can improve treatment again, and the practicality is very strong.

Drawings

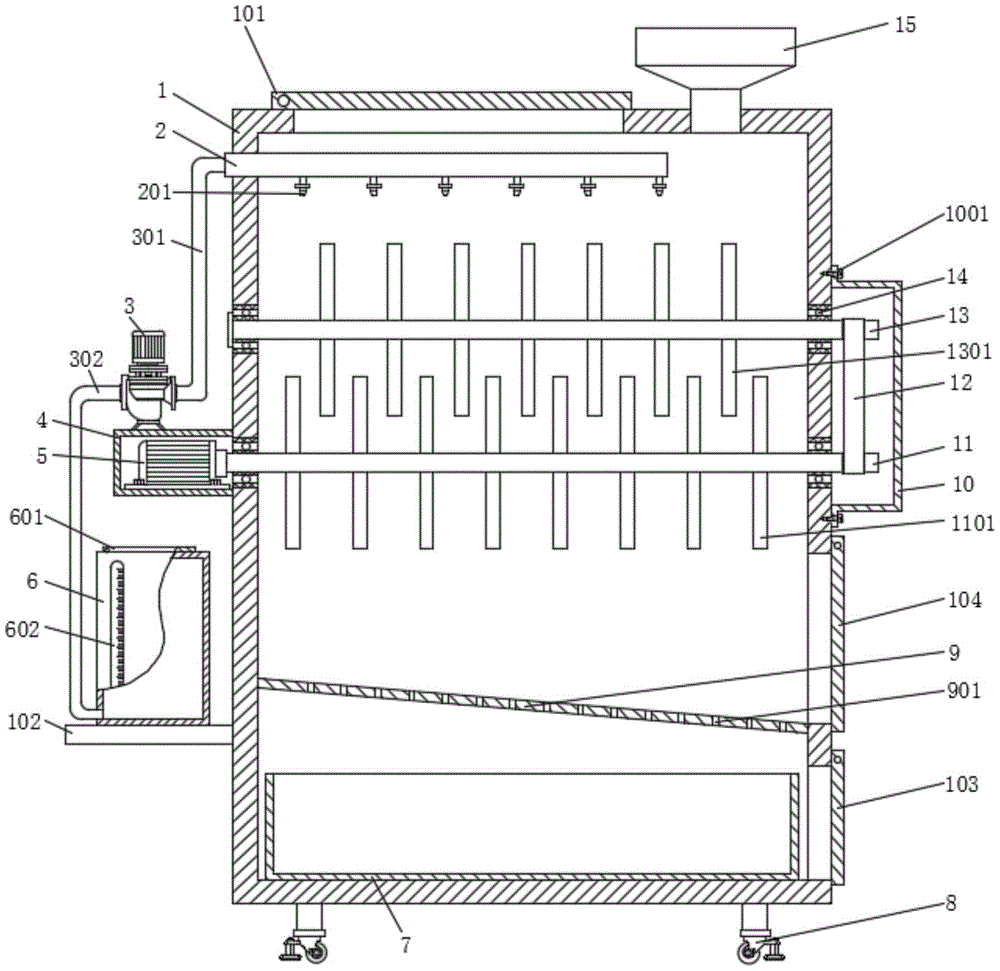

Fig. 1 is a schematic view of the structure of the present invention.

FIG. 2 is a schematic view of a reservoir.

The text labels in the figures are represented as: 1. a case body; 101. a first movable door; 102. a boss; 103. a second movable door; 104. a third movable door; 2. a liquid pipe is communicated; 201. a spray head; 3. a water pump; 301. a liquid outlet pipe; 302. a liquid pumping pipe; 4. a housing; 5. a material stirring motor; 6. a liquid storage tank; 601. a liquid tank door; 602. a liquid level scale; 7. collecting the box body; 8. a roller; 9. a filter plate; 901. a filtration pore; 10. a protective cover; 1001. a bolt; 11. a drive shaft; 1101. a first stirring rod; 12. a drive belt; 13. a driven shaft; 1301. a second stirring rod; 14. a bearing; 15. a feed hopper.

Detailed Description

In order to make the technical solution of the present invention better understood, the present invention is described in detail below with reference to the accompanying drawings, and the description of the present invention is only exemplary and explanatory, and should not be construed as limiting the scope of the present invention.

As shown in fig. 1-2, the specific structure of the present invention is: a heavy metal soil treatment device comprises a machine box body 1, a feed hopper 15 is arranged at the top of the right side of the machine box body 1, a driving shaft 11 and a driven shaft 13 are horizontally arranged in the machine box body 1 in a rotating mode, the left end of the driving shaft 11 penetrates through the machine box body 1 and is connected with the output shaft end of a stirring motor 5 in a shell 4, the right end of the driving shaft 11 extends out of the machine box body 1 and is in transmission connection with the right end of the driven shaft 13 through a transmission belt 12, a first stirring rod 1101 and a second stirring rod 1301 are respectively arranged on the driving shaft 11 and the driven shaft 13, the first stirring rod 1101 and the second stirring rod 1301 are mutually staggered and are used for driving the stirring motor 5, the driving shaft 11 drives the driven shaft 13 to rotate through the transmission belt 12, a filter plate 9 is arranged below the driving shaft 11, a collection box body 7 is arranged below the filter plate 9, the soil repairing agent is stored in the liquid storage tank 6, the liquid storage tank 6 is connected with the water pump 3 at the top of the shell 4 through a liquid pumping pipe 302, the water pump 3 is connected with a liquid through pipe 2 horizontally arranged at the upper end of the left side of the case body 1 through a liquid outlet pipe 301, a plurality of spray heads 201 are arranged at intervals at the bottom of the liquid through pipe 2, the water pump 3 is driven, the soil repairing agent in the liquid storage tank 6 can be pumped out, and the soil repairing agent is conveyed to the positions of the spray heads 201 and sprayed out.

Preferably, in order to facilitate the installation and maintenance of the components inside the cabinet 1, a first movable door 101 is hinged above the liquid pipe 2 and on the top outer wall of the cabinet 1.

Preferably, in order to safely protect the right end portions of the driving shaft 11 and the driven shaft 13 and to improve the service life of the transmission belt 12, a protective cover 10 is provided on the right side of the driving shaft 11 and the driven shaft 13, and the protective cover 10 is fixed to the right outer wall of the casing 1 by a bolt 1001.

Preferably, in order to facilitate the rotation motion of the driving shaft 11 and the driven shaft 13 and improve the rotation stability, bearings 14 are disposed between the driving shaft 11 and the driven shaft 13 and the housing 1.

Preferably, in order to facilitate the filtration operation of the repaired soil, the filter plate 9 is obliquely arranged inside the cabinet 1, and the filter plate 9 is provided with a plurality of filter holes 901, the right side of the filter plate 9 is hinged to the outer wall of the right side of the cabinet 1 and is provided with the third movable door 104, which facilitates the treated soil to be taken out from the position of the third movable door 104.

Preferably, in order to be favorable to realizing that collection box 7 collects the filtrating that the filtration goes out, collect box 7 and be located filter 9 under the position, and collect box 7 right side and be located the articulated second dodge gate 103 that is provided with on the outer wall of machine box 1 right side, be favorable to realizing putting into and taking out collection box 7.

Preferably, the liquid storage tank 6 is in a cavity structure tank body shape, the liquid storage tank is filled with a soil repairing agent, the liquid pumping pipe 302 is connected and arranged at the lower end of the left side of the liquid storage tank 6, the water pump 3 is facilitated to pump the soil repairing agent in the liquid storage tank 6, the liquid storage tank door 601 is movably hinged to the top of the liquid storage tank 6, the soil repairing agent can be placed in the liquid storage tank, and the liquid level scale 602 is arranged on the outer wall of the liquid storage tank 6, so that the observation of the capacity of the soil repairing agent in the liquid level scale 602 is facilitated.

Preferably, four rollers 8 are arranged at the bottom of the machine box body 1 to facilitate the movement of the whole device.

It should be noted that, in this document, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

The principles and embodiments of the present invention have been explained herein using specific examples, which are presented only to assist in understanding the methods and their core concepts. The foregoing is only a preferred embodiment of the present invention, and it should be noted that there are objectively infinite specific structures due to the limited character expressions, and it will be apparent to those skilled in the art that a plurality of modifications, decorations or changes can be made without departing from the principle of the present invention, and the above technical features can be combined in a proper manner; the application of these modifications, variations or combinations, or the application of the concepts and solutions of the present invention in other contexts without modification, is not intended to be considered as a limitation of the present invention.

Claims

1. A heavy metal soil treatment device is characterized by comprising a machine box body (1), wherein a feed hopper (15) is arranged at the top of the right side of the machine box body (1), a driving shaft (11) and a driven shaft (13) are horizontally and rotatably arranged in the machine box body (1), the left end of the driving shaft (11) penetrates through the machine box body (1) and is connected with the output shaft end of a stirring motor (5) in a shell (4), the right end of the driving shaft (11) extends out of the machine box body (1) and is in transmission connection with the right end of the driven shaft (13) through a transmission belt (12), a first stirring rod (1101) and a second stirring rod (1301) are respectively arranged on the driving shaft (11) and the driven shaft (13), the first stirring rod (1101) and the second stirring rod (1301) are mutually staggered, a filter plate (9) is arranged below the driving shaft (11), a collection box body (7) is arranged below the filter plate (9), a boss (102) is arranged, be provided with liquid storage pot (6) on boss (102), liquid storage pot (6) are through liquid suction pipe (302) and water pump (3) pipe connection at casing (4) top, and liquid pump (3) lead to liquid pipe (2) looks pipe connection that liquid pipe (301) and quick-witted box (1) left side upper end level set up, lead to liquid pipe (2) bottom interval and be provided with a plurality of shower nozzles (201).

2. The heavy metal soil treatment device according to claim 1, wherein a first movable door (101) is hinged above the liquid passing pipe (2) and on the outer wall of the top of the machine box body (1).

3. The heavy metal soil treatment device according to claim 1, wherein a protective cover (10) is arranged on the right side of the driving shaft (11) and the driven shaft (13), and the protective cover (10) is fixed on the outer wall of the right side of the machine box body (1) through bolts (1001).

4. A heavy metal soil treatment device according to claim 1, wherein bearings (14) are arranged between the driving shaft (11) and the driven shaft (13) and the machine box body (1).

5. A heavy metal soil treatment device according to claim 1, wherein the filter plate (9) is obliquely arranged inside the machine box body (1), the filter plate (9) is provided with a plurality of filter holes (901), and a third movable door (104) is hinged on the right side of the filter plate (9) and positioned on the outer wall of the right side of the machine box body (1).

6. The heavy metal soil treatment device according to claim 1, wherein the collection box body (7) is located right below the filter plate (9), and a second movable door (103) is hinged on the outer wall of the right side of the machine box body (1) on the right side of the collection box body (7).

7. The heavy metal soil treatment device according to claim 1, wherein the liquid storage tank (6) is a cavity structure tank body, the interior of the liquid storage tank is filled with the soil remediation agent, the liquid pumping pipe (302) is connected to the lower end of the left side of the liquid storage tank (6), the top of the liquid storage tank (6) is movably hinged to be provided with a liquid tank door (601), and the outer wall of the liquid storage tank (6) is provided with a liquid level gauge (602).

8. A heavy metal soil treatment device according to claim 1, wherein the bottom of the machine box body (1) is provided with four rollers (8).
