CN210697404U - An adjustable seat device beneficial to the elderly bathing - Google Patents

Abstract

The utility model discloses an adjustable seat device used for bathing of the elderly, which relates to the technical field of medical appliances. It includes a corner board, one side of the corner board is movably connected with a side mounting board through a movable shaft, the top of the corner board is movably connected with a top mounting board through the movable shaft, and a kneeling pad is fixedly connected to the inner corner of the corner board. By setting the kneeling pad and combining the kneeling seat pad, when using, fit the knee to the inner corner of the kneeling pad, fit the front of the ankle to the raised part of the wrist pad, and sit halfway on the kneeling seat, which is convenient for the user to kneel and sit. On the device, the device is placed against the side of the bathtub along the back of the corner board, so that the caregiver can sit stably and wash the careee. By setting the kneeling cushion, it is convenient to improve the comfort of the caregiver. By setting the side installation The board, combined with the top mounting board, when the device needs to be folded for use, the device is folded into a box shape, and the user sits on the top of the device, which is convenient to improve the diversification effect of the device.

Description

An adjustable seat device beneficial to the elderly bathing

technical field

The utility model relates to the technical field of medical appliances, in particular to an adjustable seat device used for bathing of the elderly.

Background technique

Among the seating equipment, the furniture stool and the maza are the first to appear. It is the predecessor of the stool. Adding a backrest to the stool turns it into a chair. The stool is called a stool in the folk. When bathing, or bathing by the elderly, the existing bathroom stools have the following deficiencies:

1. In the prior art, when a caregiver bathes an elderly person with inconvenience, it is inconvenient to maintain the posture for a long time by simply kneeling and sitting, and the activity is tiring;

2. In the prior art, when the elderly take a bath by themselves, it is inconvenient to fold the device into a seat box state so that the user can sit on it.

Utility model content

(1) Technical problems solved

Aiming at the deficiencies of the prior art, the present invention provides an adjustable seat device for bathing the elderly, so as to solve the problems raised in the above background technology.

(2) Technical solutions

In order to achieve the above purpose, the present utility model provides the following technical solutions: an adjustable seat device for bathing the elderly, comprising a corner plate, one side of the corner plate is movably connected with a side mounting plate through a movable shaft, and the The top of the corner board is movably connected with a top mounting plate through a movable shaft, a kneeling pad is fixedly connected to the inner corner of the corner board, and a clamping block fixedly connected to the inner corner of the corner board is arranged between the kneeling pads. A kneeling chair is fixedly connected to one side of the top of the side mounting plate, a kneeling cushion is fixedly connected to the top of the kneeling chair, and both sides of the kneeling chair are provided with wrist pads that are fixedly connected to the top of the side mounting plate, A rotating reel is movably connected to the top of the top mounting plate through a movable shaft, a pillow is fixedly connected to the top of the rotating reel, and arm pads are fixedly connected to both sides of the rotating reel.

As a preferred technical solution of the present invention, the depth of the right-angle bottom plate of the corner board is equal to the height of the top mounting board, and the height of the right-angle side board of the corner board is equal to the depth of the side mounting board.

As a preferred technical solution of the present invention, the wall corner plate is a right-angle folded plate, and a side mounting plate is movably connected to one side of the right-angle bottom plate of the wall corner plate through the first mounting block.

As a preferred technical solution of the present invention, a top mounting plate is movably connected to the top of the right-angle side plate of the corner plate through a second mounting block.

As a preferred technical solution of the present invention, the top of one side of the wrist pad is provided with a protrusion that matches the arc of the front of the ankle.

As a preferred technical solution of the present invention, the kneeling pad is provided with a groove matching the knee, and the front part of the clamping block is provided with a groove matching the kneeling chair.

(3) Beneficial effects

Compared with the prior art, the utility model provides an adjustable seat device that is beneficial for the elderly to bathe, and has the following beneficial effects:

1. This adjustable seat device is beneficial for the elderly to bathe. By setting a kneeling pad, combined with a kneeling seat pad, when in use, the knee is attached to the inner corner of the kneeling pad, and the front of the ankle is attached to the raised part of the wrist pad. , and half sit on the kneeling chair, which is convenient for the user to sit on the device, and the device is placed against the side of the bathtub along the back of the corner board, so that the caregiver can sit down smoothly and wash the careee. By setting the kneeling cushion , it is convenient to improve the kneeling comfort of the caregiver.

2. The adjustable seat device for bathing the elderly is equipped with side mounting plates and combined with the top mounting plate. When the device needs to be folded for use, the device is folded into a box shape, and the user sits on the top of the device, which is convenient for raising the seat. The use of the device has diversified effects.

Description of drawings

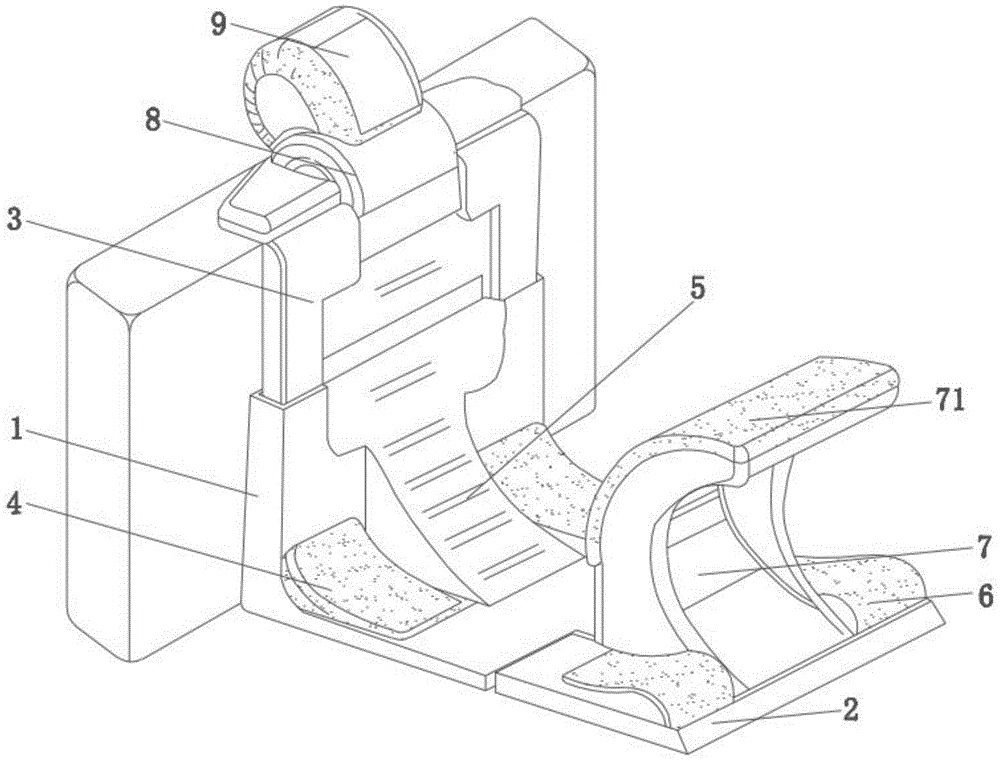

Fig. 1 is the structural representation of the utility model;

FIG. 2 is a schematic diagram of the folded structure of the present invention.

In the figure: 1. Corner board; 11. First mounting block; 12. Second mounting block; 2. Side mounting board; 3. Top mounting board; 4. Kneeling pad; 5. Clamping block; 6. Wrist pad; 7 , kneeling chair; 71, kneeling cushion; 8, rotating scroll; 9, pillow; 10, arm pad.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Fig. 1-2, an adjustable seat device for elderly bathing, including a corner plate 1, one side of the corner plate 1 is movably connected with a side mounting plate 2 through a movable shaft, and the corner plate 1 The top of the wall is movably connected with a top mounting plate 3 through a movable shaft, a kneeling pad 4 is fixedly connected at the inner corner of the corner plate 1, and a clip that is fixedly connected to the inner corner of the corner plate 1 is provided between the kneeling pads 4. Block 5, one side of the top of the side mounting plate 2 is fixedly connected with a kneeling chair 7, the top of the kneeling chair 7 is fixedly connected with a kneeling cushion 71, and both sides of the kneeling chair 7 are fixedly connected The wrist pad 6 on the top of the side mounting plate 2, the top of the top mounting plate 3 is movably connected with a rotating reel 8 through the movable shaft, the top of the rotating reel 8 is fixedly connected with a pillow 9, and the two sides of the rotating reel 8 are connected. The arm pads 10 are fixedly connected to the sides. By setting the kneeling pads 4, combined with the kneeling seat pads 71, when in use, the knees are attached to the inner corner of the kneeling pads 4, and the front of the ankles are attached to the protrusions of the wrist pads 6. Half-sit on the kneeling chair 7, it is convenient for the user to sit on the device, and the device is leaned against the side of the bathtub along the back of the corner board 1, so that the caregiver can sit down smoothly and wash the careee. By setting the kneeling cushion 71. It is convenient to improve the comfort of kneeling and sitting of the caregiver. By setting the side mounting plate 2 and combining with the top mounting plate 3, when the device needs to be folded for use, the device is folded into a box shape, and the user sits on the top of the device, which is convenient for raising the device. The use of diversification effects.

Specifically, the depth of the right-angle bottom plate of the corner board 1 is equal to the height of the top mounting board 3 , and the height of the right-angle side boards of the corner board 1 is equal to the depth of the side mounting board 2 .

In this embodiment, by arranging plate bodies of the same size, it is convenient to fold the device into a box shape.

Specifically, the corner plate 1 is a right-angle folded plate, and a side mounting plate 3 is movably connected to one side of the right-angle bottom plate of the corner plate 1 through the first mounting block 11 .

In this embodiment, the installation of the device on one side of the bathtub is facilitated by arranging the corner plate 1 .

Specifically, a top mounting plate 3 is movably connected to the top of the right-angled side plate of the corner plate 1 through the second mounting block 12 .

In this embodiment, the folding is facilitated by the second mounting block 12 .

Specifically, the top of one side of the wrist pad 6 is provided with a protrusion that matches the arc of the front of the ankle.

In this embodiment, by providing the wrist pad 6, it is convenient to hold the user's ankle comfortably.

Specifically, the kneeling pad 4 is provided with a groove matching the knee, and the front part of the clamping block 5 is provided with a groove matching the kneeling chair 7 .

In this embodiment, the grooves on the kneeling pad 4 are convenient to fit with the kneeling chair 7 and play a supporting role.

The working principle and use process of the utility model: when in use, the knee is attached to the inner corner of the kneeling pad 4, the front of the ankle is attached to the convex position of the wrist pad 6, and half sit on the kneeling chair 7, The user sits on the device on his knees, leans the device against the side of the bathtub along the back of the corner board 1, and rests his elbows on the top of the arm pad 10. When it needs to be folded, the pillow 9 is stored on the top mounting plate 3 along the rotating scroll 8. The front part of the upper part, the top mounting plate 3 is folded, and the side mounting plate 2 is folded, so that the kneeling seat 7 and the top of the clamping block 5 are overlapped and pressed tightly.

To sum up, the adjustable seat device that is beneficial for the elderly to bathe is provided by setting the kneeling pad 4 and combining with the kneeling seat pad 71. When in use, the knee is attached to the inner corner of the kneeling pad 4, and the front of the ankle is attached to the knee pad 4. On the protruding part of the wrist pad 6, and half-sit on the kneeling chair 7, it is convenient for the user to sit on the device, and the device is placed on the side of the bathtub along the back of the corner board 1, so that the caregiver can kneel and sit stably. When the care recipient washes, the kneeling cushion 71 is provided to facilitate the improvement of the comfort of the caregiver when kneeling and sitting. The user sits on the top of the device, which is convenient to improve the diversification effect of the use of the device.

It should be noted that, herein, terms such as "comprising", "comprising" or any other variation thereof are intended to encompass non-exclusive inclusion, such that a process, method, article or device comprising a series of elements includes not only those elements , but also other elements not expressly listed or inherent to such a process, method, article or apparatus. Without further limitation, an element qualified by the phrase "comprising a..." does not preclude the presence of additional identical elements in a process, method, article or apparatus that includes the element.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. The utility model provides a do benefit to adjustable seat device that old person bathed and used, includes wall scute (1), its characterized in that: one side of the wall angle plate (1) is movably connected with a side mounting plate (2) through a movable shaft, the top of the wall angle plate (1) is movably connected with a top mounting plate (3) through a movable shaft, kneelers (4) are fixedly connected at the internal corners of the wall angle plate (1), clamping blocks (5) fixedly connected at the internal corners of the wall angle plate (1) are arranged between the kneelers (4), one side of the top of the side mounting plate (2) is fixedly connected with a kneeling chair (7), the top of the kneeling chair (7) is fixedly connected with a kneeling cushion (71), both sides of the kneeling chair (7) are respectively provided with a wrist cushion (6) fixedly connected with the top of the side mounting plate (2), the top of the top mounting plate (3) is movably connected with a rotary scroll (8) through a movable shaft, the top fixedly connected with of rotatory spool (8) holds in the palm pillow (9), the equal fixedly connected with arm pad (10) in both sides of rotatory spool (8).

2. The adjustable seating unit for bathing of the elderly as claimed in claim 1, wherein: the depth of a right-angle bottom plate of the wall corner plate (1) is equal to the height of the top mounting plate (3), and the height of a right-angle side plate of the wall corner plate (1) is equal to the depth of the side mounting plate (2).

3. The adjustable seating unit for bathing of the elderly as claimed in claim 1, wherein: the wall corner plate (1) is a right-angle folded plate, and one side of the right-angle bottom plate of the wall corner plate (1) is movably connected with a side mounting plate (2) through a first mounting block (11).

4. The adjustable seating unit for bathing of the elderly as claimed in claim 1, wherein: the top of the right-angle side plate of the wall corner plate (1) is movably connected with a top mounting plate (3) through a second mounting block (12).

5. The adjustable seating unit for bathing of the elderly as claimed in claim 1, wherein: the top of one side of the wrist pad (6) is provided with a bulge matched with the arc line at the front part of the ankle.

6. The adjustable seating unit for bathing of the elderly as claimed in claim 1, wherein: grooves matched with the knees are formed in the kneeling cushions (4), and grooves matched with the kneeling seats (7) are formed in the front portions of the clamping blocks (5).
