Abstract

The utility model relates to the technical field of mirrors, in particular to a socket switching mechanism and an imaging device. The socket transfer mechanism is used to position the mirror structure, and the socket transfer mechanism includes: a shell structure, including a bottom plate, a top plate opposite to the bottom plate, and an annular side plate between the bottom plate and the top plate, the bottom plate, the top plate and the annular side plate A magnetic suction cavity is formed by enclosing it, and the annular side plate is provided with a power supply slot that communicates with the magnetic suction cavity; the magnetic suction structure is arranged in the magnetic suction cavity, and is used to generate a magnetic suction effect with the connecting piece to make the mirror structure contact the top plate; and a socket structure, which has a first socket end and a second socket end, the first socket end is located in the magnetic suction cavity and is used for electrical connection with an external power supply, and the second socket end is located in the power supply slot and is provided for electrical plugging of external devices the plug-in surface. The utility model enriches the use functions of the socket switching mechanism, improves the space utilization rate of the bathroom, and satisfies the user's diversified functional requirements for the socket switching mechanism.

Description

A socket transfer mechanism and an imaging device

technical field

The utility model relates to the technical field of mirrors, in particular to a socket switching mechanism and an imaging device.

Background technique

At present, mirrors are installed indoors so that users can see their body shape. The mirror is generally fixed on the indoor wall through a socket adapter mechanism.

However, there are generally other electrical equipment in the room, and the socket adapter generally only has the function of fixing the mirror, and has no other functions. Usually the indoor space is relatively small, and the current single-function socket transfer mechanism is not conducive to improving the indoor space utilization rate, and cannot meet people's needs for diversified functions of the socket transfer mechanism. At the same time, with the development of electronic products, the provision of supplementary light or smart mirrors has gradually developed. During use, it is necessary to connect to an indoor power outlet.

However, the existing indoor socket structure embedded in the wall has a relatively fixed position, especially the common design of the bathroom or indoor can only meet the use of some electronic products. When additional electronic products are added, there is usually no guarantee that the electronic products can also use the same Socket structure, the solution usually adopted now includes: connecting a socket, this method is very unsightly and unsafe at the same time; or redecorating and adding a corresponding socket structure, this method has high cost, heavy workload and complicated construction, and must be professional people can complete it.

During the process of realizing the present utility model, the inventor of the present utility model found that: at present, the wall socket structure originally designed in the interior cannot meet the existing requirements. That is, when the user uses the smart mirror, the smart mirror needs the socket structure to supply power, so that the socket structure cannot supply power to other electronic products. For example, it is impossible to use a hair dryer while imaging with a smart mirror, which brings a lot of inconvenience to users.

Therefore, there is an urgent need for a socket transfer mechanism that is not only beautiful and safe, but also can be installed only by simple operations on the original socket, and can meet the user's various functional requirements at the same time.

Utility model content

The purpose of the utility model is to provide a socket transfer mechanism, which aims to solve the problem of how to improve the utilization rate of bathroom space and meet the various functional requirements of users.

The utility model provides a socket transfer mechanism for positioning a mirror structure, wherein the mirror structure includes a mirror body and a connector connecting the mirror body, and the socket transfer mechanism includes:

The shell structure includes a bottom plate, a top plate opposite to the bottom plate, and an annular side plate located between the bottom plate and the top plate, and the bottom plate, the top plate and the annular side plate are enclosed to form a magnetic suction cavity, The annular side plate is provided with a power supply slot that communicates with the magnetic suction cavity;

a magnetic attraction structure, disposed in the magnetic attraction cavity, and used for generating a magnetic attraction effect with the connecting member to make the mirror structure contact the top plate; and

The socket structure has a first socket end and a second socket end, the first socket end is located in the magnetic suction cavity and is used for electrical connection with an external power supply, and the second socket end is located in the power supply slot and is provided with Plug surface for electrical plugging of external equipment;

Wherein, the housing structure is provided with a conductive hole for connecting the magnetic cavity to the outside, and the first socket end is provided at the conductive hole.

The technical effect of the utility model is as follows: by installing the bottom plate on the wall of the bathroom, and then disposing the magnetic suction structure in the magnetic suction cavity, the first socket end is electrically connected to the external power supply, and the second socket end is connected to the electrical equipment, The socket transfer mechanism can not only be used to magnetically connect the mirror structure to meet people's imaging needs, but also the socket structure can transfer the original power socket and lead out the power supply for electrical plugging of other electrical equipment. Moreover, the socket structure can be installed using the original power socket position, which makes the installation process simple, thus enriching the use functions of the socket adapter mechanism, improving the space utilization rate of the bathroom and satisfying the various functions of the user socket adapter mechanism. need.

Description of drawings

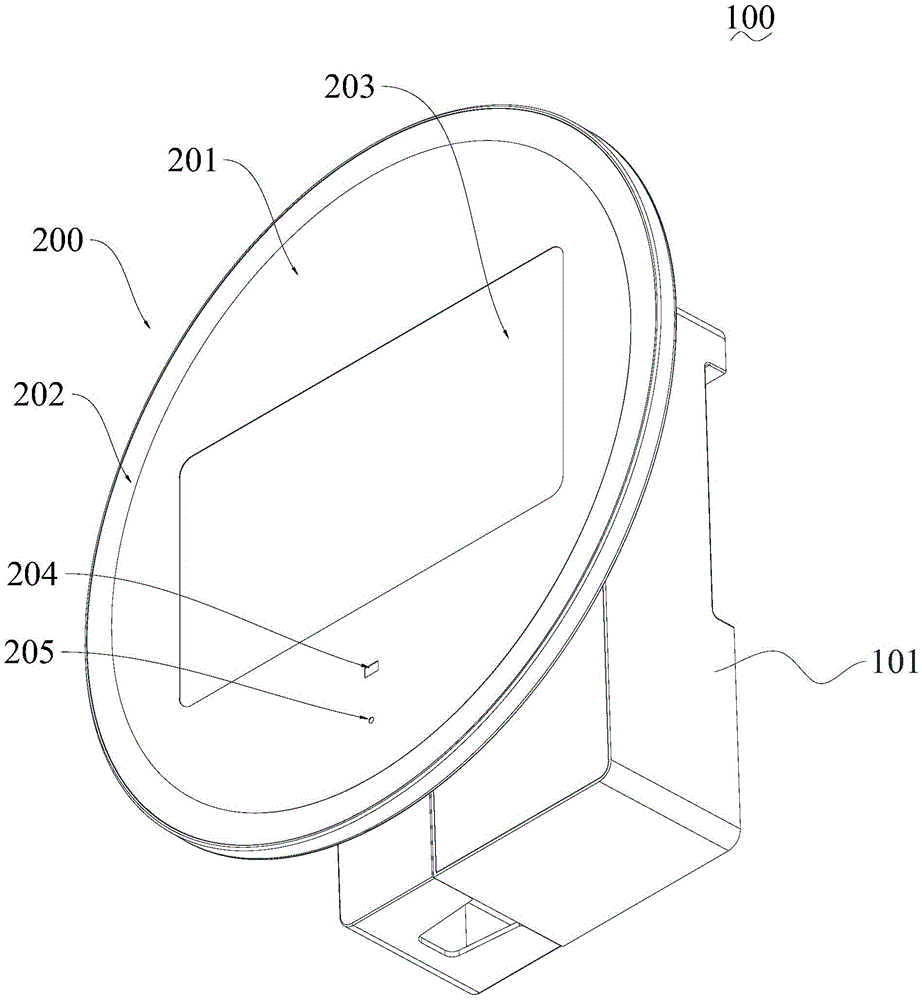

1 is a three-dimensional structural diagram of an imaging device provided by an embodiment of the present invention;

FIG. 2 is a bottom view of the imaging device of FIG. 1;

Fig. 3 is the three-dimensional structure diagram of the mirror structure of Fig. 1;

Fig. 4 is the bottom view of the mirror structure of Fig. 3;

5 is a cross-sectional view of the mirror structure of FIG. 4 along the A-A direction;

6 is a perspective structural view of an embodiment of the socket adapter mechanism of FIG. 1;

7 is a perspective structural view of another embodiment of the socket adapter mechanism of FIG. 1;

FIG. 8 is a left side view of the housing structure of FIG. 7;

FIG. 9 is a perspective structural view of another embodiment of the socket adapter mechanism of FIG. 1;

Figure 10 is an exploded view of the socket adapter mechanism of Figure 9;

FIG. 11 is an exploded view of the receptacle adapter mechanism of FIG. 9 from another angle.

The corresponding relationship between the labels and names in the accompanying drawings is as follows:

100, imaging device; 101, socket transfer mechanism; 200, mirror structure; 300, mirror body; 301, display module; 201, imaging surface; 202, fill light area; 203, display area; 204, human body sensing area; 205 , camera area; 30, plug structure; 50, waterproof cover; 10, shell structure; 41, connector; 401, sound hole; 11, top plate; 12, annular side plate; 111, magnetic surface; 53, charging Interface; 20, socket structure; 21, plug-in surface; 22, jack; 61, first buckle; 62, second buckle; 112, magnetic cavity; 31, conductive hole; 13, bottom plate; 42, magnetic piece;

Detailed ways

The following describes in detail the embodiments of the present invention, examples of which are illustrated in the accompanying drawings, wherein the same or similar reference numerals refer to the same or similar elements or elements having the same or similar functions throughout. The embodiments described below with reference to the accompanying drawings are exemplary, and are intended to be used to explain the present invention, but should not be construed as a limitation of the present invention.

In the description of the present invention, it should be understood that the orientation or positional relationship indicated by the terms "thickness", "upper", "lower", "perpendicular", "parallel", "bottom", "angle", etc. is based on The orientation or positional relationship shown in the accompanying drawings is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation, be constructed and operated in a specific orientation, and therefore cannot be understood To limit the utility model.

In the present utility model, unless otherwise expressly specified and limited, terms such as "installation" and "connection" should be understood in a broad sense, for example, it may be a fixed connection, a detachable connection, or an integral body; A mechanical connection can also be an electrical connection; it can be a direct connection or an indirect connection through an intermediate medium, and it can be an internal connection between two elements or an interaction relationship between the two elements.

Referring to FIGS. 1 to 3 , an embodiment of the present invention provides a socket adapter mechanism 101 and an imaging device 100 having the same. The imaging device 100 can be suspended and fixed on the wall of the bathroom and further includes a mirror structure 200 . Optionally, the mirror structure 200 may be a smart mirror or a flat mirror. Referring to FIGS. 4 to 6 , in this embodiment, the mirror structure 200 is a smart mirror. The smart mirror includes a mirror body 300 and a connector 41 that forms an installation cavity with the mirror body 300. The smart mirror also includes a The mirror circuit board, the camera structure, the speaker, and the display module 301. The mirror body 300 has an imaging surface 201 on one side and a non-imaging surface 201 on the other side. The mirror circuit board, the camera structure, the speaker and the display module 301 are all connected to the non-imaging surface 201, and the imaging surface 201 is provided with a display area 203 for the display module 301 to display relevant information, a fill light area 202, and a camera area for the camera structure to shoot 205 and the human body sensing area 204. Optionally, the connecting piece 41 can generate a magnetic attraction effect with the magnetic piece 42 , and further, the connecting piece 41 is made of metal iron.

Please refer to FIG. 7 to FIG. 11 , the socket adapter mechanism 101 includes: a housing structure 10 , a socket structure 20 and a magnetic attraction structure. The housing structure 10 includes a bottom plate 13 , a top plate 11 disposed opposite to the bottom plate 13 , and an annular side plate 12 located between the bottom plate 13 and the top plate 11 . The bottom plate 13 and the top plate 11 are erected relative to the bathroom cavity wall. The bottom plate 13 , the top plate 11 and the annular side plate 12 are enclosed to form a magnetic suction cavity 112 . Optionally, the annular side plate 12 includes a plurality of side plates connected end to end, wherein a power supply slot communicating with the magnetic suction cavity 112 is opened on the side plate. The magnetic attraction structure is disposed in the magnetic attraction cavity 112 and generates a magnetic attraction effect with the connecting member 41 , so that the mirror structure abuts against the top plate 11 and is adsorbed on the top plate 11 . The magnetic attraction structure includes one or more magnetic elements 42, wherein the magnetic elements 42 are permanent magnets, permanent magnets or electromagnets. The socket structure 20 has a first socket end and a second socket end, the first socket end is located in the magnetic suction cavity 112, the second socket end is located in the power supply slot and is provided with a plug-in surface 21 for electrical plugging of electrical equipment. A plurality of jacks 22 are opened on the 21 . The housing structure 10 is further provided with a conductive hole 31 that communicates with the magnetic suction cavity 112 , and the first socket end is disposed adjacent to the conductive hole 31 and is electrically connected to the power supply in the bathroom.

By installing the bottom plate 13 on the wall of the bathroom, and then arranging the magnetic attraction structure in the magnetic attraction cavity 112, the first socket end is electrically connected to the external power supply, and the second socket end is connected to the electrical equipment, so that the socket adapter mechanism 101 Not only can it be used to magnetically connect the mirror structure 200 to meet people's imaging needs, but the socket structure 20 can also be used to transfer the original power socket and lead out power for electrical plugging of other electrical equipment. Moreover, the socket structure 20 can also be installed using the original power socket position, which makes the installation process simple, thereby enriching the use functions of the socket adapter mechanism 101, improving the space utilization rate of the bathroom and satisfying the user socket adapter mechanism 101. various functional requirements. Referring to FIGS. 10 to 11 , in one embodiment, the conductive hole 31 is opened on the bottom plate 13 , and the socket adapter mechanism 101 further includes a plug structure 30 connected to the housing structure 10 , one end of the plug structure 30 is located in the conductive hole 31 and electrically The first socket end of the socket structure 20 is electrically connected, and the other end of the plug structure 30 is electrically plugged into the power socket. Optionally, the plug structure 30 is a standard plug structure 30, one end of the plug structure 30 is electrically connected to the plug structure 30 and the housing structure 10, and the other end of the plug structure 30 is electrically plugged into a power socket on the bathroom wall, thereby The power supply is connected to the socket structure 20 through the plug structure 30. This way of directly plugging the socket adapter mechanism 101 into the power socket on the wall of the bathroom can realize the quick installation of the socket adapter mechanism 101 without the need for professional electricians. Installation is simple and convenient.

In one embodiment, the socket adapter mechanism 101 further includes an adhesive layer, the adhesive layer is disposed on one side of the bottom plate 13 and used for gluing the housing structure 10 to an external structural member, and the bottom plate 13 is located on the annular side between the board 12 and the adhesive layer. Optionally, the material of the adhesive layer can be 3M glue, and the connection between the shell structure 10 and the bathroom wall can be strengthened through the adhesive layer.

In one embodiment, the magnetic attraction structure includes a plurality of magnetic pieces 42, and each of the magnetic pieces 42 is connected to the top plate 11 and is circumferentially arranged on the top plate 11. Specifically, each of the magnetic attraction parts has a magnetic attraction effect with the connecting part 41 , thereby improving the stability of the connection to the mirror structure 200 .

Referring to FIG. 6 , optionally, the outer surface of the top plate 11 is provided with a magnetic attraction surface 111 for magnetically attracting and positioning the mirror structure 200 .

In one embodiment, the magnetic attraction surface 111 is arranged in a plane, and the surface shape of the connecting member 41 connecting the magnetic attraction surface 111 is adapted to the shape of the magnetic attraction surface 111 . Specifically, the connecting piece 41 is magnetically connected to the magnetic attraction surface 111 , and the surface of the connecting piece 41 in contact with the magnetic attraction surface 111 is also arranged in a plane, so that there is sufficient magnetic attraction force between the mirror structure 200 and the housing structure 10 . The mirror structure 200 can be rotated at any angle at the magnetic attraction surface 111 , so as to realize the stepless adjustment of the angular position of the mirror structure 200 to obtain a suitable imaging angle position.

In one embodiment, the magnetic attraction surface 111 is provided as a concave surface, and the surface shape of the connecting member 41 connecting the magnetic attraction surface 111 is adapted to the shape of the magnetic attraction surface 111 . Specifically, the surface on which the connecting piece 41 is attached to the magnetic attraction surface 111 is convex, and the concave-convex cooperation between the connecting piece 41 and the magnetic attraction surface 111 can adjust the angular position of the imaging surface 201 relative to the wall, so that the imaging surface 201 and the magnetic attraction surface 111 can be adjusted. A suitable imaging angle is obtained between users, which improves the convenience and user experience of the mirror structure 200 in use.

In one embodiment, the socket adapter mechanism 101 further includes a wireless charging structure. The wireless charging structure includes a charging transmitting end located in the magnetic suction cavity 112 and corresponding to the magnetic attracting surface 111 , and the charging transmitting end is electrically connected to the first terminal of the socket structure 20 . The socket end transmits a wireless charging signal toward the magnetic attraction surface 111 . Optionally, the wireless charging structure further includes a charging receiving terminal disposed in the mirror structure 200 or on other electrical equipment. Through the wireless charging structure, wireless power supply can be implemented to the mirror structure 200 , which improves the convenience of use of the mirror structure 200 .

Referring to FIGS. 10 to 11 , in one embodiment, the socket adapter mechanism 101 further includes a first buckle portion 61 disposed on the top plate 11 , and the inner surface of the annular side plate 12 is protrudingly provided with the first buckle portion 61 to be engaged with the first buckle portion 61 . The matching second buckle portion 62 . Through the cooperation of the first buckle portion 61 and the second buckle portion 62 , the detachable connection between the annular side plate 12 and the top plate 11 is realized, which is beneficial to the assembly and disassembly of the casing structure 10 . It can be understood that the first buckle portion 61 and the second buckle portion 62 are provided in pairs, and there are multiple pairs.

In one embodiment, the socket adapter mechanism 101 further includes a waterproof cover 50 covering the notch of the power slot, one end of the waterproof cover 50 is hinged with the annular side plate 12 , and the waterproof cover 50 improves the safety of the socket structure 20 in use. One end of the waterproof cover 50 reciprocates around its hinged end so as to cover or expose the insertion surface 21 .

In one embodiment, the housing structure 10 is further provided with a charging interface 53 , and the charging interface 53 is electrically connected to the first socket end of the socket structure 20 . Types of the charging interface 53 include a USB interface and a TYPE-C interface. It can be understood that the mirror structure 200 is provided with an electrical interface for plugging the data cable, one end of the data cable is inserted into the charging interface 53, and the other end of the data cable is inserted into the electrical interface, thereby realizing the wired power supply of the mirror structure 200.

The above are only preferred embodiments of the present utility model, and are not intended to limit the present utility model. Any modifications, equivalent replacements and improvements made within the spirit and principles of the present utility model shall be included in the present utility model. within the scope of protection.

Claims (10)

1. A socket adapter mechanism for positioning a mirror structure and electrically coupling an external power source, wherein the mirror structure includes a mirror body and a coupling member coupled to the mirror body, the socket adapter mechanism comprising:

the shell structure comprises a bottom plate, a top plate and an annular side plate, wherein the top plate is arranged opposite to the bottom plate, the annular side plate is positioned between the bottom plate and the top plate, the bottom plate, the top plate and the annular side plate surround to form a magnetic attraction cavity, and the annular side plate is provided with a power supply groove communicated with the magnetic attraction cavity;

the magnetic attraction structure is arranged in the magnetic attraction cavity and used for generating magnetic attraction action with the connecting piece so as to enable the mirror structure to be in contact with the top plate; and

the socket structure is provided with a first socket end and a second socket end, the first socket end is positioned in the magnetic attraction cavity and is used for being electrically connected with an external power supply, and the second socket end is positioned in the power supply groove and is provided with a plugging surface for external equipment to be electrically plugged;

the shell structure is provided with a conductive hole for communicating the magnetic attraction cavity to the outside, and the first socket end is arranged at the conductive hole.

2. The socket adapter mechanism of claim 1, wherein: the conductive hole is located on the bottom plate, the socket adapter mechanism further comprises a plug structure connected with the shell structure, one end of the plug structure is located on the conductive hole and electrically connected with the first socket end, and the other end of the plug structure is electrically connected with an external power socket in an inserting mode.

3. The socket adapter mechanism of claim 1, wherein: the socket adapter mechanism further comprises an adhesive layer, the adhesive layer is arranged on one side plate surface of the bottom plate and used for adhering the shell structure to an external structural member, and the bottom plate is located between the annular side plate and the adhesive layer.

4. The socket adapter mechanism of claim 1, wherein: the magnetic attraction structure comprises a plurality of magnetic pieces, and each magnetic piece is connected with the top plate and is circumferentially arranged on the top plate.

5. The socket adapter mechanism of claim 1, wherein: the outer plate surface of the top plate is provided with a magnetic attraction surface for magnetic attraction positioning of the mirror structure, the magnetic attraction surface is arranged on a plane or a concave surface, and the mirror structure is connected with the surface shape of the magnetic attraction surface and is matched with the shape of the magnetic attraction surface.

6. The socket adapter mechanism of claim 5, wherein: socket changeover mechanism still includes wireless charging structure, wireless charging structure is including being located the chamber is inhaled to the magnetism and corresponding the face setting is inhaled to the magnetism transmit terminal that charges, the transmit terminal electric connection that charges first socket end just court the face transmission wireless signal of charging is inhaled to the magnetism.

7. The socket adapter mechanism of any of claims 1-6, wherein: the socket adapter mechanism further comprises a first buckling part arranged on the top plate, and a second buckling part in buckling fit with the first buckling part is convexly arranged on the inner surface of the annular side plate.

8. The socket adapter mechanism of any of claims 1-6, wherein: the socket adapter mechanism further comprises a waterproof cover covering the notch of the power supply groove, and one end of the waterproof cover is hinged to the annular side plate.

9. The socket adapter mechanism of any of claims 1-6, wherein: the shell structure is further provided with a charging interface, and the charging interface is electrically connected with the first socket end.

10. An image forming apparatus, comprising: the socket adapter mechanism of any one of claims 1-9, and a mirror structure magnetically coupled to the socket adapter mechanism.
