Abstract

The utility model discloses an automatic stirring process device for old dough, which comprises a bottom plate. The utility model is characterized in that: the upper side of the bottom plate is fixedly connected to an arc-shaped rod; The other ends of the circular shafts are respectively hinged to both sides of the holding tank, the upper part of the holding tank is hinged to the upper cover, the upper cover is connected to the stirring module, and the lower side of the holding tank is connected to the holding tank swing module . The device can stir the flour, and the holding tank swings back and forth while the rotating shaft drives the stirring rod to stir, so as to realize the uniform stirring of the flour. .

Description

A kind of old dough automatic stirring process device

technical field

The utility model relates to the field of flour mixing equipment, in particular to an automatic mixing process device for old dough.

Background technique

In the production of steamed bread, it is necessary to stir the dough. When stirring, it is usually done manually or by using a dough mixer. The existing dough mixer only uses a stirring rod to stir the dough. The lower container for flour and water is If it is fixed, it is necessary to design a device that can not only stir the dough, but also swing back and forth with the container on the lower side to impact the dough surface to make the dough surface smoother, which is the deficiency of the prior art.

Utility model content

The technical problem to be solved by the utility model is to provide an automatic stirring process device for old dough, which is convenient for stirring and kneading the flour.

The utility model adopts the following technical solutions to achieve the purpose of the invention:

An automatic stirring process device for old dough, comprising a bottom plate (6), characterized in that: the upper side of the bottom plate (6) is fixedly connected to an arc-shaped rod (5), and the two ends of the arc-shaped rod (5) are respectively fixed One end of the circular shaft (4) is connected, and the other ends of the two circular shafts (4) are hinged on both sides of the holding groove (3) respectively, and the upper part of the holding groove (3) is hinged with the upper cover (2), The upper cover (2) is connected to the stirring module, and the lower side of the holding tank (3) is connected to the holding tank swing module.

As a further limitation of the technical solution, the stirring module includes a motor one (1), the motor one (1) is fixedly connected to the upper center of the upper cover (2), and the output shaft of the motor one (1) A rotating shaft (17) is fixedly connected through the upper cover (2), and the lower, middle and lower parts of the rotating shaft (17) are fixedly connected with a group of evenly arranged stirring rods (18).

As a further limitation of the technical solution, the holding tank swing module includes a symmetrical fixing block (12), and the symmetrical fixed block (12) is fixedly connected to the lower eccentric part of the holding tank (3). The fixing block (12) is respectively hinged to one end and two sides of the connecting rod (7), and the other end of the connecting rod (7) is hinged to the fixing shaft (8), and the fixing shaft (8) is fixedly connected to the rotating plate (9). edge position on one side.

As a further limitation of the technical solution, the center of the turntable (9) is fixedly connected to the output shaft of the second motor (11), and the second motor (11) is fixedly connected to the base plate (6) through the motor bracket (10).

As a further limitation to the technical solution, the upper side of the holding groove (3) is fixedly connected to a block (16), and the upper side of the block (16) is fixedly connected to a threaded post (13), and the threaded post (13) ) a threaded connection nut (14), an arc-shaped slot (15) is provided on one side of the upper cover (2) corresponding to the position of the threaded post (13), and the arc-shaped slot (15) can surround the the threaded post (13).

Compared with the prior art, the advantages and positive effects of the utility model are as follows: the utility model provides an automatic stirring process device for old dough. Has the following beneficial effects:

(1) The device can stir the flour, and the holding tank swings back and forth while the rotating shaft drives the stirring rod to stir, so as to realize the uniform stirring of the flour. knead into dough

(2) Through the cooperation of the nut, the threaded column and the arc slot, turn the nut. When the nut is separated from the threaded column, lift the upper cover to open the upper cover, close the upper cover, and then screw the nut on the threaded column to make the upper cover open. The nut bears against the arc-shaped slot and firmly fixes the upper cover.

Description of drawings

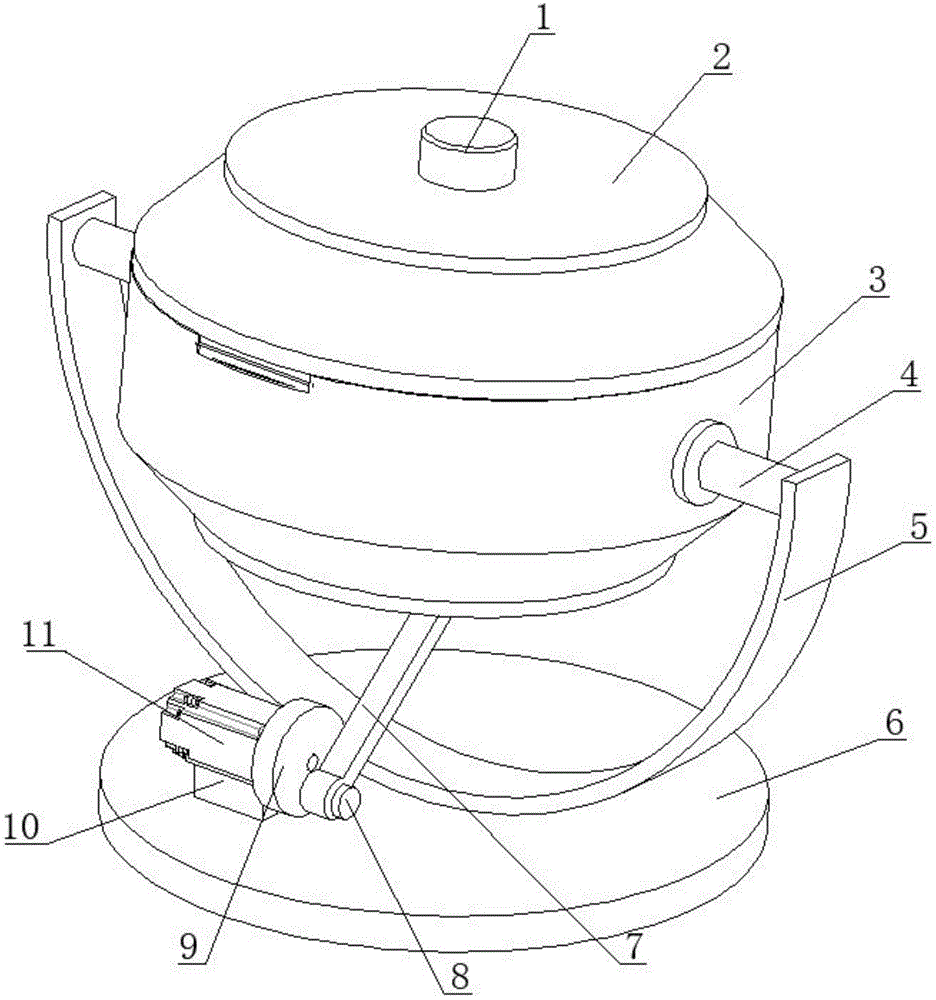

FIG. 1 is a schematic diagram 1 of the three-dimensional structure of the present invention.

FIG. 2 is a second schematic diagram of the three-dimensional structure of the present invention.

FIG. 3 is a partial enlarged view of A in FIG. 2 of the present invention.

FIG. 4 is a three-dimensional schematic diagram of the utility model.

FIG. 5 is a fourth schematic diagram of the three-dimensional structure of the present invention.

In the picture: 1. Motor 1, 2. Top cover, 3. Holding slot, 4. Round shaft, 5. Arc rod, 6. Bottom plate, 7. Connecting rod, 8. Fixed shaft, 9. Turntable, 10. Motor bracket, 11, motor two, 12, fixed block, 13, threaded column, 14, nut, 15, arc slot, 16, square, 17, rotating shaft, 18, stirring rod.

Detailed ways

A specific embodiment of the present invention will be described in detail below with reference to the accompanying drawings, but it should be understood that the protection scope of the present invention is not limited by the specific embodiment.

As shown in FIG. 1-FIG. 5, the present invention includes a base plate 6, the upper side of the base plate 6 is fixedly connected to an arc-shaped rod 5, and the two ends of the arc-shaped rod 5 are respectively fixedly connected to one end of the circular shaft 4, and the two The other end of the circular shaft 4 is hinged to both sides of the holding tank 3, the upper part of the holding tank 3 is hinged to the upper cover 2, the upper cover 2 is connected to the stirring module, and the lower side of the holding tank 3 is connected to Trough swing module. The bottom of the holding tank 3 is circular.

The stirring module includes a motor one 1, the motor one 1 is fixedly connected to the upper center of the upper cover 2, the output shaft of the motor one 1 passes through the upper cover 2 and is fixedly connected to a rotating shaft 17, and the rotating shaft 17 The lower, middle and lower parts of the shaft are fixedly connected to a group of evenly arranged stirring rods 18 .

The holding tank swing module includes a symmetrical fixing block 12 , the symmetrical fixed block 12 is fixedly connected to the lower eccentric part of the holding tank 3 , and the symmetrical fixed block 12 is hinged to one end and two sides of the connecting rod 7 respectively. , the other end of the connecting rod 7 is hinged to a fixed shaft 8 , and the fixed shaft 8 is fixedly connected to one side edge of the turntable 9 .

The center of the turntable 9 is fixedly connected to the output shaft of the second motor 11 , and the second motor 11 is fixedly connected to the bottom plate 6 through the motor bracket 10 .

A block 16 is fixedly connected to the upper part of one side of the holding tank 3 , the upper side of the block 16 is fixedly connected to a threaded post 13 , the threaded post 13 is threadedly connected to a nut 14 , and one side of the upper cover 2 corresponds to the thread The position of the post 13 is provided with an arc-shaped slot 15 , and the arc-shaped slot 15 can surround the threaded post 13 .

The working process of the utility model is as follows: when in use, unscrew the nut 14, open the upper cover 2, put the flour, yeast and water into the holding tank 3, then close the upper cover 2, and the threaded column 13 is inserted into the arc-shaped slot. In 15, tighten the nut 14, fix the upper cover 2, turn on the motor one 1 and the motor two 11, the output shaft of the motor one 1 rotates to drive the rotating shaft 17 and the stirring rod 18 to rotate, and the stirring rod 18 mixes and stirs the flour, yeast and water. , the second motor 11 drives the turntable 9 to rotate, the turntable 9 drives the fixed shaft 8 to rotate, the fixed shaft 8 drives the connecting rod 7 to swing back and forth, and the connecting rod 7 drives the fixed block 12 and the holding slot 3 to swing back and forth, so as to realize the swinging back and forth of the holding groove 3 At the same time, the stirring rod 18 rotates to knead the flour into dough, the holding tank 3 swings back and forth to drive the dough to move, the dough moves back and forth in the holding tank 3, and the surface of the dough gradually becomes smooth. 3 Shake without spilling flour, yeast and water.

The above disclosure is only a specific embodiment of the present invention, however, the present invention is not limited thereto, and any changes that can be conceived by those skilled in the art should fall within the protection scope of the present invention.

Claims (5)

1. The utility model provides an old dough automatic stirring process units, includes bottom plate (6), characterized by: upside fixed connection arc pole (5) of bottom plate (6), the both ends of arc pole (5) are the one end of fixed connection circle axle (4) respectively, two the other end of circle axle (4) articulates the both sides that hold groove (3) respectively, the upper portion hinge that holds groove (3) connects upper cover (2), stirring module is connected in upper cover (2), the downside that holds groove (3) is connected and is held the groove swing module.

2. The automatic old dough stirring process device of claim 1, which is characterized in that: the stirring module comprises a first motor (1), the first motor (1) is fixedly connected with the center of the upper side of the upper cover (2), an output shaft of the first motor (1) penetrates through a rotating shaft (17) fixedly connected with the upper cover (2), and a group of uniformly distributed stirring rods (18) are fixedly connected to the lower middle part and the lower part of the rotating shaft (17).

3. The automatic old dough stirring process device of claim 1, which is characterized in that: hold groove swing module including fixed block (12) of symmetry, the symmetry fixed block (12) fixed connection hold the eccentric department in lower part of groove (3), the symmetry fixed block (12) articulate the one end both sides of connecting rod (7) respectively, the articulated fixed axle (8) of the other end of connecting rod (7), a side edge position of fixed axle (8) fixed connection carousel (9).

4. The automatic old dough stirring process device of claim 3, which is characterized in that: the center of the rotary table (9) is fixedly connected with an output shaft of a second motor (11), and the second motor (11) is fixedly connected with the bottom plate (6) through a motor support (10).

5. The automatic old dough stirring process device of claim 1, which is characterized in that: hold one side upper portion fixed connection square (16) of groove (3), upside fixed connection screw thread post (13) of square (16), screw thread post (13) threaded connection nut (14), one side of upper cover (2) corresponds the position of screw thread post (13) is provided with arc draw-in groove (15), arc draw-in groove (15) can encircle screw thread post (13).
