A fertilization device for agricultural engineering

technical field

The utility model relates to the technical field of agricultural fertilization equipment, in particular to a fertilization device for agricultural engineering.

Background technique

In the process of planting crops, it is necessary to fertilize crops regularly. After retrieval, the patent document with the authorization announcement number of CN105027781B discloses an isometric equal-amount fertilization device, including a frame, and rollers are installed on the frame, so The roller drive is connected with a gearbox that is fixedly arranged on the frame shown, and the gearbox is connected with an equal-quantity fertilizing device. The equal-quantity fertilizing device is connected with a hopper and a trench opener. On the upper part of the frame, the opener is fixedly installed on the lower part of the frame.

However, the above-mentioned technology still has the disadvantage that the fertilizer is easy to agglomerate in the feed box, which leads to the blockage of the spreading pipeline during the spreading of the fertilizer. Therefore, a fertilization device for agricultural engineering is proposed.

Utility model content

The purpose of the utility model is to propose a fertilization device for agricultural engineering in order to solve the shortcomings existing in the prior art.

In order to achieve the above purpose, the utility model adopts the following technical scheme: a fertilization device for agricultural engineering, comprising a holding plate, a first support block, a funnel box, a discharge pipe and a transmission and conveying mechanism, and the four first support blocks are in the form of a The rectangle is fixedly installed on the bottom of the holding plate, the funnel box is fixedly installed on the holding plate, the discharge pipe is fixedly installed on the bottom of the funnel box, the transmission and conveying mechanism is arranged on the holding plate, the transmission The conveying mechanism includes a first rotating rod rotatably installed on the two first support blocks, a first gear is fixedly sleeved on any one of the first rotating rods, and a second rotating rod is rotatably installed on the top of the holding plate, so the A second gear is fixedly sleeved on the second rotating rod, the same chain is hinged between the first gear and the second gear, and a first bevel gear is fixedly sleeved on the second rotating rod. A third rotating rod is rotatably installed on the top of the holding plate, one end of the third rotating rod is fixedly installed with a second bevel gear, the first bevel gear is meshed with the second bevel gear, and the third rotation The other end of the rod is fixedly installed with a third bevel gear, a fourth rotating rod is rotatably installed in the funnel box, and the top end of the fourth rotating rod extends out of the funnel box and is fixedly installed with a fourth bevel gear, so The third bevel gear meshes with the fourth bevel gear, a stirring wheel is rotatably installed in the discharge pipe, and the bottom end of the fourth rotating rod extends into the discharge pipe and is fixedly connected with the top of the stirring wheel.

Preferably, rotating wheels are fixedly installed on both ends of the first rotating rod, and a push handle is fixedly installed on the top of the holding plate.

Preferably, the holding plate is provided with a sliding hole, and the chain is slidably connected with the sliding hole.

Preferably, two second support blocks are fixedly installed on the top of the holding plate, a first rotation through hole is formed on the second support block, and the second rotation rod is rotatably connected with the first rotation through hole.

Preferably, a third support block is fixedly installed on the holding plate, a second rotation through hole is formed on the third support block, and the third rotation rod is rotatably connected with the second rotation through hole.

Preferably, a fourth support block is fixedly installed on the top of the funnel box, a third rotation through hole is formed on the fourth support block, the third rotation rod is rotatably connected with the third rotation through hole, and the funnel The top of the box is fixed with a feeding funnel.

Compared with the prior art, the beneficial effects of the present invention are as follows: first, the device passes through the first rotating rod, the first gear, the second rotating rod, the second gear, the chain, the first bevel gear and the third rotating rod. , The second bevel gear, the third bevel gear, the fourth rotating rod, the fourth bevel gear and the stirring wheel are matched, the first rotating rod drives the first gear to rotate, and the first gear drives the second gear to rotate through the chain, The second gear drives the first bevel gear to rotate through the second rotating rod, the first bevel gear drives the third rotating rod to rotate through the second bevel gear, and the third rotating rod drives the fourth bevel gear through the third bevel gear Rotating, the fourth conical gear drives the stirring wheel to rotate through the fourth rotating rod, and the stirring wheel smashes the fertilizer through the rotation and then discharges it through the discharge pipe, thereby solving the problem of caking and clogging of the fertilizer.

The utility model solves the problem of fertilizer blockage by installing a stirring wheel at the position of the discharge port. After the fertilizer is agglomerated, the stirring wheel can crush the agglomerated fertilizer and then transport and apply the fertilizer.

Description of drawings

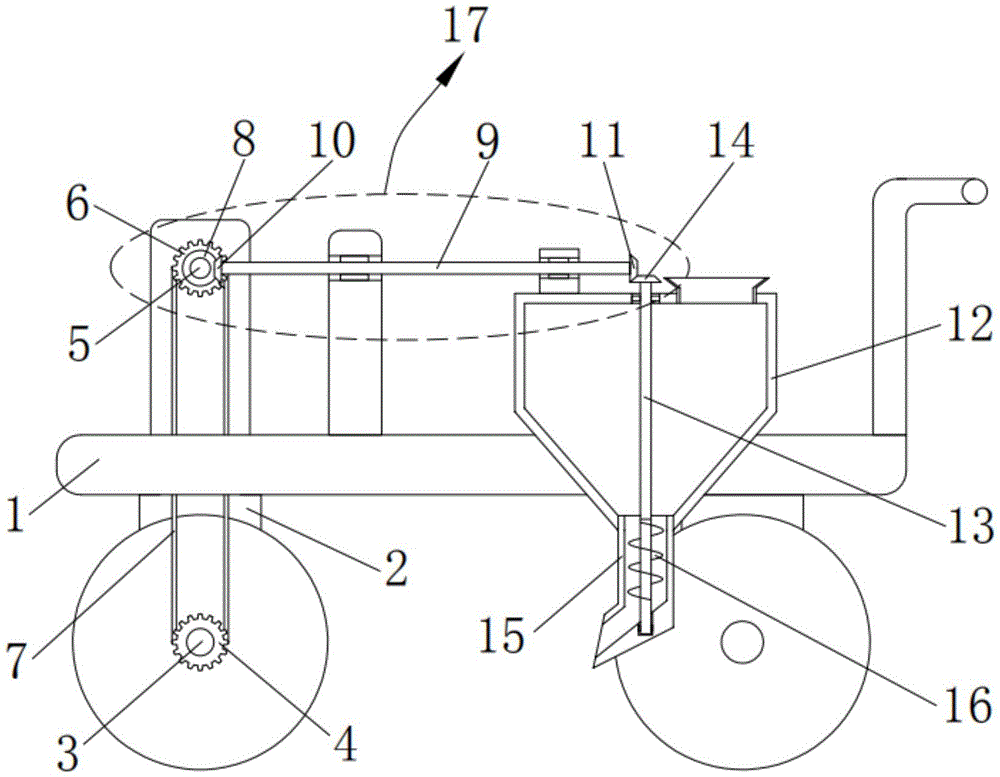

Fig. 1 is the front view sectional structure schematic diagram of the present utility model;

FIG. 2 is a schematic top view sectional structure diagram of the present invention.

In the figure: 1, the holding plate; 2, the first support block; 3, the first rotation rod; 4, the first gear; 5, the second rotation rod; 6, the second gear; 7, the chain; 8, the first Bevel gear; 9. Third rotating rod; 10. Second bevel gear; 11. Third bevel gear; 12. Funnel box; 13. Fourth rotating rod; 14. Fourth bevel gear; 15. Out Material pipe; 16. Mixing wheel; 17. Transmission and conveying mechanism.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to FIG. 1-FIG. 2, the utility model provides a technical solution: a fertilization device for agricultural engineering, comprising a holding plate 1, a first support block 2, a funnel box 12, a discharge pipe 15 and a transmission and conveying mechanism 17 , the four first support blocks 2 are fixedly installed on the bottom of the holding plate 1 in a rectangular shape, the funnel box 12 is fixedly installed on the holding plate 1, the discharge pipe 15 is fixedly installed on the bottom of the funnel box 12, and the transmission and conveying mechanism 17 is provided. On the holding plate 1, the transmission and conveying mechanism 17 includes a first rotating rod 3 rotatably mounted on the two first support blocks 2, and a first gear 4 is fixedly sleeved on any of the first rotating rods 3, and the holding plate The top of 1 is rotatably installed with a second rotating rod 5, a second gear 6 is fixedly sleeved on the second rotating rod 5, the same chain 7 is hinged between the first gear 4 and the second gear 6, and the second rotating rod 5 The upper fixed sleeve is provided with a first bevel gear 8, the top of the holding plate 1 is rotatably mounted with a third rotating rod 9, and one end of the third rotating rod 9 is fixedly mounted with a second bevel gear 10, and the first bevel gear 8 Meshing with the second bevel gear 10, the other end of the third rotating rod 9 is fixedly installed with the third bevel gear 11, the hopper box 12 is rotatably installed with a fourth rotating rod 13, and the top end of the fourth rotating rod 13 extends to the funnel A fourth bevel gear 14 is fixedly installed outside the box 12, the third bevel gear 11 meshes with the fourth bevel gear 14, a stirring wheel 16 is rotatably installed in the discharge pipe 15, and the bottom end of the fourth rotating rod 13 extends into the discharge pipe 15 and fixedly connected with the top of the stirring wheel 16 .

Both ends of the first rotating rod 3 are fixedly installed with rotating wheels, the top of the holding plate 1 is fixedly installed with a push handle, the holding plate 1 is provided with a sliding hole, the chain 7 is slidably connected with the sliding hole, and the holding plate 1 is provided with a sliding hole. Two second support blocks are fixedly installed on the top, the second support blocks are provided with a first rotating through hole, the second rotating rod 5 is rotatably connected with the first rotating through hole, and a third support block is fixedly installed on the holding plate 1, The third support block is provided with a second rotating through hole, the third rotating rod 9 is rotatably connected with the second rotating through hole, a fourth support block is fixedly installed on the top of the funnel box 12, and a third rotating through hole is opened on the fourth support block Through hole, the third rotating rod 9 is rotatably connected with the third rotating through hole, the top of the funnel box 12 is fixedly installed with a feeding funnel, and the first rotating rod 3, the first gear 4, the second rotating rod 5, the second gear 6. The chain 7, the first bevel gear 8, the third rotating rod 9, the second bevel gear 10, the third bevel gear 11, the fourth rotating rod 13, the fourth bevel gear 14 and the stirring wheel 16 are matched , the first rotating rod 3 drives the first gear 4 to rotate, the first gear 4 drives the second gear 6 to rotate through the chain 7, the second gear 6 drives the first conical gear 8 to rotate through the second rotating rod 5, and the first conical The gear 8 drives the third rotating rod 9 to rotate through the second bevel gear 10 , the third rotating rod 9 drives the fourth bevel gear 14 to rotate through the third bevel gear 11 , and the fourth bevel gear 14 rotates through the fourth rotating rod 13 The stirring wheel 16 is driven to rotate, and the stirring wheel 16 pulverizes the fertilizer by rotating and then discharges it through the discharge pipe 15, thereby solving the problem of caking and clogging of the fertilizer. The problem is that after the fertilizer is agglomerated, the agitating wheel 16 can crush the agglomerated fertilizer and then carry out the conveying and fertilization.

Working principle: when using, pour the fertilizer into the hopper box 12, and then push the entire fertilization device forward by pushing the handle. At this time, the rotating wheel drives the first gear 4 to rotate through the first rotating rod 3, and the first gear 4 drives the first gear 4 through the chain 7. The second gear 6 rotates, the second gear 6 drives the first bevel gear 8 to rotate through the second rotating rod 5, the first bevel gear 8 drives the third rotating rod 9 to rotate through the second bevel gear 10, and the third rotating rod 9 rotates. The fourth bevel gear 14 is driven to rotate by the third bevel gear 11 , the fourth bevel gear 14 drives the stirring wheel 16 to rotate through the fourth rotating rod 13 , and the stirring wheel 16 pulverizes the fertilizer by rotating and then discharges it through the discharge pipe 15 . Thus, the fertilization of crops is completed.

It should be noted that the equipment structure and accompanying drawings of the present utility model mainly describe the principle of the present utility model. In the technical aspect of the design principle, the settings of the power mechanism, power supply system and control system of the device are not completely described. On the premise that those skilled in the art understand the principles of the above utility model, they can clearly know the specifics of its power mechanism, power supply system and control system.

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (6)

1. A fertilizing device for agricultural engineering, characterized in that: it comprises a holding plate (1), a first support block (2), a funnel box (12), a discharge pipe (15) and a transmission conveying mechanism (17), Four first support blocks (2) are fixedly installed on the bottom of the holding plate (1) in the shape of a rectangle, the funnel box (12) is fixedly installed on the holding plate (1), and the discharge pipe (15) is fixed Installed on the bottom of the funnel box (12), the transmission and conveying mechanism (17) is arranged on the holding plate (1); The transmission and conveying mechanism (17) includes a first rotating rod (3) rotatably mounted on the two first support blocks (2), and a first gear (4) is fixedly sleeved on any one of the first rotating rods (3). ), a second rotating rod (5) is rotatably installed on the top of the holding plate (1), a second gear (6) is fixedly sleeved on the second rotating rod (5), and the first gear ( 4) The same chain (7) is hingedly connected with the second gear (6), the second rotating rod (5) is fixedly sleeved with a first bevel gear (8), and the holding plate (1) ) is rotatably installed with a third rotating rod (9), one end of the third rotating rod (9) is fixedly installed with a second bevel gear (10), the first bevel gear (8) The bevel gear (10) is meshed, the other end of the third rotating rod (9) is fixedly mounted with a third bevel gear (11), and the hopper box (12) is rotatably mounted with a fourth rotating rod (13) , the top of the fourth rotating rod (13) extends to the outside of the funnel box (12) and is fixedly installed with a fourth bevel gear (14), the third bevel gear (11) and the fourth bevel gear ( 14) Meshing, a stirring wheel (16) is rotatably installed in the discharge pipe (15), and the bottom end of the fourth rotating rod (13) extends into the discharge pipe (15) and is connected with the stirring wheel (16) top fixed connection. 2. A fertilization device for agricultural engineering according to claim 1, characterized in that: both ends of the first rotating rod (3) are fixedly installed with rotating wheels, and the top of the holding plate (1) A push handle is fixedly installed. 3 . The fertilization device for agricultural engineering according to claim 1 , wherein a sliding hole is formed on the holding plate ( 1 ), and the chain ( 7 ) is slidably connected with the sliding hole. 4 . 4 . The fertilization device for agricultural engineering according to claim 1 , wherein two second support blocks are fixedly installed on the top of the holding plate ( 1 ), and a second support block is provided on the second support block. 5 . A rotating through hole, the second rotating rod (5) is rotatably connected with the first rotating through hole. 5 . The fertilization device for agricultural engineering according to claim 1 , wherein a third support block is fixedly installed on the holding plate ( 1 ), and a second rotation is provided on the third support block. 6 . A through hole, the third rotating rod (9) is rotatably connected with the second rotating through hole. 6 . The fertilization device for agricultural engineering according to claim 1 , wherein a fourth support block is fixedly installed on the top of the hopper box ( 12 ), and a third rotation is provided on the fourth support block. 7 . A through hole, the third rotating rod (9) is rotatably connected with the third rotating through hole, and a feeding hopper is fixedly installed on the top of the hopper box (12).
