Abstract
The utility model discloses a high resistant separates cleaning equipment for safety packaging film, including purge chamber, lower steering roll, pneumatic cylinder one, push pedal, pneumatic cylinder two, regulating plate, go up steering roll, fan and the lamina membranacea, its characterized in that: the cleaning chamber set up on the support, lower steering roll both ends be provided with down the connecting axle, pneumatic cylinder one set up on cleaning chamber lateral wall bottom, the push pedal setting on piston rod one, pneumatic cylinder two set up at the cleaning chamber top, the regulating plate setting on piston rod two, last steering roll both ends be provided with the connecting axle, the fan setting in the exhaust pipe. The utility model discloses the cover is equipped with the washing brush cover on the steering roll down, and in the film body one end got into the scavenging chamber from the feed inlet, shifted out from the discharge gate after passing steering roll, lower steering roll in turn, the washing brush cover on the lower steering roll cleaned the high resistant barrier safety packaging film, improved the high resistant barrier safety packaging film clean efficiency and the quality of cleaning.
Description
Technical Field
The utility model relates to a high resistant separates safety packaging film processing technology field, specifically is a high resistant separates cleaning equipment for safety packaging film.
Background
In the liquid food packaging film course of working, its storage environment can influence the quality of liquid food packaging film, can lead to liquid food packaging film to breed microorganism in the humid environment, in order to improve the quality of liquid food packaging film, need carry out disinfection and sterilization to liquid food packaging film, like application number 201721893515.4's patent publication a special cleaning machine of PE membrane, it has solved the problem that power consumption is high, the water consumption is great, but it has that high resistant separates safe packaging film cleaning efficiency is not high, cleaning quality is not good, can not carry out the dry problem to the high resistant separates safe packaging film after the washing.
SUMMERY OF THE UTILITY MODEL
The utility model aims at overcoming the high resistant that current high resistant separation safety packaging film cleaning equipment exists and separating safety packaging film cleaning efficiency is not high, cleaning quality is not good, can not carry out dry problem to the high resistant after wasing and separate safety packaging film, provide a structural design is reasonable, high resistant separates safety packaging film cleaning efficiency height, cleaning quality height, can carry out dry high resistant to the high resistant after wasing and separate safety packaging film and separate cleaning equipment for safety packaging film.
The utility model provides a technical scheme that technical problem taken does:
the utility model provides a high resistant cleaning equipment for isolating safe packaging film, includes purge chamber, lower steering roll, pneumatic cylinder one, push pedal, pneumatic cylinder two, regulating plate, goes up steering roll, fan and the membrane body, its characterized in that: the cleaning device comprises a cleaning chamber, a bracket, a lower fixing plate, a bearing, a lower turning roller, a lower connecting shaft, a hydraulic cylinder and a first piston rod, wherein the cleaning chamber is arranged on the bracket, one side of the cleaning chamber is provided with a feed inlet and an air inlet pipe, the other side of the cleaning chamber is provided with a discharge outlet and an exhaust pipe, the bottom in the cleaning chamber is vertically provided with the lower fixing plate, the lower fixing plate is provided with the bearing, the cleaning chamber is connected with the bracket and the lower fixing plate through welding, the connecting strength between the cleaning chamber and the bracket and the lower fixing plate is improved, the structural strength of cleaning equipment is enhanced, the stability of a high-barrier safety packaging film in the cleaning process is improved, the two ends of the lower turning roller are provided with the lower connecting shaft, the lower connecting shaft penetrates through the bearing on the lower fixing plate, the first hydraulic cylinder is arranged at the bottom of the outer side wall of the, the stability of the first hydraulic cylinder in the working process is enhanced, the push plate is arranged on the first piston rod, the first hydraulic cylinder pushes the first piston rod and the push plate to move back and forth, the push plate moves back and forth at the bottom of the cleaning chamber to stir water in the cleaning chamber, so that the high-barrier safety packaging film in the conveying process in the cleaning chamber is cleaned by the water, the high-barrier safety packaging film is wiped by a wiping layer on the push plate, the cleaning quality of the high-barrier safety packaging film is improved, the second hydraulic cylinder is arranged at the top of the cleaning chamber, the second piston rod is arranged on the second hydraulic cylinder, the second piston rod vertically extends into the cleaning chamber, the second hydraulic cylinder is arranged on the cleaning chamber through bolts, the mounting efficiency and the mounted stability of the second hydraulic cylinder are improved, the stability of the second hydraulic cylinder in the working process is enhanced, the adjusting plate is arranged on the second piston rod, and, the bearing is arranged on the upper fixing plate, the adjusting plate is connected with the piston rod II and the upper fixing plate in a welding mode, the connection strength between the adjusting plate and the piston rod II and the upper fixing plate is improved, the stability of the adjusting plate in the ascending or descending process is enhanced, the upper ends of the upper steering rollers are provided with the upper connecting shafts, the upper connecting shafts penetrate through the bearing on the upper fixing plate, the fan is arranged in the exhaust pipe, the power line is arranged on the fan, air flow at the top in the cleaning chamber can be discharged from the exhaust pipe through the fan, air flow outside the cleaning chamber enters the cleaning chamber through the air inlet pipe, the high-barrier safety packaging film in the conveying process in the cleaning chamber is dried, the drying efficiency of the high-barrier safety packaging film after cleaning is improved, one end of the film body enters the cleaning chamber from the feed inlet and is shifted out from the discharge port after alternately penetrating through the upper steering, the lower part of the high-barrier safety packaging film in the transmission process is in water in the cleaning chamber, the high-barrier safety packaging film can be fully cleaned, the cleaning efficiency and the cleaning quality of the high-barrier safety packaging film are improved, and the labor intensity of operators is reduced.
Preferably, the wash chamber lateral wall on be provided with the inlet tube, be provided with the drain pipe bottom the wash chamber to be provided with the valve on the drain pipe, close the valve on the drain pipe, through the inlet tube to injecting water in the wash chamber, wash the processing to high resistant safe packaging film, high resistant safe packaging film washs the completion back, opens the valve on the drain pipe, can discharge the sewage in the wash chamber fast, improved work efficiency.
Preferably, the lower steering roller is sleeved with the cleaning brush sleeve, one end of the film body enters the cleaning chamber from the feeding hole, and moves out from the discharging hole after alternately passing through the upper steering roller and the lower steering roller, and the cleaning brush sleeve on the lower steering roller cleans the high-barrier safety packaging film, so that the cleaning efficiency and the cleaning quality of the high-barrier safety packaging film are improved.
Preferably, the top of the push plate is provided with a wiping layer, through holes are formed in the push plate, the first hydraulic cylinder pushes the first piston rod and the push plate to move back and forth, the push plate is made to move back and forth at the bottom of the cleaning chamber, water in the cleaning chamber is stirred, the high-barrier safety packaging film in the transmission process in the cleaning chamber is cleaned by the water, the wiping layer in the push plate wipes the high-barrier safety packaging film, the cleaning quality of the high-barrier safety packaging film is improved, the through holes are formed in the push plate, the difficulty of the push plate in the moving process in the cleaning chamber is reduced, the stability of the wiping layer in the push plate to the high-barrier safety packaging film in the process is improved, and the cleaning quality of the high-.
Preferably, go up to turn to the roller on the cover be equipped with the sponge layer, go up to turn to the sponge layer on the roller and can adsorb the water on the high separation safety packaging film who shifts out from the washing chamber aquatic, improve the drying efficiency of washing back high separation safety packaging film, further improve the cleaning quality of high separation safety packaging film.
Preferably, a blocking rod is arranged between the upper fixing plate and the upper fixing plate, the blocking rod can limit the high-barrier safety packaging film in the descending process along with the upper steering roller, the stability of the high-barrier safety packaging film driven by the upper steering roller in the up-and-down moving process is improved, and the cleaning quality of the high-barrier safety packaging film is further improved.
Preferably, the feed inlet and the discharge outlet on the disinfectant tank are internally provided with the static removing brushes, static carried by the high-barrier safety packaging film in the transmission process of the feed inlet and the discharge outlet can be removed through the static removing brushes in the feed inlet and the discharge outlet, and the cleaning quality of the high-barrier safety packaging film is improved.
Has the advantages that: the utility model discloses be provided with the cleaning layer at the push pedal top, and seted up the thru hole in the push pedal, pneumatic cylinder one promotes piston rod one and push pedal round trip movement, make the push pedal round trip movement in the purge chamber bottom, stir the water in the purge chamber, make water wash the high resistant barrier packaging film in the purge chamber transmission process, the cleaning layer in the push pedal cleans the high resistant barrier packaging film, improve the cleaning quality of high resistant barrier packaging film, set up the thru hole in the push pedal, the degree of difficulty in the purge chamber removal in-process of push pedal has been reduced, the stability of cleaning layer to high resistant barrier packaging film in-process in the push pedal is improved, improve the cleaning quality of high resistant barrier packaging film, the cover is equipped with the sponge layer on last steering roll, the sponge layer on last steering roll can adsorb the water on the high resistant barrier packaging film that shifts out from the purge chamber aquatic, improve the drying efficiency of high barrier packaging film after wasing, further improving the cleaning quality of the high-barrier safety packaging film.
Drawings
Fig. 1 is a schematic structural diagram of the present invention.
Fig. 2 is a schematic view of a part of the structure of the present invention, showing the connection structure of the cleaning chamber and the lower steering roller.
Fig. 3 is a schematic view of a part of the structure of the present invention, showing the connection structure of the push plate and the through hole.
Fig. 4 is a schematic view of a part of the structure of the present invention, illustrating the connection structure of the adjusting plate and the upper steering roller.
Fig. 5 is a schematic view of a part of the structure of the present invention, showing the connection structure of the upper fixing plate and the stopper rod.
Fig. 6 is a schematic view of a part of the structure of the present invention, illustrating the connection structure of the feed inlet and the static removing brush.
Fig. 7 is a schematic diagram of another embodiment of the present invention.
Fig. 8 is a partial schematic structural view of fig. 7 of the present invention, illustrating a connection structure of an upper fixing plate and a scraper.
In the figure: 1. the cleaning device comprises a cleaning chamber, 2, a lower steering roller, 3, a first hydraulic cylinder, 4, a push plate, 5, a second hydraulic cylinder, 6, an adjusting plate, 7, an upper steering roller, 8, a fan, 9, a membrane body, 10, a support, 11, a feeding port, 12, an air inlet pipe, 13, a discharging port, 14, an exhaust pipe, 15, a water inlet pipe, 16, a lower fixing plate, 17, a water outlet pipe, 18, a static removing brush, 19, a bearing, 20, a valve, 21, a lower connecting shaft, 22, a cleaning brush sleeve, 23, a first piston rod, 24, a wiping layer, 25, a through hole, 26, a second piston rod, 27, an upper fixing plate, 28, a gear rod, 29, an upper connecting shaft, 30, a sponge layer, 31, a power line, 32, an activated carbon layer and.
Detailed Description
The present invention will be described in more detail with reference to the accompanying drawings.
The first embodiment is as follows:
as shown in the attached figures 1-6, the cleaning equipment for the high-barrier safety packaging film comprises a cleaning chamber 1, a lower steering roller 2, a first hydraulic cylinder 3, a push plate 4, a second hydraulic cylinder 5, an adjusting plate 6, an upper steering roller 7, a fan 8 and a film body 9, and is characterized in that: the cleaning device is characterized in that the cleaning chamber 1 is arranged on a support 10, a feed inlet 11 and an air inlet pipe 12 are arranged on one side of the cleaning chamber 1, a discharge outlet 13 and an exhaust pipe 14 are arranged on the other side of the cleaning chamber 1, a lower fixing plate 16 is vertically arranged at the bottom in the cleaning chamber 1, a bearing 19 is arranged on the lower fixing plate 16, the cleaning chamber 1, the support 10 and the lower fixing plate 16 are connected through welding, the connection strength between the cleaning chamber 1 and the support 10 and the lower fixing plate 16 is improved, the structural strength of cleaning equipment is enhanced, the stability of a high-barrier safety packaging film in the cleaning process is improved, lower connecting shafts 21 are arranged at two ends of a lower steering roller 2, the lower connecting shafts 21 penetrate through the bearing 19 on the lower fixing plate 16, the hydraulic cylinder 3 is arranged at the bottom of the outer side wall of the cleaning chamber 1, a piston rod 23 is arranged on the hydraulic cylinder 3, and the piston rod 23 transversely extends, installing a hydraulic cylinder 3 on a cleaning chamber 1 through a bolt, improving the installation efficiency of the hydraulic cylinder 3 and the stability after installation, enhancing the stability of the hydraulic cylinder 3 in the working process, arranging a push plate 4 on a piston rod 23, pushing the piston rod 23 and the push plate 4 to move back and forth by the hydraulic cylinder 3, enabling the push plate 4 to move back and forth at the bottom of the cleaning chamber 1, stirring water in the cleaning chamber 1, enabling the water to clean a high-barrier safety packaging film in the cleaning chamber 1 in the transmission process, wiping layers 24 on the push plate 4 wipe the high-barrier safety packaging film, improving the cleaning quality of the high-barrier safety packaging film, arranging a hydraulic cylinder two 5 at the top of the cleaning chamber 1, arranging a piston rod two 26 on the hydraulic cylinder two 5, vertically extending the piston rod two 26 into the cleaning chamber 1, installing the hydraulic cylinder two 5 on the cleaning chamber 1 through a bolt, improve the installation efficiency of the second hydraulic cylinder 5 and the stability after installation, strengthen the stability of the second hydraulic cylinder 5 in the course of working, the regulating plate 6 set up on the second piston rod 26, be provided with the upper fixed plate 27 perpendicularly on the regulating plate 6, and be provided with the bearing 19 on the upper fixed plate 27, pass through welded connection between regulating plate 6 and the second piston rod 26, the upper fixed plate 27, improved the joint strength between regulating plate 6 and the second piston rod 26, the upper fixed plate 27, strengthen the stability in the ascending or descending process of regulating plate 6, the last turn to roller 7 both ends be provided with the upper connecting axle 29, and pass the upper connecting axle 29 through the bearing 19 on the upper fixed plate 27, the fan 8 set up in the exhaust pipe 14, and be provided with the power cord 31 on the fan 8, can discharge the air current at the top in the cleaning chamber 1 from the exhaust pipe 14 through the fan 8, the air current outside the cleaning chamber 1 gets into the cleaning chamber 1 through the air-supply line, carry out drying process to the high resistant barrier safety packaging film in the transmission course in the purge chamber 1, improve the drying efficiency who washs back high barrier safety packaging film, the diaphragm body 9 one end get into purge chamber 1 from feed inlet 11 in, pass in turn to roller 7, shift out from discharge gate 13 after turning to roller 2 down, make the low part of the high resistant barrier safety packaging film in the transmission course in the aquatic of purge chamber 1, can carry out abundant cleaning process to the high resistant barrier safety packaging film, improved the cleaning efficiency and the cleaning quality of high resistant barrier safety packaging film, reduced operating personnel's intensity of labour.
Preferably, wash chamber 1 lateral wall on be provided with inlet tube 15, be provided with drain pipe 17 in wash chamber 1 bottom to be provided with valve 20 on drain pipe 17, close valve 20 on the drain pipe 17, through inlet tube 15 to injecting water in wash chamber 1, wash the processing to high resistant safe packaging film that separates, high resistant separates safe packaging film and washs the completion back, opens valve 20 on the drain pipe 17, can discharge the sewage in wash chamber 1 fast, improved work efficiency.
Preferably, the lower steering roller 2 is sleeved with a cleaning brush sleeve 22, one end of the film body 9 enters the cleaning chamber 1 from the feeding hole 11, and alternately penetrates through the upper steering roller 7 and the lower steering roller 2 and then is moved out from the discharging hole 13, and the cleaning brush sleeve 22 on the lower steering roller 2 cleans the high-barrier safety packaging film, so that the cleaning efficiency and the cleaning quality of the high-barrier safety packaging film are improved.

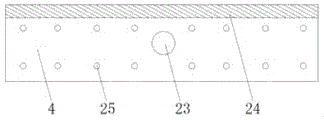

Preferably, the top of the push plate 4 is provided with a wiping layer 24, the push plate 4 is provided with a through hole 25, the hydraulic cylinder 3 pushes the piston rod 23 and the push plate 4 to move back and forth, so that the push plate 4 moves back and forth at the bottom of the cleaning chamber 1, water in the cleaning chamber 1 is stirred, the high-barrier safety packaging film in the cleaning chamber 1 in the transmission process is cleaned by the water, the wiping layer 24 on the push plate 4 wipes the high-barrier safety packaging film, the cleaning quality of the high-barrier safety packaging film is improved, the through hole 25 is formed in the push plate 4, the difficulty of the push plate 4 in the moving process in the cleaning chamber 1 is reduced, the stability of the wiping layer 24 on the push plate 4 in the high-barrier safety packaging film process is improved, and the cleaning quality of the high-barrier safety packaging film is improved.
Preferably, go up to turn to roller 7 on the cover be equipped with the sponge layer, go up the sponge layer on the roller 7 and can adsorb the water on the high separation safety packaging film who shifts out from the water in purge chamber 1, improve the drying efficiency of high separation safety packaging film after the washing, further improve the cleaning quality of high separation safety packaging film.
Preferably, a blocking rod 28 is arranged between the upper fixing plate 27 and the upper fixing plate 27, the blocking rod 28 can limit the high-barrier safety packaging film in the descending process along with the upper steering roller 7, the stability of the high-barrier safety packaging film driven by the upper steering roller 7 in the up-and-down moving process is improved, and the cleaning quality of the high-barrier safety packaging film is further improved.
Preferably, the feed inlet 11 and the discharge outlet 13 on the disinfectant tank are both provided with the static removing brushes 18, and static carried by the high-barrier safety packaging film in the transmission process through the feed inlet 11 and the discharge outlet 13 can be removed through the static removing brushes 18 in the feed inlet 11 and the discharge outlet 13, so that the cleaning quality of the high-barrier safety packaging film is improved.
Example two:
as shown in figures 7-8: the utility model provides a high resistant cleaning equipment for isolating safe packaging film, includes purge chamber 1, lower steering roll 2, pneumatic cylinder 3, push pedal 4, pneumatic cylinder two 5, regulating plate 6, goes up steering roll 7, fan 8 and film body 9, its characterized in that: the cleaning device is characterized in that the cleaning chamber 1 is arranged on a support 10, a feed inlet 11 and an air inlet pipe 12 are arranged on one side of the cleaning chamber 1, a discharge outlet 13 and an exhaust pipe 14 are arranged on the other side of the cleaning chamber 1, a lower fixing plate 16 is vertically arranged at the bottom in the cleaning chamber 1, a bearing 19 is arranged on the lower fixing plate 16, the cleaning chamber 1, the support 10 and the lower fixing plate 16 are connected through welding, the connection strength between the cleaning chamber 1 and the support 10 and the lower fixing plate 16 is improved, the structural strength of cleaning equipment is enhanced, the stability of a high-barrier safety packaging film in the cleaning process is improved, lower connecting shafts 21 are arranged at two ends of a lower steering roller 2, the lower connecting shafts 21 penetrate through the bearing 19 on the lower fixing plate 16, the hydraulic cylinder 3 is arranged at the bottom of the outer side wall of the cleaning chamber 1, a piston rod 23 is arranged on the hydraulic cylinder 3, and the piston rod 23 transversely extends, installing a hydraulic cylinder 3 on a cleaning chamber 1 through a bolt, improving the installation efficiency of the hydraulic cylinder 3 and the stability after installation, enhancing the stability of the hydraulic cylinder 3 in the working process, arranging a push plate 4 on a piston rod 23, pushing the piston rod 23 and the push plate 4 to move back and forth by the hydraulic cylinder 3, enabling the push plate 4 to move back and forth at the bottom of the cleaning chamber 1, stirring water in the cleaning chamber 1, enabling the water to clean a high-barrier safety packaging film in the cleaning chamber 1 in the transmission process, wiping layers 24 on the push plate 4 wipe the high-barrier safety packaging film, improving the cleaning quality of the high-barrier safety packaging film, arranging a hydraulic cylinder two 5 at the top of the cleaning chamber 1, arranging a piston rod two 26 on the hydraulic cylinder two 5, vertically extending the piston rod two 26 into the cleaning chamber 1, installing the hydraulic cylinder two 5 on the cleaning chamber 1 through a bolt, improve the installation efficiency of the second hydraulic cylinder 5 and the stability after installation, strengthen the stability of the second hydraulic cylinder 5 in the course of working, the regulating plate 6 set up on the second piston rod 26, be provided with the upper fixed plate 27 perpendicularly on the regulating plate 6, and be provided with the bearing 19 on the upper fixed plate 27, pass through welded connection between regulating plate 6 and the second piston rod 26, the upper fixed plate 27, improved the joint strength between regulating plate 6 and the second piston rod 26, the upper fixed plate 27, strengthen the stability in the ascending or descending process of regulating plate 6, the last turn to roller 7 both ends be provided with the upper connecting axle 29, and pass the upper connecting axle 29 through the bearing 19 on the upper fixed plate 27, the fan 8 set up in the exhaust pipe 14, and be provided with the power cord 31 on the fan 8, can discharge the air current at the top in the cleaning chamber 1 from the exhaust pipe 14 through the fan 8, the air current outside the cleaning chamber 1 gets into the cleaning chamber 1 through the air-supply line, carry out drying process to the high resistant barrier safety packaging film in the transmission course in the purge chamber 1, improve the drying efficiency who washs back high barrier safety packaging film, the diaphragm body 9 one end get into purge chamber 1 from feed inlet 11 in, pass in turn to roller 7, shift out from discharge gate 13 after turning to roller 2 down, make the low part of the high resistant barrier safety packaging film in the transmission course in the aquatic of purge chamber 1, can carry out abundant cleaning process to the high resistant barrier safety packaging film, improved the cleaning efficiency and the cleaning quality of high resistant barrier safety packaging film, reduced operating personnel's intensity of labour.
Preferably, wash chamber 1 lateral wall on be provided with inlet tube 15, be provided with drain pipe 17 in wash chamber 1 bottom to be provided with valve 20 on drain pipe 17, close valve 20 on the drain pipe 17, through inlet tube 15 to injecting water in wash chamber 1, wash the processing to high resistant safe packaging film that separates, high resistant separates safe packaging film and washs the completion back, opens valve 20 on the drain pipe 17, can discharge the sewage in wash chamber 1 fast, improved work efficiency.
Preferably, the lower steering roller 2 is sleeved with a cleaning brush sleeve 22, one end of the film body 9 enters the cleaning chamber 1 from the feeding hole 11, and alternately penetrates through the upper steering roller 7 and the lower steering roller 2 and then is moved out from the discharging hole 13, and the cleaning brush sleeve 22 on the lower steering roller 2 cleans the high-barrier safety packaging film, so that the cleaning efficiency and the cleaning quality of the high-barrier safety packaging film are improved.
Preferably, the top of the push plate 4 is provided with a wiping layer 24, the push plate 4 is provided with a through hole 25, the hydraulic cylinder 3 pushes the piston rod 23 and the push plate 4 to move back and forth, so that the push plate 4 moves back and forth at the bottom of the cleaning chamber 1, water in the cleaning chamber 1 is stirred, the high-barrier safety packaging film in the cleaning chamber 1 in the transmission process is cleaned by the water, the wiping layer 24 on the push plate 4 wipes the high-barrier safety packaging film, the cleaning quality of the high-barrier safety packaging film is improved, the through hole 25 is formed in the push plate 4, the difficulty of the push plate 4 in the moving process in the cleaning chamber 1 is reduced, the stability of the wiping layer 24 on the push plate 4 in the high-barrier safety packaging film process is improved, and the cleaning quality of the high-barrier safety packaging film is improved.
Preferably, go up to turn to roller 7 on the cover be equipped with the sponge layer, go up the sponge layer on the roller 7 and can adsorb the water on the high separation safety packaging film who shifts out from the water in purge chamber 1, improve the drying efficiency of high separation safety packaging film after the washing, further improve the cleaning quality of high separation safety packaging film.
Preferably, a blocking rod 28 is arranged between the upper fixing plate 27 and the upper fixing plate 27, the blocking rod 28 can limit the high-barrier safety packaging film in the descending process along with the upper steering roller 7, the stability of the high-barrier safety packaging film driven by the upper steering roller 7 in the up-and-down moving process is improved, and the cleaning quality of the high-barrier safety packaging film is further improved.
Preferably, the feed inlet 11 and the discharge outlet 13 on the disinfectant tank are both provided with the static removing brushes 18, and static carried by the high-barrier safety packaging film in the transmission process through the feed inlet 11 and the discharge outlet 13 can be removed through the static removing brushes 18 in the feed inlet 11 and the discharge outlet 13, so that the cleaning quality of the high-barrier safety packaging film is improved.
Preferably, the activated carbon layer 32 is arranged in the air inlet pipe 12, and the air flow passing through the air inlet pipe 12 can be purified through the activated carbon layer 32, so that impurities in the air flow are prevented from entering the cleaning chamber 1 to pollute the cleaned high-barrier safety packaging film, the cleanliness of the high-barrier safety packaging film is improved, and the cleaning quality of the high-barrier safety packaging film is further improved.
Preferably, be provided with scraper blade 33 between upper fixed plate 27 and the upper fixed plate 27, can scrape the absorptive water of sponge layer on the upper steering roll 7 through scraper blade 33, reduce the water absorption capacity on sponge layer, improve the sponge layer to the efficiency and the water absorption capacity that absorb water of high separation safety packaging film, improve the drying efficiency and the drying quality of high separation safety packaging film after wasing, and then improve the cleaning quality of high separation safety packaging film.
The above description is only exemplary of the present invention and should not be taken as limiting the scope of the present invention, as any modifications, equivalents, improvements and the like made within the spirit and principles of the present invention are intended to be included within the scope of the present invention.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.
The utility model discloses the part that does not relate to all is the same with prior art or can adopt prior art to realize.
Claims (7)
1. The utility model provides a high resistant cleaning equipment for isolating safe packaging film, includes purge chamber, lower steering roll, pneumatic cylinder one, push pedal, pneumatic cylinder two, regulating plate, goes up steering roll, fan and the membrane body, its characterized in that: the cleaning device is characterized in that the cleaning chamber is arranged on a support, a feed inlet and an air inlet pipe are arranged on one side of the cleaning chamber, a discharge outlet and an exhaust pipe are arranged on the other side of the cleaning chamber, a lower fixing plate is vertically arranged at the bottom in the cleaning chamber, a bearing is arranged on the lower fixing plate, lower connecting shafts are arranged at two ends of the lower steering roller and penetrate through the bearing on the lower fixing plate, a first hydraulic cylinder is arranged at the bottom of the outer side wall of the cleaning chamber, a first piston rod is arranged on the first hydraulic cylinder and transversely extends into the cleaning chamber, a push plate is arranged on the first piston rod, a second hydraulic cylinder is arranged at the top of the cleaning chamber, a second piston rod is arranged on the second hydraulic cylinder and vertically extends into the cleaning chamber, an adjusting plate is arranged on the second piston rod, an upper fixing plate is vertically arranged on the adjusting plate, and a bearing is arranged on, the upper turning roll is provided with upper connecting shafts at two ends, the upper connecting shafts penetrate through bearings on the upper fixing plate, the fan is arranged in the exhaust pipe, a power cord is arranged on the fan, one end of the membrane body enters the cleaning chamber from the feed inlet, and the membrane body alternately penetrates through the upper turning roll and the lower turning roll and then is moved out from the discharge outlet.
2. The cleaning apparatus for high-barrier security packaging film according to claim 1, characterized in that: the side wall of the cleaning chamber is provided with a water inlet pipe, the bottom of the cleaning chamber is provided with a water drainage pipe, and the water drainage pipe is provided with a valve.
3. The cleaning apparatus for high-barrier security packaging film according to claim 1, characterized in that: the lower steering roller is sleeved with a cleaning brush sleeve.
4. The cleaning apparatus for high-barrier security packaging film according to claim 1, characterized in that: the top of the push plate is provided with a wiping layer, and the push plate is provided with a through hole.
5. The cleaning apparatus for high-barrier security packaging film according to claim 1, characterized in that: the upper steering roller is sleeved with a sponge layer.
6. The cleaning apparatus for high-barrier security packaging film according to claim 1, characterized in that: and a stop lever is arranged between the upper fixing plate and the upper fixing plate.
7. The cleaning apparatus for high-barrier security packaging film according to claim 1, characterized in that: and the feed inlet and the discharge outlet on the cleaning chamber are internally provided with static removing brushes.
