Abstract

A magnesium sulfate applicator, comprising an applicator body, wherein the applicator body is provided with a first cavity and a second cavity independent of each other, and a zipper is arranged at the opening of the first cavity and the second cavity, and the first cavity and the second cavity are provided with a zipper. A temperature transfer device is placed in one cavity, and a liquid storage slow-release device is placed in the second cavity. The temperature transfer device includes a heat-conducting plate, and a plurality of strip-shaped water bladders are fixed on the upper surface of the heat-conducting plate. There is sterile water, and the liquid storage slow-release device is composed of a liquid absorbing sponge plate and a liquid feeding pipe embedded in the liquid absorbing sponge plate. One side of the sponge plate is drawn out and protrudes from the zipper of the second cavity. The applicator can prevent the ice water or hot water from accumulating at the bottom, so that the upper area of the swollen part cannot be used for cold compress or hot compress, and can continuously provide magnesium sulfate solution to the applicator body, preventing magnesium sulfate The problem of insufficient solution that affects the effect of cold or hot compresses.

Description

A magnesium sulfate patch

technical field

The utility model relates to the field of medical care products, in particular to a magnesium sulfate applicator.

Background technique

Magnesium sulfate solution has the pharmacological effects of hypertonicity, detumescence and analgesia, so it is often used in clinical practice to reduce swelling, swelling and pain in local swollen tissues. Because tissue swelling requires different states of magnesium sulfate solution to reduce swelling and pain in different periods, if swelling occurs within 48 hours, patients need to use magnesium sulfate solution cold compress to achieve pain relief and stimulate blood vessels, tissue contraction to achieve less bleeding Or exudate and cause the tissue to continue to swell; and after 48 hours, it is necessary to use magnesium sulfate solution hot compress to promote blood vessel expansion and speed up blood vessel flow rate, so as to achieve the purpose of accelerating the absorption of blood clots and tissue fluid by the tissue.

The existing practice of using magnesium sulfate solution to reduce swelling is to directly put the towel into the magnesium sulfate solution and soak it, and twist it to a semi-dry state after soaking. The rubber bag is placed on the towel, and the towel is cooled or heated through the rubber bag to achieve the purpose of ice or hot compress. This method has the following problems: 1. When the rubber bag is placed flat on the towel, it is troublesome to fix the towel and the rubber bag on the partially swollen part; 2. When the rubber bag is in an upright state, the ice or hot water in the bag will Under the action of gravity, it will accumulate at the bottom of the bag body, making it difficult for the upper area of the rubber bag to cool or warm the upper area of the towel, making it difficult for the swollen tissue in this area to achieve the purpose of reducing swelling and pain relief; 3. The evaporation area of the towel Large, during cold or hot compresses, the magnesium sulfate solution on the towel is very easy to volatilize. It is necessary to remove the towel several times and dip the magnesium sulfate solution to continue the cold or hot compress. This method is extremely cumbersome and cannot continuously eliminate the swelling. swelling and pain relief.

Utility model content

In order to solve the above problems, the present invention designs a magnesium sulfate applicator. The applicator has an assembled structure, which facilitates the replacement of components in order to achieve the purpose of continuous cold compress or hot compress. The applicator can prevent ice during use. The problem of accumulation of water or hot water at the bottom makes the upper area of the swollen part unable to apply cold or hot compresses. At the same time, the application can use the method of injecting magnesium sulfate into the absorbent sponge plate through the liquid feeding tube and the storage of the absorbent sponge plate. The liquid capacity continuously provides magnesium sulfate solution to the applicator body, preventing the problem of insufficient magnesium sulfate solution in the applicator body that affects the effect of cold compress or hot compress.

In order to realize the above-mentioned technical purpose and achieve the above-mentioned technical effect, the present invention is realized through the following technical solutions:

A magnesium sulfate applicator is characterized in that it comprises an applicator body, wherein the applicator body is provided with a first cavity and a second cavity independent of each other, and the openings of the first cavity and the second cavity are provided with A zipper, a temperature transfer device is placed in the first cavity, and a liquid storage slow-release device is placed in the second cavity. Sterile water is encapsulated in the water bag, and the liquid storage slow-release device is composed of a liquid absorbing sponge plate and a liquid feeding pipe embedded in the liquid absorbing sponge plate. The connector is drawn from one side of the absorbent sponge plate and protrudes from the zipper of the second cavity.

Preferably, the applicator body is made of cotton material, the heat-conducting plate is made of heat-conducting silica gel material, and the water bag is made of plastic film.

The beneficial effects of the utility model are: the applicator is an assembled structure, which is convenient to replace the components in it to achieve the purpose of continuous cold compress or hot compress, and the applicator can prevent ice water or hot water from accumulating on the bottom during use. The upper area of the swollen part cannot be used for cold compress or hot compress because of the problem. At the same time, the application can use the liquid feeding tube to inject magnesium sulfate into the absorbent sponge plate and the liquid storage capacity of the absorbent sponge plate to continuously provide sulfuric acid to the applicator body. Magnesium solution, to prevent the problem of insufficient magnesium sulfate solution in the applicator body that affects the effect of cold compress or hot compress.

Description of drawings

In order to illustrate the technical solutions of the embodiments of the present invention more clearly, the accompanying drawings required for the description of the embodiments will be briefly introduced below. Obviously, the drawings in the following description are only some embodiments of the present invention. For those of ordinary skill in the art, other drawings can also be obtained from these drawings without creative effort.

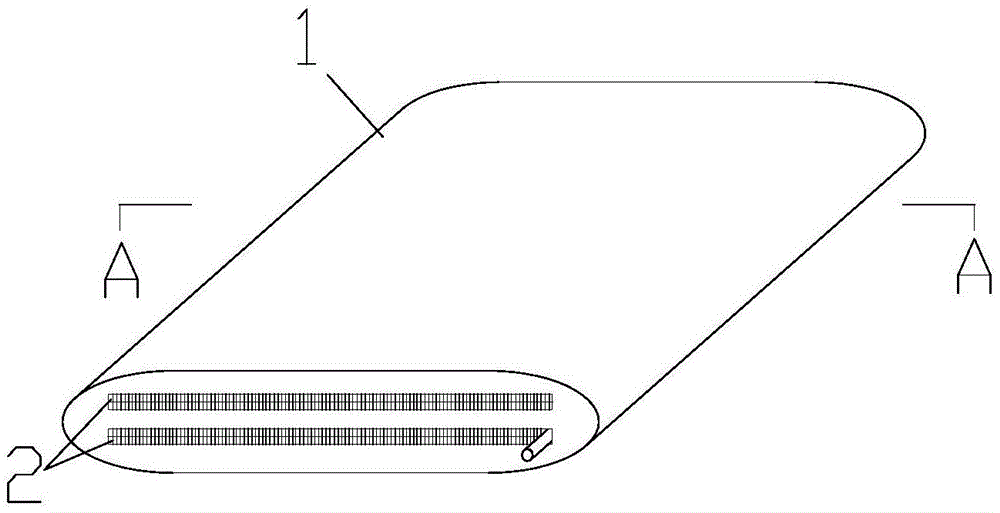

Fig. 1 is the three-dimensional structure schematic diagram of magnesium sulfate application;

Fig. 2 is the A-A cross-sectional structure schematic diagram of magnesium sulfate application;

Fig. 3 is the structural representation of described temperature transfer device;

FIG. 4 is a schematic structural diagram of the described liquid storage sustained-release device.

In the accompanying drawings, the list of components represented by each number is as follows:

1-Applying body, 2-Zipper, 3-First cavity, 4-Second cavity, 5-Temperature transfer device, 6-Liquid-absorbing sponge plate, 7-Liquid feeding tube, 8-Conductive plate, 9- Water bladder, 10-liquid outlet, 11-connector.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Referring to Figures 1-4, a magnesium sulfate applicator includes an applicator body 1. The applicator body 1 is provided with a first cavity 3 and a second cavity 4 that are independent of each other. A zipper 2 is provided at the openings of the two cavities 4. A temperature transfer device 5 is placed in the first cavity 3, and a liquid storage slow-release device is placed in the second cavity 4. The temperature transfer device 5 includes a heat conduction plate. 8. Several strip-shaped water bladders 9 are fixed on the upper surface of the heat-conducting plate 8, and sterile water is encapsulated in the water bladders 9. The liquid storage slow-release device consists of a liquid-absorbing sponge plate 6 and is embedded in the liquid-absorbing sponge plate 6. The liquid supply pipe 7 is composed of the liquid supply pipe 7, the liquid supply pipe 7 is provided with a number of liquid outlet holes 10, and the joint 11 of the liquid supply pipe 7 is drawn out from one side of the liquid absorbing sponge plate 6 and protrudes from the zipper 2 of the second cavity 4 .

Wherein, the applicator body 1 is made of cotton material, the heat-conducting plate 8 is made of heat-conducting silica gel material, and the water bladder 9 is made of plastic film.

A specific application of this device is: put the temperature transfer device 5 encapsulated with sterile water in the water bladder 9 into a refrigerator for freezing, and take it as needed; when cold compress is required, put the temperature transfer device 5 into the applicator In the first cavity 3 of the body 1 and zip up the zipper 2, put the liquid-absorbing sponge plate 6 soaked in the magnesium sulfate solution into the second cavity 4 of the body 1, close the zipper 2 and put the liquid feeding tube. The joint 11 of 7 protrudes from the zipper 2, and the temperature transfer device 5 will continue to absorb heat and cool down the magnesium sulfate solution accumulated on the liquid-absorbing sponge plate 6 and the liquid-absorbing sponge plate 6 through the heat-conducting plate 8, and gently press the application body 1, The magnesium sulfate solution accumulated in the liquid absorbing sponge plate 6 will be extruded and absorbed by the applicator body 1 that is in contact with the skin, and the applicator body 1 slowly releases the cold magnesium sulfate solution to reduce swelling and relieve pain in the swollen part; Place the temperature transfer device 5 in the water of about 40-50 degrees for a water bath, and take it as needed. When a hot compress is required, put the temperature transfer device 5 that has been bathed in the first cavity 3, and the temperature transfer device 5 will pass through. The heat-conducting plate 8 releases and transfers heat, and the heat is absorbed by the liquid-absorbing sponge plate 8 to increase the temperature. Gently press and apply the body 1, and the magnesium sulfate solution accumulated in the liquid-absorbing sponge plate 6 will be squeezed out and contact with the skin. The applicator body 1 absorbs, and the applicator body 1 slowly releases a hot magnesium sulfate solution to reduce swelling and relieve pain in the swollen site; 1 When it is in an upright state, sterile water can be restrained in the water bag 9, which can prevent the sterile water from being concentrated in a cavity, and the water pressure is large and the water bag is compressed and deformed, resulting in the accumulation of sterile water at the bottom of the water bag. The temperature transfer device 5 can ensure that every part of the liquid-absorbing sponge plate 8 is heated or cooled, and ensure that the swollen tissue is subjected to cold or hot compresses; when the magnesium sulfate solution is volatilized from the applicator body 1 and the liquid-absorbing sponge is When the magnesium sulfate solution accumulated in the plate 8 is less, the joint 11 of the liquid feeding pipe 7 is connected to the injection device, such as a syringe full of magnesium sulfate solution is connected to the joint 11, the injection syringe injects magnesium sulfate, and the magnesium sulfate solution is injected into the injection device. It flows into the liquid outlet hole 10 of the liquid feeding pipe 7, and is then absorbed and accumulated by the liquid absorbing sponge plate 8. The magnesium sulfate solution can be provided for the application body 1 by gently pressing the liquid absorbing sponge plate 8, and the whole process of cold compress or hot compress does not need to be Remove the applicator body 1, so as to achieve the purpose of continuous cold or hot compress.

In the description of this specification, description with reference to the terms "one embodiment", "example", "specific example", etc. means that a specific feature, structure, material or characteristic described in connection with the embodiment or example is included in the present invention. in at least one embodiment or example. In this specification, schematic representations of the above terms do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

The preferred embodiments of the present invention disclosed above are only used to help illustrate the present invention. The preferred embodiments do not describe all the details, nor do they limit the invention to only the described embodiments. Obviously, many modifications and variations are possible in light of the content of this specification. This specification selects and describes these embodiments in order to better explain the principle and practical application of the present invention, so that those skilled in the art can well understand and utilize the present invention. The present invention is limited only by the claims and their full scope and equivalents.

Claims (2)

1. a magnesium sulfate applicator is characterized in that, comprises applicator body (1), is provided with mutually independent first cavity (3) and second cavity (4) in the applicator body (1), A zipper (2) is provided at the openings of the first cavity (3) and the second cavity (4), the temperature transfer device (5) is placed in the first cavity (3), and the second cavity (4) A liquid storage slow-release device is placed in the middle, and the temperature transfer device (5) includes a heat-conducting plate (8), and several strip-shaped water bladders (9) are fixed on the upper surface of the heat-conducting plate (8). Encapsulated with sterile water, the liquid storage slow-release device is composed of a liquid absorbing sponge plate (6) and a liquid feeding pipe (7) embedded in the liquid absorbing sponge plate (6), and the liquid feeding pipe (7) is opened with a Several liquid outlet holes (10), the joint (11) of the liquid supply pipe (7) are drawn out from one side of the liquid absorbing sponge plate (6) and protruded from the zipper (2) of the second cavity (4). 2. A kind of magnesium sulfate applicator according to claim 1, is characterized in that, described applicator body (1) is made of cotton material, and the thermal conductive plate (8) is made of thermally conductive silica gel material, and the water bladder (9) Made of plastic film.
