CN210669503U

CN210669503U - A power supply intelligent protector with leakage monitoring

Info

Publication number: CN210669503U
Application number: CN201922022375.9U
Authority: CN
Inventors: 冯春雷
Original assignee: Suzhou Yuanrong Communication Technology Co Ltd
Current assignee: Suzhou Yuanrong Communication Technology Co Ltd
Priority date: 2019-11-21
Filing date: 2019-11-21
Publication date: 2020-06-02
Anticipated expiration: 2029-11-21

Abstract

The utility model discloses a power supply intelligent protector capable of monitoring leakage current, which relates to the field of power supply protection and comprises a mounting seat and a power supply protector. A socket is provided, a slideway is provided on the inner side of the socket, a spring is fixedly connected to the interior of the slideway, a card block is fixedly connected to the end of the slideway away from the socket, and a card slot is opened inside the card block, and the power protector is close to the mounting seat A clamp is symmetrically and fixedly connected to one side of the power supply protector, and the inside of the power protector includes a leakage detection module, a short-circuit detection module and an overload detection module. The utility model can make the card piece enter the inside of the slideway through the socket, and the power supply protector can be installed by pressing down and sliding to one side to the bottom, and then pressing down and sliding in the opposite direction to protect the power supply. It is more convenient to install, use, disassemble and repair the power protector.

Description

Power supply intelligent protector with electric leakage monitoring function

Technical Field

The utility model relates to a power protection field, in particular to power intelligent protection ware with monitor electric leakage.

Background

The power protector is a monitoring and protecting instrument for multifunctional three-phase power supply system or three-phase electric equipment. The three-phase voltage display, the overvoltage protection, the undervoltage protection, the open-phase protection and the phase sequence protection are integrated.

Most power protectors among the prior art do not possess the function of detecting power supply line electric leakage, in use, with electrical apparatus because long-term use or wiring are improper, cause live wire and other can not electrified conductor direct or indirect contact, cause the electric shock accident easily, and daily detection also is difficult for discovering the electric leakage of power, there is the potential safety hazard, inconvenient daily electric leakage safety inspection, it is convenient inadequately to install the power protector among the prior art in addition, need demolish power protector through insulating tool and detect when overhauing or maintaining, it is very troublesome to the detection of power.

Therefore, it is necessary to provide a smart protector for power supply with leakage monitoring to solve the above problems.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a power intelligent protection ware with carry out monitoring to the electric leakage to the power intelligent protection ware that proposes in solving above-mentioned background does not possess the electric leakage and detects, has the maintenance inconvenient problem of potential safety hazard and power.

In order to achieve the above object, the utility model provides a following technical scheme: an intelligent power supply protector capable of monitoring electric leakage comprises a mounting seat and a power supply protector, wherein the power supply protector is movably mounted on one side of the mounting seat;

one side of the mounting seat is symmetrically provided with a socket, one side of the inside of the socket is provided with a slideway, the inside of the slideway is fixedly connected with a spring, one end of the slideway, which is far away from the socket, is fixedly connected with a clamping block, the inside of the clamping block is provided with a clamping groove, and one side of the power supply protector, which is close to the mounting seat, is symmetrically and fixedly connected with clamping pieces;

the power supply protector comprises a leakage detection module, a short circuit detection module and an overload detection module.

Optionally, the two clamping pieces are respectively matched with the two sockets, and the two clamping pieces respectively correspond to the two sockets.

Optionally, the clamping piece is of a U-shaped structure, and one end of the clamping piece, which is far away from the power protector, is matched with the clamping groove.

Optionally, the spring is matched with the slide way, and the spring is of a rectangular structure.

Optionally, the two clamping pieces correspond to each other, and the two clamping pieces are symmetrically arranged.

Optionally, the power protector is movably mounted in the middle of one side of the mounting seat, and one end of the spring closes the socket.

The utility model discloses a technological effect and advantage:

1. the utility model discloses a socket enables the inside that the fastener got into the slide, presses down through power protector and slides to the end to one side, can accomplish power protector's installation, presses down and slides in the opposite direction, can demolish power protector, and it is more convenient to use and dismantle the maintenance to power protector's installation.

2. The utility model discloses power protector can detect the electric leakage of power through the electric leakage detection module, can detect the short circuit through short circuit detection module, can detect the electric current in the circuit through overload detection, and the daily inspection of being convenient for is maintained to and the power carries out the troubleshooting.

Drawings

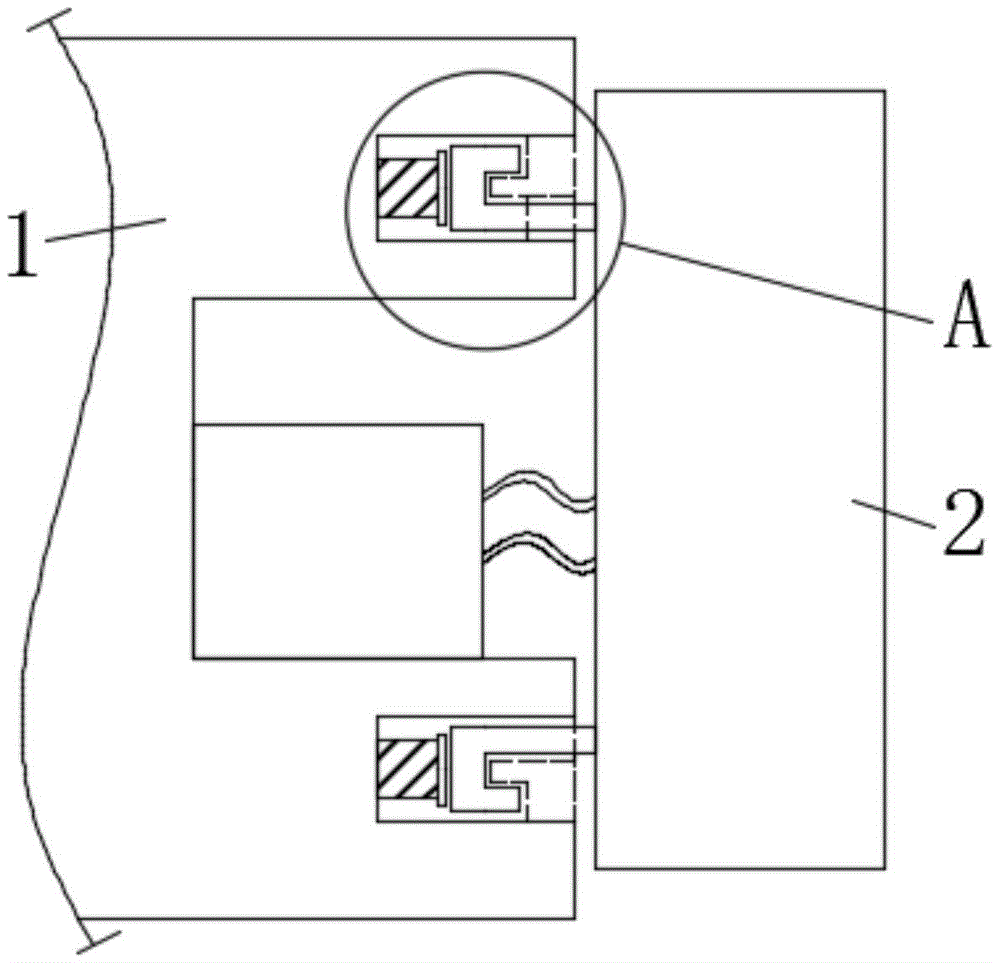

FIG. 1 is a schematic front sectional view of the mounting base structure of the present invention;

FIG. 2 is a schematic view of the structure of the mounting base of the present invention;

FIG. 3 is a schematic view of a region A in FIG. 1;

fig. 4 is a schematic diagram of the power protector system of the present invention.

In the figure: 1. a mounting seat; 2. a power supply protector; 3. a socket; 4. a slideway; 5. a spring; 6. a clamping block; 7. a card slot; 8. a fastener; 9. a leakage detection module; 10. a short circuit detection module; 11. and an overload detection module.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

In the description of the present invention, it is to be understood that the terms "center", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", "axial", "radial", "circumferential", and the like indicate orientations or positional relationships based on those shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore should not be construed as limiting the present invention.

In the present invention, unless otherwise expressly stated or limited, the terms "disposed," "mounted," "connected," and "fixed" are to be construed broadly, e.g., as meaning either a fixed connection or a removable connection; may be a mechanical connection; may be directly connected or indirectly connected through an intermediate. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.

Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless specifically limited otherwise.

The utility model provides a power supply intelligent protector with leakage monitoring function as shown in figures 1-4, which comprises a mounting seat 1 and a power supply protector 2, wherein the power supply protector 2 is movably arranged in the middle of one side of the mounting seat 1, and one end of a spring 5 seals a socket 3;

as shown in fig. 1 and 2, the power protector 2 is movably mounted on one side of the mounting base 1;

as shown in fig. 3, sockets 3 are symmetrically formed in one side of an installation seat 1, a slide 4 is formed in one side of the inside of each socket 3, a spring 5 is fixedly connected to the inside of each slide 4, the spring 5 is matched with the corresponding slide 4, the spring 5 is of a rectangular structure, a clamping block 6 is fixedly connected to one end, far away from each socket 3, of each slide 4, a clamping groove 7 is formed in the corresponding clamping block 6, clamping pieces 8 are symmetrically and fixedly connected to one side, close to the installation seat 1, of a power supply protector 2, the two clamping pieces 8 are respectively matched with the two sockets 3, the two clamping pieces 8 are respectively corresponding to the two sockets 3, each clamping piece 8 is of a U-shaped structure, one end, far away from the power supply protector 2, of each clamping piece 8 is;

as shown in fig. 4, the power supply protector 2 includes a leakage detecting module 9, a short-circuit detecting module 10, and an overload detecting module 11 inside.

This practical theory of operation: during the installation, at first be connected fixedly with power protector 2's interconnecting link and mount pad 1, then correspond two fastener 8 with two sockets 3 respectively, insert two fastener 8 respectively two sockets 3's inside, then slide power protector 2 to one side to the end, loosen power protector 2, the inside that card slot 7 was advanced to the one end joint that fastener 8 is located slide 4 through the forward elasticity of spring 5, fix power protector 2, during the use, can detect the electric leakage of power through electric leakage detection module 9 through power protector 2, can detect short-circuit line through short-circuit detection module 10, can detect the electric current in the circuit through overload detection module 11, be convenient for daily inspection maintenance.

Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications and variations can be made in the embodiments or in part of the technical features of the embodiments without departing from the spirit and the scope of the invention.

Claims

1. The utility model provides a power supply intelligent protector with monitor electric leakage, includes mount pad (1) and power protector (2), its characterized in that: the power supply protector (2) is movably arranged on one side of the mounting seat (1);

one side of the mounting seat (1) is symmetrically provided with a socket (3), one side of the inside of the socket (3) is provided with a slide way (4), the inside of the slide way (4) is fixedly connected with a spring (5), one end of the slide way (4) far away from the socket (3) is fixedly connected with a clamping block (6), the inside of the clamping block (6) is provided with a clamping groove (7), and one side of the power supply protector (2) close to the mounting seat (1) is symmetrically and fixedly connected with a clamping piece (8);

the power supply protector (2) comprises a leakage detection module (9), a short circuit detection module (10) and an overload detection module (11) inside.

2. A power supply intelligent protector with leakage monitoring according to claim 1, characterized in that:

the two clamping pieces (8) are respectively matched with the two sockets (3), and the two clamping pieces (8) respectively correspond to the two sockets (3).

3. A power supply intelligent protector with leakage monitoring according to claim 1, characterized in that:

the clamping piece (8) is of a U-shaped structure, and one end, far away from the power supply protector (2), of the clamping piece (8) is matched with the clamping groove (7).

4. A power supply intelligent protector with leakage monitoring according to claim 1, characterized in that:

the spring (5) is matched with the slide way (4), and the spring (5) is of a rectangular structure.

5. A power supply intelligent protector with leakage monitoring according to claim 1, characterized in that:

the two clamping pieces (8) correspond to each other, and the two clamping pieces (8) are symmetrically arranged.

6. A power supply intelligent protector with leakage monitoring according to claim 1, characterized in that:

the power supply protector (2) is movably mounted in the middle of one side of the mounting seat (1), and one end of the spring (5) seals the socket (3).
