本实用新型公开了一种锂电池用防止晃动的放置盒，包括盒体，盒体底部的两侧内壁上焊接有处于同一水平线的两根螺杆，且螺杆的两端螺纹连接有调节螺母，螺杆的靠近调节螺母的一侧外壁上活动连接有夹板，且螺杆顶部外壁的中心处放置有放置板，放置板的底部外壁上通过螺栓固定安装有散热风机，且散热风机的顶部与放置板之间相互连通。本实用新型能很好的对锂电池起到防护作用，从而达到延长锂电池使用寿命的效果，提升了锂电池在盒体内部的稳定程度，结构简单，操作方便，实用性强，使得盒体内部的锂电池更加的稳固牢靠，在盒体运动的过程中液压连杆和弹簧对盒体内部的锂电池起到了一定程度的减震作用。
The utility model discloses a shaking-preventing placing box for a lithium battery, which comprises a box body. Two inner walls on both sides of the bottom of the box body are welded with two screws on the same horizontal line, and two ends of the screws are threadedly connected with adjusting nuts. A splint is movably connected to the outer wall of the side close to the adjusting nut, and a placing plate is placed at the center of the outer wall of the top of the screw. interconnected. The utility model can well protect the lithium battery, thereby achieving the effect of prolonging the service life of the lithium battery, and improving the stability of the lithium battery inside the box body. The structure is simple, the operation is convenient, and the practicability is strong. The internal lithium battery is more stable and reliable. During the movement of the box body, the hydraulic connecting rod and spring play a certain degree of shock absorption on the lithium battery inside the box body.
Description
Technical Field
The utility model relates to a lithium cell technical field especially relates to a lithium cell is with preventing box of placing that rocks.
Background
The lithium battery is a primary battery which takes lithium metal or lithium alloy as a negative electrode material and uses a non-aqueous electrolyte solution, and is different from a rechargeable battery, namely a lithium ion battery and a lithium ion polymer battery; the inventor of lithium batteries is edison; because the chemical characteristics of the lithium metal are very active, the lithium metal has very high requirements on the environment in processing, storage and use; therefore, lithium batteries have not been used for a long time; with the development of microelectronic technology at the end of the twentieth century, miniaturized devices are increasing, and high requirements are made on power supplies.
The lithium cell has got into large-scale practical stage thereupon, places the region through directly setting up the battery in electronic product and carries out placing of lithium cell, and in some bigger electronic product of volume, the required electric quantity of lithium cell is also more, so the volume of lithium cell is also bigger, produces vibration damage lithium cell easily at the in-process that removes, and the installation of lithium cell is generally fixed through the bolt installation simultaneously, and it is comparatively troublesome to dismantle. Therefore, it is desirable to design a shaking-proof storage case for a lithium battery to solve the above problems.
Disclosure of Invention
The utility model aims at solving the in-process that exists among the prior art and removing and producing the vibration damage lithium cell easily, the installation of lithium cell is generally fixed through the bolt installation simultaneously, dismantles comparatively troublesome shortcoming, and the box of placing that prevents to rock is used to a lithium cell that proposes.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a lithium cell is with preventing box of placing that rocks, includes the box body, the welding has two screw rods that are in same water flat line on the both sides inner wall of box body bottom, and the both ends threaded connection of screw rod has adjusting nut, swing joint has splint on the one side outer wall that is close to adjusting nut of screw rod, and the center department of screw rod top outer wall has placed and places the board, place and have cooling fan through bolt fixed mounting on the bottom outer wall of board, and cooling fan's top with place and communicate each other between the board.
The key concept of the technical scheme is as follows: place the board and place when the top of screw rod, rotate adjusting nut and promote splint and remove to reach and carry out the fixed effect of effectual centre gripping to the lithium cell of placing on the board, and place the cooling fan on the outer wall of board bottom, can carry out timely heat dissipation to the lithium cell, convenient and fast is dismantled in the lithium cell installation, can play the effect of vibration buffering, and the installation is firm, and the practicality is stronger.
Further, the top outer wall of box body fixedly connected with base, and the bottom outer wall of base sets up flutedly.
Further, the top of box body is provided with the lid, and the lid is trapezoidal platform column structure, be provided with the top on the bottom outer wall of lid and hold the subassembly, and the bottom that holds the subassembly on the top is provided with the top and holds the piece, the top is held a piece swing joint in the inside of box body.
Furthermore, the inner walls of the bottoms of the two sides of the base are welded with positioning seats, the axle centers of the outer walls of the tops of the positioning seats are movably connected with locking screw rods through shaft rods, the outer walls, close to the positioning seats, of the locking screw rods are welded with chain wheels, and the outer walls of the chain wheels are sleeved with chains.
Furthermore, be threaded connection between locking screw's the top outer wall and the lid, and locking screw's top welding has the adjustment disk, the lid is swing joint through being between locking screw and the box body.
Furthermore, the jacking component comprises a hydraulic connecting rod, the top end of the hydraulic connecting rod is fixedly connected with the box cover, the bottom end of the hydraulic connecting rod is fixedly connected with the jacking block, and a spring is sleeved outside the hydraulic connecting rod.
The utility model has the advantages that:
1. through the locking screw who sets up, when the operator rotated the adjustment disk, locking screw drove the lid and is close to the box body, and locking screw rotates the process and moves the drive sprocket and rotate, has realized the synchronous motion of lid both sides, can be fine play the guard action to the lithium cell to reach extension lithium cell life's effect, promoted the stability of lithium cell in the box body inside, simple structure, convenient operation, the practicality is strong.
2. Through the top of setting up and holding the subassembly, when the lid through locking screw's effect, the in-process that moves down, hydraulic pressure connecting rod promotes the top and holds the piece and remove to the inside of box body for the more firm of the inside lithium cell of box body, the in-process hydraulic pressure connecting rod and the spring of box body motion have played the cushioning effect of certain degree to the inside lithium cell of box body.
3. Through the screw rod that sets up, place the board and place when the top of screw rod, rotate adjusting nut and promote splint and remove to reach and carry out the fixed effect of effectual centre gripping to the lithium cell of placing on the board, and place the cooling fan on the outer wall of board bottom, can carry out timely heat dissipation to the lithium cell, convenient and fast is dismantled in the lithium cell installation, can play the effect of vibration buffering, and the installation is firm, and the practicality is stronger.
Drawings

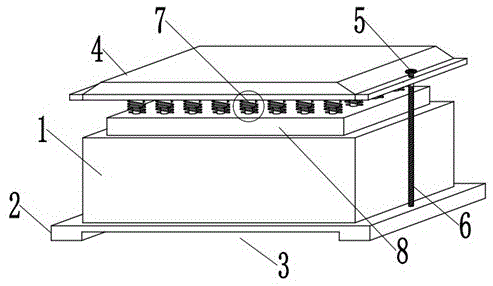

Fig. 1 is a schematic structural view of a shaking prevention placing box for a lithium battery provided by the present invention;
fig. 2 is a schematic cross-sectional structural view of a shaking-proof placing box for a lithium battery provided by the present invention;
fig. 3 is the utility model provides a lithium cell is with top of placing the box that prevents to rock and holds subassembly structure schematic diagram.
In the figure: the device comprises a box body 1, a base 2, a groove 3, a box cover 4, an adjusting disc 5, a locking screw rod 6, a jacking component 7, a jacking block 8, a positioning seat 9, a chain wheel 10, a chain 11, a screw rod 12, an adjusting nut 13, a clamping plate 14, a placing plate 15, a heat dissipation fan 16, a hydraulic connecting rod 17 and a spring 18.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1 to 3, a shaking-proof placing box for a lithium battery comprises a box body 1, two screw rods 12 in the same horizontal line are welded on the inner walls of two sides of the bottom of the box body 1, adjusting nuts 13 are connected to two ends of the screw rods 12 in a threaded manner, a clamping plate 14 is movably connected to the outer wall of one side of each screw rod 12 close to the adjusting nut 13, a placing plate 15 is placed at the center of the outer wall of the top of the screw rod 12, a heat dissipation fan 16 is fixedly installed on the outer wall of the bottom of the placing plate 15 through bolts, the top of the heat dissipation fan 16 is communicated with the placing plate 15, when the placing plate 15 is placed on the top of the screw rod 12, the adjusting nuts 13 are rotated to push the clamping plate 14 to move, so that the lithium battery on the placing plate 15 is effectively clamped and fixed, and the heat dissipation fan 16 on the outer wall, convenient and fast is dismantled in the lithium cell installation, can play the effect of vibration buffering, and the installation is firm, and the practicality is stronger.
As can be seen from the above description, the present invention has the following advantages: place board 15 and place when screw rod 12's top, rotate adjusting nut 13 and promote splint 14 and remove to reach and carry out effectual centre gripping fixed effect to the lithium cell of placing on the board 15, and place cooling fan 16 on the outer wall of board 15 bottom, can carry out timely heat dissipation to the lithium cell, convenient and fast is dismantled in the lithium cell installation, can play the effect of vibration buffering, and the installation is firm, and the practicality is stronger.
Further, the top outer wall fixedly connected with base 2 of box body 1, and the bottom outer wall of base 2 sets up recess 3, and the offering of recess 3 makes box body 1 be convenient for install more, has promoted the stability of box body 1.
Further, the top of box body 1 is provided with lid 4, and lid 4 is trapezoidal platform column structure, it holds subassembly 7 to be provided with the top on the bottom outer wall of lid 4, and the bottom that holds subassembly 7 on the top is provided with the top and holds piece 8, 8 swing joint in the inside of box body 1 are held on the top, the top is held the lithium cell that piece 8 can be fine and is played fine location effect to 1 inside of box body, the stability of lithium cell in daily use has been promoted, fine guard action has been played to the lithium cell, the life of lithium cell has been prolonged.
Further, the welding has positioning seat 9 on the bottom inner wall of base 2 both sides, and the axle center department of positioning seat 9 top outer wall has locking screw 6 through axostylus axostyle swing joint, and the welding has sprocket 10 on locking screw 6 is close to the outer wall of positioning seat 9, and has cup jointed chain 11 on the outer wall of sprocket 10, and locking screw 6 rotates the process and moves drive sprocket 10 and rotate, has realized the synchronous motion of 4 both sides of lid.
Further, be threaded connection between locking screw 6's top outer wall and the lid 4, and the top welding of locking screw 6 has adjustment disk 5, lid 4 is swing joint through being between locking screw 6 and the box body 1, when rotating adjustment disk 5, locking screw 6 drives lid 4 and is close to box body 1, and locking screw 6 rotates the process and moves drive sprocket 10 and rotate, the synchronous motion of 4 both sides of lid has been realized, can be fine play the guard action to the lithium cell, thereby reach the effect of extension lithium cell life, the stability of lithium cell in box body 1 inside has been promoted, moreover, the steam generator is simple in structure, high operation convenience is realized, therefore, the clothes hanger is strong in practicability.
Further, subassembly 7 is held on top including hydraulic pressure connecting rod 17, hydraulic pressure connecting rod 17's top is fixed connection with lid 4, and be fixed connection between hydraulic pressure connecting rod 17's bottom and the top is held the piece 8, spring 18 has been cup jointed to hydraulic pressure connecting rod 17's outside, the setting of subassembly 7 is held on the top, when lid 1 through locking screw 6's effect, the in-process that moves down, hydraulic pressure connecting rod 17 promotes the top and holds piece 8 and remove to the inside of box body 1, make 1 inside lithium cell firm more of box body, hydraulic pressure connecting rod 17 and spring 18 have played the cushioning effect of certain degree to the inside lithium cell of box body 1 at the in-process of box body motion.
When adopting above-mentioned rotation adjustment disk 5, locking screw 6 drives lid 4 and is close to box body 1, and locking screw 6 rotates the process and moves drive sprocket 10 and rotate, the synchronous motion of 4 both sides of lid has been realized, can be fine play the guard action to the lithium cell, thereby reach the effect of extension lithium cell life, the stability of lithium cell in box body 1 inside has been promoted, moreover, the steam generator is simple in structure, high durability and convenient operation, the clothes hanger is strong in practicability, when lid 1 is through locking screw 6's effect, the in-process that moves down, hydraulic pressure connecting rod 17 promotes to push up and holds piece 8 and remove to the inside of box body 1, make the more firm of the inside lithium cell of box body 1 firm, hydraulic pressure connecting rod 17 and spring 18 have played the cushioning effect of certain degree to the inside lithium cell of box.
In the following, some preferred embodiments or application examples are listed to help those skilled in the art to better understand the technical content of the present invention and the technical contribution of the present invention to the prior art:
example 1
A shaking-proof placing box for a lithium battery comprises a box body 1, wherein two screw rods 12 which are positioned on the same horizontal line are welded on the inner walls of two sides of the bottom of the box body 1, adjusting nuts 13 are in threaded connection with two ends of each screw rod 12, a clamping plate 14 is movably connected on the outer wall of one side, close to the adjusting nuts 13, of each screw rod 12, a placing plate 15 is placed in the center of the outer wall of the top of each screw rod 12, a heat dissipation fan 16 is fixedly installed on the outer wall of the bottom of the placing plate 15 through bolts, the top of the heat dissipation fan 16 is communicated with the placing plate 15, when the placing plate 15 is placed on the top of each screw rod 12, the adjusting nuts 13 are rotated to push the clamping plate 14 to move, so that the effective clamping and fixing effects on the lithium battery on the placing plate 15 are achieved, the heat dissipation fan 16 on the, the vibration damping device has the advantages of vibration damping effect, stable installation and strong practicability.
Wherein, the outer wall of the top of the box body 1 is fixedly connected with a base 2, the outer wall of the bottom of the base 2 is provided with a groove 3, the arrangement of the groove 3 enables the box body 1 to be more convenient to install, the stability of the box body 1 is improved, the top of the box body 1 is provided with a box cover 4, the box cover 4 is in a trapezoid table-shaped structure, the outer wall of the bottom of the box cover 4 is provided with a propping component 7, the bottom of the propping component 7 is provided with a propping block 8, the propping block 8 is movably connected in the box body 1, the propping block 8 can well play a good role in positioning the lithium battery in the box body 1, the stability of the lithium battery in the daily use process is improved, the lithium battery is well protected, the service life of the lithium battery is prolonged, the inner walls of the bottoms of two sides of the base 2 are welded with positioning seats 9, and the, the outer wall of the locking screw 6 close to the positioning seat 9 is welded with a chain wheel 10, the outer wall of the chain wheel 10 is sleeved with a chain 11, the chain wheel 10 is driven to rotate during the rotation process of the locking screw 6, the synchronous movement of the two sides of the box cover 4 is realized, the outer wall of the top part of the locking screw 6 is in threaded connection with the box cover 4, the top end of the locking screw 6 is welded with an adjusting disc 5, the box cover 4 is movably connected with the box body 1 through the locking screw 6, when the adjusting disc 5 is rotated, the locking screw 6 drives the box cover 4 to approach the box body 1, the chain wheel 10 is driven to rotate during the rotation process of the locking screw 6, the synchronous movement of the two sides of the box cover 4 is realized, the lithium battery can be well protected, the effect of prolonging the service life of the lithium battery is realized, the stability degree of the, subassembly 7 is held on top including hydraulic pressure connecting rod 17, hydraulic pressure connecting rod 17's top is fixed connection with lid 4, and be fixed connection between hydraulic pressure connecting rod 17's bottom and the top is held the piece 8, spring 18 has been cup jointed to hydraulic pressure connecting rod 17's outside, the setting of subassembly 7 is held on the top, when lid 1 through locking screw 6's effect, the in-process that moves down, hydraulic pressure connecting rod 17 promotes the top and holds piece 8 and remove to the inside of box body 1, make 1 inside lithium cell firm more of box body firm, hydraulic pressure connecting rod 17 and spring 18 have played the cushioning effect of certain degree to the inside lithium cell of box body 1 at the in-process of box body motion.
The working principle is as follows: when the anti-shaking placing box for the lithium battery is used, an operator firstly places the placing plate 15 on the top of the screw 12, rotates the adjusting nut 13 to push the clamping plate 14 to move, so that the effect of effectively clamping and fixing the lithium battery on the placing plate 15 is achieved, the heat dissipation fan 16 on the outer wall of the bottom of the placing plate 15 can timely dissipate heat of the lithium battery, the lithium battery is convenient and quick to install and disassemble, the vibration buffering effect can be achieved, the installation is stable, the practicability is strong, when the adjusting disc 5 is rotated, the locking screw 6 drives the box cover 4 to approach the box body 1, the sprocket 10 is driven to rotate during the rotation process of the locking screw 6, the synchronous movement of two sides of the box cover 4 is achieved, the lithium battery can be well protected, the effect of prolonging the service life of the lithium battery is achieved, and the stability of the lithium battery in the box, simple structure, convenient operation, the practicality is strong, and when lid 1 through locking screw 6's effect, the in-process that moves down, hydraulic pressure connecting rod 17 promotes the top and holds piece 8 and remove to the inside of box body 1 for more firm of the inside lithium cell of box body 1, hydraulic pressure connecting rod 17 and spring 18 have played the cushioning effect of certain degree to the inside lithium cell of box body 1 at the in-process of box body motion.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. The utility model provides a lithium cell is with box of placing that prevents rocking, includes box body (1), its characterized in that, the welding has two screw rods (12) that are in same water flat line on the both sides inner wall of box body (1) bottom, and the both ends threaded connection of screw rod (12) has adjusting nut (13), swing joint has splint (14) on the one side outer wall of being close to adjusting nut (13) of screw rod (12), and the center department of screw rod (12) top outer wall has placed and places board (15), place and have cooling fan (16) through bolt fixed mounting on the bottom outer wall of board (15), and cooling fan (16) the top with place and communicate each other between board (15).
2. The anti-shaking storage box for the lithium battery as claimed in claim 1, wherein a base (2) is fixedly connected to the outer wall of the top of the box body (1), and a groove (3) is formed in the outer wall of the bottom of the base (2).
3. The lithium battery shaking prevention placing box is characterized in that a box cover (4) is arranged at the top of the box body (1), the box cover (4) is of a trapezoid table-shaped structure, a jacking component (7) is arranged on the outer wall of the bottom of the box cover (4), a jacking block (8) is arranged at the bottom of the jacking component (7), and the jacking block (8) is movably connected inside the box body (1).
4. The lithium battery shaking prevention placing box is characterized in that positioning seats (9) are welded on the inner walls of the bottoms of the two sides of the base (2), a locking screw (6) is movably connected to the axis of the outer wall of the top of each positioning seat (9) through a shaft rod, a chain wheel (10) is welded on the outer wall, close to the positioning seats (9), of each locking screw (6), and a chain (11) is sleeved on the outer wall of each chain wheel (10).
5. The lithium battery shaking prevention placing box is characterized in that the outer wall of the top of the locking screw (6) is in threaded connection with the box cover (4), the adjusting plate (5) is welded at the top end of the locking screw (6), and the box cover (4) is movably connected with the box body (1) through the locking screw (6).
6. The lithium battery shaking prevention placing box is characterized in that the jacking component (7) comprises a hydraulic connecting rod (17), the top end of the hydraulic connecting rod (17) is fixedly connected with the box cover (4), the bottom end of the hydraulic connecting rod (17) is fixedly connected with the jacking block (8), and a spring (18) is sleeved outside the hydraulic connecting rod (17).
