Abstract
The utility model relates to a pruning machine used in gardens, which comprises a power box and a movable supporting device for supporting the power box, wherein a vertically arranged rotating shaft I and a driving device I for driving the rotating shaft I to rotate are erected in the power box, the end part of the rotating shaft I penetrates out of the power box and is connected with a blade, a material guide plate which is obliquely arranged is arranged below the blade, the material guide plate is connected with the bottom of the power box through two protection plates, and a channel is formed between the two protection plates, the material guide plate and the power box; the bottom of the power box is fixedly provided with a collecting box, the bottom surface of the collecting box and the guide plate are positioned on the same plane, one side of the collecting box is provided with a feeding hole, and the side of the collecting box, which is provided with the feeding hole, is connected with the lower inclined end of the guide plate; the feed inlet inner tower of collecting box is equipped with pivot II, and pivot II's circumference is provided with switch plate I, is provided with drive pivot II intermittent type pivoted drive arrangement II on the collecting box. The utility model discloses simple structure, convenient to use has reduced intensity of labour, is worth promoting.
Description
Technical Field
The utility model relates to a gardens pruning technical field, in particular to a trimming machine for in aspect of gardens.
Background
The gardens are pruned and are mainly pruned the small-size bush of the lawn of artifical planting and artificial device, when the pruning on lawn, can directly not prune next the crust, can leave certain length for the vegetation, and traditional trimmer only prunes the lawn, and the scattered vegetation who falls of cutting that distributes on the lawn after the pruning to need the manual work to handle the vegetation that distributes in disorder, consequently greatly increased intensity of labour, consequently this application file provides a device that can in time handle the vegetation after the pruning.
SUMMERY OF THE UTILITY MODEL
The utility model aims at overcoming the problem that exists among the above-mentioned prior art, provide a trimming machine for in the aspect of gardens.
The technical scheme of the utility model is that:
a pruning machine for gardens comprises a power box and a movable supporting device for supporting the power box, wherein a vertically arranged rotating shaft I is arranged between the inner walls of the power box in a rotating frame manner, the power box is also provided with a driving device I for driving the rotating shaft I to rotate, the end part of the rotating shaft I penetrates out of the inner bottom surface of the power box and is connected with a blade, a material guide plate which is obliquely arranged is arranged below the blade, the material guide plate is connected with the bottom of the power box through two protection plates, a channel is formed between the two protection plates, the material guide plate and the power box, and the blade is arranged in the channel in a suspended manner;
a collecting box for collecting the grass and the trees is fixed at the bottom of the power box, the bottom surface of the collecting box and the guide plate are positioned on the same plane, a feed port is formed in one side of the collecting box, and the side, provided with the feed port, of the collecting box is connected with a lower inclined end of the guide plate; a horizontally arranged rotating shaft II is rotatably erected in the feeding hole of the collecting box, a plurality of material shifting plates I are uniformly distributed in the circumferential direction of the rotating shaft II, and a driving device II for driving the rotating shaft II to intermittently rotate is arranged outside the collecting box.
Preferably, the driving device II comprises a stepping motor fixed outside the collecting box, an output shaft of the stepping motor is sleeved and fixed with a bevel gear I, the bevel gear I is meshed with the bevel gear II, and the bevel gear II is sleeved and fixed at the tail end of the rotating shaft II.
Preferably, the driving device I includes a motor, a gear I is fixed on an output shaft of the motor in a sleeving manner, the gear I is engaged with the gear II, and the gear II is fixed on the rotating shaft I in a sleeving manner.
Preferably, one side of the power box is provided with a hand push rod, the hand push rod is provided with a button, a storage battery is arranged in the power box, and the storage battery is electrically connected with the motor through the button respectively.
Preferably, a shifting plate for shifting the cut vegetation is arranged on one surface of the blade close to the bottom of the power box, and the shifting plate is arranged on the blade in an S shape.
Preferably, the end part of the guide plate, which is far away from the collecting box, is provided with a groove for gathering the grass and the wood.
Preferably, the blade is obliquely arranged and parallel to the material guide plate.
Preferably, the upper part of the side surface of the collecting box is provided with an observation port for observing the material quantity.
Compared with the prior art, the utility model provides a pair of a trimming machine for in aspect of gardens, its beneficial effect is:
1. the utility model discloses simple structure, convenient to use.
2. The utility model discloses a power device drives the blade rotation, makes the vegetation cut off by the blade, then in the effect through switch-off plate II on the blade and stock guide and switch-off plate I of blade below impels the collecting box with the vegetation after the cutting, makes the vegetation after the cutting in time collect, has reduced staff's intensity of labour simultaneously.
3. The utility model discloses the practicality is strong, is worth promoting.
Drawings

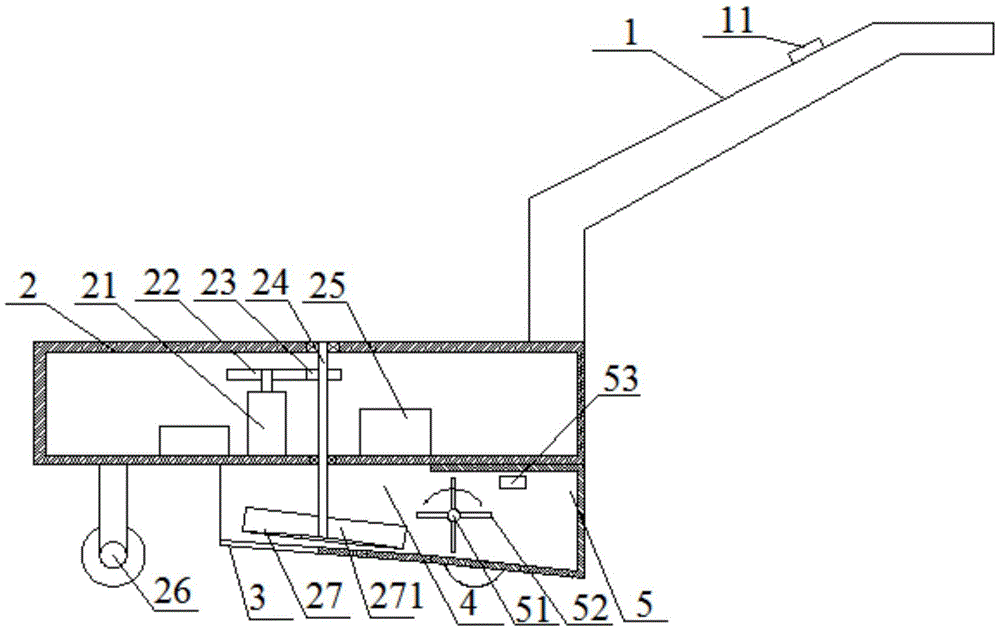

FIG. 1 is a cross-sectional view of the overall structure of the present invention;
FIG. 2 is a top view of the blade, the material-shifting plate II and the material-guiding plate of the present invention;
fig. 3 is a schematic structural view of the material guiding plate of the present invention.
Detailed Description
An embodiment of the present invention will be described in detail with reference to fig. 1 to 3, but it should be understood that the scope of the present invention is not limited by the embodiment.
Example 1
As shown in fig. 1 and 2, the utility model provides a trimming machine for garden aspect, including headstock 2 and the removal strutting arrangement who supports headstock 2, the removal strutting arrangement includes a plurality of supporting legs, and the supporting leg bottom is provided with gyro wheel 26; a vertically arranged rotating shaft I24 is arranged between the inner walls of the power box 2 through a rotating frame, the power box 2 is further provided with a driving device I for driving the rotating shaft I24 to rotate, the end part of the rotating shaft I24 penetrates out of the inner bottom surface of the power box 2 and then is connected with a blade 27, a guide plate 3 which is obliquely arranged is arranged below the blade 27, in order to prevent the cut grass and wood straws from splashing, two protection plates 4 are connected between the guide plate 3 and the bottom of the power box 2, so that a channel is formed between the two protection plates 4, the guide plate 3 and the power box 2, the blade 27 is suspended in the channel, a collecting box 5 for collecting the grass and wood is fixed at the bottom of the power box 2, the bottom surface of the collecting box 5 and the guide plate 3 are positioned on the same plane, a feed inlet is arranged at one side of the collecting box 5, one side of the collecting box 5 provided with the feed inlet is connected with the lower, a door for discharging on the side of the collecting box 5 departing from the feeding hole; in order to make the cut grass and trees enter the collecting box 5 more easily, a rotating shaft II51 which is horizontally arranged is rotatably erected in a feeding hole of the collecting box 5, a plurality of material shifting plates I52 are uniformly distributed on the circumference of the rotating shaft II51, and a driving device II for driving the rotating shaft II51 to rotate intermittently is arranged on the collecting box 5.
Example 2
On the basis of the embodiment 1, the driving device II comprises a stepping motor fixed outside the collecting box 5, an output shaft of the stepping motor is sleeved and fixed with a bevel gear I, the bevel gear I is meshed with the bevel gear II, and the bevel gear II is sleeved and fixed at the tail end of the rotating shaft II 51.
Example 3
On the basis of embodiment 2, a preferred structure of a driving device I is that the driving device I includes a motor 21, a gear I22 is fixed to an output shaft of the motor 21 in a sleeved manner, the gear I22 is engaged with a gear II 23, the gear II 23 is fixed to a rotating shaft I24 in a sleeved manner, a push rod 1 is arranged on one side of a power box 2, a button 11 is arranged on the push rod 1, a storage battery 25 is arranged in the power box 2, and the storage battery 25 is electrically connected with the motor 21 and a stepping motor through the button 11.
Example 4
On the basis of embodiment 1, in order to facilitate the cut vegetation to enter the collection box 5 quickly, a material shifting plate 271 for shifting the cut vegetation is arranged on one surface of the blade 27 close to the bottom of the power box 2, and the material shifting plate 271 is arranged on the blade 27 in an S shape.
Example 5
On the basis of the embodiment 1, in order to facilitate cutting of the vegetation, a groove for gathering the vegetation is formed at the end part of the guide plate 3 close to the blade 27.
Example 6
On the basis of the embodiment 1, in order to facilitate the cut vegetation to be poured toward the collecting box 5 and to enable the cut vegetation to rapidly enter the collecting box 5, the blade 27 is obliquely arranged and parallel to the guide plate 3.
Example 7
In addition to embodiment 1, in order to facilitate observation of the amount of the material collected in the collection box 5, an observation port 53 is provided in the upper portion of the side surface of the collection box 5.
Principle of operation
When the utility model is used, as shown in fig. 1, firstly, the motor 21 and the stepping motor are powered on through the button 11, the motor 21 drives the gear I22 to rotate, the gear I22 and the gear II 23 are meshed to drive the gear II 23 to rotate, so that the rotating shaft I24 rotates, namely the blade 27 on the rotating shaft I24 rotates, at this time, a user can push the power box 2 through the hand push rod 1, the power box 2 moves forwards under the action of the roller 26 at the bottom of the power box, then the rotating blade 27 cuts the vegetation gathered together by the grooves on the stock guide plate 3, the cut vegetation falls backwards and is poked into the stock guide plate 3 through the poking plate 271, then the stepping motor works once at intervals, namely, the stepping motor works to drive the rotating shaft II51 to rotate once, the cut vegetation is pushed to the collecting box 5, as shown in fig. 1, the rotating shaft II51 drives the poking plate I52 to rotate anticlockwise to enable the vegetation to enter the collecting box 5, namely, the process of mowing and collecting grass is completed, when the observation port 53 observes that the amount of the material collected in the collection box 5 is full, the door on the collection box 5 is opened, and the collected grass and trees are poured out from the discharge port and placed in a pile; when cutting vegetation, can produce some vegetation residues or straw, at this moment the guard plate 4 of stock guide 3 both sides can block the straw and splash to prevent that the user from being injured.
In summary, compared with the prior art, the pruning machine for gardens of the utility model has the advantages that the blades are driven to rotate by the power device, so that the vegetation is cut off by the blades, and then the cut vegetation is pushed into the collecting box under the action of the material shifting plate II on the blades, the material guide plate below the blades and the material shifting plate I, so that the cut vegetation can be collected in time, and the labor intensity of workers is reduced; the novel multifunctional electric heating cooker is simple in structure, high in practicability and worthy of popularization.
The above disclosure is only for a few specific embodiments of the present invention, however, the present invention is not limited to the embodiments, and any changes that can be considered by those skilled in the art shall fall within the protection scope of the present invention.
Claims (8)
1. The pruning machine for gardens is characterized by comprising a power box (2) and a movable supporting device for supporting the power box (2), wherein a vertically arranged rotating shaft I (24) is arranged between the inner walls of the power box (2), the power box (2) is further provided with a driving device I for driving the rotating shaft I (24) to rotate, the end part of the rotating shaft I (24) penetrates out of the inner bottom surface of the power box (2) and is connected with a blade (27), a material guide plate (3) which is obliquely arranged is arranged below the blade (27), the material guide plate (3) is connected with the bottom of the power box (2) through two protection plates (4), a channel is formed between the two protection plates (4), the material guide plate (3) and the power box (2), and the blade (27) is arranged in the channel in a suspended mode;
a collecting box (5) for collecting the grass and the trees is fixed at the bottom of the power box (2), the bottom surface of the collecting box (5) and the guide plate (3) are positioned on the same plane, a feeding hole is formed in one side of the collecting box (5), and one side, provided with the feeding hole, of the collecting box (5) is connected with a lower inclined end of the guide plate (3); a horizontally arranged rotating shaft II (51) is rotatably erected in a feed inlet of the collecting box (5), a plurality of material shifting plates I (52) are uniformly distributed in the circumferential direction of the rotating shaft II (51), and a driving device II for driving the rotating shaft II (51) to intermittently rotate is arranged outside the collecting box (5).
2. The pruning machine for garden use according to claim 1, characterized in that the driving means (II) comprises a stepping motor fixed outside the collection box (5), the output shaft of said stepping motor is sleeved with a bevel gear (I), the bevel gear (I) is engaged with a bevel gear (II), the bevel gear (II) is sleeved and fixed at the end of the rotating shaft (51).
3. The pruning machine for garden aspect according to claim 1, wherein the driving device I comprises a motor (21), a gear I (22) is fixed on an output shaft of the motor (21) in a sleeving manner, the gear I (22) is meshed with a gear II (23), and the gear II (23) is fixed on a rotating shaft I (24) in a sleeving manner.
4. The pruning machine for garden aspect according to claim 2, characterized in that a hand push rod (1) is provided at one side of the power box (2), a button (11) is provided on the hand push rod (1), a storage battery (25) is provided in the power box (2), and the storage battery (25) is electrically connected with the motor (21) through the button (11).
5. The pruning machine for garden use according to claim 1, characterized in that a material-shifting plate II (271) for shifting the cut vegetation is arranged on the side of the blade (27) close to the bottom of the power box (2), and the material-shifting plate II (271) is arranged in an S-shape on the blade (27).
6. The pruning machine for garden use according to claim 1, characterized in that the end of the guiding plate (3) facing away from the feeding opening of the collecting box (5) is provided with a groove for gathering the vegetation.
7. The pruning machine for garden aspects according to claim 1, wherein the blades (27) are obliquely arranged and parallel to the material guiding plate (3).
8. The pruning machine for garden aspects according to claim 1, characterized in that the collection box (5) is provided with a viewing port (53) at the upper side for viewing the amount of material.
