CN210633431U

CN210633431U - a grinding device

Info

Publication number: CN210633431U
Application number: CN201921711547.7U
Authority: CN
Inventors: 吴昊; 张文斌; 江洁; 郭德伟; 王鸿钧
Original assignee: Honghe University
Current assignee: Honghe University
Priority date: 2019-10-14
Filing date: 2019-10-14
Publication date: 2020-05-29
Anticipated expiration: 2029-10-14

Abstract

The utility model discloses a grinding device, comprising a worktable, side plates are fixedly assembled on both sides of the surface of the worktable, a top plate is fixedly assembled on the top ends of the two side plates, and a surface of the top plate is fixedly assembled with a top plate. For the main body of the grinding machine, a bracket is hingedly assembled on one side of the lower surface of the worktable, and a rubber block is fixedly assembled on the other side of the lower surface of the worktable. Through the cooperation of the funnel and the filter screen, the water carrying debris flows from the funnel into the water tank for repeated use. It makes the worktable in an inclined state, so that the water can flow along the surface of the groove, so as to facilitate the collection of water, clean the grinding worktable, and clean the cleaned grinding debris at the same time. Collect, save the time of manual cleaning, avoid polluting the working environment, simple operation and strong practical performance.

Description

Polishing device

Technical Field

The utility model relates to a grinding device technical field, concrete field is a grinding device.

Background

The grinding industry is the workers of the grinding and polishing processes of the machine manufacturing industry, the processing industry, the die industry, the wood industry, the leather industry and the like. The working purpose is to remove burrs on the surface of a product workpiece, to make the workpiece smooth and easy to continue processing or to reach a finished product, the used tools are mainly grinding machines, grinding wheel mills and the like, smaller hand workshops are also provided with angle grinders, the angle grinders are manually operated by abrasive paper, a lot of chips can appear when the workpiece is ground and processed, the workpiece is not easy to collect and clean, and the practicability is poor.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a grinding device to solve the problem that proposes among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: a polishing device comprises a workbench, wherein two sides of the surface of the workbench are fixedly provided with side plates, the top ends of the two side plates are fixedly provided with a top plate, the surface of the top plate is fixedly provided with a polisher body, one side of the lower surface of the workbench is hinged with a support, the other side of the lower surface of the workbench is fixedly provided with a rubber block, the bottom end of the rubber block is fixedly provided with a bolt, the outer wall of the bottom end of the bolt is sleeved with a loop bar, the upper surface of the workbench is provided with a groove, one side of the workbench, which is close to the rubber block, is fixedly provided with a funnel in a penetrating manner, the funnel is communicated with the groove, one side of the workbench, which is far away from the funnel, is fixedly provided with a sleeve in a penetrating manner, the sleeve is communicated with the groove, the bottom end of the inner wall of the, the one end of pipe is fixed to be equipped with the shower nozzle, the bottom mounting of outlet pipe is equipped with the water pump, one side of water pump is fixed to be equipped with the inlet tube, the below of workstation is equipped with the basin, the inlet tube runs through the basin, the basin is close to one side inner wall fixed assembly of funnel and is equipped with the filter screen.

Preferably, a cover plate is inserted between the inner wall of the water tank and the filter screen and is positioned below the funnel, a cylinder is fixedly assembled below the cover plate, a through hole is formed in the surface of the cover plate, a circular plate is rotatably assembled on the inner wall of the through hole, a rubber pad is fixedly assembled on the surface of the circular plate, and a rubber strip is fixedly assembled on the surface of the rubber pad.

Preferably, the top end of the water tank is buckled with a top cover, one side of the top cover, which is close to the funnel, is provided with an opening, and the funnel penetrates through the opening.

Preferably, the rib is made of rubber.

Compared with the prior art, the beneficial effects of the utility model are that: the utility model provides a grinding device, cooperation through basin and inlet tube, through the cooperation of water pump with the blow water pipe, in the in-process of processing of polishing, the external power supply of switch-on water pump, water in with the basin is transported to the outlet pipe through the inlet tube and is at last by the shower nozzle blowout, spun rivers flow at the inner wall of recess, the piece that produces when will polishing simultaneously washes away, cooperation through funnel and filter screen, carry clastic water and carry out iterative utilization in flowing into the basin from the funnel department, the filter screen filters the piece, through bolt and telescopic cooperation, it changes the position of bolt in the sleeve to rotate the sleeve, make the workstation be in the state of slope, make the rivers can follow the surface flow of recess, thereby the convenience is collected water, avoid causing the waste of water resource.

The utility model provides a grinding device can clear up the workstation of processing of polishing, collects the piece of polishing of clearance in the clearance, has saved the time of manual clearance, avoids polluting operational environment, easy operation, and practicality is strong.

Drawings

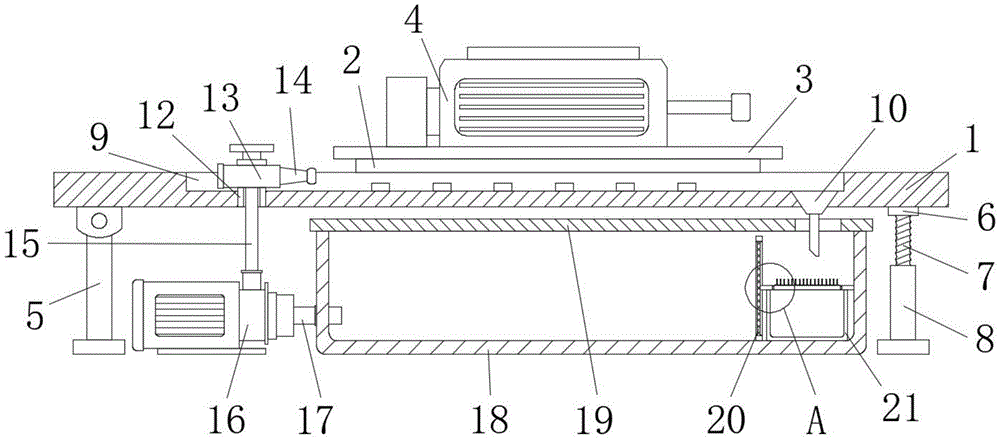

Fig. 1 is a schematic structural view of the present invention;

FIG. 2 is an enlarged view of the structure at A in FIG. 1;

FIG. 3 is a top view of the structure of the working table of the present invention;

fig. 4 is a schematic view of the structure of the rotating circular plate of the present invention.

In the figure: 1-workbench, 2-side plate, 3-top plate, 4-sander body, 5-support, 6-rubber block, 7-bolt, 8-loop bar, 9-groove, 10-funnel, 11-rib, 12-sleeve, 13-guide pipe, 14-spray head, 15-water outlet pipe, 16-water pump, 17-water inlet pipe, 18-water tank, 19-top cover, 20-filter screen, 21-cylinder, 22-cover plate, 23-circular plate, 24-rubber pad, 25-rubber strip.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-4, the present invention provides a technical solution: a polishing device comprises a workbench 1, side plates 2 are fixedly assembled on two sides of the surface of the workbench 1, a top plate 3 is fixedly assembled on the top ends of the two side plates 2, a polisher body 4 is fixedly assembled on the surface of the top plate 3, a support 5 is hinged on one side of the lower surface of the workbench 1, a rubber block 6 is fixedly assembled on the other side of the lower surface of the workbench 1, a bolt 7 is fixedly assembled at the bottom end of the rubber block 6, a loop bar 8 is sleeved on the outer wall of the bottom end of the bolt 7, a groove 9 is formed in the upper surface of the workbench 1, a funnel 10 is fixedly penetrated on one side of the workbench 1 close to the rubber block 6, the funnel 10 is communicated with the groove 9, a sleeve 12 is fixedly penetrated on one side of the workbench 1 far away from the funnel 10, the sleeve 12 is communicated with the groove 9, a rib 11 is fixedly assembled at the bottom end of the inner wall of, the one end of pipe 13 is fixed with shower nozzle 14, and the bottom mounting of outlet pipe 15 is equipped with water pump 16, and one side of water pump 16 is fixed with inlet tube 17, and the below of workstation 1 is equipped with basin 18, and inlet tube 17 runs through basin 18, and the one side inner wall that basin 18 is close to funnel 10 is fixed with filter screen 20.

Before polishing, water is stored in a water tank 18, when polishing is carried out, an external power supply of a water pump 16 is switched on, the water pump 16 starts to work, the water pump 16 pumps the water in the water tank 18 into a water outlet pipe 15 through a water inlet pipe 17, the water is discharged from a spray head 14 through a guide pipe 13 and flows in a groove 9, the shape of a convex edge 11 is shown in figure 3, the water impacting on the convex edge 11 flows to the edge of the groove 9 along the convex edge 11, the water drives chips falling on a worktable 1 to flow in the flowing process, finally the water is discharged from a funnel 10 and flows back to the water tank 18, the water is recycled, waste is avoided, a filter screen 20 filters the water, the chips are prevented from flowing into the water inlet pipe 17 again, a sleeve rod 8 is rotated, internal threads are arranged on the inner wall of the sleeve rod 8, the position of a bolt 7 in the sleeve rod 8 is changed, and the bottom end of the bolt 7 is enabled to extend into the sleeve rod 8 more, at the moment, the workbench 1 swings at the top end of the bracket 5, and the rubber block 6 deforms, so that the workbench 1 inclines to the position of the funnel 10, and the water flows conveniently.

Specifically, a cover plate 22 is inserted between the inner wall of the water tank 18 and the filter screen 20, the cover plate 22 is located below the funnel 10, a cylinder 21 is fixedly assembled below the cover plate 22, a through hole is formed in the surface of the cover plate 22, a circular plate 23 is rotatably assembled on the inner wall of the through hole, a rubber pad 24 is fixedly assembled on the surface of the circular plate 23, and a rubber strip 25 is fixedly assembled on the surface of the rubber pad 24.

When using, the water that carries the piece flows out from funnel 10, flows to rubber pad 24 on, returns the speed that reduces rivers under the blockking of rubber strip 25 to make the piece have sufficient settling time, partly attached to on rubber strip 25, use a period of time after, rotate plectane 23, make plectane 23 be in vertical state, the water washes rubber pad 24, and barrel 21 accomodates the piece, convenient clearance.

Specifically, a top cover 19 is fastened to the top end of the water tank 18, an opening is opened on the side of the top cover 19 close to the funnel 10, and the funnel 10 is inserted through the opening.

The top cover 19 is fastened on the water tank 18 to shield the top end of the water tank 18, so that other impurities are prevented from entering the water tank 18 to block the water inlet pipe 17.

Specifically, the rib 11 is made of rubber.

The slight deformation can take place for the bead 11 of rubber material under the impact of rivers at the in-process of using, avoids the piece card on bead 11.

The working principle is as follows: before polishing, water is stored in the water tank 18, when polishing, an external power supply of the water pump 16 is connected, the water pump 16 starts to work, the water pump 16 pumps the water in the water tank 18 into the water outlet pipe 15 through the water inlet pipe 17, the water is discharged from the spray head 14 through the guide pipe 13 and flows in the groove 9, the water drives the fragments falling onto the workbench 1 to flow in the flowing process, finally the water is discharged from the funnel 10 and flows back into the water tank 18, the filter screen 20 filters the water, the loop bar 8 is rotated, the bottom end of the bolt 7 extends into the loop bar 8 more, at the moment, the workbench 1 swings at the top end of the support 5, and meanwhile, the rubber block 6 deforms, so that the workbench 1 inclines towards the position of the funnel 10, and the fragments are convenient to collect.

In the description of the present invention, unless expressly stated or limited otherwise, the terms "disposed," "mounted," "connected," and "fixed" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral part; can be mechanically or electrically connected; either directly or indirectly through intervening media, either internally or in any other relationship. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.

The utility model discloses the standard part that uses all can purchase from the market, and dysmorphism piece all can be customized according to the description with the record of drawing of description, and the concrete connection mode of each part all adopts conventional means such as ripe bolt, rivet, welding among the prior art, and machinery, part and setting are equipped with and all adopt prior art, and conventional model is including circuit connection adopts conventional connection mode among the prior art, and the detail is not repeated here.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A grinding device, comprising a workbench (1), characterized in that: both sides of the surface of the workbench (1) are fixedly equipped with side plates (2), and the top ends of the two side plates (2) A top plate (3) is fixedly assembled, the surface of the top plate (3) is fixedly assembled with a grinder main body (4), and a bracket (5) is hingedly assembled on one side of the lower surface of the worktable (1). The other side of the lower surface of (1) is fixedly fitted with a rubber block (6), the bottom end of the rubber block (6) is fixedly fitted with a bolt (7), and the outer wall of the bottom end of the bolt (7) is sleeved with a sleeve A rod (8), a groove (9) is provided on the upper surface of the worktable (1), and a funnel (10) is fixed through the side of the worktable (1) close to the rubber block (6). (10) is communicated with the groove (9), a sleeve (12) is fixed through the side of the table (1) away from the funnel (10), and the sleeve (12) is connected with the groove (9) The bottom end of the inner wall of the groove (9) is fixedly fitted with a convex rib (11), the inner wall of the sleeve (12) is inserted with a water outlet pipe (15), and the top of the water outlet pipe (15) is fixed A conduit (13) is assembled, one end of the conduit (13) is fixedly assembled with a spray head (14), the bottom end of the water outlet pipe (15) is fixedly assembled with a water pump (16), one side of the water pump (16) is fixedly assembled A water inlet pipe (17) is fixedly assembled, a water tank (18) is arranged below the worktable (1), the water inlet pipe (17) runs through the water tank (18), and the water tank (18) is close to the bottom of the funnel (10). A filter screen (20) is fixedly assembled on the inner wall of one side.

2. A grinding device according to claim 1, characterized in that: a cover plate (22) is inserted between the inner wall of the water tank (18) and the filter screen (20), and the cover plate (22) Below the funnel (10), a cylindrical body (21) is fixedly assembled under the cover plate (22), a through hole is formed on the surface of the cover plate (22), and the inner wall of the through hole is rotatably assembled with a circular plate (23), a rubber pad (24) is fixedly assembled on the surface of the circular plate (23), and a rubber strip (25) is fixedly assembled on the surface of the rubber pad (24).

3. A grinding device according to claim 1, characterized in that: a top cover (19) is fastened to the top of the water tank (18), and the top cover (19) is close to the side of the funnel (10). An opening is provided, and the funnel (10) penetrates through the opening.

4 . The grinding device according to claim 1 , characterized in that: the ridges ( 11 ) are made of rubber. 5 .
