Abstract
本实用新型公开了一种具有防凝露功能的配电箱，包括配电箱体，所述配电箱体的顶部两侧通过螺栓连接有支撑杆，且支撑杆的顶部通过螺栓连接有人字防水板，所述配电箱体的内壁顶部开设有进风口，且进风口的内壁通过风扇支撑架连接有伺服电机，所述伺服电机的输出轴通过螺栓连接散热扇。本实用新型中，通过设置有伺服电机、散热扇、防尘网罩、过滤网、防护网，配电箱体顶部安装的伺服电机带动散热扇转动，可加速配电箱体内部空气流动速率，同时在进风口处安装有防尘网罩和过滤网，避免了外部灰尘进入配电箱体中，同时在，过滤网与防尘网罩的夹层内部填充有干燥剂，可吸收外部空气中的水分。
The utility model discloses a power distribution box with anti-condensation function, which comprises a power distribution box body, two sides of the top of the power distribution box body are connected with support rods through bolts, and the top of the support rods are connected with human characters through bolts Waterproof board, the top of the inner wall of the power distribution box is provided with an air inlet, and the inner wall of the air inlet is connected with a servo motor through a fan support frame, and the output shaft of the servo motor is connected to the cooling fan through bolts. In the utility model, a servo motor, a cooling fan, a dustproof net cover, a filter net and a protective net are arranged, and the servo motor installed on the top of the power distribution box drives the cooling fan to rotate, which can accelerate the air flow rate inside the power distribution box. At the same time, a dust filter and a filter are installed at the air inlet to prevent external dust from entering the power distribution box. At the same time, the interlayer between the filter and the dust filter is filled with desiccant, which can absorb the moisture.
Description
Technical Field
The utility model relates to a block terminal technical field especially relates to a block terminal with prevent condensation function.
Background
The distribution box is a mass parameter on data, generally forms a low-voltage forest according to electrical wiring, and requires that a switch device, a measuring instrument, a protective electrical appliance and an auxiliary device are assembled in a closed or semi-closed metal cabinet or on a screen to form the low-voltage distribution box. In normal operation, the circuit can be switched on or off by means of a manual or automatic switch. The distribution box has the characteristics of small volume, simple and convenient installation, special technical performance, fixed position, unique configuration function, no field limitation, universal application, stable and reliable operation, high space utilization rate, less occupied area and environmental protection effect.
Because electrical equipment's popularization, user's power consumption demand is big, all be equipped with a lot of power supply unit in a lot of block terminals, current block terminal is inclosed mostly, install the equipment inside it and then give off the heat ceaselessly because of work uninterruptedly for a long time, these heat just gather and make the temperature of equipment box in the equipment box more and more high, traditional block terminal ventilation effect is relatively poor, easy condensation under the great condition of inside and outside difference in temperature, especially place at outdoor switch board, the switch board of condensation causes short circuit to damage equipment easily, cause not little influence to equipment, we provide a block terminal with prevent the condensation function for this reason.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the shortcoming that exists among the prior art, and the block terminal with prevent condensation function that proposes.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
a distribution box with an anti-condensation function comprises a distribution box body, wherein two sides of the top of the distribution box body are connected with supporting rods through bolts, the top of each supporting rod is connected with a herringbone waterproof plate through a bolt, an air inlet is formed in the top of the inner wall of the distribution box body, the inner wall of the air inlet is connected with a servo motor through a fan supporting frame, an output shaft of the servo motor is connected with a heat dissipation fan through a bolt, the top of the distribution box body is connected with a filter screen through a bolt, the top of the distribution box body is connected with a dustproof mesh enclosure through a bolt, drying agents are filled in interlayers of the filter screen and the dustproof mesh enclosure, four corners of the bottom of the distribution box body are connected with telescopic cylinders through bolts, damping shock absorbers are connected to the inner walls of the telescopic cylinders through bolts, the same damping spring is connected to the, and the outer wall of chamber door has the controller through bolted connection, the louvre has all been seted up to the outer wall both sides bottom of distribution box, and the inner wall of louvre has the protection network through bolted connection, the weather shield has all been welded to the outer wall both sides of distribution box, and the weather shield is located the protection network directly over.
Preferably, the bottom of the telescopic cylinder is connected with an I-shaped mounting rack through a bolt, and the middle parts of the I-shaped mounting racks are connected with a connecting rod through a bolt.
Preferably, the two sides of the inner wall of the distribution box body are connected with fixing frames through bolts, and the outer wall of each fixing frame is provided with limiting holes distributed equidistantly.
Preferably, the inside of the limit hole of the fixing frame is connected with a fastening bolt through a thread, and the fixing frame is connected with a mounting plate through the fastening bolt.
Preferably, the outer wall of the mounting plate is provided with mounting holes distributed in an equidistant array manner, and the outer wall of the mounting plate is bonded with a water absorption drying layer.
Preferably, the inner wall of the distribution box body is connected with a temperature and humidity sensor through a bolt, and the temperature and humidity sensor is electrically connected with the controller through a signal line.
Preferably, the controller is electrically connected with an external switch of the servo motor through a lead, and the controller is electrically connected with an external power supply through a power transmission line.
Preferably, there is the dry layer that absorbs water in distribution box's inner wall both sides through screwed connection, and the inner wall on the dry layer that absorbs water has electric heating wire through screwed connection, electric heating wire's external switch passes through wire electric connection with the controller.
The utility model has the advantages that:
1. the utility model provides a block terminal with prevent condensation function, through being provided with servo motor, the heat dissipation fan, dustproof screen panel, the filter screen, the protection network, the servo motor of distribution box top installation drives the heat dissipation fan and rotates, can accelerate the inside air flow rate of distribution box, installs dustproof screen panel and filter screen in air intake department simultaneously, has avoided during outside dust gets into the distribution box, has simultaneously the drier at the inside packing of the intermediate layer of filter screen and dustproof screen panel, can absorb the moisture in the outside air.
2. The utility model provides a block terminal with prevent condensation function, through being provided with electric heating wire, the dry layer that absorbs water, weather shield, the protection network, temperature and humidity sensor, a controller, temperature and humidity sensor real-time detection distribution box is inside humiture, accessible signal line is with information transfer to controller, reach the assigned position when the humiture, controller control electric heating wire opens, can heat the dry layer that absorbs water, can evaporate discharge to moisture, the dry layer that absorbs water can absorb the inside moisture content of distribution box, the inside dryness fraction of distribution box has been improved, the condensation phenomenon has been avoided simultaneously and has been produced.
3. The utility model provides a block terminal with prevent condensation function through being provided with telescopic cylinder, damping spring, damping shock absorber, I-shaped mounting bracket, has damping spring at the telescopic cylinder internally mounted of distribution box bottom installation, and damping spring's both sides install the damping shock absorber, and damping spring has increased distribution box anti-seismic performance, and the I-shaped mounting bracket is connected with the connecting rod, has improved the stability of device.
Drawings

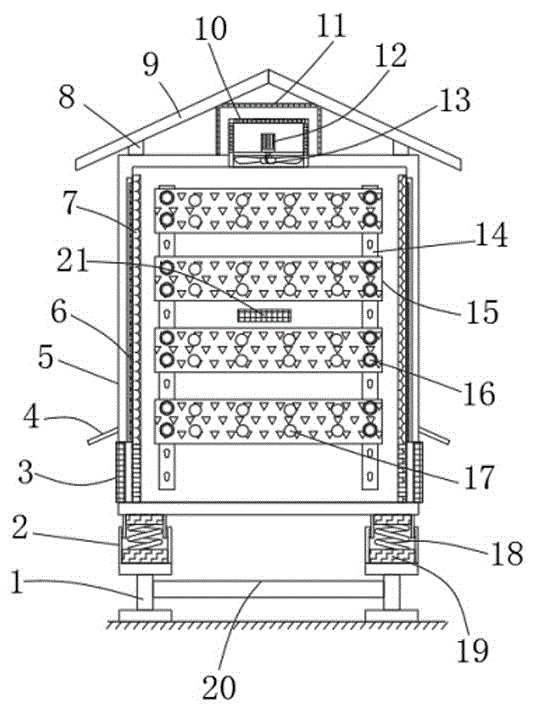

Fig. 1 is a schematic cross-sectional structural view of a distribution box with a condensation prevention function according to the present invention;
fig. 2 is a schematic front view of a distribution box with a condensation prevention function according to the present invention;
fig. 3 is the utility model provides an electric heating wire schematic diagram of block terminal with prevent condensation function.
In the figure: the device comprises a 1I-shaped mounting rack, a 2 telescopic sleeve, a 3 protective screen, a 4 rain baffle, a 5 distribution box, a 6 electric heating wire, a 7 drying water absorption layer, a 8 supporting rod, a 9 herringbone waterproof board, a 10 filter screen, a 11 dustproof mesh enclosure, a 12 servo motor, a 13 heat dissipation fan, a 14 fixing frame, a 15 mounting plate, a 16 fastening bolt, a 17 mounting hole, a 18 damping spring, a 19 damping shock absorber, a 20 connecting rod, a 21 temperature and humidity sensor, a 22 box door and a 23 controller.
Detailed Description
The technical solution of the present patent will be described in further detail with reference to the following embodiments.
Reference will now be made in detail to embodiments of the present patent, examples of which are illustrated in the accompanying drawings, wherein like or similar reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below with reference to the drawings are exemplary only for the purpose of explaining the present patent and are not to be construed as limiting the present patent.
In the description of this patent, it is to be understood that the terms "center," "upper," "lower," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," and the like are used in the orientations and positional relationships indicated in the drawings for the convenience of describing the patent and for the simplicity of description, and are not intended to indicate or imply that the referenced devices or elements must have a particular orientation, be constructed and operated in a particular orientation, and are not to be considered limiting of the patent.
In the description of this patent, it is noted that unless otherwise specifically stated or limited, the terms "mounted," "connected," and "disposed" are to be construed broadly and can include, for example, fixedly connected, disposed, detachably connected, disposed, or integrally connected and disposed. The specific meaning of the above terms in this patent may be understood by those of ordinary skill in the art as appropriate.
Example 1
Referring to fig. 1-2, a distribution box with anti-condensation function comprises a distribution box body 5, wherein two sides of the top of the distribution box body 5 are connected with support rods 8 through bolts, the top of each support rod 8 is connected with a herringbone waterproof plate 9 through a bolt, the top of the inner wall of the distribution box body 5 is provided with an air inlet, the inner wall of the air inlet is connected with a servo motor 12 through a fan support frame, an output shaft of the servo motor 12 is connected with a heat dissipation fan 13 through a bolt, the top of the distribution box body 5 is connected with a filter screen 10 through a bolt, the top of the distribution box body 5 is connected with a dustproof mesh enclosure 11 through a bolt, drying agents are filled in an interlayer between the filter screen 10 and the dustproof mesh enclosure 11, four corners of the bottom of the distribution box body 5 are connected with telescopic cylinders 2 through bolts, the inner walls of the telescopic cylinders 2, there is chamber door 22 on one side of the outer wall of distribution box 5 through hinged joint, and there is controller 23 on the outer wall of chamber door 22 through bolted connection, and the louvre has all been seted up to the outer wall both sides bottom of distribution box 5, and the inner wall of louvre has protection network 3 through bolted connection, and weather shield 4 has all been welded to the outer wall both sides of distribution box 5, and weather shield 4 is located protection network 3 directly over.
Wherein the bottom of the telescopic cylinder 2 is connected with I-shaped mounting racks 1 through bolts, the middle parts of the two I-shaped mounting racks 1 are connected with connecting rods 20 through bolts, two sides of the inner wall of the distribution box body 5 are connected with fixing frames 14 through bolts, and the outer wall of the fixing frame 14 is provided with limit holes distributed at equal intervals, the inside of the limit hole of the fixing frame 14 is connected with a fastening bolt 16 through screw thread, and the fixed mount 14 is connected with a mounting plate 15 through a fastening bolt 16, the outer wall of the mounting plate 15 is provided with mounting holes 17 distributed in an equidistant array, and the outer wall of the mounting plate 15 is bonded with a water absorption drying layer, the inner wall of the distribution box body 5 is connected with a temperature and humidity sensor 21 through bolts, the temperature and humidity sensor 21 and the controller 23 are electrically connected through a signal line, the controller 23 is electrically connected with an external switch of the servo motor 12 through a lead, and the controller 23 is electrically connected with an external power supply through a power line.
Example 2
Referring to fig. 3, a block terminal with prevent condensation function, still include 5 inner wall both sides of distribution box and pass through screwed connection's dry layer 7 that absorbs water, and the dry inner wall that absorbs water layer 7 has electric heating wire 6 through screwed connection, electric heating wire 6's external switch and controller 23 pass through wire electric connection, controller 23 control electric heating wire 6 opens, can heat dry layer 7 that absorbs water, can evaporate water and discharge, dry layer 7 that absorbs water can absorb the inside moisture content of distribution box 5, the inside degree of dryness of distribution box 5 has been improved.
The working principle is as follows: the servo motor 12 arranged at the top of the distribution box body 5 drives the heat dissipation fan 13 to rotate, the air flow rate in the distribution box body 5 can be accelerated, meanwhile, the dustproof mesh enclosure 11 and the filter screen 10 are arranged at the air inlet, external dust is prevented from entering the distribution box body 5, meanwhile, drying agents are filled in an interlayer between the filter screen 10 and the dustproof mesh enclosure 11 and can absorb moisture in external air, the temperature and humidity sensor 21 detects the temperature and humidity in the distribution box body 5 in real time, information can be transmitted to the controller 23 with the model of DATA-7311 through a signal line, when the temperature and humidity reach a specified position, the controller 23 controls the electric heating wire 6 to be opened and can heat the drying water absorption layer 7 and evaporate and discharge the moisture, the drying water absorption layer 7 can absorb the moisture in the distribution box body 5, the dryness in the distribution box body 5 is improved, the damping spring 18 is arranged in the telescopic cylinder 2 arranged at the, and damping shock absorbers 19 are arranged on two sides of the damping spring 18, the damping spring 18 increases the anti-seismic performance of the distribution box body 5, and the I-shaped mounting frame 1 is connected with a connecting rod 20, so that the stability of the device is improved.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
