Abstract
本实用新型公开了一种小密蓄电池十二片排布板栅模具，包括底板、下模具、上模具、顶板和外螺纹套，顶板的上端面从左到右依次连接有抽泵、液压缸和真空泵，抽泵的左端面连接有进料管，抽泵的右端面连接有第二胶管，第二胶管的另一端连接有汇集腔，汇集腔上连接有第二连接管，第二连接管上连接有第二阀门，液压缸上连接有液压杆，外螺纹套固定在液压杆上，液压杆的下端面连接有上模具，上模具的下端面等间距焊接有上半成型槽，上半成型槽上开设有榫槽。本实用新型通过设置真空泵、抽泵、密封条、下半成型槽和上半成型槽结构，解决了现有的板栅模具需要完成注料后才进行合模而使得料液中含有空气导致在制作板栅时会产生气泡的问题。
The utility model discloses a twelve-piece arrangement grid mold for small-density storage batteries, which comprises a bottom plate, a lower mold, an upper mold, a top plate and an external thread sleeve. The upper end face of the top plate is sequentially connected with a pump and a hydraulic cylinder from left to right. and vacuum pump, the left end face of the suction pump is connected with a feeding pipe, the right end face of the suction pump is connected with a second rubber tube, the other end of the second rubber tube is connected with a collecting cavity, and the collecting cavity is connected with a second connecting pipe, the second connecting pipe A second valve is connected to the upper part, a hydraulic rod is connected to the hydraulic cylinder, the external thread sleeve is fixed on the hydraulic rod, the lower end face of the hydraulic rod is connected to an upper mold, and the lower end face of the upper mold is welded with upper half forming grooves at equal intervals. The forming groove is provided with a tenon groove. By arranging a vacuum pump, a pumping pump, a sealing strip, a lower half-molding groove and an upper half-molding groove structure, the utility model solves the problem that the existing grid mold needs to be closed after the material injection is completed, so that the material liquid contains air, which leads to the There is a problem with air bubbles when making grids.
Description
Technical Field
The utility model relates to a battery technical field specifically is a twelve grid moulds of arranging of little dense battery.
Background
Along with the continuous development of social science and technology, more and more electrical appliances are used in people's life, and the operation of electrical appliances needs to use the electric energy, wherein, the battery is used for storing the electric energy or provides the electric energy to the electrical appliances, and the grid is one of the constitutional parts of battery, need use the grid mould when making the grid, but, the current grid mould need accomplish just to carry out the compound die after the material injection and make the feed liquid contain the problem that the air leads to producing the bubble when making the grid.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
Not enough to prior art, the utility model provides a twelve piece grid moulds of arranging of little dense battery has solved current grid mould and has just carried out the compound die after need accomplishing the notes material and make and contain the problem that the air leads to can the gassing when making the grid in the feed liquid.
(II) technical scheme
In order to achieve the above object, the utility model provides a following technical scheme: a twelve-piece grid arrangement die for small-density storage batteries comprises a bottom plate, a lower die, an upper die, a top plate and an external thread sleeve, wherein a pumping pump, a hydraulic cylinder and a vacuum pump are sequentially connected to the upper end face of the top plate from left to right, a feeding pipe is connected to the left end face of the pumping pump, a second rubber pipe is connected to the right end face of the pumping pump, a collecting cavity is connected to the other end of the second rubber pipe, a second connecting pipe is connected to the collecting cavity, a second valve is connected to the second connecting pipe, a hydraulic rod is connected to the hydraulic cylinder, the external thread sleeve is fixed to the hydraulic rod, an upper die is connected to the lower end face of the hydraulic rod, an upper half-forming groove is welded to the lower end face of the upper die at equal intervals, a mortise is formed in the upper half-forming groove, a second connecting hole is formed in the left part of the upper half, the right end face of the vacuum pump is connected with an exhaust pipe, the left end face of the vacuum pump is connected with a first rubber pipe, the other end of the first rubber tube is connected with an air collecting cavity, a first connecting tube is connected on the air collecting cavity, the first connecting pipe is connected with a first valve, the upper end surface of the lower die is welded with lower semi-forming grooves at equal intervals, the outer side wall of the lower half-forming groove is bonded with a sealing strip, the lower end surface of the top plate is welded with support rods in a bilateral symmetry manner, the lower end surface of the supporting rod is welded on the upper end surface of the bottom plate, the middle of the upper end surface of the bottom plate is connected with an installation box, the interior of the mounting box is provided with a storage battery main body and a PLC controller, the output end of the PLC controller is electrically connected with the input end of the vacuum pump, and the output end of the PLC controller is electrically connected with the input end of the hydraulic cylinder, and the output end of the PLC controller is electrically connected with the input end of the pumping pump.
Preferably, a pump seat is welded on the lower end face of the vacuum pump, connecting clamping sleeves are welded at the left end and the right end of the vacuum pump, a pump seat is welded on the lower end face of the pumping pump, connecting clamping sleeves are welded at the left end and the right end of the pumping pump, bolts are in threaded connection with the pump seat in a bilateral symmetry mode, penetrate through the pump seat and extend onto the top plate, and a second through hole, a first through hole and a third through hole are sequentially formed in the top plate from left to right.
Preferably, the lower end face of the hydraulic cylinder is welded with the fixing lugs in a bilateral symmetry mode, bolts are connected to the fixing lugs in a bilateral symmetry mode through threads, and the bolts penetrate through the fixing lugs and extend to the top plate.
Preferably, the lower terminal surface welding of mounting box has the box base, bilateral symmetry threaded connection has the bolt on the box base, the bolt runs through the box base and extends to on the bottom plate, the wiring hole has been seted up to the lower right corner of mounting box.
Preferably, the fixed plate is welded on the inner side of the supporting rod, the connecting plates are symmetrically welded on the left end face and the right end face of the lower die, the external thread column is welded on the upper end face of the fixed plate, the nut is connected onto the external thread column, a fourth through hole is formed in the connecting plate, and the external thread column penetrates through the fourth through hole.
Preferably, an internal threaded hole is formed in the middle of the upper end face of the upper die, and the external threaded sleeve is in threaded connection with the inner side of the internal threaded hole.
Preferably, the first rubber pipe penetrates through the third through hole, the hydraulic rod penetrates through the first through hole, and the second rubber pipe penetrates through the second through hole.
Preferably, a connecting jacket is welded on the upper end face of the upper die, and the connecting jacket on the upper die is positioned on the upper sides of the first connecting hole and the second connecting hole.
Preferably, a connecting jacket is welded on the collection cavity, and a connecting jacket is welded on the collection cavity.
(III) advantageous effects
The utility model provides a twelve grid moulds of arranging of little dense battery possesses following beneficial effect:
the utility model, through the arrangement of the vacuum pump, the sealing strip, the lower half forming groove and the upper half forming groove, the sealing effect is enhanced by the arranged sealing strip, the materials can enter the space formed by the matching of the upper half forming groove and the lower half forming groove through the feeding pipe, the second rubber pipe, the collecting cavity and the second connecting pipe in sequence by the arranged pump, so that the material can be injected after the upper die and the lower die are combined, the air in the space formed by the matching of the upper half-forming groove and the lower half-forming groove sequentially enters the exhaust pipe through the first connecting pipe, the air collecting cavity and the first rubber pipe by the arranged vacuum pump, and then can be to the space evacuation that half profiled groove and half profiled groove cooperation formed on the top, and then can reduce the gassing when preparation grid, and then improved the quality of grid, and then be favorable to improving the work efficiency of production grid.
Drawings

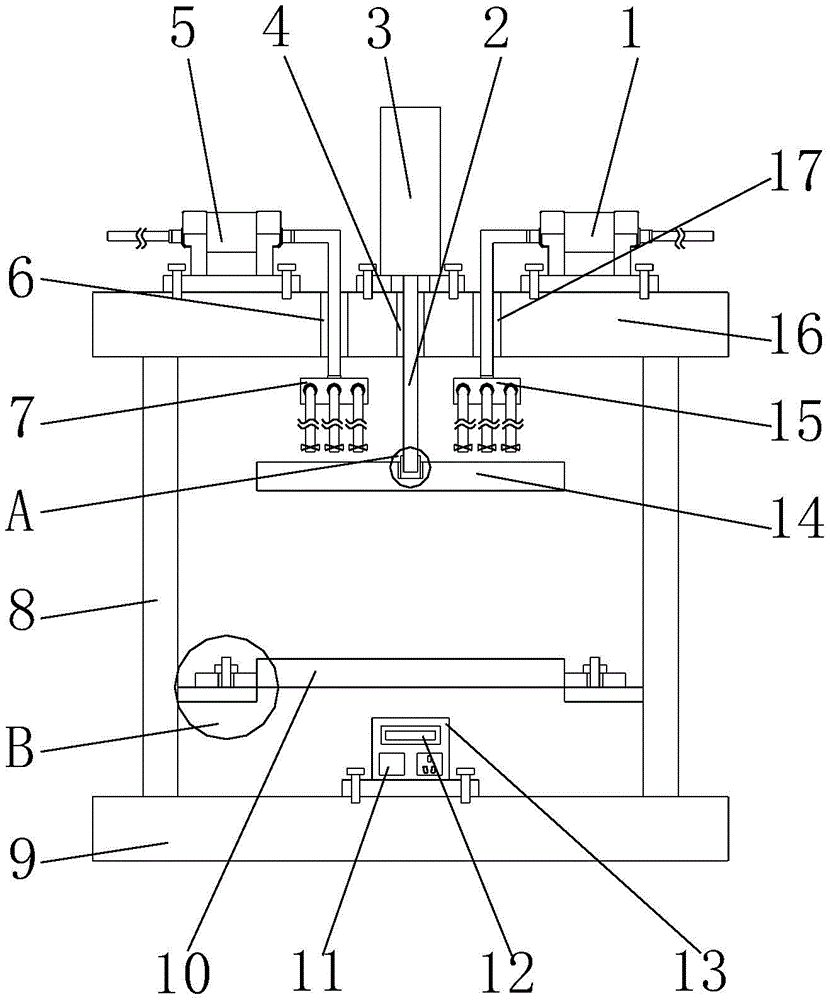

Fig. 1 is a schematic structural view of the present invention;
fig. 2 is a front view schematically illustrating the present invention;
fig. 3 is a schematic top view of a lower mold according to the present invention;
fig. 4 is a schematic bottom view of the upper mold of the present invention;
fig. 5 is a schematic top view of an upper mold according to the present invention;
fig. 6 is an enlarged schematic view of the structure at a in fig. 1 according to the present invention;
fig. 7 is an enlarged schematic view of the structure at a in fig. 1 according to the present invention;
fig. 8 is a schematic view of the flow block of the present invention.
The reference numbers in the figures are: 1. a vacuum pump; 2. a hydraulic lever; 3. a hydraulic cylinder; 4. a first through hole; 5. pumping; 6. a second through hole; 7. a collection chamber; 8. a support bar; 9. a base plate; 10. a lower die; 11. a battery main body; 12. a PLC controller; 13. mounting a box; 14. an upper die; 15. a gas collection cavity; 16. a top plate; 17. a third through hole; 18. a box base; 19. a wiring hole; 20. a fixing plate; 21. a first connecting pipe; 22. an exhaust pipe; 23. a pump mount; 24. a first hose; 25. fixing the ear; 26. a second hose; 27. a feed pipe; 28. a bolt; 29. a second connecting pipe; 30. a connecting plate; 31. a sealing strip; 32. a lower half forming groove; 33. mortises; 34. an upper half forming groove; 35. an internally threaded bore; 36. connecting a jacket; 37. a first connection hole; 38. a second connection hole; 39. an external thread sleeve; 40. an externally threaded post; 41. a nut; 42. a fourth via hole; 43. a first valve; 44. a second valve.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-8, the present invention provides an embodiment: a twelve-plate grid die for small-density storage batteries comprises a bottom plate 9, a lower die 10, an upper die 14, a top plate 16 and an external thread sleeve 39, wherein the upper end surface of the top plate 16 is sequentially connected with a pumping pump 5, a hydraulic cylinder 3 and a vacuum pump 1 from left to right, the left end surface of the pumping pump 5 is connected with a feeding pipe 27, the right end surface of the pumping pump 5 is connected with a second rubber pipe 26, the other end of the second rubber pipe 26 is connected with a collecting cavity 7, the collecting cavity 7 is connected with a second connecting pipe 29, the second connecting pipe 29 is connected with a second valve 44, the hydraulic cylinder 3 is connected with a hydraulic rod 2, the external thread sleeve 39 is fixed on the hydraulic rod 2, the lower end surface of the hydraulic rod 2 is connected with the upper die 14, the lower end surface of the upper die 14 is equidistantly welded with upper half-forming grooves 34, the upper half-forming grooves 34 are provided with mortises 33, the left parts of the upper half, the right end face of the vacuum pump 1 is connected with an exhaust pipe 22, the left end face of the vacuum pump 1 is connected with a first rubber pipe 24, the other end of the first rubber pipe 24 is connected with an air gathering cavity 15, the air gathering cavity 15 is connected with a first connecting pipe 21, the first connecting pipe 21 is connected with a first valve 43, the upper end face of the lower die 10 is welded with a lower half-forming groove 32 at equal intervals, the outer side wall of the lower half-forming groove 32 is bonded with a sealing strip 31, the lower end face of the top plate 16 is welded with support rods 8 in bilateral symmetry, the lower end face of each support rod 8 is welded on the upper end face of the bottom plate 9, a mounting box 13 is connected in the middle of the upper end face of the bottom plate 9, a storage battery main body 11 and a PLC controller 12 are arranged inside the mounting box 13, the output end of the PLC controller 12 is electrically connected with the input end of the vacuum pump 1, the output, the vacuum pump 1 is of a BYNFZ type, the hydraulic rod 2 is of a CU6-10 type, the hydraulic cylinder 3 is of a HAENCHEN type, the suction pump 5 is of a NYP-80 type, the storage battery main body 11 is of a 6-CNF-50 type, and the PLC controller 12 is of a S7-400 type, which are known and published in the prior art.
Furthermore, connecting jackets 36 are welded at the left end and the right end of the vacuum pump 1, connecting jackets 36 are welded at the left end and the right end of the pumping pump 5, the vacuum pump 1 is respectively connected with the exhaust pipe 22 and the first rubber pipe 24 through the connecting jackets 36, the pumping pump 5 is respectively connected with the second rubber pipe 26 and the feeding pipe 27 through the connecting jackets 36, a pump base 23 is welded on the lower end face of the vacuum pump 1, a pump base 23 is welded on the lower end face of the pumping pump 5, bolts 28 are in threaded connection with the pump base 23 in a bilateral symmetry manner, the bolts 28 penetrate through the pump base 23 and extend to the top plate 16, the pump base 23 is detachably connected with the top plate 16 through the design, the pump base 23 can be detached and separated from the top plate 16, the vacuum pump 1 can be detached and separated from the top plate 16, the pumping pump 5 can be detached and separated from the top plate 16, and second through, A first through hole 4 and a third through hole 17.
Further, the lower terminal surface bilateral symmetry welding of pneumatic cylinder 3 has fixed ear 25, and bilateral symmetry threaded connection has bolt 28 on the fixed ear 25, and bolt 28 runs through fixed ear 25 and extends to roof 16 on, and the design makes detachable connection between fixed ear 25 and the roof 16 like this, and then can carry out the split separation with fixed ear 25 and roof 16, and then can carry out the split separation with pneumatic cylinder 3 and roof 16.
Further, the lower terminal surface welding of mounting box 13 has box base 18, and bilateral symmetry threaded connection has bolt 28 on the box base 18, and bolt 28 runs through on box base 18 extends to bottom plate 9, and wiring hole 19 has been seted up to the lower right corner of mounting box 13, and the design makes detachable connection between box base 18 and the bottom plate 9 like this, and then can carry out the split separation with box base 18 and bottom plate 9, and then can carry out the split separation with mounting box 13 and bottom plate 9.
Further, the fixed plate 20 is welded to the inner side of the supporting rod 8, the connecting plates 30 are symmetrically welded to the left end face and the right end face of the lower die 10, the external threaded columns 40 are welded to the upper end faces of the fixed plate 20, the nuts 41 are connected to the external threaded columns 40, the fourth through holes 42 are formed in the connecting plates 30, the external threaded columns 40 penetrate through the fourth through holes 42, the fixed plate 20 and the connecting plates 30 are fixedly connected through the design, and the lower die 10 is fixed to the inner side of the supporting rod 8.
Further, internal thread hole 35 has been seted up in the middle of the up end of last mould 14, and external screw thread cover 39 threaded connection is in the inboard of internal thread hole 35, and the design makes detachable connection between external screw thread cover 39 and the internal thread hole 35 like this, and then can carry out the split separation with external screw thread cover 39 and internal thread hole 35, and then can carry out the split separation with external screw thread cover 39 and last mould 14.
Further, the first rubber pipe 24 penetrates through the third through hole 17, the hydraulic rod 2 penetrates through the first through hole 4, and the second rubber pipe 26 penetrates through the second through hole 6, so that the first rubber pipe 24 can penetrate through the top plate 16, the hydraulic rod 2 can penetrate through the top plate 16, and the second rubber pipe 26 can penetrate through the top plate 16.
Further, a connection collet 36 is welded to the upper end surface of the upper mold 14, and the connection collet 36 of the upper mold 14 is located at the upper sides of the first connection hole 37 and the second connection hole 38, so that the second connection pipe 29 is fixedly connected to the inner side of the second connection hole 38 through the connection collet 36, and the first connection pipe 21 is fixedly connected to the inner side of the first connection hole 37 through the connection collet 36.
Furthermore, a connecting jacket 36 is welded on the collecting cavity 7, and a connecting jacket 36 is welded on the gas collecting cavity 15, so that the second connecting pipe 29 is connected with the collecting cavity 7 through the connecting jacket 36, and the first connecting pipe 21 is connected with the gas collecting cavity 15 through the connecting jacket 36.
The working principle is as follows: when in use, a user connects the first connecting pipe 21 with the first connecting hole 37 through the connecting jacket 36, connects the second connecting pipe 29 with the second connecting hole 38 through the connecting jacket 36, connects the exhaust pipe 22 with an external gas receiving tank through the connecting jacket 36, connects the feed pipe 27 with the external charging bucket through the connecting jacket 36, then connects the wiring hole 19 with an external power supply through a power line, then opens the hydraulic cylinder 3 through the PLC controller 12, extends the hydraulic rod 2, straightens and unfolds the first connecting pipe 21 and the second connecting pipe 29, moves the external thread sleeve 39 downwards, makes the upper die 14 approach the lower die 10, makes the upper half forming groove 34 approach the lower half forming groove 32 until the upper end face of the lower half forming groove 32 contacts with the inner upper end face of the mortise 33, and then closes the hydraulic cylinder 3 through the PLC controller 12, then the user opens the vacuum pump 1 through the PLC controller 12, the user opens the first valve 43, so that the vacuum pump 1 extracts the air in the space formed by the upper half forming groove 34 and the lower half forming groove 32, so that the vacuum pump 1 extracts the space formed by the upper half forming groove 34 and the lower half forming groove 32 to reach a vacuum state, after the air extraction work is completed, the user closes the vacuum pump 1 through the PLC controller 12, the user closes the first valve 43, the user opens the pump 5 through the PLC controller 12, the user opens the second valve 44, so that the feed liquid sequentially passes through the feed pipe 27, the second rubber pipe 26 and the collection cavity 7 to enter the interior of the second connecting pipe 29, and then passes through the second connecting pipe 29 to enter the space formed by the upper half forming groove 34 and the lower half forming groove 32, after the material injection work is completed, the user closes the pump 5 through the PLC controller 12, the user closes the second valve 44, after the material inside the space formed by the upper half forming groove 34 and the lower half forming groove 32 is formed, the user opens the hydraulic cylinder 3 again through the PLC controller 12, so that the hydraulic rod 2 is contracted, the external thread bushing 39 is moved upward, the upper die 14 is moved upward, the upper half forming groove 34 is moved upward until the upper half forming groove 34 is returned to the initial position, then the user closes the hydraulic cylinder 3 through the PLC controller 12, and then the user takes out the formed material.
To sum up can, the utility model discloses a set up vacuum pump 1, take out pump 5, sealing strip 31, lower half profiled groove 32 and first half profiled groove 34 structure, solved current grid mould and need accomplish and annotate and just carry out the compound die after the material and make and contain the problem that the air leads to can the gassing when making the grid in the feed liquid.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (9)
