The utility model discloses a hot melt adhesive film production is with film compression moulding mechanism, comprises a workbench, the workstation upper portion left and right sides all has two sets of primary shaft bearing through bolt fixed mounting, and the left side is two sets of rotate between the primary shaft bearing and be connected with the unwinding roller, the right side is two sets of rotate between the primary shaft bearing and be connected with the wind-up roll. The utility model discloses a first cylinder work, the drive movable block reciprocates in the recess, thereby make the compression roller reciprocate, adjust the distance between compression roller and the workstation, in order to satisfy different film thickness's user demand, through gear motor work, the drive wind-up roll rotates, make the film carry right on the workstation, through the work of second cylinder, drive two sets of second connecting plates and remove to opposite direction, be convenient for adjust the distance between two sets of gyro wheels, satisfy the user demand of different width films, it is spacing to carry out the film, make the film be in a sharp transport, guarantee rolling quality.
Description
Technical Field
The utility model relates to a hot melt adhesive membrane production facility technical field specifically is a film die pressing mechanism is used in hot melt adhesive membrane production.
Background
The hot melt adhesive film is a film product with or without release paper, and is widely used for bonding various fabrics, paper, high polymer materials and metals. The hot melt adhesive membrane generally coats the hot melt adhesive on the film, need compress tightly the film in the coating process, guarantees coating quality, and the height that current film moulding press constructs the non-compression roller is fixed, can not adjust according to film and rubber coating thickness for the device uses and receives the limitation. Therefore, a film pressing mechanism for producing hot melt adhesive films is provided.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a hot melt adhesive membrane production is with film compression moulding machine constructs to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a film die pressing mechanism for producing hot melt adhesive films comprises a workbench, wherein two groups of first bearing seats are fixedly arranged on the left side and the right side of the upper portion of the workbench through bolts, an unwinding roller is rotatably connected between the two groups of first bearing seats on the left side, a winding roller is rotatably connected between the two groups of first bearing seats on the right side, two groups of side plates are fixedly arranged on the left side and the right side of the upper end of the workbench and positioned between the unwinding roller and the winding roller through bolts, grooves are formed in the upper ends of the side plates, moving blocks are slidably connected in the grooves, pressing rollers are rotatably connected between the two groups of moving blocks on the left side and the two groups of moving blocks on the right side through bearings, a mounting plate is fixedly connected to the upper end of each side plate through bolts, a first air cylinder is fixedly arranged on the upper end of the mounting plate, the output end, the front side is two sets of between the curb plate and the rear side is two sets of all through bolt fixedly connected with first connecting plate between the curb plate, first connecting plate outside fixed mounting has the second cylinder, the output end fixed connection of second cylinder has the second connecting plate, second connecting plate medial surface evenly distributed has L type axle, L type axle below rotates and is connected with the gyro wheel.
Preferably, the left side and the right side of the moving block are integrally connected with a first sliding block, and the left side wall and the right side wall in the groove are provided with first sliding grooves used for being connected with the first sliding block in a sliding mode.
Preferably, the two groups of first cylinders on the left side are synchronous cylinders, and the two groups of first cylinders on the right side are synchronous cylinders.
Preferably, the roller is a rubber wheel.
Preferably, the lower end of the second connecting plate is welded with a second sliding block, and a second sliding groove used for being connected with the second sliding block in a sliding mode is formed in the upper end face of the workbench.
Preferably, the workbench is provided with a speed reduction motor through a mounting frame, and an output shaft of the speed reduction motor is connected to one end of the winding roller through a coupler.
Compared with the prior art, the beneficial effects of the utility model are that: the utility model discloses a first cylinder work, the drive movable block reciprocates in the recess, thereby make the compression roller reciprocate, adjust the distance between compression roller and the workstation, in order to satisfy different film thickness's user demand, through gear motor work, the drive wind-up roll rotates, make the film carry right on the workstation, through the work of second cylinder, drive two sets of second connecting plates and remove to opposite direction, be convenient for adjust the distance between two sets of gyro wheels, satisfy the user demand of different width films, it is spacing to carry out the film, make the film be in a sharp transport, guarantee rolling quality.
Drawings
FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a right side schematic view of the present invention;
FIG. 3 is a schematic side sectional view of the present invention;

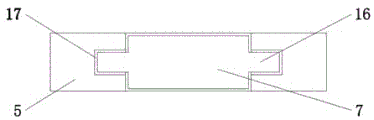

fig. 4 is a schematic view of the connection structure of the side plate and the moving block of the present invention.
In the figure: the automatic winding and unwinding device comprises a workbench 1, a first bearing seat 2, an unwinding roller 3, a winding roller 4, a side plate 5, a groove 6, a moving block 7, a pressing roller 8, a mounting plate 9, a first cylinder 10, a first connecting plate 11, a second cylinder 12, a second connecting plate 13, a shaft 14L, a roller 15, a first sliding block 16, a first sliding chute 17 and a speed reducing motor 18.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides a technical solution: a film compression molding mechanism for producing hot melt adhesive films comprises a workbench 1, wherein two groups of first bearing seats 2 are fixedly arranged on the left side and the right side of the upper portion of the workbench 1 through bolts, an unwinding roller 3 is rotatably connected between the two groups of first bearing seats 2 on the left side, a winding roller 4 is rotatably connected between the two groups of first bearing seats 2 on the right side, two groups of side plates 5 are fixedly arranged on the left side and the right side of the upper end of the workbench 1 and positioned between the unwinding roller 3 and the winding roller 4 through bolts, a groove 6 is formed in the upper end of each side plate 5, a moving block 7 is slidably connected in the groove 6, a compression roller 8 is rotatably connected between the two groups of moving blocks 7 on the left side and between the two groups of moving blocks 7 on the right side through bearings, an installation plate 9 is fixedly connected at the upper end of each side plate 5 through bolts, a first air cylinder 10 is fixedly arranged at, the tail end of the output end of the first air cylinder 10 is fixedly connected to the middle of the upper end of the moving block 7, first connecting plates 11 are fixedly connected between two groups of side plates 5 on the front side and between two groups of side plates 5 on the rear side through bolts, a second air cylinder 12 is fixedly mounted on the outer side of each first connecting plate 11, a second connecting plate 13 is fixedly connected to the output end of each second air cylinder 12, L-shaped shafts 14 are uniformly distributed on the inner side face of each second connecting plate 13, and idler wheels 15 are rotatably connected below the L-shaped shafts 14.
Specifically, the left side and the right side of the moving block 7 are integrally connected with first sliding blocks 16, first sliding grooves 17 for slidably connecting the first sliding blocks 16 are formed in the left side wall and the right side wall of the groove 6, and the moving block 7 slides up and down in the groove 6 through the first sliding blocks 16 in the first sliding grooves 17 under the driving of the first air cylinder 10.
Specifically, the left two sets of first cylinders 10 are synchronous cylinders, the right two sets of first cylinders 10 are synchronous cylinders, the left two sets of cylinders synchronously drive the left compression roller 8 to move up and down, and the right two sets of cylinders synchronously drive the right compression roller 8 to move up and down.
Specifically, the roller 15 is a rubber wheel, and the film is prevented from being damaged.
Specifically, the lower end of the second connecting plate 13 is welded with a second sliding block, and a second sliding groove used for being connected with the second sliding block in a sliding mode is formed in the upper end face of the workbench 1.
Specifically, gear motor 18 is installed through the mounting bracket to workstation 1, gear motor 18's output shaft passes through the shaft coupling and connects in the one end of wind-up roll 4, through gear motor 18 work, drives the wind-up roll 4 and rotates, carries out the rolling to the film.
Specifically, during the use, work through first cylinder 10, drive movable block 7 reciprocates in recess 6, thereby make compression roller 8 reciprocate, adjust the distance between compression roller 8 and the workstation 1, in order to satisfy different film thickness's user demand, work through gear motor 18, drive wind-up roll 4 rotates, make the film carry on workstation 1 right, work through second cylinder 12, drive two sets of second connecting plates 13 and remove to opposite direction, be convenient for adjust the distance between two sets of gyro wheels 15, satisfy different width film's user demand, it is spacing to carry the film, make the film be in a straight line and carry, guarantee rolling quality.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a hot melt adhesive film production is with film die pressing mechanism, includes workstation (1), its characterized in that: two groups of first bearing seats (2) are fixedly arranged on the left side and the right side of the upper portion of the workbench (1) through bolts, an unwinding roller (3) is rotatably connected between the two groups of first bearing seats (2) on the left side, a winding roller (4) is rotatably connected between the two groups of first bearing seats (2) on the right side, two groups of side plates (5) are fixedly arranged on the left side and the right side of the upper end of the workbench (1) and between the unwinding roller (3) and the winding roller (4) through bolts, a groove (6) is formed in the upper end of each side plate (5), moving blocks (7) are slidably connected in the groove (6), compression rollers (8) are rotatably connected between the two groups of moving blocks (7) on the left side and between the two groups of moving blocks (7) on the right side through bearings, a mounting plate (9) is fixedly connected to the upper end of each side plate, the output end of the first air cylinder (10) penetrates through the mounting plate (9) and stretches out of the lower end of the mounting plate (9), the tail end of the output end of the first air cylinder (10) is fixedly connected to the middle of the upper end of the moving block (7), the front side of the output end of the first air cylinder is two groups, the front side of the output end of the first air cylinder is connected between the side plates (5) and the rear side of the output end of the first air cylinder is connected between the side plates (5), the first connecting plate (11) is fixedly connected with a second air cylinder (12), the output end of the second air cylinder (12) is fixedly connected with a second connecting plate (13), the inner side of the second connecting plate (13) is uniformly distributed with L-shaped shafts (14.
2. The film pressing mechanism for producing hot melt adhesive film according to claim 1, wherein: the left side and the right side of the moving block (7) are respectively connected with a first sliding block (16) in an integrated forming mode, and the left side wall and the right side wall in the groove (6) are provided with first sliding grooves (17) used for being connected with the first sliding blocks (16) in a sliding mode.
3. The film pressing mechanism for producing hot melt adhesive film according to claim 1, wherein: the left two groups of the first cylinders (10) are synchronous cylinders, and the right two groups of the first cylinders (10) are synchronous cylinders.
4. The film pressing mechanism for producing hot melt adhesive film according to claim 1, wherein: the roller (15) is a rubber wheel.
5. The film pressing mechanism for producing hot melt adhesive film according to claim 1, wherein: the lower end of the second connecting plate (13) is welded with a second sliding block, and a second sliding groove used for being connected with the second sliding block in a sliding mode is formed in the upper end face of the workbench (1).
6. The film pressing mechanism for producing hot melt adhesive film according to claim 1, wherein: a speed reducing motor (18) is installed on the workbench (1) through an installation frame, and an output shaft of the speed reducing motor (18) is connected to one end of the winding roller (4) through a coupler.
