Abstract
本实用新型公开了一种提供助力的妇产科手术床，包括床架和手术床本体，手术床本体设置于床架上，手术床本体中部的两侧设置有手臂施力机构，手术床本体的末端两侧设置有脚部施力装置，手术床本体下部还设置有污物收集箱和手术放置架。本实用新型结构简单，方便产妇倾斜躺卧和在顺产时施力，为产妇分娩提供助力，并自带手术放置架方便医生进行手术，同时具备脏污收集功能，提高手术的效率。
The utility model discloses an obstetrics and gynecology operating bed for providing assistance, comprising a bed frame and an operating bed body. The operating bed body is arranged on the bed frame, arm force applying mechanisms are arranged on both sides of the middle of the operating bed body, and the operating bed body is provided with an arm force application mechanism. Both sides of the end of the bed are provided with foot force applying devices, and the lower part of the operating bed body is also provided with a dirt collection box and a surgical placement rack. The utility model has a simple structure, is convenient for puerpera to lie down and apply force during natural delivery, provides assistance for puerpera's childbirth, and has a self-contained surgical placing frame to facilitate the operation of doctors, and has the function of collecting dirt to improve the efficiency of the operation.
Description
Technical Field
The utility model relates to the field of medical equipment, in particular to a gynaecology and obstetrics's operation table that provides helping hand.
Background
An operating bed (also known as a surgical operating table) is a necessary tool for a doctor during an operation. Is the most important tool for arranging patients and leading doctors to provide operation environment more conveniently. The operation bed mainly comprises an electric operation bed and a hydraulic operation bed. According to the purpose, the multifunctional operation bed, the gynecological operation bed, the orthopedic operation bed and the like are divided into a plurality of ways. At present, with the continuous development of science and technology, the research on medical equipment is greatly developed, and the operation beds adopted in the existing obstetrical surgery are the same as the operation beds used in the general surgical operation, and are the combination of simple bed boards and bed legs.
Currently, in the aspect of gynecological surgical equipment, the design of the operating bed for obstetrics and gynecology is necessary. Most of the current gynecological operation beds are hospital beds in which patients lie flat at ordinary times, and hospital beds specially used for gynecological operations are quite lacking. Under the existing medical conditions, the birth of the newborn generally comprises two types of natural delivery and caesarean delivery, and if all data are normal, the natural delivery is the optimal choice. Because of vaginal natural delivery, complications of the parturient and neonate can be reduced by 2-5 times compared to caesarean section delivery, and the incidence of disease in the neonatal respiratory system is also significantly reduced. The puerpera can recover quickly after operation, the uterus has no scar, and the puerpera is beneficial to the delivery of the second pregnancy in the future and the contraceptive measures.
The labor in the normal delivery process is very high for the puerpera, if the pregnant woman applies force, the whole labor in the normal delivery process is very easy, otherwise, the longer the labor is, potential hidden dangers can be caused for the birth of the puerpera and the neonate, the existing obstetric and gynecologic operating bed is inconvenient for the puerpera to apply force, and the difficulty of the puerpera in the normal delivery process is greatly increased.
Current gynaecology and obstetrics's operation table leads to the lying-in woman when operation production, causes the discomfort of different degree owing to not having inclination's setting, is unfavorable for lying-in woman's steady production, and in order to solve this kind of problem, the mode that the doctor adopted usually is exactly additionally to stack up some quilts or cloth under the lying-in woman sick bed, forms certain inclination. Meanwhile, the structure of the existing gynecological operation bed is simple, so that a doctor usually needs to additionally carry an operation tool and an operation placing frame when performing an operation on a lying-in woman, and inconvenience is brought to the doctor in the operation process to a certain extent.
Lying-in woman can produce a large amount of blood and amniotic fluid usually in the childbirth simultaneously, and current operation bed surface only adopts the cotton fibre as the absorption, and the individual layer cotton fibre is comparatively single thin, produces the seepage very easily, and the liquid of this type of seepage can lead to the operating table to produce rust stain or damage, can't satisfy the operation demand.
Disclosure of Invention
The utility model aims to solve the technical problem that the defect of the prior art is overcome, a gynaecology and obstetrics's operation table that can provide helping hand and convenient to use is provided.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a gynaecology and obstetrics's operation table that provides helping hand, includes bedstead and operation table body, the operation table body set up in on the bedstead, its characterized in that: the both sides at operation table body middle part are provided with arm force application mechanism, the terminal both sides of operation table body are provided with foot force application device.
In the above scheme, the arm force application mechanism comprises a support cylinder for placing an arm and a handle arranged on the support cylinder for the parturient to grab and apply force; the foot force application device comprises a foot cylinder for placing legs and feet and a pedal arranged on the foot cylinder and used for applying force to the feet of a puerpera.
In the above scheme, the handle is rotationally connected with the supporting cylinder through a torsion spring, and the pedal is rotationally connected with the foot cylinder through a torsion spring.
In the above scheme, the operating bed body includes a lying portion and a reclining portion, the lying portion is fixedly disposed on the bed frame, the reclining portion is hinged to the lying portion, the arm force application mechanism is disposed at the end of the lying portion, and the foot force application device is disposed at the end of the reclining portion.
In the above aspect, the arm force application mechanism is mounted on the reclining portion via a hinge, and the foot force application device is mounted on the reclining portion via a hinge.
In the scheme, a dirt collecting box is arranged below the lying part.
In the scheme, an operation placing frame is arranged below the inclined lying part.
In the scheme, the operation placing frame is connected with a rotating rod, and the tail end of the rotating rod is hinged on the bedstead.
In the above scheme, a lifting mechanism for adjusting the height of the reclining portion is arranged below the reclining portion.
The utility model discloses a principle sets up extra arm force applying device and foot force applying device for carry out arm and foot application of force when the lying-in woman produces, be provided with the torsional spring in arm force applying device and the foot force applying device, handle and pedal have good cushioning effect, set up filth collecting box and operation rack simultaneously, conveniently perform the operation.
The utility model discloses owing to adopted above-mentioned technical scheme, following beneficial effect has:
1. the utility model discloses the operation table is provided with arm application of force mechanism and foot force application device, makes things convenient for lying in woman's slope to lie and application of force in the time of practising midwifery, provides the helping hand when childbirth for the lying-in woman.
2. The arm force application mechanism of the utility model comprises a supporting cylinder for placing the arm and a handle arranged on the supporting cylinder for the lying-in woman to grab and apply force; the foot force application device comprises a leg cylinder for placing legs and feet and a pedal arranged on the leg cylinder and used for applying force to the feet of the lying-in woman. The parturient can take place to shift in disorder when parturient's childbirth application of force, causes the position of parturient on the obstetric table to move, sets up a support section of thick bamboo and a foot section of thick bamboo and can make things convenient for the parturient to put into arm and leg and foot, plays certain limiting displacement to parturient's arm and leg and foot application of force, and the range of motion can diminish when parturient's arm and leg and foot application of force to make things convenient for parturient's child. The arrangement of the torsion spring can ensure that the puerpera has good buffer effect when acting on the handle and the pedals.
3. The utility model discloses arm application of force mechanism's support cylinder accessible hinge is installed in the portion of lying to one side, and the support cylinder can overturn, and foot force applying device's a foot section of thick bamboo passes through the hinge to be installed in the portion of lying to one side, and a foot section of thick bamboo can overturn, can adjust the position of a support cylinder and a foot section of thick bamboo according to lying-in woman's needs, makes things convenient for the lying-in woman to put into arm and leg foot to a comfortable state application of force makes things convenient for lying-in.
4. The utility model discloses be provided with the filth collecting box under the flat portion of lying, possess dirty collection function, convenient to use.
5. The utility model discloses be provided with the operation rack under the portion of lying to one side, make things convenient for the doctor to perform the operation from taking the operation rack, can improve operation efficiency, the operation rack is installed on a tray, and the tray is connected with a bull stick, and the end of bull stick articulates on the stabilizer blade of the portion bottom of lying to can wind the stabilizer blade at horizontal plane internal rotation, drive the tray and roll over to the bottom of the portion of lying to one side and roll over to, make things convenient for the doctor to use.
6. The utility model discloses be provided with elevating system under the portion of lying to one side, can adjust the height of the portion of lying to one side according to the operation needs, and then the inclination of control portion of lying to one side makes things convenient for the lying-in woman to lie to one side with a comfortable state when childbirth and childbirth, facilitates the use.
Drawings

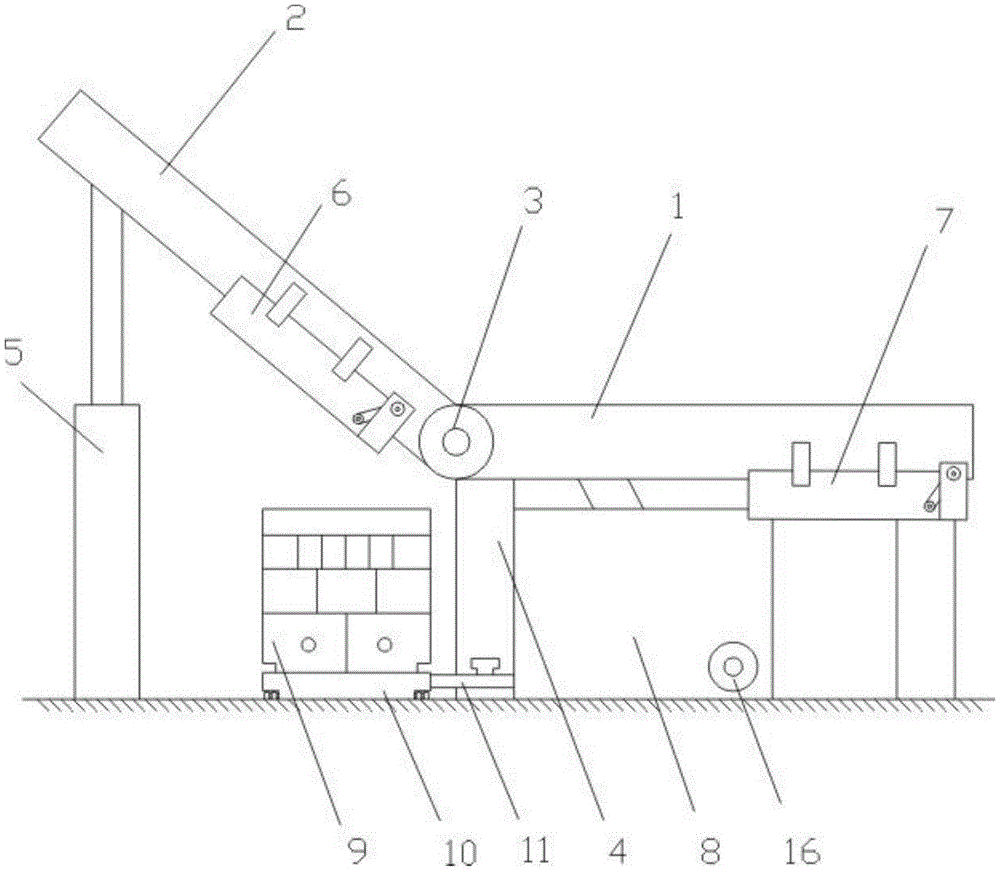

FIG. 1 is an overall structure diagram of the embodiment of the present invention;
FIG. 2 is a structural diagram of an arm force applying device according to an embodiment of the present invention;
FIG. 3 is a schematic view of a foot force applying device according to an embodiment of the present invention;
in the figure: 1. a lying part; 2. a reclining portion; 3. a main shaft; 4. a support leg; 5. a lifting column; 6. an arm force application device; 7. a foot force application device; 8. a dirt collection box; 9. placing a surgical rack; 10. a tray; 11. a rotating rod; 12. a supporting cylinder; 13. a handle; 14. a leg tube; 15. pedaling; 16. a sewage draining outlet.
Detailed Description
In order that the present invention may be more readily and clearly understood, the following detailed description of the present invention is provided in connection with the accompanying drawings.
As shown in fig. 1, 2 and 3, an obstetrical and gynecological operating bed for providing assistance comprises a bed frame and an operating bed body, wherein the operating bed body is arranged on the bed frame. Arm force application mechanisms 6 are arranged on two sides of the middle of the operating bed body, and foot force application devices 7 are arranged on two sides of the tail end of the operating bed body. The arm force application mechanism 6 and the foot force application device 7 can provide assistance for the force application of the lying-in woman during the delivery of the lying-in woman.
Further improved, the foot force applying device 7 can be arranged on both sides of the tail end of the operating bed body, and can also be arranged on an extension line of the tail end of the operating bed body.
In this embodiment, the arm force application mechanism 6 includes a support tube 12 for placing an arm and a handle 13 disposed on the support tube 12 for the parturient to grasp and apply force; the foot force application device 7 comprises a leg tube 14 for placing legs and feet and a foot pedal 15 arranged on the leg tube 14 for applying force to the feet of the lying-in woman. The handle 13 is rotatably connected with the supporting cylinder 12 through a torsion spring, and the pedal 15 is rotatably connected with the foot cylinder 14 through a torsion spring.
Specifically, the support tube 12 and the foot tube 14 are both of a tube structure, when the delivery is carried out, the force application hands and feet of the lying-in woman can be displaced in a busy and messy manner, the position of the lying-in woman on an obstetric table is moved, the lying-in woman needs to be adjusted to be in a comfortable position, certain puzzlement is caused to the delivery process, the support tube 12 and the foot tube 14 are arranged to enable the lying-in woman to conveniently place the arm and the leg and the foot of the lying-in woman, certain limiting effect is achieved on the arm and the leg and the foot of the lying-in woman, the moving range can be reduced when the arm and the. The arrangement of the torsion spring can ensure that the puerpera has good buffer effect when acting on the handle and the pedals.
In this embodiment, the operation table body includes flat portion of lying 1 and inclined lying portion 2, and flat portion of lying 1 is fixed to be set up on the bedstead, and inclined lying portion 2 passes through main shaft 3 with flat portion of lying 1 and articulates the setting, and the bedstead bottom is provided with stabilizer blade 4.
The bottom of the end of the reclining part 2 away from the main shaft 3 is provided with a lifting mechanism 5 for adjusting the height of the reclining part 2. The height of the reclining part 2 is adjusted by the lifting mechanism 5, and the tilting angle of the reclining part 2 is controlled.
Specifically, the lifting mechanism 5 may be a hydraulic lifting mechanism, and a hydraulic cylinder is provided inside and externally connected with a hydraulic control device.
The arm force applying mechanism 6 is disposed at the end of the lying part 1, and the foot force applying device 7 is disposed at the end of the reclining part 2.
The arm biasing mechanism 6 is attached to the reclining part 1 via a hinge, and the foot biasing device 7 is attached to the reclining part 2 via a hinge.
The specific installation mode is as follows: the outer wall of the support cylinder 12 is mounted on the side of the reclining part 2 through a hinge, so that the support cylinder 12 can be turned over on the side of the reclining part 2 through the hinge. The outer wall of the leg unit 14 is also mounted on the side of the lying part 1 via a hinge, so that the leg unit 14 can be turned over on the side of the lying part 1 via the hinge.
In this embodiment, a dirt collection box 8 is provided under the lying part 1. The sewage collecting box 8 is provided with a sewage inlet, sewage generated during parturient delivery is thrown into the sewage collecting box 8 through the sewage inlet, and a sewage outlet 16 is also arranged for discharging the sewage in the sewage collecting box 8.
Further improve, 8 bottoms of filth collecting box are equipped with the universal wheel, make things convenient for the removal of filth collecting box 8 according to obstetrical department's needs, make things convenient for going on of operation.
In this embodiment, be provided with operation rack 9 under the portion of lying 2 to one side, operation rack 9 installs on a tray 10, and tray 10 is connected with a bull stick 11, and the end of bull stick 11 articulates on stabilizer blade 4 of the 1 bottom of lying to can wind stabilizer blade 4 and rotate in the horizontal plane, drive tray 10 and roll over to in the portion of lying 2 bottoms of inclining and make things convenient for the doctor to use.
The above-mentioned embodiments further explain in detail the technical problems, technical solutions and advantages solved by the present invention, and it should be understood that the above only is a specific embodiment of the present invention, and is not intended to limit the present invention, and any modifications, equivalent substitutions, improvements, etc. made within the spirit and principle of the present invention should be included in the scope of the present invention.
Claims (9)
1. The utility model provides a gynaecology and obstetrics's operation table that provides helping hand, includes bedstead and operation table body, the operation table body set up in on the bedstead, its characterized in that: arm force application mechanisms (6) are arranged on two sides of the middle of the operating bed body, and foot force application devices (7) are arranged on two sides of the tail end of the operating bed body.
2. The gynecological operating bed for providing assistance as claimed in claim 1, wherein: the arm force application mechanism (6) comprises a support cylinder (12) for placing an arm and a handle (13) arranged on the support cylinder (12) and used for a parturient to grab and apply force; the foot force application device (7) comprises a foot cylinder (14) for placing legs and feet and pedals (15) arranged on the foot cylinder (14) and used for applying force to the feet of a parturient.
3. An obstetric and gynecologic operating table for providing assistance according to claim 2, characterized in that: the handle (13) is rotationally connected with the supporting cylinder (12) through a torsion spring, and the pedal (15) is rotationally connected with the foot cylinder (14) through a torsion spring.
4. The gynecological operating bed for providing assistance as claimed in claim 1, wherein: the operating bed body comprises a lying part (1) and a reclining part (2), the lying part (1) is fixedly arranged on the bed frame, the reclining part (2) is hinged to the lying part (1), the arm force application mechanism (6) is arranged at the tail end of the lying part (1), and the foot force application device (7) is arranged at the tail end of the reclining part (2).
5. An obstetric and gynecologic operating table for providing assistance according to claim 4, wherein: the arm force application mechanism (6) is installed on the lying part (1) through a hinge, and the foot force application device (7) is installed on the inclined lying part (2) through a hinge.
6. An obstetric and gynecologic operating table for providing assistance according to claim 4, wherein: a dirt collecting box (8) is arranged below the lying part (1).
7. An obstetric and gynecologic operating table for providing assistance according to claim 4, wherein: an operation placing frame (9) is arranged below the inclined lying part (2).
8. An obstetric and gynecologic operating table for providing assistance according to claim 7, wherein: the operation placing frame (9) is connected with a rotating rod (11), and the tail end of the rotating rod (11) is hinged to the bedstead.
9. An obstetric and gynecologic operating table for providing assistance according to claim 4, wherein: and a lifting mechanism (5) for adjusting the height of the reclining part (2) is arranged below the reclining part (2).
