Abstract

The utility model relates to a clutch plate grinding device, which comprises a driving device, a rotating plate, a fixing mechanism and a grinding mechanism. The fixing mechanism includes two fixing plates and a transmission component. The grinding mechanism includes a workbench, a dust suction device and a grinding component. The grinding component It includes a grinding block, a connecting rod and a moving plate. The moving plate is slidably connected to the worktable, and the grinding block is opposite to the lower end of the fixed plate. When in use, the middle of the clutch plate is sleeved outside the two fixed plates, and the grinding block is slid toward the clutch plate. Move in the direction and make it fit with the clutch plate, start the driving device to drive the rotating plate to rotate, and complete the grinding operation of the clutch plate, which can effectively improve the grinding efficiency and reduce the labor intensity of the staff. In addition, during the grinding process , The dust suction device is set relative to the contact position between the grinding block and the clutch plate, which can effectively absorb the dust generated by grinding and improve the working environment of the staff in the processing workshop.

Description

Clutch plate grinding device

Technical Field

The utility model relates to a clutch plate processing equipment field especially relates to a clutch plate grinding device.

Background

Auto-parts constitute the holistic each unit of auto-parts processing and serve the product of auto-parts processing, the clutch disc is the vulnerable part among the motor vehicle system of traveling, be one of the important accessory of car, current clutch disc for the car is in the production course of working, a lot of deckle edges can appear in its side, need polish to the surface of clutch disc, make brake clutch disc surface level and smooth, it is at present all to polish through the manual work, need expend a large amount of time and energy, greatly reduced operation's work efficiency of polishing, in addition, the dust can appear in the process of polishing, present equipment can not concentrate the collection to the dust that the in-process of polishing appears, can only clean by the manual work, when influencing the surrounding environment, long-term suction can influence workshop staff's healthy.

SUMMERY OF THE UTILITY MODEL

The utility model aims to solve the technical problem that overcome exist among the prior art not enough, provide a clutch plate grinding device of simple operation.

The utility model discloses a realize through following technical scheme:

the utility model provides a clutch plate grinding device, its characterized in that, includes drive arrangement, connects in the commentaries on classics board of drive arrangement below, locates the fixed establishment of commentaries on classics board below and locates fixed establishment below grinding machanism, fixed establishment is including locating two fixed plates of commentaries on classics board below relatively and two transmission assembly that are connected with the fixed plate respectively, grinding machanism includes workstation, sliding connection in the dust extraction and the subassembly of polishing of workstation top, the subassembly of polishing including locating the sanding block of fixed establishment one side, with the connecting rod of sanding block rigid coupling and the movable plate of rigid coupling in the connecting rod lower extreme, movable plate sliding connection is in the workstation upper surface, sanding block locates fixed plate lower extreme one side relatively.

According to above-mentioned technical scheme, preferably, dust extraction includes device body, dust collecting plate and draught fan, the horizontal rigid coupling of dust collecting plate is originally internal in the device, the dust collecting plate all around with the internal wall rigid coupling of device, this internal dust collection portion and the negative pressure portion of separating into through the dust collecting plate of device, be equipped with the draught fan in the negative pressure portion.

According to the above technical scheme, preferably, the lower end of the driving device is connected with a connecting disc, the edge of the lower surface of the connecting disc is fixedly connected with a plurality of connecting columns respectively, and the lower end of each connecting column is fixedly connected with the upper surface of the rotating plate.

According to the above technical solution, preferably, the lower end of the fixing plate is hinged with a baffle, and the baffle and the fixing plate are fixed through a locking part.

According to the above technical scheme, preferably, the transmission assembly comprises support plates, driving screws, driving blocks and connecting plates, wherein the lower surface of the rotating plate is fixedly connected with the two support plates relatively, the driving screws horizontally arranged are rotatably connected between the two support plates, the driving blocks are in threaded connection with the driving screws externally, the lower ends of the driving blocks are fixedly connected with the fixing plate through the connecting plates, the outer end of the driving screw in one transmission assembly is connected with a driving motor, the end parts of the two driving screws are fixedly connected with first bevel gears relatively, and the two first bevel gears are meshed with the second bevel gear simultaneously.

The utility model has the advantages that:

when the device is used, the middle part of the clutch plate is sleeved outside the two fixing plates, the fixing plates are fixed on the device under the action of the transmission assembly, the polishing block is moved towards the direction of the clutch plate and is attached to the clutch plate, the driving device is started to drive the rotating plate to rotate, the polishing operation of the clutch plate is completed, the polishing efficiency can be effectively improved, the labor intensity of workers is reduced, the labor cost and the time cost can be effectively saved, and the device has higher application and popularization values; in addition, in the polishing process, the dust suction device is arranged at the contact position of the relative polishing block and the clutch plate, so that dust generated by polishing can be effectively absorbed, and the operating environment of workers in a processing workshop is improved.

Drawings

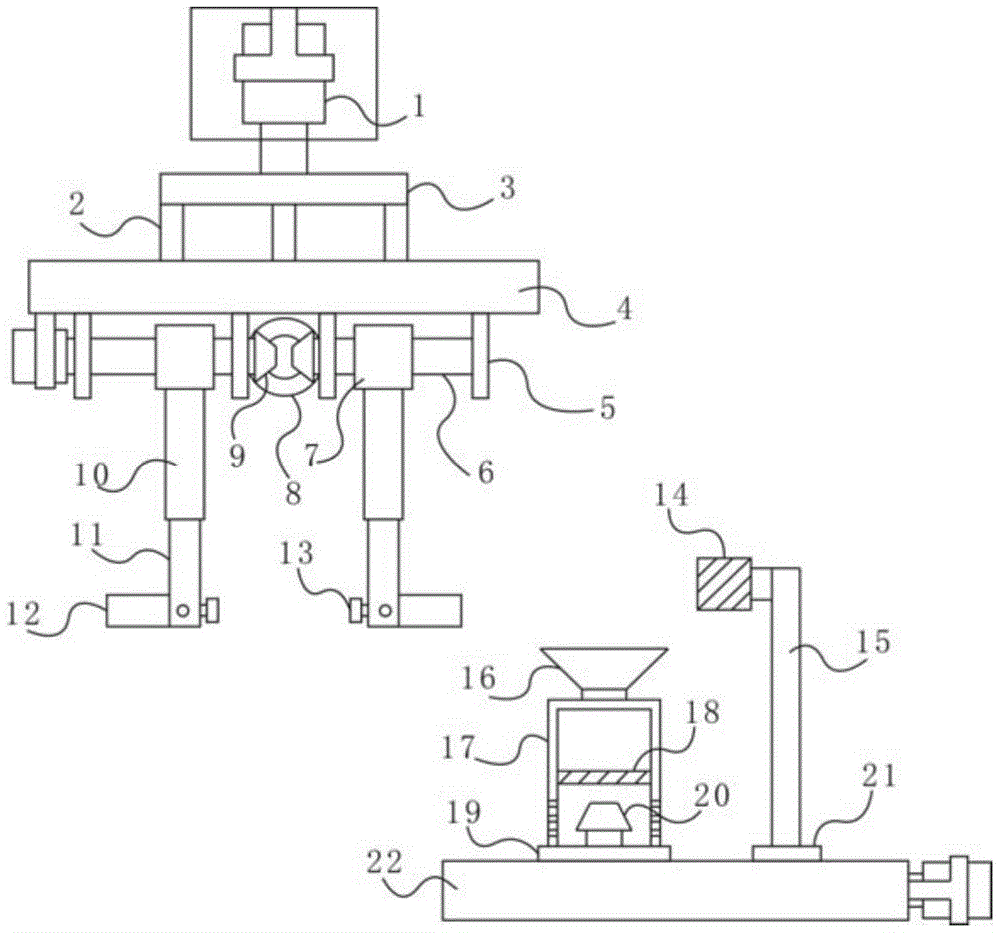

Fig. 1 is a schematic view of the structure of the present invention.

Fig. 2 is a schematic top view of the worktable of the present invention.

In the figure: 1. a main motor; 2. connecting columns; 3. a connecting disc; 4. rotating the plate; 5. a support plate; 6. a drive screw; 7. a drive block; 8. a second bevel gear; 9. a first bevel gear; 10. a connecting plate; 11. a fixing plate; 12. a baffle plate; 13. a locking bolt; 14. grinding blocks; 15. a connecting rod; 16. a dust collection port; 17. a dust collection device; 18. a dust collecting plate; 19. a slide plate; 20. an induced draft fan; 21. moving the plate; 22. a work table; 23. adjusting the screw rod; 24. a first slideway; 25. a guide rod.

Detailed Description

In order to make those skilled in the art better understand the technical solution of the present invention, the present invention will be further described in detail with reference to the accompanying drawings and preferred embodiments.

As shown in the figure, the utility model comprises a driving device, a rotating plate 4 connected below the driving device, a fixing mechanism arranged below the rotating plate 4 and a polishing mechanism arranged below the fixing mechanism, in this example, a main motor 1 is arranged in the driving device, the fixing mechanism comprises two fixing plates 11 arranged below the rotating plate 4 relatively and two transmission components connected with the fixing plates 11 respectively, the polishing mechanism comprises a workbench 22, a dust suction device 17 connected above the workbench 22 in a sliding way and a polishing component, the upper surface of the workbench 22 is provided with a first slideway 24, the first slideway 24 is connected with a first slide block in a sliding way, the upper end of the first slide block is fixedly connected with a slide plate 19, the upper surface of the slide plate 19 is fixedly connected with the bottom surface of the dust suction device 17, the polishing component comprises a polishing block 14 arranged at one side of the fixing mechanism, a connecting rod 15 fixedly connected with the polishing block 14 and a movable plate 21 fixedly, moving plate 21 sliding connection has two second slides in workstation 22 upper surface, and workstation 22 upper surface is opened, and 24 both sides of first slide and with first slide 24 parallel arrangement are located respectively to two second slides, and one of them second slide internal rotation is connected with adjusting screw 23, and adjusting screw 23 receives motor drive, adjusting screw 23 threaded connection has the second slider, second slider upper end and the fixed connection of moving plate 21 bottom surface are equipped with guide arm 25 in another second slide, and the outer sliding connection of guide arm 25 has the third slider, third slider upper end and the fixed connection of moving plate 21 bottom surface, sanding block 14 locates fixed plate 11 lower extreme one side relatively. When the clutch disc grinding device is used, the middle part of the clutch disc is sleeved outside the two fixing plates 11, the fixing plates 11 are fixed on the clutch disc under the action of the transmission assembly, the grinding block 14 is moved towards the direction of the clutch disc and is attached to the clutch disc, the driving device is started to drive the rotating plate 4 to rotate, the grinding operation on the clutch disc is completed, the grinding efficiency can be effectively improved, the labor intensity of workers is reduced, the labor cost and the time cost can be effectively saved, and the application and popularization values are high; in addition, in the polishing process, the dust suction device 17 is arranged at the contact position of the polishing block 14 and the clutch plate, so that dust generated by polishing can be effectively absorbed, and the working environment of workers in a processing workshop is improved.

According to the above-mentioned embodiment, preferably, dust extraction 17 includes device body, dust collecting plate 18 and draught fan 20, the horizontal rigid coupling of dust collecting plate 18 is internal in the device, and dust collecting plate 18 all around with device body inner wall rigid coupling, this internal dust collection portion and the negative pressure portion of separating into through dust collecting plate 18 of device, be equipped with draught fan 20 in the negative pressure portion, device body top intercommunication has collection dirt mouth 16, and open the position of the relative negative pressure portion of device body lateral wall has the through-hole. The induced draft fan 20 is started to form a relatively high negative pressure difference between the interior of the device body and the external atmospheric pressure, under the action of the negative pressure difference, dust near the dust collecting opening 16 enters the device body along with air flow, the dust generated by polishing is left on the dust collecting plate 18 through the dust collecting plate 18, and the air is discharged after being filtered.

According to the above embodiment, preferably, the lower end of the driving device is connected with the connecting disc 3, the edge of the lower surface of the connecting disc 3 is fixedly connected with the plurality of connecting columns 2, the lower end of each connecting column 2 is fixedly connected with the upper surface of the rotating plate 4, so that the connecting stress points between the driving device and the rotating plate 4 are effectively increased, and the rotating plate 4 can stably rotate in the working process.

According to the above embodiment, preferably, the lower end of the fixing plate 11 is hinged to a baffle plate 12, the baffle plate 12 and the fixing plate 11 are fixed by a locking part, in this example, the locking part is a locking bolt 13, the lower ends of the fixing plates 11 are respectively opened with a connecting groove outwards, the baffle plate 12 is hinged in the connecting groove of the fixing plate 11, and when the baffle plate 12 is perpendicular to the fixing plate 11, the locking bolt 13 penetrates through the lower end of the fixing plate 11 and is in threaded connection with the baffle plate 12 in the connecting groove.

According to the above embodiment, preferably, the transmission assembly includes the support plates 5, the driving screws 6, the driving blocks 7 and the connecting plate 10, the two support plates 5 are fixedly connected to the lower surface of the rotating plate 4 relatively, the horizontally arranged driving screws 6 are rotatably connected between the two support plates 5, the driving blocks 7 are connected to the driving screws 6 through external threads, the lower ends of the driving blocks 7 are fixedly connected to the fixing plate 11 through the connecting plate 10, the outer end of the driving screw 6 in one of the transmission assemblies is connected to the driving motor, the end portions of the two driving screws 6 are fixedly connected to the first bevel gears 9 relatively, the two first bevel gears 9 are simultaneously engaged with the second bevel gear 8, in this example, the second bevel gear 8 is arranged on the rotating plate 4, and the rotating plate 4 is slidably connected to the driving blocks 7. The driving motor is started, so that the driving screw 6 connected with the driving motor drives the first bevel gear 9 to rotate, the motion state is transmitted to the other driving screw 6 through the meshing relation between the first bevel gear 9 and the second bevel gear 8, the driving block 7 respectively in threaded connection with the two driving screws 6 drives the two fixing plates 11 to be outwards abutted against the inner wall of the clutch plate, the clutch plate is sleeved on the fixing mechanism, and the subsequent polishing operation is conveniently and stably carried out.

When the clutch disc grinding device is used, the middle part of the clutch disc is sleeved outside the two fixing plates 11, the fixing plates 11 are fixed on the clutch disc under the action of the transmission assembly, the grinding block 14 is moved towards the direction of the clutch disc and is attached to the clutch disc, the driving device is started to drive the rotating plate 4 to rotate, the grinding operation on the clutch disc is completed, the grinding efficiency can be effectively improved, the labor intensity of workers is reduced, the labor cost and the time cost can be effectively saved, and the application and popularization values are high; in addition, in the polishing process, the dust suction device 17 is arranged at the contact position of the polishing block 14 and the clutch plate, so that dust generated by polishing can be effectively absorbed, and the working environment of workers in a processing workshop is improved.

The foregoing is only a preferred embodiment of the present invention, and it should be noted that, for those skilled in the art, a plurality of modifications and decorations can be made without departing from the principle of the present invention, and these modifications and decorations should also be regarded as the protection scope of the present invention.

Claims

1. a clutch plate grinding device, it is characterized in that, comprise driving device, be connected to the rotating plate below the driving device, be arranged at the fixing mechanism below the rotating plate and be located in the grinding mechanism below the fixing mechanism, and the described fixing mechanism comprises a relative device. Two fixed plates below the turning plate and two transmission assemblies respectively connected with the fixed plates, the grinding mechanism includes a worktable, a dust suction device slidably connected to the top of the worktable, and a grinding assembly, and the grinding assembly includes a device. A grinding block on one side of the fixing mechanism, a connecting rod fixed with the grinding block, and a moving plate fixed on the lower end of the connecting rod, the moving plate is slidably connected to the upper surface of the worktable, and the grinding block is opposite to the lower end of the fixed plate side.

2 . The clutch disc grinding device according to claim 1 , wherein the dust collecting device comprises a device body, a dust collecting plate and an induced draft fan, and the dust collecting plate is horizontally fixed in the device body, and the dust collecting plate is 2. 3 . The periphery of the plate is fixedly connected with the inner wall of the device body, the device body is divided into a dust collecting part and a negative pressure part by a dust collecting plate, and an induced draft fan is arranged in the negative pressure part.

3 . The clutch disc grinding device according to claim 2 , wherein a connecting plate is connected to the lower end of the driving device, and a plurality of connecting posts are respectively fixed at the edge positions of the lower surface of the connecting plate. 3 . The lower end of the column is fixedly connected with the upper surface of the turning plate.

4 . The clutch disc grinding device according to claim 3 , wherein a baffle is hinged at the lower end of the fixing plate, and the baffle and the fixing plate are fixed by a locking portion. 5 .

5. The clutch disc grinding device according to any one of claims 1 to 4, wherein the transmission assembly comprises a supporting plate, a driving screw, a driving block and a connecting plate, and the lower surface of the rotating plate is opposite to Two supporting plates are fixedly connected, a horizontally arranged driving screw is rotatably connected between the two supporting plates, a driving block is connected with the external thread of the driving screw, and the lower end of the driving block is fixedly connected with the fixing plate through the connecting plate, wherein A drive motor is connected to the outer end of the drive screw in a transmission assembly, a first bevel gear is fixedly connected to the ends of the two drive screws, and the two first bevel gears are meshed with a second bevel gear at the same time.
