CN210582972U

CN210582972U - Portable subassembly of accomodating of disposable venous transfusion

Info

Publication number: CN210582972U
Application number: CN201921170632.7U
Authority: CN
Inventors: 姚建宁
Original assignee: HUZHOU THIRD PEOPLE HOSPITAL
Current assignee: HUZHOU THIRD PEOPLE HOSPITAL
Priority date: 2019-07-24
Filing date: 2019-07-24
Publication date: 2020-05-22
Anticipated expiration: 2029-07-24

Abstract

A disposable intravenous infusion portable storage assembly, comprising a storage bag body, the storage bag body is provided with a first storage compartment, a second storage compartment, a first shape-destroying compartment and a shape-breaker, the Both the first storage compartment and the second storage compartment are used to store medical products, and the first shape-destroying compartment is used to store a shape-breaking device, and the shape-breaking device is used to destroy the storage The bag body and the items stored in it. The utility model is convenient for medical staff to carry around, can be taken anytime and anywhere, saves time, and is not easily restricted by the use environment; the storage capacity of each storage bag body can be standardized and set, and the storage capacity of each bag body has a unit standard. It is convenient to quantify the medical care work, and can remind the replacement of the corresponding storage during recycling, and use the shape destroyer to destroy the used disposable items in the bag to avoid unintentional secondary use or maliciousness. Recycle and reuse.

Description

Portable subassembly of accomodating of disposable venous transfusion

Technical Field

The utility model relates to a medical appliance technical field specifically is a portable storage assembly of disposable venous transfusion.

Background

Venous transfusion is the most common treatment means in clinic, when medical staff carry out venous transfusion on a patient, firstly a tourniquet is adopted to puncture a blood vessel, then an iodophor cotton swab is used for dipping disinfectant to disinfect the puncture position, then an intravenous transfusion device is used for transfusion, and finally an alcohol patch is used for fixing. In clinical work, medical staff need to prepare articles such as a venous transfusion device, a tourniquet, an iodophor cotton swab, a disinfectant, a disposable treatment towel, a patch and the like at the same time, and the prepared articles are more and inconvenient to take at a time, and the medical staff often return to a treatment room to take due to insufficient preparation caused by busy work, so that the waiting time of a patient is prolonged, and even the state of an illness is delayed; the expiration date of iodophor cotton swab is 7 days, and sometimes the picture is convenient, often directly takes a box of cotton swab just to begin to use, and frequent stretching of staff is stretched out and is caused the pollution easily, if the lid forgets to cover back still can lead to a large amount of iodophor cotton swabs to become dry because of volatilizing, influence disinfection effect.

In order to deal with the above situation, the existing medical care work adopts a treatment box or a treatment tray which is arranged in a centralized way, for example, a disposable portable venous transfusion kit disclosed in the patent document with the application number of CN201721024914.7, which consists of a kit packaging bag, a tray, a venous transfusion device, a transfusion sticker, a sterilized cotton swab bag and a tourniquet; the four edges of tray are protruding, and inside is sunken to be the disc, is equipped with the vein transfusion system in and puts the position, the infusion pastes and puts the position, disinfection cotton swab package is put the position and the tourniquet is put the position, and vein transfusion system, infusion paste, disinfection cotton swab package and tourniquet are placed in the tray according to corresponding position, and the tray is placed jointly in the cover box wrapping bag and aseptic sealed with vein transfusion system, infusion paste, disinfection cotton swab package and tourniquet. However, the kit is still cumbersome and not portable enough for medical personnel. Because the box sets are stored randomly, a plurality of same medical care appliances can be placed at one time, mistakes and omissions can occur during recovery and counting, and the medical care appliances are forgotten to be found one by one on a patient due to various reasons; in addition, when the disposable articles are recycled, the disposable articles are not destroyed, the articles can be used for the second time, the quantification effect on the work is not achieved, cross infection can be caused, even the articles are maliciously recycled by lawbreakers, and great harm is caused.

Disclosure of Invention

A technical object of the utility model is to provide a portable storage assembly of disposable venous transfusion solves and has not enough portable, safe problem to taking of the used utensil of venous transfusion among the current medical care work.

The utility model discloses a concrete technical scheme as follows: the utility model provides a portable subassembly of accomodating of disposable venous transfusion, includes the storage bag body, its characterized in that: the medical bag comprises a containing bag body and is characterized in that a first storage compartment, a second storage compartment, a first destroying compartment and a destroying device are arranged in the containing bag body, the first storage compartment and the second storage compartment are used for storing medical products, the first destroying compartment is used for storing the destroying device, and the destroying device is used for destroying the containing bag body and articles stored in the containing bag body.

The medical appliance bag comprises a bag body, a first storage compartment, a second storage compartment and a plurality of medical appliances, wherein the first storage compartment is used for storing small-sized articles such as an iodophor cotton swab, a patch, a disposable treatment towel and the like, 1-3 iodophor cotton swabs are conventionally placed, 1-3 patches of patches are applied and 1 piece of disposable treatment towel is stored, the second storage compartment is used for storing tube and belt-shaped articles such as a tourniquet and the like, and 1 article is conventionally placed, so that standard quantities are set for medical appliances in each bag body correspondingly, and a plurality of articles are clearly used and recovered by medical staff during each use; after the bag is used up, the whole bag is put back, the bag body and the used articles in the bag body are all destroyed by the shape destroying device, and then the bag body is discarded.

Preferably, the shape destroyer comprises a first carrier plate and a second carrier plate, and the inner plate surface of the first carrier plate and the inner plate surface of the second carrier plate are oppositely arranged; the inner plate surface of the first carrier plate is provided with a puncturing part, the inner plate surface of the second carrier plate is provided with a puncturing cushion layer, and the puncturing cushion layer is used for the puncturing part to puncture so that the first carrier plate and the second carrier plate are fixed.

Preferably, the inner plate surface of the second carrier plate is further provided with a puncturing part, and the inner plate surface of the first carrier plate is provided with a puncturing cushion layer; the puncture soft cushion layer on the first carrier plate and the puncture soft cushion layer on the second carrier plate at least cover the other plate surfaces except the puncture parts on the inner plate surfaces, and the puncture parts on the first carrier plate and the puncture parts on the second carrier plate are arranged in a staggered and inserting mode and can be fixed on the puncture soft cushion layers corresponding to the puncture soft cushion layers.

Preferably, the destructor further comprises a detachable packaging tape, and the detachable packaging tape at least surrounds a space between the first carrier plate and the second carrier plate which are oppositely placed to seal the puncture part.

Preferably, an opening of the first destroying compartment is provided with a pop-top bar, and the pop-top bar is used for preventing the shape destroyer in the first destroying compartment from accidentally falling out.

Preferably, the first breaking compartment is located at the most lateral side of the storage bag body.

Preferably, a second destroying compartment is further disposed in the storage bag body, and the second destroying compartment is located at the other lateral side of the storage bag body opposite to the first destroying compartment.

Preferably, the storage bag body is provided with an opening and closing cover, and the opening and closing cover is used for covering an opening of a compartment carried by the storage bag body.

Preferably, the opening and closing cover and the bag body of the storage bag body are opened or closed in a snap-fastening mode.

Preferably, the opening and closing cover and the bag body of the storage bag body are opened or closed in a sticking buckle tape bonding mode.

The utility model has the technical advantages that the portable containing component has simple structure and convenient use, is convenient for medical care personnel to carry, can be used at any time and any place, saves time and is not easy to be limited by the use environment; the volume of storing of every storage bag body can carry out standardized settlement, all carries out the ration to the iodophor cotton swab that uses, pressure arteries and veins area, paster, treatment piece, and the volume of storing up of every bag body all has the unit standard, conveniently quantifies medical work, and can remind the dress back work of corresponding storage and put the thing when retrieving to the shape ware is ruined to the used disposable article in the bag to the utilization, avoids unintentional secondary use or maliciously retrieves and recycles.

Drawings

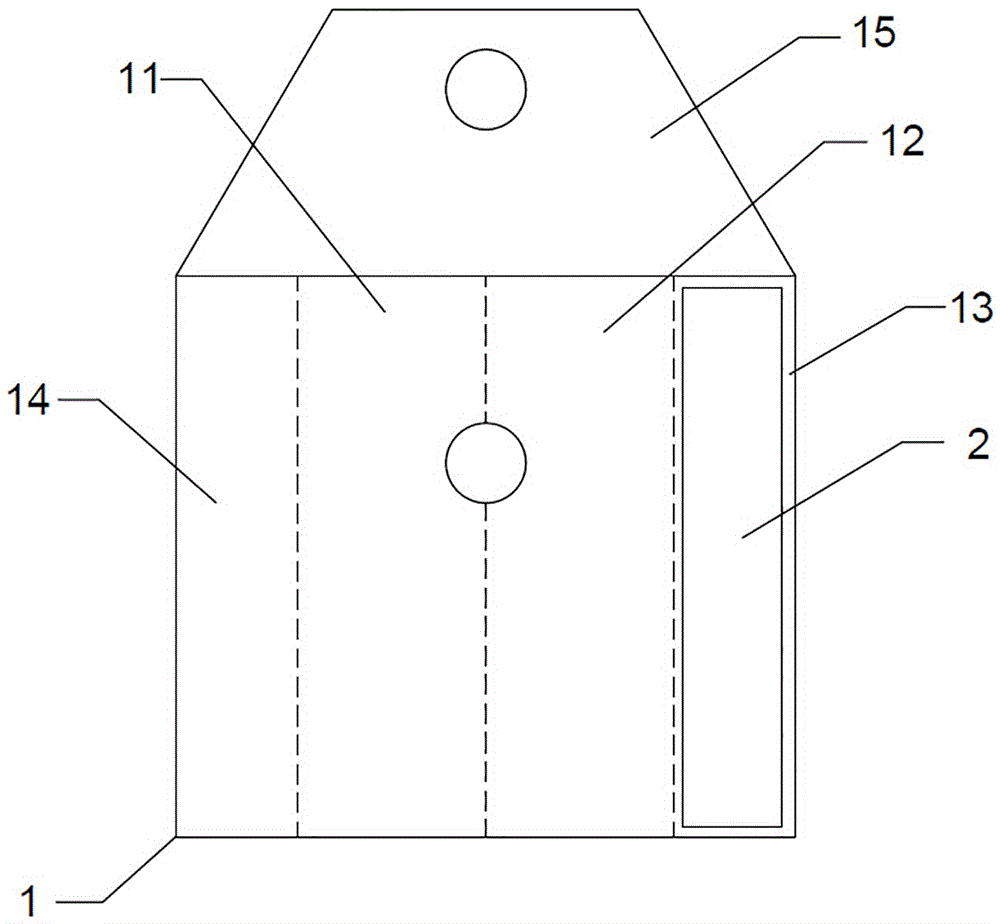

Fig. 1 is a schematic structural diagram of an embodiment of the present invention;

FIG. 2 is a schematic structural diagram of a shape destroyer (with a detachable packaging tape) according to an embodiment of the present invention;

FIG. 3 is a schematic structural diagram of a destructor (without a detachable packaging tape) according to an embodiment of the present invention;

fig. 4 is a schematic view of an opening of a first destroying compartment according to an embodiment of the present invention;

the names of the parts corresponding to the numbers in the figure are respectively: 1-a storage bag body, 11-a first storage compartment, 12-a second storage compartment, 13-a first destroying compartment, 131-an easy-to-pull barrier strip, 14-a second destroying compartment, 15-an opening and closing cover, 2-a destroying device, 21-a first carrier plate, 22-a second carrier plate, 23-a puncture part, 24-a puncture soft cushion layer and 25-a detachable packaging tape.

Detailed Description

The invention will be further explained by means of specific embodiments with reference to the drawings, in which:

referring to fig. 1, an embodiment of a portable storage component for disposable intravenous infusion comprises a storage bag body 1 made of conventional medical materials, such as plastic or silica gel, a first storage compartment 11, a second storage compartment 12, a first destroying compartment 13, a second destroying compartment 14 and a destroying device 2 are arranged in the storage bag body 1, the first storage compartment 11 is used for storing 2 iodophor cotton swabs, 1 piece of alcohol patch and 1 piece of disposable treatment towel, the second storage compartment 12 is used for storing 1 tourniquet, and medical staff can clearly count the stored objects during use and recovery, and can not easily miss the stored objects, and can correspondingly know how many patients are nursed by using how many storage components; the first destroying compartment 13 is located at the most lateral side of the storage bag body 1, the first destroying compartment 13 is used for storing 1 destroying device 2, and the destroying device 2 is used for destroying the storage bag body 1 and articles stored therein. The second destroying compartment 14 is located at the other extreme side of the bag body 1 opposite to the first destroying compartment 13, the second destroying compartment 14 is empty at the beginning, and when the recovery is completed, the loading destroyer 2 is matched to destroy the bag body 1 and the articles stored in the bag body from the extreme side. The loading of the destroyer 2 in the first and

second destroyer compartments

13, 14 is less likely to cause injury to the user and more convenient for the destruction of the portion of the storage located between the two compartments.

Specifically, referring to fig. 2 and fig. 3, the shape destroyer 2 includes a first carrier 21, a second carrier 22, and a detachable package tape 25, where an inner surface of the first carrier 21 is opposite to an inner surface of the second carrier 22. The inner plate surface of the first carrier plate 21 is provided with a puncturing part 23, the inner plate surface of the second carrier plate 22 is provided with a puncturing cushion layer 24, and the puncturing cushion layer 24 is used for the puncturing part 23 to puncture so as to fix the first carrier plate 21 and the second carrier plate 22; similarly, in order to ensure a sufficient destroying effect, the inner surface of the second carrier 22 is also provided with a piercing portion 23, and the inner surface of the first carrier 21 is also provided with a piercing cushion layer 24. A detachable sealing tape 25 closes the puncturing part 23 at least around the space between the first carrier plate 21 and the second carrier plate 22 placed opposite. The puncture cushion layer 24 on the first carrier plate 21 and the puncture cushion layer 24 on the second carrier plate 22 both cover the rest of the inner plate surfaces except the puncture part 23, the puncture part 23 on the first carrier plate 21 and the puncture part 23 on the second carrier plate 22 are staggered and arranged in a hollow manner and can be punctured and fixed on the puncture cushion layer 24 corresponding to each other, namely, when the two carrier plates are oppositely arranged, the respective puncture part 23 punctures on the puncture cushion layer 24 of the other carrier plate, the two carrier plates cannot be separated, so that the bag body or storage objects cannot be damaged in the initial arrangement state, and the two carrier plates can be conveniently taken out by hands. The simple arrangement of the puncture part 23 can be a fine needle, a sharp needle and the like, and the puncture cushion layer 24 can be a rubber cushion.

After the iv procedure is completed, the associated disposable items are returned to the first and

second storage compartments

11, 12. Before or after the above, the destructor 2 is taken out, the two carrier plates are manually separated and are respectively placed into the first destroying compartment 13 and the second destroying compartment 14, and then the bag body 1 is squeezed by hand, so that the puncture part 23 punctures the first storage compartment 11, the second storage compartment 12 and the disposable tools therein, and the first destroying compartment 13, the second destroying compartment 14 and the carrier plate body all play roles of facilitating force application, protecting hands and avoiding puncture in the using process. In some embodiments, in order to save cost, the second collapsing compartment 14 is not provided, and one of the carrier plates is directly separated and taken out, and another carrier plate in the first collapsing compartment 13 is used to puncture and collapse outside the receptacle 1. In some embodiments, also for cost saving, only the piercing part 23 is provided on one of the carrier plates and only the piercing cushion layer 24 is provided on the other carrier plate, which still can destroy the bag and the object, but the destruction is relatively weak.

In this embodiment, an easy-to-pull bar 131 is further disposed on the opening of the first destroying compartment 13, as shown in fig. 4, the easy-to-pull bar 131 is used to prevent the destroying device 2 in the first destroying compartment 13 from accidentally falling out, and the easy-to-pull bar 131 is a relatively thin seal, and may be integrally formed on the bag body, or may be fixed on the first destroying compartment 13 in a later stage by a simple connection manner such as adhesion. When the shape destroying device 2 needs to be taken out, the easy-pull barrier strip 131 can be pulled by hand to be broken. The storage bag body 1 is provided with an opening and closing cover 15, the opening and closing cover 15 is used for covering an opening of a compartment carried by the storage bag body 1, and regarding the opening and closing mode of the opening and closing cover 15, the mode can be specifically a mode that a male snap fastener is arranged on the opening and closing cover 15, and a female snap fastener is arranged on the bag body of the storage bag body 1; or a male hook-and-loop fastener tape may be provided on the open/close cover 15, and a female hook-and-loop fastener tape may be provided on the bag body of the storage bag body 1.

It will be appreciated by persons skilled in the art that the embodiments of the invention described above and shown in the drawings are given by way of example only and are not limiting of the invention. The objects of the present invention have been fully and effectively accomplished. The functional and structural principles of the present invention have been shown and described in the examples, and any variations or modifications of the embodiments of the present invention may be made without departing from the principles.

Claims

1. The utility model provides a portable subassembly of accomodating of disposable venous transfusion, includes the storage bag body (1), its characterized in that: the medical bag is characterized in that a first storage compartment (11), a second storage compartment (12), a first destroying compartment (13) and a destroying device (2) are arranged in the storage bag body (1), the first storage compartment (11) and the second storage compartment (12) are used for storing medical products, the first destroying compartment (13) is used for storing the destroying device (2), and the destroying device (2) is used for destroying the storage bag body (1) and stored articles therein.

2. The method of claim 1, wherein: the shape destroying device (2) comprises a first carrier plate (21) and a second carrier plate (22), and the inner plate surface of the first carrier plate (21) is opposite to the inner plate surface of the second carrier plate (22); the inner plate surface of the first carrier plate (21) is provided with a puncturing part (23), the inner plate surface of the second carrier plate (22) is provided with a puncturing cushion layer (24), and the puncturing cushion layer (24) is used for the puncturing part (23) to puncture so that the first carrier plate (21) and the second carrier plate (22) are fixed.

3. A disposable iv set portable storage set according to claim 2, wherein: the inner plate surface of the second carrier plate (22) is also provided with a puncture part (23), and the inner plate surface of the first carrier plate (21) is provided with a puncture cushion layer (24); the puncture soft cushion layer (24) on the first carrier plate (21) and the puncture soft cushion layer (24) on the second carrier plate (22) at least cover the rest of the plate surfaces except the puncture part (23) on the inner plate surface where the puncture soft cushion layer (24) is arranged, and the puncture part (23) on the first carrier plate (21) and the puncture part (23) on the second carrier plate (22) are staggered and arranged in a plugging mode and can be fixed on the puncture soft cushion layer (24) corresponding to the puncture part in a puncturing mode.

4. A disposable iv set portable storage set according to claim 2 or 3, wherein: the shape destroyer (2) further comprises a detachable packaging tape (25), and the detachable packaging tape (25) at least surrounds the space between the first carrier plate (21) and the second carrier plate (22) which are oppositely arranged to seal the puncture part (23).

5. A disposable iv set portable storage set according to claim 1, wherein: an opening of the first destroying compartment (13) is provided with a pop-top bar (131), and the pop-top bar (131) is used for preventing the destroying device (2) in the first destroying compartment (13) from accidentally falling out.

6. A disposable iv set portable storage set according to claim 1, wherein: the first destroying compartment (13) is positioned at the most lateral side of the containing bag body (1).

7. A disposable iv set portable storage set according to claim 6, wherein: the containing bag body (1) is also provided with a second destroying compartment (14), and the second destroying compartment (14) is positioned at the other side edge of the containing bag body (1) opposite to the first destroying compartment (13).

8. A disposable iv set portable storage set according to claim 1, wherein: the storage bag is characterized in that an opening and closing cover (15) is arranged on the storage bag body (1), and the opening and closing cover (15) is used for covering an opening of a compartment carried by the storage bag body (1).

9. A disposable iv set portable storage set according to claim 1, wherein: the opening and closing cover (15) and the bag body of the storage bag body (1) are opened or closed in a snap fastening mode.

10. A disposable iv set portable storage set according to claim 1, wherein: the opening and closing cover (15) and the bag body of the storage bag body (1) are opened or closed through a sticky buckle tape bonding mode.
