CN210576125U - New forms of energy battery box with radiating effect is fixed effectual - Google Patents

Abstract

The utility model belongs to the technical field of new energy battery boxes, in particular to a new energy battery box with good heat dissipation effect and fixing effect, comprising a main body, a top cover and a lifting rod. A connecting rod is connected inside, the top cover is installed on the end of the connecting rod, and the top cover is welded between the connecting rods, a fixing block is fixed inside the top cover, and the inside of the fixing block is provided with a first The end of the first spring is connected with a movable block, the lift rod is installed inside the main body, and the end of the lift rod is provided with a second spring. The new energy battery box with good heat dissipation effect and fixing effect is provided with a top cover that can quickly open and close the device, the splint can directly clamp and fix the battery, the shock absorber can prevent the impact damage to the battery, and the fan can prevent the internal temperature Too high affects the operating efficiency of the device and prolongs the operating life of the new energy battery.

Description

A new energy battery box with good heat dissipation effect and fixed effect

technical field

The utility model relates to the technical field of new energy battery boxes, in particular to a new energy battery box with good heat dissipation effect and good fixing effect.

Background technique

The importance of environmental protection has been well known to people. Various environmentally friendly new energy products have been produced one after another, which has improved the efficiency of environmental protection. Among them, batteries, as a kind of high-polluting daily necessities, exist in people's lives. Greatly improved, and the use of batteries is very particular, and it cannot be directly exposed, which will affect the service life of the battery, and the battery box is thus generated.

Compared with the patent number CN201821007346, it is a stable new energy battery box CN201821007346 with good protection effect. The clamping plate in the device can position and fix the battery bodies of different sizes, and the operation is simple. The impact force in the lateral direction is damped, and the protection effect is better. At the same time, when the box cover is fixed on the upper end of the box body, the pressing plate can prevent the battery body from loosening.

Utility model content

The purpose of the present utility model is to provide a new energy battery box with good heat dissipation effect and fixing effect, so as to solve the problem that the new energy battery box on the market proposed in the above-mentioned background technology cannot easily pick up and place batteries, and requires multiple operations to take out. It has a certain impact on the use, and the internal battery cannot be well dissipated, which shortens the service life of the battery.

In order to achieve the above purpose, the utility model provides the following technical solutions: a new energy battery box with good heat dissipation effect and fixing effect, including a main body, a top cover and a lifting rod, the main body is provided with a connecting groove inside, and the connecting groove is A connecting rod is connected inside, the top cover is installed on the end of the connecting rod, and the top cover is welded between the connecting rods, a fixing block is fixed inside the top cover, and the inside of the fixing block is provided with a first spring, and the end of the first spring is connected with a movable block, the lifting rod is installed inside the main body, and the end of the lifting rod is provided with a second spring, the outer periphery of the lifting rod is connected with a movable rod, and the movable rod There is a movable connection with the lifting rod, the end of the movable rod is connected with a slider, and the top of the slider is provided with a splint, the inside of the slider is penetrated with a sliding rod, and the end of the sliding rod is connected with a fixed The bottom of the fixed table is provided with a shock absorber, and the fixed table and the shock absorber are connected by welding, the bottom of the main body is installed with a rotating shaft, and the end of the rotating shaft is provided with a fan blade.

Preferably, the top cover forms a movable structure between the connecting rod and the connecting groove, and the connecting rod and the top cover are integrally arranged.

Preferably, the movable block and the fixed block form an elastic expansion and contraction structure through a first spring, and the fixed block and the top cover are perpendicular to each other.

Preferably, the lifting rod and the main body form a lifting structure through a second spring, the sliding block forms a movable structure through the movable rod and the second spring, and the clamping plate forms a sliding structure between the sliding block and the sliding rod.

Preferably, the fixing platform and the main body form an elastic damping structure through a shock absorber, and the central axes of the fixing platform and the main body are perpendicular to each other.

Preferably, the fan blade and the main body form a rotating structure through a rotating shaft, and the central axis of the rotating shaft and the main body coincide with each other.

Compared with the prior art, the beneficial effects of the present utility model are:

1. This new energy battery box with good heat dissipation effect is provided with a top cover, and the top cover can be lifted up to drive the bottom connecting rod out of the connecting groove to open the top cover of the device. The structure is simple and the operation is convenient. , the device can be opened and closed quickly, and it is convenient for the placement and removal of the battery and the cleaning of the interior of the device. The movable block set on the top is in contact with the top of the internal battery and squeezed after the top cover is installed on the main body and closed. At this time, the internal first spring will shrink inward, so that the device can effectively squeeze and fix the battery installed inside after the device is closed, and the movable block is made of rubber, which will not cause hard damage to the internal battery or increase the internal battery. Friction between batteries to reduce the possibility of battery slippage;

2. This new energy battery box with good heat dissipation effect is provided with a fixed table. When the top cover and the main body are closed, the lifting rod will be squeezed to drive the bottom spring to compress downward, so that the movable rod at one end drives the sliding. The block slides on the slide bar, and the device can drive the splints on both sides to clamp to the middle, and can directly clamp and fix the battery placed on the fixing table, no need for extra operations, just open and close the top cover. The battery is fixed and released, which effectively improves the speed of battery disassembly;

3. The new energy battery box with good heat dissipation effect and fixing effect is provided with a shock absorber, which can effectively reduce the impact force during installation, so as to protect the battery from damage during installation and prevent equipment from being transported. The impact damage to the internal battery can effectively protect the safety of the battery, and there is a fan at the bottom, which can control the rotation of the shaft to drive the fan blades to rotate, effectively cooling the inside of the device, and the fan at the bottom can penetrate The air is blown to the ventilation holes on the top cover through the fixed table with reserved holes, which can effectively ventilate and cool the internal hot air, which can prevent the high internal temperature from affecting the operating efficiency of the device and prolong the operating life of the new energy battery.

Description of drawings

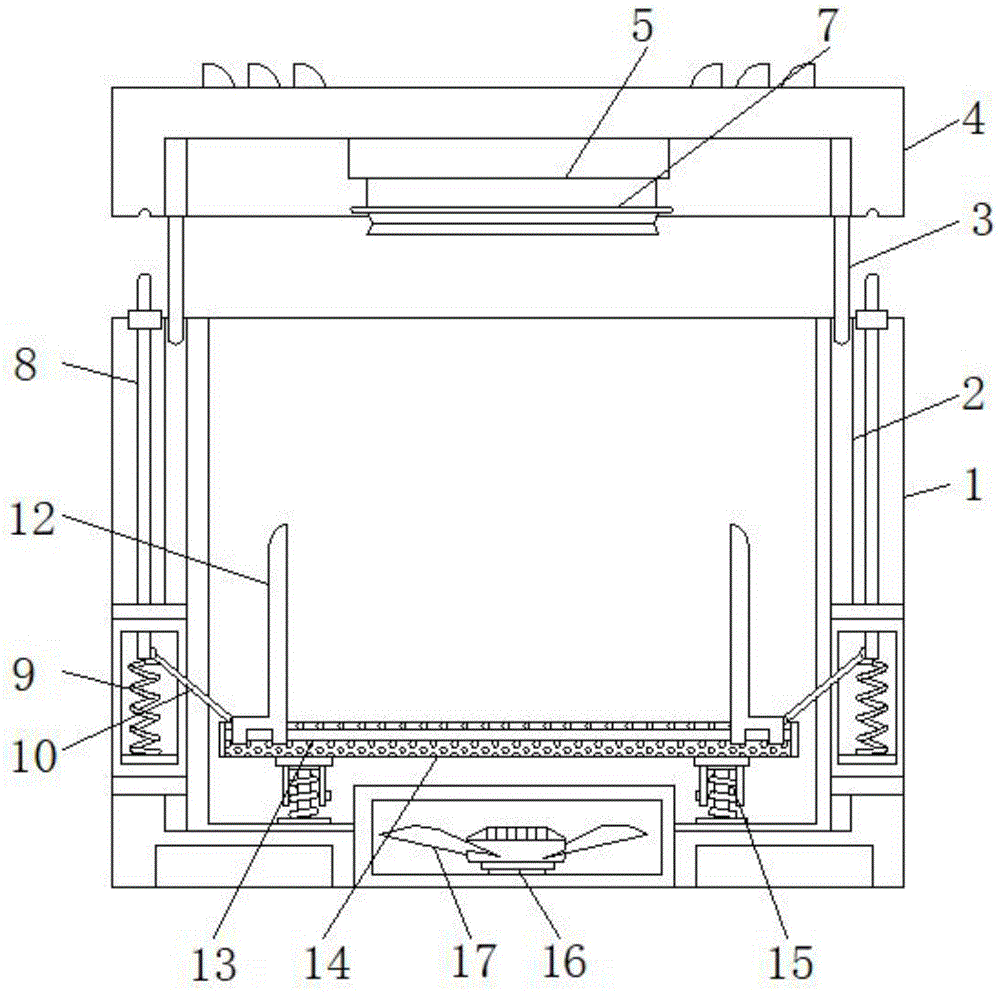

1 is a schematic view of the internal structure of the present utility model;

Fig. 2 is a side view of the internal structure schematic diagram of the fixture of the present invention;

FIG. 3 is a schematic diagram of the connection structure between the lifting rod and the fixed platform of the present invention.

In the figure: 1. Main body; 2. Connecting groove; 3. Connecting rod; 4. Top cover; 5. Fixed block; 6. First spring; 7. Active block; 8. Lifting rod; 9. Second spring; 10 , movable rod; 11, slider; 12, splint; 13, sliding rod; 14, fixed table; 15, shock absorber; 16, shaft; 17, fan blade.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-3, the present utility model provides a technical solution: a new energy battery box with good heat dissipation effect and fixing effect, comprising a main body 1, a connecting groove 2, a connecting rod 3, a top cover 4, a fixing block 5, The first spring 6, the movable block 7, the lifting rod 8, the second spring 9, the movable rod 10, the sliding block 11, the splint 12, the sliding rod 13, the fixed table 14, the shock absorber 15, the rotating shaft 16 and the fan blade 17, the main body The interior of 1 is provided with a connecting groove 2, and the interior of the connecting groove 2 is connected with a connecting rod 3, the top cover 4 is mounted on the end of the connecting rod 3, and the top cover 4 is welded between the connecting rods 3, and the top cover 4 A movable structure is formed between the connecting rod 3 and the connecting groove 2, and the connecting rod 3 and the top cover 4 are integrally arranged, the structure is simple and the operation is convenient, the device can be opened and closed quickly, and the battery can be easily placed inside With taking out and cleaning the inside of the equipment, a fixed block 5 is fixed inside the top cover 4, and a first spring 6 is arranged inside the fixed block 5, and the end of the first spring 6 is connected with a movable block 7, and the movable block 7 The first spring 6 forms an elastic telescopic structure with the fixed block 5, and the fixed block 5 and the top cover 4 are perpendicular to each other, so that the device can effectively squeeze and fix the battery installed inside after the device is closed, and the movable block 7 is made of rubber. , it will not cause hard damage to the internal battery, but also can increase the friction with the internal battery to reduce the possibility of battery sliding, the lifting rod 8 is installed inside the main body 1, and the end of the lifting rod 8 is provided with a second spring 9. A movable rod 10 is connected to the periphery of the lifting rod 8, and the movable rod 10 and the lifting rod 8 are movably connected. The end of the movable rod 10 is connected with a slider 11, and the top of the slider 11 is provided with a splint 12, A sliding rod 13 runs through the interior of the sliding block 11, and the end of the sliding rod 13 is connected with a fixed table 14. The lifting rod 8 and the main body 1 form a lifting structure through the second spring 9, and the sliding block 11 is connected to the second A movable structure is formed between the springs 9, and the splint 12 forms a sliding structure between the slider 11 and the sliding rod 13. The splint 12 on both sides can be driven to clamp to the middle by this device, and the clamps placed on the fixed table 14 can be directly clamped. The battery is clamped and fixed, no unnecessary operations are required, and the internal battery can be fixed and released only by opening and closing the top cover 4, which effectively improves the speed of battery disassembly and assembly. The bottom of the fixing table 14 is provided with a shock absorber 15, and The fixed table 14 and the shock absorber 15 are connected by welding. The fixed table 14 and the main body 1 form an elastic damping structure through the shock absorber 15, and the central axes of the fixed table 14 and the main body 1 are perpendicular to each other. When the battery is installed, the impact force during installation is effectively reduced, so as to protect the battery from damage during installation, and to prevent the impact damage to the internal battery during transportation of the equipment. The bottom of the main body 1 is installed with a rotating shaft 16, and the end of the rotating shaft 16 A fan blade 17 is provided, and the fan blade 17 and the main body 1 form a rotating structure through the rotating shaft 16, and the rotating shaft 16 and the central axis of the main body 1 overlap each other, which promotes air flow, effectively ventilates and cools the hot air inside, and can prevent the internal temperature Too high affects the operating efficiency of the device and prolongs the operation of the new energy battery. row life.

Working principle: For this type of new energy battery box, the top cover 4 of the device can be opened by lifting the top cover 4 upwards to drive the bottom connecting rod 3 out of the connecting groove 2. The device is opened and closed to facilitate the placement and removal of the battery inside and the cleaning of the inside of the device. Then, after the top cover 4 is installed and closed with the main body 1, the movable block 7 on the top is in contact with the top of the internal battery and is squeezed. At this time, the inner first spring 6 will shrink inward, so that the device can effectively squeeze and fix the battery installed inside after the device is closed, and the movable block 7 is made of rubber, which will not cause hard damage to the internal battery or increase the size of the battery. The friction with the internal battery reduces the possibility of the battery sliding. Then, when the top cover 4 and the main body 1 are closed, the lift rod 8 will be squeezed to drive the bottom spring to compress downward, so that the movable rod 10 at one end drives the slider 11 Sliding on the slide bar 13, the device can drive the splints 12 on both sides to be clamped to the middle, and the battery placed on the fixing table 14 can be clamped and fixed directly. The internal battery can be fixed and released, which effectively improves the speed of battery disassembly and assembly, and then the shock absorber 15 can effectively reduce the impact force during the installation of the battery, so as to protect the battery from damage during installation and prevent The impact damage caused to the internal battery during the transportation of the device can effectively protect the safety of the battery. Finally, the fan blade 17 can be rotated by controlling the rotation of the shaft 16 to effectively cool the inside of the device, and the fan located at the bottom can pass through The fixed table 14 with holes is reserved to blow the wind to the ventilation holes on the top cover 4 to promote air flow and effectively ventilate and cool the internal hot air, which can prevent the internal temperature from being too high to affect the operation efficiency of the device and prolong the operation of the new energy source. The operating life of the battery, thus completing the use of the entire new energy battery box.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. A new energy battery box with good heat dissipation effect and fixing effect, comprising a main body (1), a top cover (4) and a lifting rod (8), wherein the main body (1) is provided with a connecting groove inside (2), and a connecting rod (3) is connected inside the connecting groove (2), the top cover (4) is installed on the end of the connecting rod (3), and the top cover (4) is connected to the connecting rod (3) There is a welding connection between them, a fixing block (5) is fixed inside the top cover (4), and a first spring (6) is arranged inside the fixing block (5), and the end of the first spring (6) is A movable block (7) is connected, the lift rod (8) is installed inside the main body (1), and the end of the lift rod (8) is provided with a second spring (9). A movable rod (10) is connected to the periphery, and the movable rod (10) and the lifting rod (8) are movably connected, the end of the movable rod (10) is connected with a sliding block (11), and the sliding block (11) ) is provided with a splint (12) at the top, a sliding rod (13) runs through the inside of the slider (11), and a fixing table (14) is connected to the end of the sliding rod (13), and the fixing table (14) The bottom of the main body (1) is provided with a shock absorber (15), and the fixed platform (14) and the shock absorber (15) are connected by welding, the bottom of the main body (1) is installed with a rotating shaft (16), and the rotating shaft (16) ) is provided with a fan blade (17). 2. A new energy battery box with good heat dissipation effect and fixing effect according to claim 1, characterized in that: the top cover (4) forms a movable movement between the connecting rod (3) and the connecting groove (2). structure, and the connecting rod (3) and the top cover (4) are integrally arranged. 3. A new energy battery box with good heat dissipation effect and fixing effect according to claim 1, characterized in that: the movable block (7) and the fixed block (5) constitute elastic expansion and contraction through the first spring (6). structure, and the fixing block (5) and the top cover (4) are perpendicular to each other. 4. A new energy battery box with good heat dissipation effect and fixing effect according to claim 1, characterized in that: the lifting rod (8) and the main body (1) form a lifting structure through a second spring (9), The sliding block (11) forms a movable structure between the movable rod (10) and the second spring (9), and the clamping plate (12) forms a sliding structure between the sliding block (11) and the sliding rod (13). 5. A new energy battery box with good heat dissipation effect and fixing effect according to claim 1, characterized in that: the fixing table (14) and the main body (1) constitute elastic shock absorption through a shock absorber (15). structure, and the central axis of the fixing table (14) and the main body (1) are perpendicular to each other. 6. A new energy battery box with good heat dissipation effect and fixing effect according to claim 1, characterized in that: the fan blade (17) and the main body (1) form a rotating structure through a rotating shaft (16), and the rotating shaft (16) coincides with the central axis of the main body (1).
