CN210568053U

CN210568053U - Novel desk lamp

Info

Publication number: CN210568053U
Application number: CN201921902623.2U
Authority: CN
Inventors: 李国来
Original assignee: Dongguan Ziliang Electronic Technology Co ltd
Current assignee: Dongguan Ziliang Electronic Technology Co ltd
Priority date: 2019-11-06
Filing date: 2019-11-06
Publication date: 2020-05-19
Anticipated expiration: 2029-11-06

Abstract

The utility model discloses a novel desk lamp, comprising a structural main body, the structural main body comprising a lamp holder and a lamp frame arranged on the lamp holder, lampshades and lamp boards are arranged on both sides of the lamp frame, the lamp board is arranged at the center of the lamp holder, a lamp tube is arranged in the center of the lamp board, the lamp holder is composed of an outer shell and a bottom cover, a storage battery and a circuit board are arranged between the outer shell and the bottom cover, the storage battery is electrically connected to the circuit board through a wire, and the circuit board is electrically connected to the lamp board through a wire; the utility model has a simple and beautiful appearance; lampshades of different colors can be replaced according to user needs, and at the same time, the lights on both sides of the lamp frame can be controlled respectively by a first switch button and a second switch button to meet the diverse usage needs of users; power can be provided by a storage battery or by USB charging, and the use of the desk lamp will not be affected by power supply limitations.

Description

Novel desk lamp

Technical Field

The utility model relates to a desk lamp technical field, concretely relates to novel desk lamp.

Background

In daily life, the desk lamp brings great convenience to people, and no matter work or work is done at night, people can prepare a desk lamp for the purpose of making people clearly see the desk lamp to a certain degree, so that electric energy is saved, light is concentrated, but with the development of economy, the requirements of people on the desk lamp are higher and higher.

The brightness irradiation range of the existing desk lamp on the market is relatively concentrated, and the desk lamp cannot be adjusted, has poor use flexibility and cannot meet the diversified requirements of users.

SUMMERY OF THE UTILITY MODEL

The utility model aims at providing a novel desk lamp for solving above-mentioned problem.

The utility model discloses a following technical scheme realizes above-mentioned purpose, novel desk lamp, including a main structure body, main structure body includes the lamp stand and locates lighting fixture on the lamp stand, the lighting fixture both sides are equipped with lamp shade and lamp plate, the lamp plate is located the lighting fixture center, the lamp plate center is equipped with the fluorescent tube, the lamp stand comprises shell and bottom, be equipped with battery and circuit board between shell and the bottom, the battery pass through the wire with circuit board electric connection, the circuit board pass through the wire with lamp plate electric connection.

Preferably, the lamp holder is a non-light-transmitting disc-shaped structure.

Preferably, the lamp tube is of an annular structure and is electrically connected with the lamp panel through a wire.

Preferably, the lamp plate pass through the screw with lighting fixture fixed connection, just the lamp plate is located inside the lamp shade.

Preferably, the lampshade is connected with the lamp holder in a buckling manner, a clamping groove is formed in the outer edge of the lamp holder, an inverted buckle is arranged on the outer edge of the lampshade, and the position of the clamping groove on the lamp holder corresponds to the position of the inverted buckle on the lampshade.

Preferably, the lamp holder is fixedly connected with the lamp holder through screws.

Preferably, the center of the upper surface of the shell is provided with a through hole.

Preferably, the shell is fixedly connected with the bottom cover through screws, a first switch key and a second switch key are arranged on two sides of the shell, and a USB charging hole is formed in the side face of the bottom cover.

The utility model has the advantages that:

(1) the utility model has simple and beautiful appearance and can be used as an ornament;

(2) the utility model can change the lamp shades with different colors according to the needs of users, and can better meet the diversified demands of users;

(3) the utility model can respectively control the lamps at the two sides of the lamp bracket through the first switch key and the second switch key according to the requirement of the user on the light source, thereby meeting the use requirement of the user;

(4) the utility model discloses can provide the power through the battery, also can charge through USB and provide the power, can not influence the use of desk lamp because of being restricted by the power.

Drawings

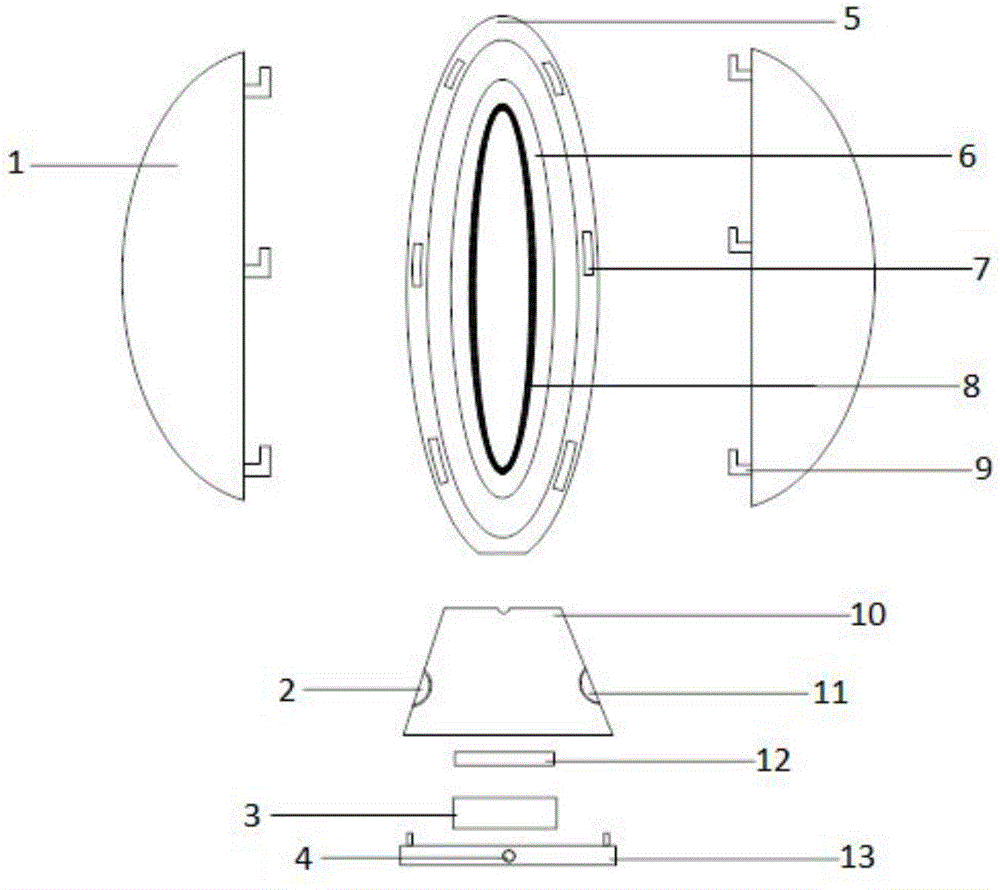

FIG. 1 is a schematic structural view of the present invention;

fig. 2 is a front view of the present invention;

fig. 3 is a side view of the present invention;

in the figure: 1. a lamp shade; 2. a first switch key; 3. a storage battery; 4. a USB charging hole; 5. a lamp holder; 6. a lamp panel; 7. a card slot; 8. a lamp tube; 9. reversing; 10. a housing; 11. a second switch key; 12. a circuit board; 13. a bottom cover.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

As shown in fig. 1-3, the novel desk lamp comprises a structure body, the structure body comprises a lamp holder 14 and a lamp holder 5 arranged on the lamp holder 14, lamp shades 1 and lamp panels 6 are arranged on two sides of the lamp holder 5, the lamp panels 6 are arranged at the center of the lamp holder 5, a lamp tube 8 is arranged at the center of the lamp panels 6, the lamp holder 14 is composed of a shell 10 and a bottom cover 13, a storage battery 3 and a circuit board 12 are arranged between the shell 10 and the bottom cover 13, the storage battery 3 is electrically connected with the circuit board 12 through a wire, and the circuit board 12 is electrically connected with the lamp panels 6 through a wire.

The lamp holder 5 is of a non-light-transmitting disc-shaped structure; the lamp tube 8 is of an annular structure, and the lamp tube 8 is electrically connected with the lamp panel 6 through a wire; the lamp panel 6 is fixedly connected with the lamp holder 5 through screws, and the lamp panel 6 is positioned inside the lampshade 1; the lampshade 1 is connected with the lamp holder 5 in a buckling mode, a clamping groove 7 is formed in the outer edge of the lamp holder 5, an inverted buckle 9 is arranged on the outer edge of the lampshade 1, and the position, on the lamp holder 5, of the clamping groove 7 corresponds to the position, on the lampshade 1, of the inverted buckle 9; the lamp holder 5 is fixedly connected with the lamp holder 14 through screws; a through hole is formed in the center of the upper surface of the shell 10; the shell 10 and the bottom cover 13 are fixedly connected through screws, a first switch key 2 and a second switch key 11 are arranged on two sides of the shell 10, and a USB charging hole 4 is formed in the side face of the bottom cover 13.

The utility model discloses in the use, through the light of first switch button 2 and second switch button 11 control 5 both sides of lighting fixture respectively, when a lamp light of needs one side is bright, press the on-off control one side light in first switch button 2 and the second switch button 11 and light, when needs both sides light all to light, press first switch button 2 and second switch button 11 simultaneously, both sides light lights simultaneously and lights.

The utility model discloses at the use, when the user need change lamp shade 1, the rotatory lamp shade 1 of user, back-off 9 aligns with draw-in groove 7, takes off lamp shade 1, when installation lamp shade 1, makes back-off 9 aim at draw-in groove 7, then rotatory lamp shade 1, and back-off 9 joint is accomplished in draw-in groove 7, the installation of lamp shade 1.

It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.

Claims

1. Novel desk lamp, its characterized in that, including a main structure body, main structure body includes lamp stand (14) and locates lighting fixture (5) on lamp stand (14), lighting fixture (5) both sides are equipped with lamp shade (1) and lamp plate (6), lamp plate (6) are located lighting fixture (5) center, lamp plate (6) center is equipped with fluorescent tube (8), lamp stand (14) comprise shell (10) and bottom (13), be equipped with battery (3) and circuit board (12) between shell (10) and bottom (13), battery (3) pass through the wire with circuit board (12) electric connection, circuit board (12) pass through the wire with lamp plate (6) electric connection.

2. The novel desk lamp of claim 1, wherein: the lamp holder (5) is of a non-light-transmitting disc-shaped structure.

3. The novel desk lamp of claim 1, wherein: the lamp tube (8) is of an annular structure, and the lamp tube (8) is electrically connected with the lamp panel (6) through a wire.

4. The novel desk lamp of claim 1, wherein: the lamp panel (6) pass through the screw with lighting fixture (5) fixed connection, just lamp panel (6) are located inside lamp shade (1).

5. The novel desk lamp of claim 1, wherein: the lampshade (1) is connected with the lamp holder (5) in a buckling mode, a clamping groove (7) is formed in the outer edge of the lamp holder (5), an inverted buckle (9) is arranged in the outer edge of the lampshade (1), and the position of the clamping groove (7) on the lamp holder (5) corresponds to the position of the inverted buckle (9) on the lampshade (1).

6. The novel desk lamp of claim 1, wherein: the lamp holder (5) is fixedly connected with the lamp holder (14) through screws.

7. The novel desk lamp of claim 1, wherein: the center of the upper surface of the shell (10) is provided with a through hole.

8. The novel desk lamp of claim 1, wherein: the shell (10) is fixedly connected with the bottom cover (13) through screws, a first switch key (2) and a second switch key (11) are arranged on two sides of the shell (10), and a USB charging hole (4) is formed in the side face of the bottom cover (13).
