CN210567955U - A linear high bay light - Google Patents
A linear high bay light Download PDFInfo
- Publication number
- CN210567955U CN210567955U CN201921306811.9U CN201921306811U CN210567955U CN 210567955 U CN210567955 U CN 210567955U CN 201921306811 U CN201921306811 U CN 201921306811U CN 210567955 U CN210567955 U CN 210567955U
- Authority
- CN
- China
- Prior art keywords
- lamp
- shell
- lamps
- mounting
- end cover
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Non-Portable Lighting Devices Or Systems Thereof (AREA)
- Arrangement Of Elements, Cooling, Sealing, Or The Like Of Lighting Devices (AREA)
Abstract
本实用新型涉及一种线性高棚灯，所属照明灯具技术领域，包括灯具外壳，灯具外壳内设有与灯具外壳相插嵌式卡接的散热安装架，灯具外壳下端设有与灯具外壳相卡嵌式插接的PC透明板，PC透明板与散热安装架间设有若干与散热安装架相插嵌式连接固定的光源板，灯具外壳两端设有与灯具外壳相卡嵌式螺钉连接固定的灯具端盖。灯具端盖包括灯具端盖本体，灯具端盖本体内设有与灯具外壳相卡嵌式插接的灯具外壳安装卡槽，灯具外壳安装卡槽内设有若干端盖螺钉安装孔。具有结构简单、安装方便和防水效果好的特点。解决了灯具安装困难的问题。提高线性高棚灯的防水性能，避免出现渗水漏水引起的线路短路影响用电安全的情况。
The utility model relates to a linear high-bay lamp, which belongs to the technical field of lighting lamps. Embedded plug-in PC transparent board, between the PC transparent board and the heat dissipation mounting frame, there are a number of light source boards that are inserted and fixed with the heat dissipation mounting frame, and the two ends of the lamp shell are connected with the lamp shell. luminaire end caps. The lamp end cover includes a lamp end cover body. The lamp end cover body is provided with a lamp shell installation slot which is inserted into the lamp shell, and a plurality of end cap screw mounting holes are arranged in the lamp shell installation slot. It has the characteristics of simple structure, convenient installation and good waterproof effect. Solve the problem of difficult installation of lamps. Improve the waterproof performance of the linear high-bay light to avoid the situation that the line short circuit caused by water seepage and water leakage will affect the safety of electricity consumption.
Description
Technical Field
The utility model relates to an illumination lamps and lanterns technical field, concretely relates to linear high shed lamp.
Background
The linear high shed lamp is suitable for lighting lamps in large and spacious places such as factories, power plants, steel mills, workshops, warehouses, gymnasiums, waiting rooms, stations, oil stations, airports, markets, shopping mall lighting and the like, and the linear high shed lamp is generally hung at a higher position. Because the service environment of the linear high shed lamp is easily influenced by water vapor and environmental humidity, water drops hung on the surface of the lamp are easily penetrated from the gap.
In the prior art, a step is arranged on the bottom surface of a lower cover, glass is placed in the step, then a sealing ring is placed on the bottom surface of the lower cover, and finally a reflecting cover is fixed on the lower cover.
Disclosure of Invention
The utility model discloses mainly solve and have that waterproof construction is complicated among the prior art, the installation is inconvenient and water-proof effects is poor not enough, provide a linear high shed lamp, it has simple structure, simple to operate and the good characteristics of water-proof effects. The problem of lamps and lanterns installation difficulty is solved. The waterproof performance of the linear high shed lamp is improved, and the condition that the electricity utilization safety is influenced by the short circuit caused by water seepage and water leakage is avoided.
The above technical problem of the present invention can be solved by the following technical solutions:
the utility model provides a linear high shed lamp, includes the lamps and lanterns shell, the lamps and lanterns shell in be equipped with and insert the heat dissipation mounting bracket of formula joint mutually with the lamps and lanterns shell, lamps and lanterns shell lower extreme be equipped with the PC transparent plate of the formula grafting of lamp shell mutually inlay, PC transparent plate and heat dissipation mounting bracket between be equipped with a plurality ofly and insert the formula with the heat dissipation mounting bracket mutually and be connected fixed light source board, lamps and lanterns shell both ends be equipped with the fixed lamps and lanterns end cover of lamp shell mutually inlay formula screw connection. The lamp end cover comprises a lamp end cover body, a lamp shell mounting clamping groove which is inserted into the lamp shell in a clamping and embedding manner is formed in the lamp end cover body, and a plurality of end cover screw mounting holes are formed in the lamp shell mounting clamping groove.
The light source board is a circuit board with LED lamps. The light source plate is also called LED panel lamp, it is a high-grade indoor lighting lamp, its outer frame is made up by using aluminium alloy through the process of anodic oxidation, and its light source is LED. The LED panel light is unique in design, an even plane light-emitting effect is formed after the light passes through the light guide plate with high light transmittance, the illumination uniformity is good, the light is soft and comfortable, the brightness is not lost, and the eyestrain can be effectively relieved. The LED panel light can also prevent radiation, and does not irritate the skin of pregnant women, old people and children.
Preferably, the lamp shell comprises a lamp shell body, the inner wall of the lamp shell body is provided with an end cover fixing C-shaped hole frame which is in screw connection with the end cover screw mounting holes correspondingly, one end of the lamp shell body and one end of the heat dissipation mounting frame are provided with an insertion frame which is integrated with the lamp shell body, the other end of the lamp shell body and the other end of the heat dissipation mounting frame are provided with an insertion support which is integrated with the lamp shell body, and two sides of the lower end of the lamp shell body are respectively provided with a lamp bottom plate which is inserted into the PC transparent plate in an insertion manner.
The PC transparent plate is also called polycarbonate plate, kaplan plate. The weak acid resistance is formed by using polycarbonate as a main component and adopting a CO-EXTRUSION technology CO-EXTRUSION, and shows that the PC board is resistant to neutral oil, strong acid, durability and alkali, and the PC board is not resistant to UV coating. However, the PC sunlight plate (also called polycarbonate hollow plate, glass cappuccino plate, PC hollow plate) with high temperature resistance and good lighting effect is made of high-performance engineering plastics-Polycarbonate (PC) resin, has the characteristics of high transparency, light weight, impact resistance, sound insulation, heat insulation, flame retardancy, ageing resistance and the like, is a high-tech plastic plate with extremely excellent comprehensive performance, energy conservation and environmental protection, is a plastic building material generally adopted internationally at present, and has incomparable advantages of other building decorative materials (such as glass, organic glass and the like).
Preferably, the upper end of the lamp shell body is provided with a hoisting support inserting and embedding clamping groove, and the hoisting support inserting and embedding clamping groove is provided with a hoisting support which is inserted into the hoisting support inserting and embedding clamping groove and is in clamping and embedding type bolt compression joint with the hoisting support inserting and embedding clamping groove.
Preferably, PVC sealing strips are arranged between the two sides of the PC transparent plate and the lamp bottom plate, and a sealing strip mounting clamping groove which is in clamping and inserting connection with the PVC sealing strips is arranged on the lamp bottom plate. The linear high shed lamp makes the contact of lamps and lanterns bottom plate and PC transparent plate form the protection through the PVC sealing strip, prevents in water invasion the linear high shed lamp, realizes waterproof function.
Preferably, a waterproof silica gel pad which is in embedded sleeve connection with the lamp shell installation clamping groove is arranged between the lamp shell and the lamp shell installation clamping groove. The two side ends of the linear high shed lamp are compressed between the lamp shell and the lamp shell mounting clamping groove through the waterproof silica gel pad, so that the anti-skidding effect is formed on the contact surfaces of the lamp end cover, the lamp shell and the PC transparent plate, and the waterproof effect is achieved.
Preferably, the waterproof silica gel pad comprises a waterproof silica gel pad body, and a plurality of screw through holes correspondingly communicated with the end cover screw mounting holes are formed in the waterproof silica gel pad body.
Preferably, the heat dissipation mounting bracket include arc aluminum plate, arc aluminum plate's both sides lower extreme all be equipped with the L shape mounting bar that is mirror symmetry formula distribution, be equipped with a plurality of T shape mounting bars that are equidistant evenly distributed between two L shape mounting bars. And light source plates are arranged between the L-shaped mounting strip and the T-shaped mounting strip and between two adjacent T-shaped mounting strips.
The utility model discloses can reach following effect:
the utility model provides a linear high shed lamp compares with prior art, has simple structure, simple to operate and the good characteristics of water-proof effects. The problem of lamps and lanterns installation difficulty is solved. The waterproof performance of the linear high shed lamp is improved, and the condition that the electricity utilization safety is influenced by the short circuit caused by water seepage and water leakage is avoided.
Drawings

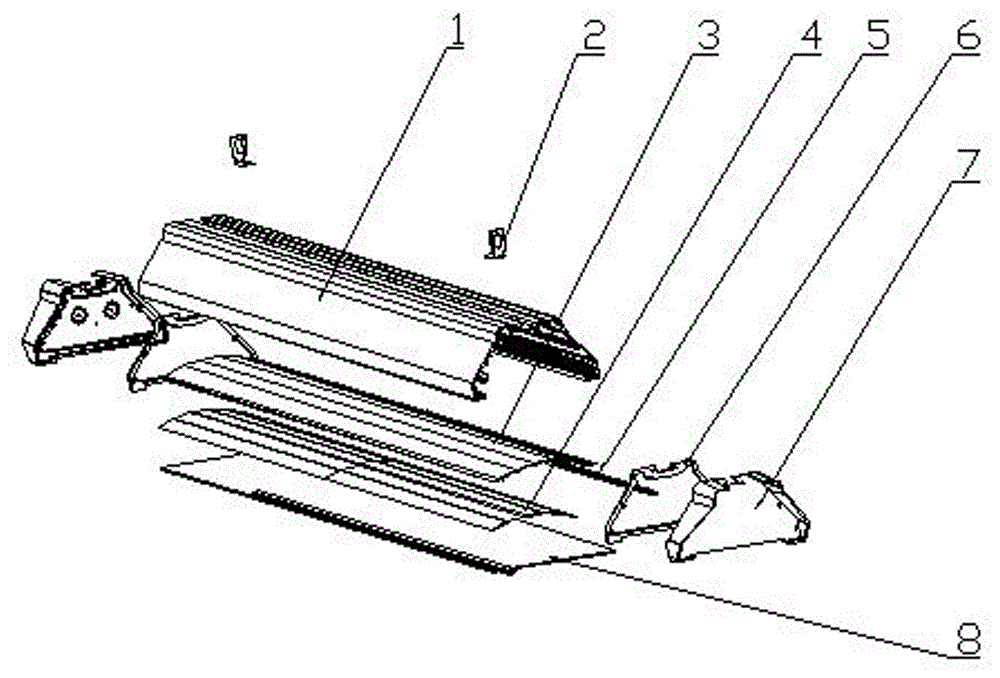

Fig. 1 is an exploded view of the structure of the present invention.
Fig. 2 is a structural sectional view of the present invention.
Fig. 3 is a schematic structural diagram of a lamp housing according to the present invention.
Fig. 4 is a schematic perspective view of a lamp end cap according to the present invention.
Fig. 5 is a schematic structural view of the waterproof silicone pad of the present invention.
Fig. 6 is a schematic structural view of the heat dissipation mounting bracket of the present invention.
Fig. 7 is a schematic perspective view of the PVC sealing strip of the present invention.
In the figure: the lamp comprises a lamp shell 1, a hoisting support 2, a heat dissipation mounting frame 3, a light source plate 4, a PVC sealing strip 5, a waterproof silica gel pad 6, a lamp end cover 7, a PC transparent plate 8, an inserting frame 9, a lamp shell body 10, a hoisting support inserting and embedding clamping groove 11, a C-shaped hole frame 12 fixed by an end cover, an inserting support 13, a sealing strip installing clamping groove 14, a lamp bottom plate 15, an end cover screw installing hole 16, a lamp shell installing clamping groove 17, a lamp end cover body 18, a waterproof silica gel pad body 19, a screw through hole 20, an arc-shaped aluminum plate 21, an L-shaped installing strip 22 and a T-shaped installing strip 23.
Detailed Description
The technical solution of the present invention is further specifically described below by way of examples and with reference to the accompanying drawings.
Example (b): as shown in fig. 1-7, a linear high shed lamp comprises a lamp housing 1, a heat dissipation mounting rack 3 inserted into the lamp housing 1 and connected to the lamp housing in an embedded manner is arranged in the lamp housing 1, the heat dissipation mounting rack 3 comprises an arc-shaped aluminum plate 21, the lower ends of the two sides of the arc-shaped aluminum plate 21 are respectively provided with an L-shaped mounting bar 22 distributed in a mirror symmetry manner, and 4T-shaped mounting bars 23 distributed uniformly at equal intervals are arranged between the two L-shaped mounting bars 22. The lower end of the lamp shell 1 is provided with a PC transparent plate 8 inserted with the lamp shell 1 in a clamping and embedding manner, 10 light source plates 4 connected and fixed with the heat dissipation mounting frame 3 in an inserting and embedding manner are arranged between the PC transparent plate 8 and the heat dissipation mounting frame 3, and lamp end covers 7 connected and fixed with the lamp shell 1 in a clamping and embedding manner through screws are arranged at the two ends of the lamp shell 1. The lamp end cover 7 comprises a lamp end cover body 18, a lamp shell mounting clamping groove 17 which is inserted into the lamp shell 1 in a clamping manner is formed in the lamp end cover body 18, and 6 end cover screw mounting holes 16 are formed in the lamp shell mounting clamping groove 17. A waterproof silica gel pad 6 which is in clamping and sleeving connection with the lamp shell mounting clamping groove 17 is arranged between the lamp shell 1 and the lamp shell mounting clamping groove 17. The waterproof silica gel pad 6 comprises a waterproof silica gel pad body 19, and 6 screw through holes 20 communicated with the end cover screw mounting holes 16 correspondingly are formed in the waterproof silica gel pad body 19.
The lamp shell 1 comprises a lamp shell body 10, a hoisting support inserting and embedding clamping groove 11 is formed in the upper end of the lamp shell body 10, and a hoisting support 2 which is in inserting, moving and clamping type bolt compression joint with the hoisting support inserting and embedding clamping groove 11 is arranged on the hoisting support inserting and embedding clamping groove 11. The fixed C type hole frame 12 of end cover that is equipped with 6 groups and 16 corresponding formula screw connections of end cover screw mounting hole on the inner wall of lamps and lanterns shell body 10, 3 one ends of lamps and lanterns shell body 10 and heat dissipation mounting bracket be equipped with lamps and lanterns shell body 10 and be the integration insert the frame 9, the lamps and lanterns shell body 10 is equipped with the heat dissipation mounting bracket 3 other end and is the integration inlay card support 13 with lamps and lanterns shell body 10, lamps and lanterns shell body 10 lower extreme both sides all are equipped with the lamps and lanterns bottom plate 15 of inserting with the 8 looks inlay cards of PC transparent plate. PVC sealing strips 5 are arranged between two sides of the PC transparent plate 8 and the lamp bottom plate 15, and a sealing strip mounting clamping groove 14 which is inserted with the PVC sealing strips 5 in a clamping manner is arranged on the lamp bottom plate 15.
To sum up, this linear high canopy lamp has simple structure, simple to operate and the good characteristics of water-proof effects. The problem of lamps and lanterns installation difficulty is solved. The waterproof performance of the linear high shed lamp is improved, and the condition that the electricity utilization safety is influenced by the short circuit caused by water seepage and water leakage is avoided.
It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without deviating from the basic characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
In conclusion, the above description is only the specific embodiment of the present invention, but the structural features of the present invention are not limited thereto, and any person skilled in the art can make changes or modifications within the scope of the present invention.
Claims (7)
1. A linear high shed lamp which is characterized in that: the LED lamp comprises a lamp shell (1), wherein a heat dissipation mounting rack (3) which is in inserted-embedded type clamping connection with the lamp shell (1) is arranged in the lamp shell (1), a PC transparent plate (8) which is in inserted-embedded type insertion connection with the lamp shell (1) is arranged at the lower end of the lamp shell (1), a plurality of light source plates (4) which are in inserted-embedded type connection and fixation with the heat dissipation mounting rack (3) are arranged between the PC transparent plate (8) and the heat dissipation mounting rack (3), and lamp end covers (7) which are in inserted-embedded type screw connection and fixation with the lamp shell (1) are arranged at two ends of the lamp shell (1); the lamp end cover (7) comprises a lamp end cover body (18), a lamp shell mounting clamping groove (17) which is inserted into the lamp shell (1) in a clamping manner is formed in the lamp end cover body (18), and a plurality of end cover screw mounting holes (16) are formed in the lamp shell mounting clamping groove (17).
2. A linear high shed lamp as in claim 1, wherein: lamps and lanterns shell (1) including lamps and lanterns shell body (10), lamps and lanterns shell body (10) inner wall on be equipped with the fixed C type hole frame of end cover (12) of the corresponding formula screw connection of end cover screw mounting hole (16), lamps and lanterns shell body (10) be equipped with heat dissipation mounting bracket (3) one end and be the integration with lamps and lanterns shell body (10) insert and inlay frame (9), lamps and lanterns shell body (10) be equipped with heat dissipation mounting bracket (3) the other end and be the inlay card support (13) of integration with lamps and lanterns shell body (10), lamps and lanterns shell body (10) lower extreme both sides all be equipped with lamp bottom plate (15) of inserting with PC transparent plate (8) looks inlay card.
3. A linear high shed lamp as claimed in claim 2, wherein: the lamp is characterized in that a hoisting support inserting and embedding clamping groove (11) is formed in the upper end of the lamp shell body (10), and a hoisting support (2) which is connected with the hoisting support inserting and embedding clamping groove (11) in an inserting and moving clamping and embedding type bolt in a compression joint mode is arranged on the hoisting support inserting and embedding clamping groove (11).
4. A linear high shed lamp as claimed in claim 2, wherein: the LED lamp is characterized in that PVC sealing strips (5) are arranged between two sides of the PC transparent plate (8) and the lamp bottom plate (15), and sealing strip mounting clamping grooves (14) which are inserted with the PVC sealing strips (5) in a clamping manner are formed in the lamp bottom plate (15).
5. A linear high shed lamp as in claim 1, wherein: and a waterproof silica gel pad (6) which is in clamping and sleeving connection with the lamp shell mounting clamping groove (17) is arranged between the lamp shell (1) and the lamp shell mounting clamping groove (17).
6. A linear high shed lamp as claimed in claim 5, wherein: waterproof silica gel pad (6) including waterproof silica gel pad body (19), waterproof silica gel pad body (19) on be equipped with a plurality of with end cover screw mounting hole (16) corresponding formula intercommunication screw through-hole (20).
7. A linear high shed lamp as in claim 1, wherein: radiating mounting bracket (3) include arc aluminum plate (21), the both sides lower extreme of arc aluminum plate (21) all be equipped with L shape mounting bar (22) that are mirror symmetry formula and distribute, be equipped with a plurality of T shape mounting bars (23) that are equidistant evenly distributed between two L shape mounting bars (22).
