本实用新型公开了一种儿科雾化治疗装置，包括底座、雾化箱和面罩，所述底座顶部通过支架连接雾化箱，所述雾化箱内底部通过安装架安装有超声波雾化器，所述雾化箱内顶部通过螺栓安装有喷头，所述喷头一侧通过连接架安装有紫外线灯，所述雾化箱一侧通过安装槽安装有空气质量检测仪，所述雾化箱顶部设置有输出管，且输出管内设置有风扇，所述输出管通过管道连接面罩，所述面罩一侧设置有凹槽，所述凹槽内侧设置有弹簧组，且弹簧组一端连接遮板。本实用新型使用方便，操作简单，且舒适性好，具备消毒和清洗功能，适合被广泛推广和使用。
The utility model discloses a pediatric atomization treatment device, which comprises a base, an atomization box and a mask. The top of the base is connected to the atomization box through a bracket, and an ultrasonic atomizer is installed at the inner bottom of the atomization box through a mounting frame. A spray head is installed on the top of the atomization box through bolts, an ultraviolet lamp is installed on one side of the spray head through a connecting frame, an air quality detector is installed on one side of the atomization box through an installation slot, and the top of the atomization box is installed There is an output pipe, and a fan is arranged in the output pipe. The output pipe is connected to the mask through a pipe, a groove is provided on one side of the mask, and a spring group is arranged inside the groove, and one end of the spring group is connected to the shutter. The utility model has the advantages of convenient use, simple operation, good comfort, disinfection and cleaning functions, and is suitable for being widely popularized and used.
Description
Technical Field
The utility model relates to the technical field of medical equipment, in particular to paediatrics fog inhalation device.
Background
In paediatrics treatment, can utilize atomizing equipment to atomize the liquid medicine and make the patient inhale the respiratory track, reach the treatment purpose, current atomizing equipment is inconvenient to use, does not possess and disinfects and cleaning function, and the travelling comfort is poor, for this reason, we propose a paediatrics atomizing treatment device.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a paediatrics atomizing treatment device, through setting up ultrasonic atomization ware, can utilize ultrasonic energy to atomize into small fog grain with the liquid medicine, through setting up the fan, can take atomizing liquid medicine out, and carry the face guard to supply the patient to inhale, and is simple in operation, and convenient for use, through setting up the spring assembly, make the sunshade have fine elasticity when detaining at patient's face, avoid letting the patient feel uncomfortable, through setting up the shower nozzle, can connect the water pipe with the shower nozzle, thereby conveniently wash atomizing incasement portion, through setting up ultraviolet lamp, utilize ultraviolet lamp can be to the disinfection of disinfecting of atomizing incasement, can effectively solve the problem in the background art.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a paediatrics fog inhalation device, includes base, atomizing case and face guard, the leg joint atomizing case is passed through at the base top, ultrasonic nebulizer is installed through the mounting bracket to the bottom in the atomizing case, the shower nozzle is installed through the bolt in the top in the atomizing case, ultraviolet lamp is installed through the link in shower nozzle one side, air quality detector is installed through the mounting groove in atomizing case one side, atomizing roof portion is provided with the output tube, and is provided with the fan in the output tube, the output tube passes through the pipe connection face guard, face guard one side is provided with the recess, the recess inboard is provided with the spring assembly, and spring assembly one end connection sunshade.
Further, the top of the base is provided with a waste liquid tank, and the bottom of the atomization tank is provided with a discharge pipe.
Further, a transparent protective cover is arranged on the outer side of the ultraviolet lamp.
Further, a temperature sensor is installed at the top of the atomization box through a screw, and the detection end of the temperature sensor is located in the atomization box.
Furthermore, cotton pad is connected to sunshade one side, the spraying of atomizing incasement surface has the antibacterial coating of nanometer.
Compared with the prior art, the utility model discloses following beneficial effect has:
1. through setting up ultrasonic nebulizer, can utilize ultrasonic energy to atomize into small fog particle with the liquid medicine, through setting up the fan, can take atomizing liquid medicine out to carry the face guard and supply the patient to inhale easy operation, facilitate the use.
2. Through setting up the spring assembly for the sunshade has fine elasticity when detaining patient's face, avoids letting the patient feel uncomfortable, through setting up temperature sensor, can detect the temperature of liquid medicine fog grain in the atomizer box, through setting up the air quality detector, is convenient for detect the air quality on every side.
3. Through setting up the shower nozzle, can connect the water pipe with the shower nozzle to the convenience is washed the atomizer incasement portion, through setting up ultraviolet lamp, utilizes ultraviolet lamp can be to the disinfection of disinfecting of atomizer incasement, through setting up the antibacterial coating of nanometer, can restrain the atomizer incasement wall and breed the germ.
Drawings

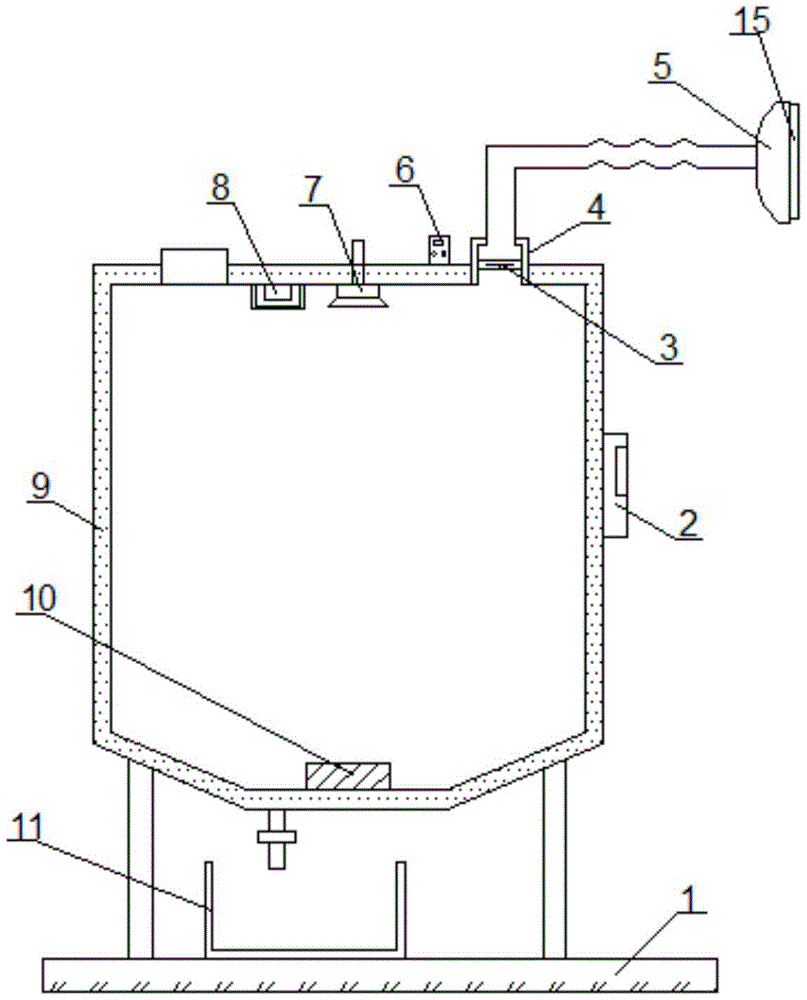

Fig. 1 is the overall structure schematic diagram of the utility model relates to a paediatrics fog inhalation device.
Fig. 2 is the utility model discloses a spring unit schematic diagram of paediatrics fog inhalation device.
Figure 3 is the utility model relates to a paediatrics fog inhalation device's recess schematic diagram.
Figure 4 is the utility model discloses a paediatrics fog inhalation device's antibacterial coating of nanometer schematic diagram.
In the figure: 1. a base; 2. an air quality detector; 3. a fan; 4. an output pipe; 5. a face mask; 6. a temperature sensor; 7. a spray head; 8. an ultraviolet lamp; 9. an atomization box; 10. an ultrasonic atomizer; 11. a waste liquid tank; 12. a groove; 13. a nano bacteriostatic coating; 14. a spring set; 15. a shutter; 16. a cotton pad.
Detailed Description
In order to make the technical means, creation features, achievement purposes and functions of the present invention easy to understand, the present invention is further described below with reference to the following embodiments.
As shown in fig. 1-4, a paediatrics fog inhalation device, including base 1, atomization box 9 and face guard 5, leg joint atomization box 9 is passed through at base 1 top, ultrasonic nebulizer 10 is installed through the mounting bracket to the bottom in the atomization box 9, shower nozzle 7 is installed through the bolt in the top in the atomization box 9, ultraviolet lamp 8 is installed through the link in shower nozzle 7 one side, air quality detector 2 is installed through the mounting groove in atomization box 9 one side, atomization box 9 top is provided with output tube 4, and is provided with fan 3 in the output tube 4, output tube 4 passes through pipe connection face guard 5, face guard 5 one side is provided with recess 12, recess 12 inboard is provided with spring assembly 14, and 14 one end connection sunshade 15 of spring assembly.
Wherein, base 1 top is provided with waste liquid case 11, and atomizing case 9 bottom is provided with the discharge pipe.
Wherein, a transparent protective cover is arranged outside the ultraviolet lamp 8.
In this embodiment, as shown in fig. 1, a transparent shield can provide protection for the ultraviolet lamp 8.
Wherein, temperature sensor 6 is installed through the screw in atomizing case 9 top, and temperature sensor 6's sense terminal is located atomizing case 9.
In this embodiment, as shown in fig. 1, the temperature of the mist of the liquid chemical in the atomizing chamber 9 can be detected by the temperature sensor 6.
Wherein, the cotton pad 16 is connected to sunshade 15 one side, atomizing case 9 internal surface spraying has nanometer antibacterial coating 13.
In this embodiment, as shown in fig. 2 and 4, the nano bacteriostatic coating 13 can inhibit bacteria from growing on the inner wall of the atomization box 9.
It should be noted that the utility model relates to a paediatrics atomization treatment device, in operation, add the liquid medicine into the atomization box 9, start the ultrasonic atomizer 10 (produced by Guangzhou Wooing electrical appliances Co., Ltd.), can utilize ultrasonic energy to atomize the liquid medicine into tiny fog particles, buckle the face mask 5 on the patient's face, the sunshade 15 has good elasticity under the action of the spring assembly 14, avoid the too big degree of pressure of the face mask 5 to make the patient feel uncomfortable, open the fan 3, the fan 3 can take out the atomized liquid medicine, and convey the liquid medicine to the face mask for the patient to inhale, the operation is simple, the use is convenient, utilize the temperature sensor 6 to detect the temperature of the liquid medicine fog particles in the atomization box 9, use the air quality detector 2 to detect the surrounding air quality conveniently, after the treatment is completed, the shower nozzle 7 can be connected with the water pipe, thereby the inside of the atomization box 9 is conveniently washed, and the ultraviolet lamp 8 is turned on to sterilize and disinfect the inside of the atomization box 9, and the nano antibacterial coating 13 can inhibit the inner wall of the atomization box 9 from breeding germs.
The basic principles and the main features of the invention and the advantages of the invention have been shown and described above. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the foregoing embodiments and descriptions are provided only to illustrate the principles of the present invention without departing from the spirit and scope of the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.
