Abstract
本实用新型公开了一种防尘螨过敏防雾口罩，属于防霾抗菌技术领域。包括口罩主体和两个固定带，口罩主体从内至外依次包括无纺布层、过滤层和纱布层，过滤层和纱布层之间设有预留空间；无纺布层与皮肤相贴；过滤层上设有多个穿透过滤层的呼吸通孔，呼吸通孔末端设有活动片，活动片靠近纱布层。该防雾口罩中呼吸通孔能够使口鼻中呼出的气体通畅，由于气体呼出，带动活动片在预留空间中展开，热气更能够快速的排除至口罩外，防止了热气从口罩上方的空隙出去模糊眼镜。同时呼吸通孔向下设置，有效防止热气上走，结构简单。
The utility model discloses a dust-mite allergy anti-fog mask, which belongs to the technical field of anti-haze and antibacterial. It includes a mask body and two fixing straps. The mask body includes a non-woven layer, a filter layer and a gauze layer in sequence from the inside to the outside. There is a reserved space between the filter layer and the gauze layer; the non-woven layer is attached to the skin; The filter layer is provided with a plurality of breathing through holes penetrating the filter layer, and a movable piece is arranged at the end of the breathing through hole, and the movable piece is close to the gauze layer. The breathing holes in the anti-fog mask can make the exhaled gas in the mouth and nose unobstructed. As the gas is exhaled, the movable piece is driven to expand in the reserved space, and the hot air can be quickly discharged to the outside of the mask, preventing the hot air from passing through the gap above the mask. Go out blur glasses. At the same time, the breathing through hole is set downward, which can effectively prevent the hot air from going up, and the structure is simple.
Description
Technical Field
The utility model relates to a prevent antibiotic technical field of haze, concretely relates to antifog gauze mask.
Background
There are two main types of civil masks currently on the market. One type is a disposable mask without a filter layer. Such a mask has the following disadvantages: the material is relatively hard, the sealing performance is poor, the material cannot be repeatedly used, and the replacement rate is high. The other cloth mask with the filter disc generally adopts an insert type structure, and a layer of filter disc is inserted in the middle of cloth, so that the mask blocks particles from being too dense, and unsmooth breathing is easily caused. The breathing hot air can not be effectively discharged when the masks are used in winter, the glasses are easy to generate fog, the visual field is influenced, and great inconvenience is brought to users with the glasses.
SUMMERY OF THE UTILITY MODEL
The utility model provides a can effectively get rid of and breathe steam, prevent that steam from taking the dust mite allergic gauze mask of glasses crowd's field of vision influence.
In order to achieve the above purpose, the present invention is realized by the following technical solutions:
an antifog mask comprises a mask body and two fixing bands, wherein a metal strip is arranged at the upper edge of the mask body; the mask body sequentially comprises a non-woven fabric layer, a filter layer added with nano silver and a gauze layer from inside to outside, and a reserved space is arranged between the filter layer and the gauze layer; the non-woven fabric layer is attached to the skin; the filter layer is provided with a plurality of breathing through holes penetrating through the filter layer, the tail ends of the breathing through holes are provided with movable pieces, and the movable pieces are close to the gauze layer.
Further, the breathing through holes are obliquely arranged.
Furthermore, the breathing through holes are arranged downwards towards the gauze layer.
Furthermore, the vertical included angle of the breathing through holes is 60-90 degrees.
Furthermore, the breathing through holes are uniformly arranged in rows, and the breathing through holes in two adjacent rows are staggered.
Further, the movable sheet and the filter layer are integrally formed.
Furthermore, the area of the movable sheet is larger than the sectional area of the breathing through hole.
The utility model discloses antifog gauze mask of dust mite allergy, its beneficial effect lies in: breathe the through-hole and can make the gas of breathing out unobstructed in the mouth nose, because gas breathing out, drive the movable plate and expand in the headspace, steam can be more quick get rid of outside to the gauze mask, prevented that steam from going out fuzzy glasses from the space of gauze mask top. And meanwhile, the breathing through holes are arranged downwards, so that hot air is effectively prevented from going upwards. The addition of the nano silver can sterilize and resist inflammation, and effectively prevent mites and allergy.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings needed to be used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without inventive exercise.
Fig. 1 is a schematic structural diagram of the present invention;

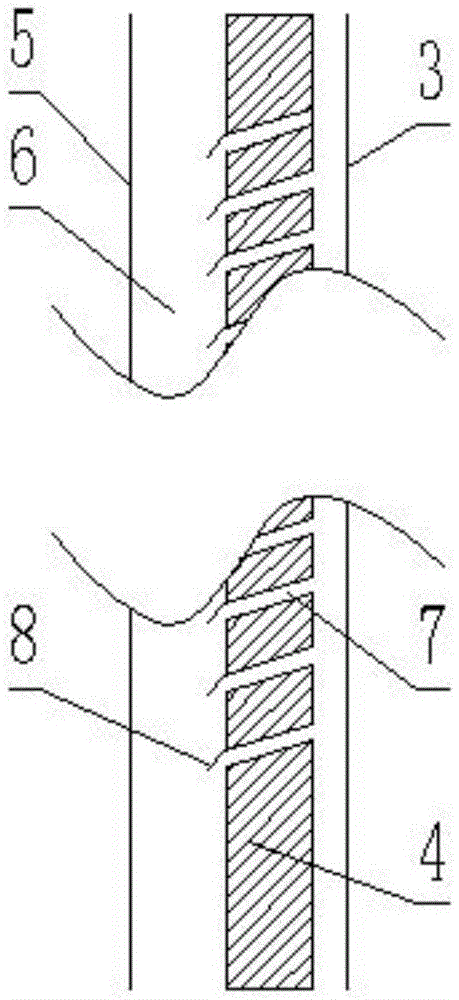

FIG. 2 is a schematic structural view of the body;
the main part of 1, 2 fixed bands, 3 non-woven fabrics layer, 4 filter layers, 5 gauze layer, 6 headspace, 7 breathing through-holes, 8 activity pieces, 9 metal strips.
Detailed Description
The present invention will be described in further detail with reference to the following embodiments and accompanying drawings.
A dustproof mite allergy anti-fog mask is shown in figures 1 and 2 and comprises a mask main body 1 and two fixing bands 2, wherein the upper edge of the mask main body 1 is provided with a metal strip 9; the metal strip is deformable, is conventional in the prior art, and is made of materials. The mask body 1 sequentially comprises a non-woven fabric layer 3, a filter layer 4 added with nano silver and a gauze layer 5 from inside to outside, and a reserved space 6 is arranged between the filter layer 4 and the gauze layer 5; the non-woven fabric layer 3 is adhered to the skin; be equipped with a plurality of breathing through-holes 7 that pierce through filter layer 4 on the filter layer 4, breathing through-hole 7 is even to be set up between the line, breathing through-hole 7 between two adjacent lines is crisscross each other, the directional gauze layer 5 of breathing through-hole 7 sets up downwards, the vertical contained angle of breathing through-hole 7 is 60, breathing through-hole 7 end is equipped with movable plate 8, movable plate 8 and filter layer 4 integrated into one piece, the area of movable plate 8 is greater than the sectional area of breathing through-hole 7, movable plate 8 is close to gauze layer 5.
The movable sheet 8 blows the movable sheet 8 to fly upwards and leave the breathing through hole 7 when breathing out according to breathing rhythm, so that hot air is rapidly discharged. When breathing in, the movable sheet 8 is sucked back to be attached to the breathing through hole 7 due to pressure difference, and air enters the nose from the movable sheet 8. The movable sheet 8 and the filter layer 4 are made of the same material and have the filtering characteristic, so that clean air can be sucked. The filter layer 4 can adopt melt-blown non-woven fabrics, static cotton, nanofiber, graphite alkene filter media, PTFE (polytetrafluoroethylene) fibre and tectorial membrane filter material, photocatalyst, any one in the active carbon, also can be that multiple material is integrated together, also can select simultaneously to have the filter layer 4 who removes flavor function, moisturizing function, high-efficient filtering capability etc. the user can carry out reasonable selection according to the actual demand like this, provides more choice spaces for the user.
The technical solutions provided by the embodiments of the present invention are described in detail above, and the principles and embodiments of the present invention are explained herein by using specific examples, and the descriptions of the above embodiments are only applicable to help understand the principles of the embodiments of the present invention; meanwhile, for a person skilled in the art, according to the embodiments of the present invention, there may be variations in the specific implementation manners and application ranges, and in summary, the content of the description should not be construed as a limitation to the present invention.
Claims (7)
1. The utility model provides an antifog gauze mask of dust mite allergy which characterized in that: the mask comprises a mask body and two fixing bands, wherein a metal strip is arranged at the upper edge of the mask body; the mask body sequentially comprises a non-woven fabric layer, a filter layer added with nano silver and a gauze layer from inside to outside, and a reserved space is arranged between the filter layer and the gauze layer; the non-woven fabric layer is attached to the skin; the filter layer is provided with a plurality of breathing through holes penetrating through the filter layer, the tail ends of the breathing through holes are provided with movable pieces, and the movable pieces are close to the gauze layer.
2. The anti-dust mite allergy and anti-fog mask as claimed in claim 1, wherein: the breathing through holes are obliquely arranged.
3. The anti-dust mite allergy and anti-fog mask as claimed in claim 2, wherein: the breathing through holes are arranged downwards towards the gauze layer.
4. The anti-dust mite allergy and anti-fog mask as claimed in claim 3, wherein: the vertical included angle of the breathing through holes is 60-90 degrees.
5. The anti-dust mite allergy and anti-fog mask as claimed in claim 4, wherein: the breathing through holes are uniformly arranged in rows, and the breathing through holes in two adjacent rows are staggered.
6. The anti-dust mite allergy and anti-fog mask as claimed in claim 1, wherein: the movable sheet and the filter layer are integrally formed.
7. The anti-dust mite allergy and anti-fog mask as claimed in claim 1, wherein: the area of the movable sheet is larger than the sectional area of the breathing through hole.
