Abstract
The utility model discloses a novel curtain machine is rolled up in greenhouse, including greenhouse frame body, support frame, carriage, support frame, the support frame is located greenhouse frame body one end, and the carriage is located greenhouse frame body one side, the support frame upper end is provided with links up the frame, and the support frame has No. two rotary rods with linking up transversely alternate between the frame. The third motor will drive its second rotary rod through a gear and rotate, and will drive when second rotary rod rotates in its support frame and link up the frame and carry out slow rotation, when linking up the frame when slow rotation, the slider will receive the touching offset pressure of its rotary rod and big-arch shelter framework to slide in its linking frame is inside, and a motor is opened and will be twined its heat preservation coiled material through the rotation of a rotary rod, and when second motor rotated, the connecting rod will twine its rope, and the rope will be through rotatory cover pulling its second rotary rod and carry out the friction slip at big-arch shelter framework surface, thereby can be fine carry out the rolling to its heat preservation coiled material.
Description
Technical Field
The utility model relates to a roll up the curtain machine, specifically a novel greenhouse rolls up curtain machine.
Background
With the continuous development of facility agriculture in China, a plurality of advanced mechanization technologies and machines are applied to implementation production; the energy-saving sunlight greenhouse is a unique greenhouse type in northern areas of China, when the external temperature is low, the exterior of the greenhouse needs to be covered with heat-insulating materials, and when the external temperature is suitable and needs to be illuminated, the heat-insulating materials need to be removed; because the manual rolling and releasing of the heat insulation material has high labor intensity and low efficiency, the mechanical rolling technology and the machine are developed rapidly.
However, the existing rolling blind machine has poor rolling blind effect. Therefore, those skilled in the art have provided a new type of greenhouse rolling machine to solve the above problems in the background art.
Disclosure of Invention
An object of the utility model is to provide a novel curtain machine is rolled up in greenhouse to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
a novel greenhouse curtain rolling machine comprises a greenhouse frame body, a support frame and a support frame, wherein the support frame is positioned at one end of the greenhouse frame body, the support frame is positioned on one side of the greenhouse frame body, a connecting frame is arranged at the upper end of the support frame, a second rotary rod is transversely inserted between the support frame and the connecting frame, a first gear is welded at one end of the second rotary rod, a third motor is arranged on one side of the support frame, a sliding block is slidably clamped inside the connecting frame, a first motor is arranged on one side of the connecting frame, a fixed rod is fixedly connected between the sliding block and the first motor, a first rotary rod is inserted inside the sliding block, the first rotary rod is rotatably connected with the first motor, a rotary sleeve is sleeved at the center of the outer surface of the first rotary rod;
support frame one side lower extreme fixedly connected with No. two motors and fixed plate, No. two motors are located fixed plate one side, and No. two motor one end is rotated and is connected with the connecting rod, and the winding has the rope between connecting rod and the swivel mount.
The staff opens its motor and motor two with the controller, motor three will drive its rotary rod two through a gear and rotate, and will drive when rotating in its support frame when rotary rod two and link up the frame and carry out slow rotation, and when linking up the frame at slow rotation, the slider will receive the pressure of touching of its rotary rod and big-arch shelter framework and slide in its linking frame is inside, and motor one opens and will twine its heat preservation coiled material through the rotation of a rotary rod, and when motor two rotated, the connecting rod will twine its rope, and the rope will be through the friction slip of its rotary rod at big-arch shelter framework surface of swivel sleeve pulling No. two rotary rods, thereby can be fine roll up its heat preservation coiled material.
As a further aspect of the present invention: no. three motor lower extreme fixedly connected with backup pad, backup pad and support frame fixed connection.
As a further aspect of the present invention: no. three motor upper ends are rotated and are connected with the pivot, and the welding of pivot upper end has No. two gears, No. two gears and a gear engagement.
As a further aspect of the present invention: the bearing is embedded in the fixed plate and is rotationally connected with the connecting rod.
As a further aspect of the present invention: the support frame one side is provided with the controller, and the controller is rather than a motor, No. two motors, No. three motor electric connection respectively.
As a further aspect of the present invention: no. two rotary rods are fixed with the linking frame, and No. two rotary rods rotate with the support frame.
Compared with the prior art, the beneficial effects of the utility model are that:
the staff opens its motor and motor two with the controller, motor three will drive its rotary rod two through a gear and rotate, and will drive when rotating in its support frame when rotary rod two and link up the frame and carry out slow rotation, and when linking up the frame at slow rotation, the slider will receive the pressure of touching of its rotary rod and big-arch shelter framework and slide in its linking frame is inside, and motor one opens and will twine its heat preservation coiled material through the rotation of a rotary rod, and when motor two rotated, the connecting rod will twine its rope, and the rope will be through the friction slip of its rotary rod at big-arch shelter framework surface of swivel sleeve pulling No. two rotary rods, thereby can be fine roll up its heat preservation coiled material.
Drawings

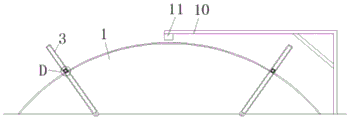

Fig. 1 is a schematic structural diagram of a novel greenhouse curtain rolling machine.
Fig. 2 is a schematic view of the connection frame of the novel greenhouse curtain rolling machine.
Fig. 3 is an enlarged view of a new greenhouse roller blind machine at a.
Fig. 4 is an enlarged view of the position B in the novel greenhouse curtain rolling machine.
Fig. 5 is an enlarged view of the C in the novel greenhouse roller blind machine.
Fig. 6 is an enlarged view of the position D in the novel greenhouse curtain rolling machine.
In the figure: 1. a greenhouse frame body; 2. insulating coiled materials; 3. a connecting frame; 4. a slider; 5. a first rotating rod; 6. a first motor; 8. fixing the rod; 9. a rotating sleeve; 10. a support frame; 11. a second motor; 12. a connecting rod; 13. a fixing plate; 14. a bearing; 15. a rope; 16. a support frame; 17. a second rotating rod; 18. a first gear; 19. a support plate; 20. a third motor; 21. a rotating shaft; 22. and a second gear.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-6, in an embodiment of the present invention, a novel greenhouse rolling machine comprises a greenhouse frame 1, a supporting frame 16, and a supporting frame 10, wherein the supporting frame 16 is located at one end of the greenhouse frame 1, the supporting frame 10 is located at one side of the greenhouse frame 1, the upper end of the support frame 16 is provided with a connecting frame 3, a second rotary rod 17 is transversely inserted between the support frame 16 and the connecting frame 3, a first gear 18 is welded at one end of the second rotary rod 17, a third motor 20 is arranged on one side of the support frame 16, a sliding block 4 is slidably clamped in the connecting frame 3, a first motor 6 is arranged on one side of the connecting frame 3 close to the sliding block 4, a fixed rod 8 is fixedly connected between the sliding block 4 and the first motor 6, a first rotary rod 5 is inserted in the sliding block 4, the first rotary rod 5 is rotatably connected with the first motor 6, a rotary sleeve 9 is sleeved at the center of the outer surface of the first rotary rod 5, and a heat-insulating coiled material 2 is wound on the outer surface of the;
The operator turns on the third motor 20 and the second motor 11, the third motor 20 will drive the second rotary rod 17 to rotate through the first gear 18, when the second rotary rod 17 rotates in the supporting frame 16, it will drive the connecting frame 3 to slowly rotate, and when the connecting frame 3 rotates slowly, the sliding block 4 will slide in the connecting frame 3 by the contact and abutting pressure of the rotating rod 5 and the greenhouse frame 1, and the starting of the first motor 6 winds the heat preservation coiled material 2 through the rotation of the first rotating rod 5, and the second motor 11 rotates, the connecting rod 12 winds the rope 15 thereof, the rope 15 pulls the second rotating rod 17 to slide on the outer surface of the greenhouse frame 1 through the rotating sleeve 9, so that the heat-insulating coiled material 2 can be well rolled.
The lower end of the third motor 20 is fixedly connected with a supporting plate 19, and the supporting plate 19 is fixedly connected with the supporting frame 16.
No. three motor 20 upper ends are rotated and are connected with pivot 21, and the welding of pivot 21 upper end has No. two gears 22, and No. two gears 22 and a gear 18 meshing.
A bearing 14 is embedded in the fixed plate 13, and the bearing 14 is rotatably connected with the connecting rod 12.
And a controller is arranged on one side of the support frame 16 and is electrically connected with the first motor 6, the second motor 11 and the third motor 20 respectively.
The second rotating rod 17 is fixed with the connecting frame 3, and the second rotating rod 17 rotates with the support frame 16.
The utility model discloses a theory of operation is:
the operator turns on the third motor 20 and the second motor 11, the third motor 20 will drive the second rotary rod 17 to rotate through the first gear 18, when the second rotary rod 17 rotates in the supporting frame 16, it will drive the connecting frame 3 to slowly rotate, and when the connecting frame 3 rotates slowly, the sliding block 4 will slide in the connecting frame 3 by the contact and abutting pressure of the rotating rod 5 and the greenhouse frame 1, and the starting of the first motor 6 winds the heat preservation coiled material 2 through the rotation of the first rotating rod 5, and the second motor 11 rotates, the connecting rod 12 winds the rope 15 thereof, the rope 15 pulls the second rotating rod 17 to slide on the outer surface of the greenhouse frame 1 through the rotating sleeve 9, so that the heat-insulating coiled material 2 can be well rolled. (to ensure that the cable 15 does not lose its protective film on the greenhouse when it is retracted, the worker can lay a protective plastic mat or the like on the cable path)
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. A novel greenhouse curtain rolling machine is characterized by comprising a greenhouse frame body (1), a supporting frame (16) and a supporting frame (10), wherein the supporting frame (16) is positioned at one end of the greenhouse frame body (1), the supporting frame (10) is positioned at one side of the greenhouse frame body (1), a connecting frame (3) is arranged at the upper end of the supporting frame (16), a second rotary rod (17) is transversely inserted between the supporting frame (16) and the connecting frame (3), a first gear (18) is welded at one end of the second rotary rod (17), a third motor (20) is arranged at one side of the supporting frame (16), a sliding block (4) is slidably clamped inside the connecting frame (3), a first motor (6) is arranged at one side of the connecting frame (3) close to the sliding block (4), a fixing rod (8) is fixedly connected between the sliding block (4) and the first motor (6), and a first rotary rod (5) is inserted inside the sliding block (4), the first rotating rod (5) is rotationally connected with the first motor (6), a rotating sleeve (9) is sleeved at the center of the outer surface of the first rotating rod (5), and a heat-insulating coiled material (2) is wound on the outer surface of the first rotating rod (5);
support frame (10) one side lower extreme fixedly connected with No. two motor (11) and fixed plate (13), No. two motor (11) are located fixed plate (13) one side, and No. two motor (11) one end is rotated and is connected with connecting rod (12), and the winding has rope (15) between connecting rod (12) and swivel mount (9).
2. The novel greenhouse curtain rolling machine as claimed in claim 1, wherein a support plate (19) is fixedly connected to the lower end of the third motor (20), and the support plate (19) is fixedly connected with the support frame (16).
3. The novel greenhouse curtain rolling machine as claimed in claim 1, wherein a rotating shaft (21) is rotatably connected to the upper end of the third motor (20), a second gear (22) is welded to the upper end of the rotating shaft (21), and the second gear (22) is meshed with the first gear (18).
4. The novel greenhouse curtain rolling machine as claimed in claim 1, wherein a bearing (14) is embedded in the fixing plate (13), and the bearing (14) is rotatably connected with the connecting rod (12).
5. The novel greenhouse curtain rolling machine as claimed in claim 1, wherein a controller is arranged on one side of the support frame (16), and the controller is electrically connected with a first motor (6), a second motor (11) and a third motor (20) of the controller respectively.
6. The novel greenhouse curtain rolling machine as claimed in claim 1, wherein the second rotating rod (17) is fixed with the connecting frame (3), and the second rotating rod (17) rotates with the supporting frame (16).
